EMU SMIF Batch ID Reader for 200mm Wafers

Overview

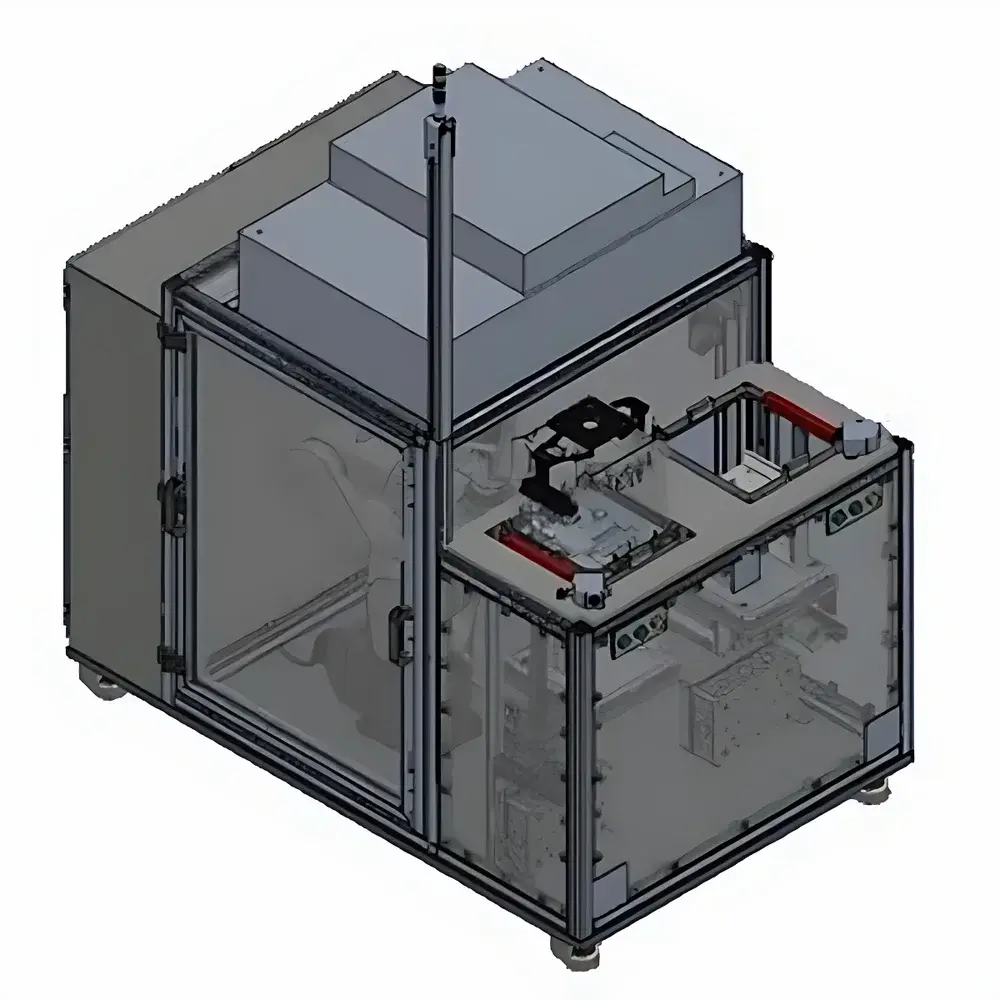

The EMU SMIF Batch ID Reader is a fully integrated semiconductor automation subsystem engineered for high-integrity, high-throughput identification and traceability of 200 mm wafers within SMIF (Standard Mechanical Interface) environments. It operates on the principle of optical barcode and RFID interrogation—leveraging the IDWR200SMIF reader module—to capture and validate lot-level identifiers encoded on SMIF pod carriers and associated wafer cassettes. Unlike standalone readers, this system embeds deterministic material handling via a certified KUKA robotic arm and synchronized SMIF load port actuation, enabling end-to-end automation of pod opening, cassette extraction, ID verification, and resealing—all within a compact, Class 100-compatible mini-environment. Designed specifically for front-end fabrication facilities adhering to SEMI standards, it eliminates manual intervention in critical traceability steps while supporting real-time data exchange with MES and host factory automation systems.

Key Features

• Fully integrated architecture combining EMU’s IDWR200SMIF reader, KUKA KR6 R900 six-axis robot, and dual SMIF load ports compliant with SEMI E152 and E170 specifications
• Automated SMIF pod docking, pressure-controlled lid actuation, and cassette handling with sub-100 µm repeatability
• GEM300-compliant communication stack with native SEMI E84 (SECS/GEM) interface for seamless integration into 300 mm–compatible fab automation infrastructures
• Modular motherboard platform shared across EMU’s broader semiconductor handler product family—including sorters, aligners, lifters, and edge inspection modules—ensuring hardware commonality, firmware consistency, and reduced spares inventory
• Unified motion control architecture: single motor type (brushless servo) drives all X/Y/Z axes across all EMU handler variants, simplifying maintenance, calibration, and technician training
• Open customization framework supporting customer-defined workflows, custom ID parsing logic, extended audit logging, and integration with legacy SECS-II or HSMS-based host systems

Sample Compatibility & Compliance

The system is validated for 200 mm silicon wafers housed in standard SMIF pods conforming to SEMI E1.11 and E170. It supports both linear barcodes (Code 128, DataMatrix) and ISO/IEC 15693-compliant RFID tags mounted on pod lids or cassette frames. All mechanical interfaces meet SEMI S2 (safety) and S8 (ergonomics) requirements. The enclosure maintains positive pressure and particle filtration per ISO Class 5 (Class 100), and electrical design complies with CE, UL 61010-1, and SEMI F47 voltage sag immunity standards. Full traceability logs—including timestamped ID reads, robot position data, pod open/close events, and error codes—are retained locally and exportable in CSV or XML formats for GLP/GMP-aligned documentation.

Software & Data Management

The embedded controller runs EMU’s proprietary Handler Control Software (HCS v4.x), featuring real-time state monitoring, configurable pass/fail criteria for ID validation, and automated retry protocols for marginal scans. Audit trails include full event history with user authentication, change timestamps, and digital signatures—meeting FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated manufacturing environments. Data export supports OPC UA and MQTT protocols for integration with cloud-based analytics platforms or on-premise MES solutions such as Applied Materials’ EnduraLink or PDF Solutions’ Exensio. Firmware updates are delivered via secure HTTPS with SHA-256 signature verification and rollback capability.

Applications

• Automated lot identification prior to photolithography, etch, or deposition tools to enforce recipe binding and prevent cross-lot contamination
• SMIF pod-to-pod transfer validation during material handoff between process modules or cleanroom zones
• Wafer-level traceability for qualification lots, engineering change orders (ECOs), and failure analysis root cause investigations
• Integration into cluster tool front-ends requiring rapid, unattended ID confirmation before chamber loading
• Support for advanced packaging lines using hybrid SMIF/FOUP configurations where legacy 200 mm infrastructure coexists with newer platforms

FAQ

Does the SMIF Batch ID Reader support 300 mm wafers?
No—this configuration is specifically engineered for 200 mm wafers and associated SMIF pod geometries per SEMI E170-0204. A separate 300 mm variant (IDWR300SMIF) is available under EMU’s modular platform.
Can the system operate without GEM300 connectivity?
Yes—standalone mode is supported via local HMI with manual job initiation and CSV log export; however, full traceability and MES synchronization require GEM300/E84 compliance.
What level of maintenance does the KUKA robot require?
The KR6 R900 arm is rated for 20,000 operating hours between major service intervals; EMU provides predictive maintenance alerts via HCS based on cycle count, motor current profiling, and encoder drift diagnostics.
Is RFID reading mandatory, or can it operate with barcodes only?
Both modalities are supported simultaneously; the IDWR200SMIF module performs parallel optical and RF interrogation and reconciles results via configurable priority rules.
How is system calibration verified for production use?
Each unit ships with NIST-traceable calibration certificates for robot positioning accuracy (±0.02 mm) and reader decode reliability (>99.999% at 10 mil resolution), validated per SEMI E172 test procedures.
