Overview

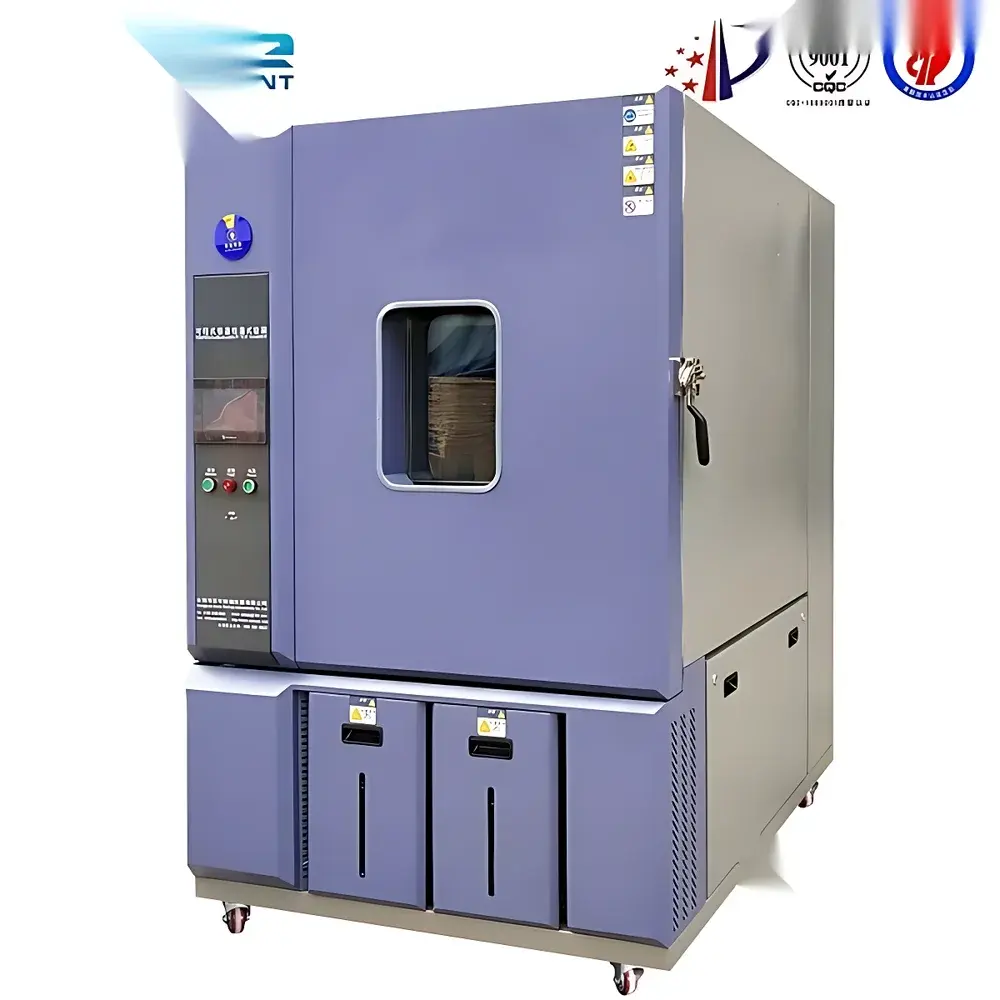

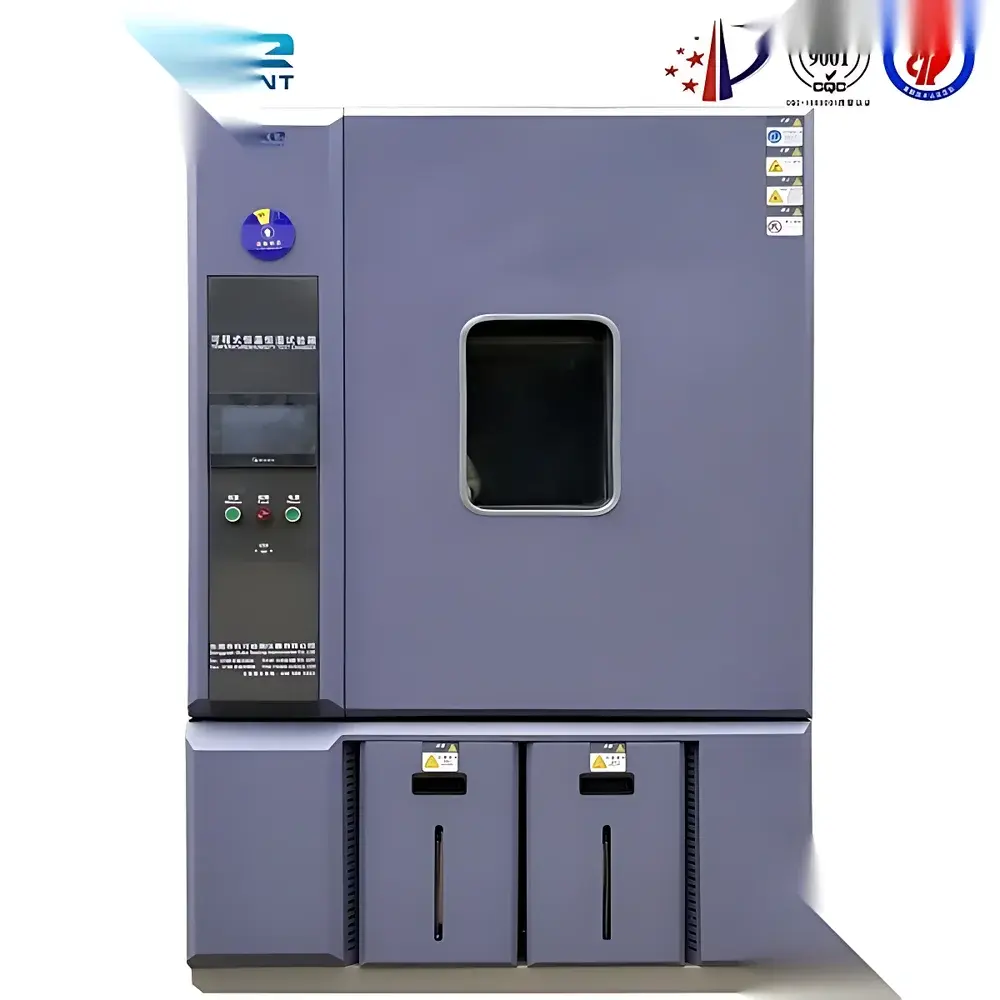

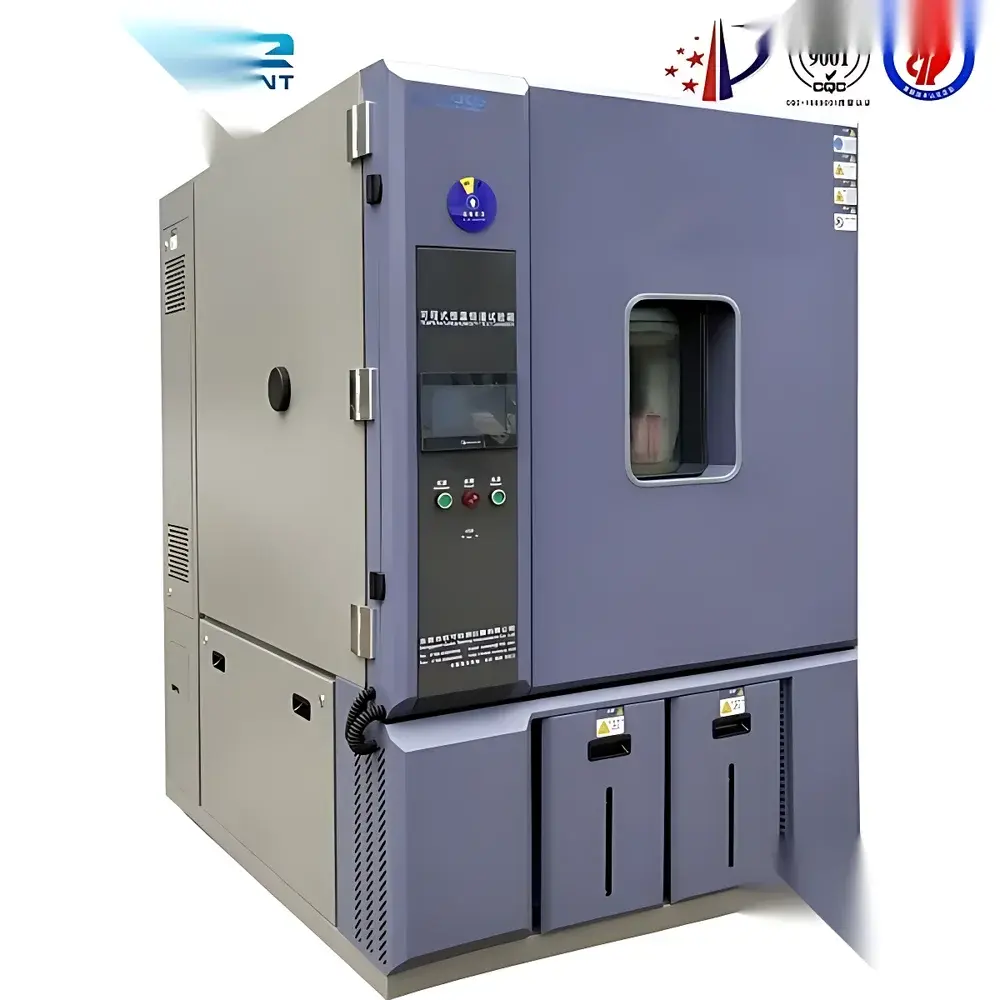

The Precision Temperature and Humidity Controlled Environmental Test Chamber is an engineered platform for rigorous environmental simulation and reliability validation of materials, components, and finished products under tightly regulated thermal and hygrothermal conditions. Based on the principle of forced-air convection combined with precision PID-controlled heating, refrigeration, and steam-based humidification, the chamber delivers stable, repeatable, and traceable environmental profiles across a wide operational envelope. Designed to meet the physical property testing requirements of R&D laboratories, quality assurance departments, and certification bodies, it supports both steady-state (constant) and dynamic (cyclic) test protocols—including high-temperature exposure, low-temperature storage, constant damp heat, and programmable humidity-temperature cycling. Its architecture complies with fundamental thermal management principles defined in ISO 16750-4, IEC 60068-3-5, and ASTM E145—ensuring consistent air velocity, minimized thermal gradients, and minimal dew-point hysteresis during transitions.

Key Features

• Multi-grade temperature capability: Four standardized operating ranges—from ambient-referenced (0 °C to +150 °C) to ultra-low-temperature (-70 °C to +150 °C)—allow selection based on application-specific stress levels.
• High-fidelity humidity control: Steam-generator-based humidification system enables precise RH regulation from 20 %RH up to 98 %RH; optional extended range configurations support specialized testing per MIL-STD-810H Method 507.6 and IEC 60068-2-30.
• Thermal performance metrics validated per IEC 60068-3-5: uniformity ≤ ±0.5 °C and ≤ ±2.5 %RH across working volume; stability maintained within ±2 °C and +2–3 %RH over extended dwell periods.
• Dual-stage refrigeration circuit using environmentally compliant R404A/R23 refrigerant blend ensures rapid cooling response (~1.0 °C/min) and long-term compressor reliability under continuous operation.
• SUS#304 stainless steel construction—both interior chamber and outer casing—provides corrosion resistance, non-outgassing surfaces, and compatibility with cleanroom and pharmaceutical validation environments.
• Intuitive touchscreen controller with real-time graphing, multi-segment program editing, data logging (internal SD card), and configurable alarm thresholds—including door-open detection, over-temperature, and humidity deviation alerts.

Sample Compatibility & Compliance

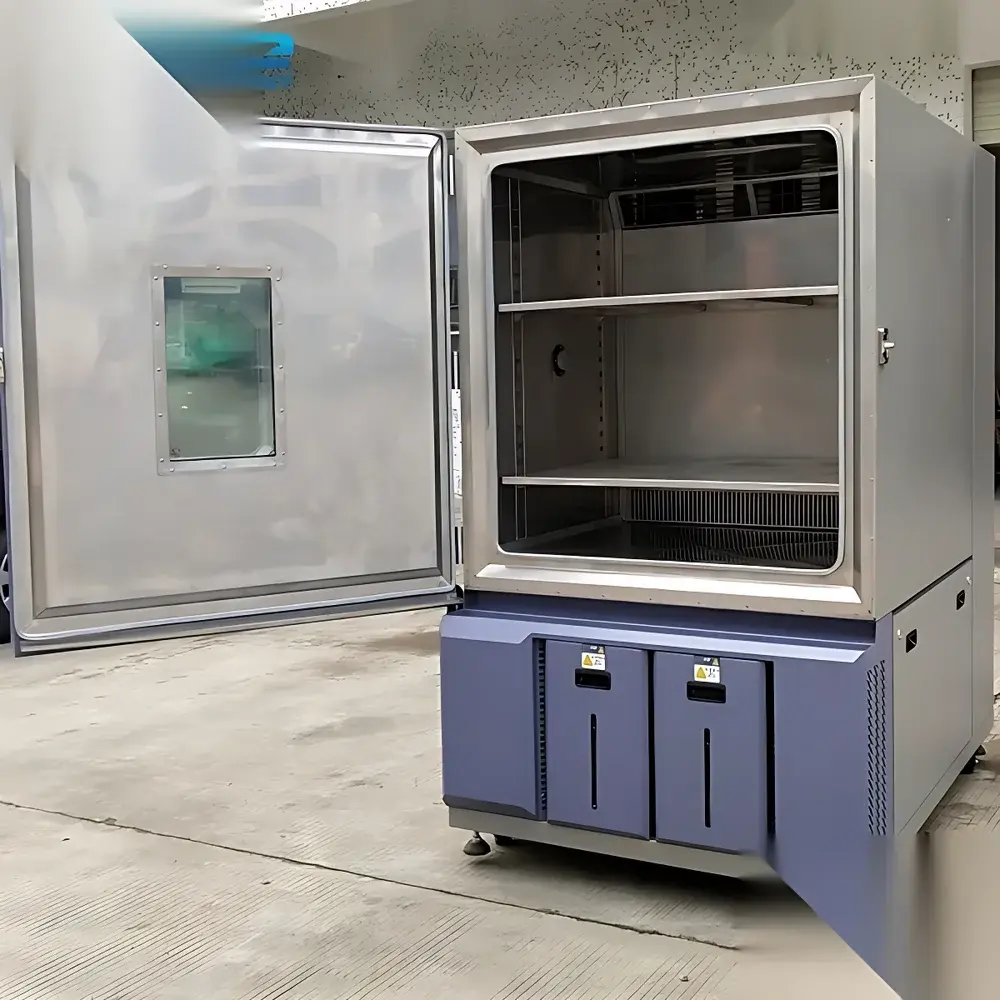

The chamber accommodates diverse sample geometries through six standardized internal volumes (80 L to 1000 L), with customizable internal configurations available upon request—including additional cable ports, reinforced shelves, and inert gas purge interfaces. All models are designed and tested to satisfy core environmental test standards including: GB/T 2423.1–2022 (cold), GB/T 2423.2–2022 (dry heat), GB/T 2423.3–2016 (damp heat, steady state), GB/T 2423.4–2016 (damp heat, cyclic), GJB 150.3A–2009 and GJB 150.4A–2009 (military environmental test methods), and IEC 60068-2 series. Optional calibration documentation includes NIST-traceable certificates for temperature and humidity sensors, supporting GLP/GMP-aligned laboratory audits and ISO/IEC 17025 accreditation requirements.

Software & Data Management

The embedded controller supports local data recording at user-defined intervals (1 s to 60 min resolution) with timestamped CSV export via USB. For networked environments, optional Ethernet or RS485 connectivity enables integration with centralized laboratory information management systems (LIMS) or SCADA platforms. Software packages include PC-based remote monitoring tools with real-time trend visualization, automated report generation (PDF/Excel), and audit trail functionality compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, user access levels, and immutable event logs. Firmware updates are delivered via secure HTTPS download and validated checksum verification.

Applications

This environmental test chamber serves critical functions across multiple sectors: accelerated aging of polymer composites and adhesives; shelf-life evaluation of pharmaceutical packaging under ICH Q1A(R2) conditions; thermal cycling validation of automotive ECUs per ISO 16750-4; moisture ingress testing of consumer electronics per JEDEC JESD22-A101; qualification of aerospace components per RTCA DO-160 Section 4; and material stability assessment in academic materials science research. Its reproducible performance makes it suitable for comparative studies requiring inter-laboratory consistency, as well as for internal process validation prior to third-party certification.

FAQ

What is the standard warranty period for this chamber?

Standard warranty covers 24 months from commissioning date, including parts and labor for all major subsystems (refrigeration, control electronics, humidification). Extended service plans are available.

Can the chamber be integrated into an existing building management system (BMS)?

Yes—via Modbus RTU (RS485) or optional BACnet/IP protocol, enabling status monitoring, setpoint adjustment, and alarm forwarding through facility-wide networks.

Is validation support provided for IQ/OQ/PQ documentation?

Comprehensive validation templates (including URS, FRS, and protocol drafts), as well as on-site or remote assistance from qualified validation engineers, are offered as an add-on service.

Are custom internal dimensions or special coatings available?

Yes—custom chamber volumes, electropolished interiors, anti-static finishes, and inert gas purging options can be engineered per customer specifications.

How is temperature and humidity sensor calibration maintained over time?

The system supports periodic in-situ calibration using certified reference probes; built-in sensor diagnostics flag drift beyond ±0.3 °C or ±1.5 %RH, triggering maintenance alerts.
