Overview

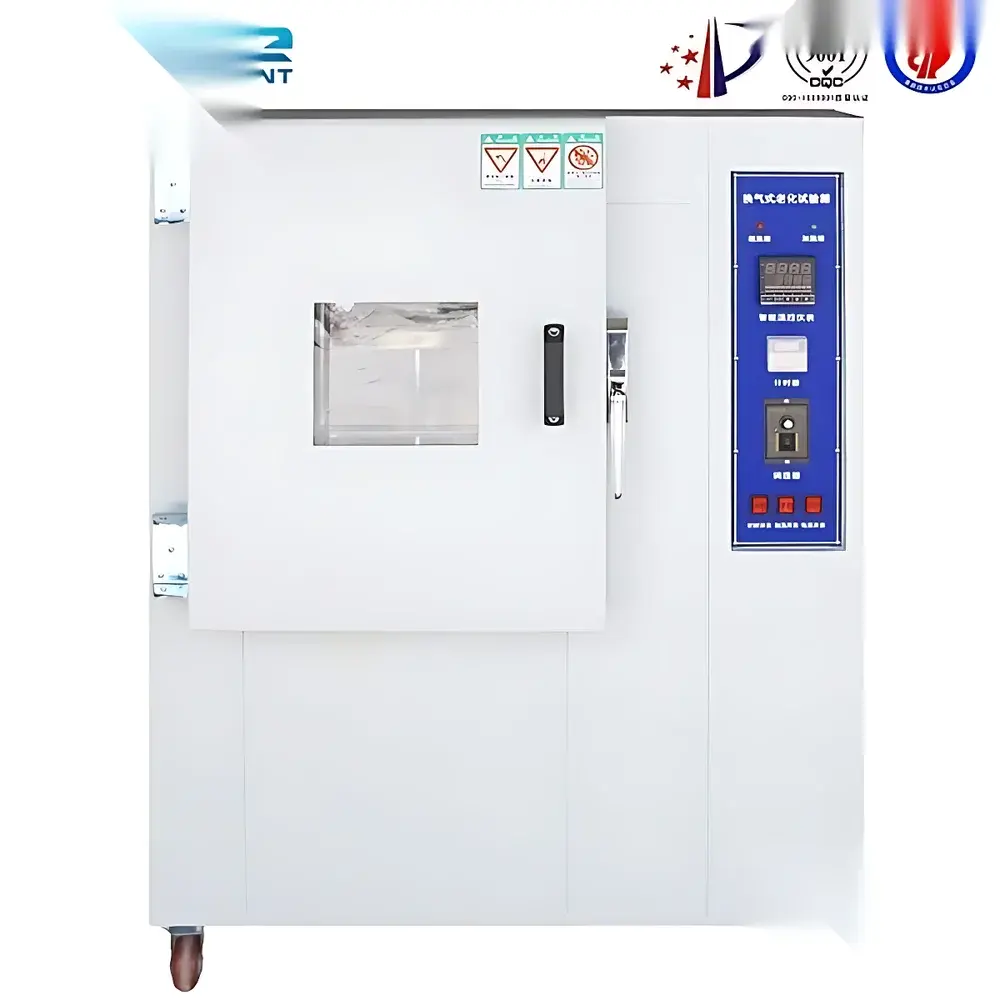

The OK-HQ Series Compact Air-Exchange Thermal Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging evaluation of polymeric and insulating materials under controlled air exchange conditions. Based on the principle of forced-convection thermal exposure with regulated atmospheric renewal, it replicates long-term service degradation mechanisms—such as oxidative chain scission, crosslinking, and volatilization—induced by elevated temperatures and ambient oxygen ingress. Unlike static ovens, this chamber integrates a precision-calibrated air exchange mechanism compliant with ASTM D5423-09 (Type II) requirements for laboratory forced-ventilation ovens used in electrical insulation testing. Its modular design supports multiple internal volume configurations (100 L to 800 L), enabling scalability from R&D screening to QC batch validation across wire & cable, elastomers, textiles, and plastic components.

Key Features

• Precision-engineered air exchange regulation system with digital flow control, supporting adjustable exchange rates from 2 to 100 cycles per hour and programmable interval timing (1 minute to 99 hours).
• Horizontal forced-air circulation architecture featuring high-temperature-rated centrifugal blower and optimized baffle-guided airflow paths, ensuring temperature uniformity ≤ ±2°C across the working chamber.
• Microprocessor-based PID + SSR temperature controller with 0.1°C resolution for both setpoint and real-time display, integrated with programmable timer (1–9999 minutes) and auto-shutdown upon cycle completion.
• Double-walled construction: inner chamber fabricated from polished SUS304 stainless steel (mirror finish, argon arc welded); outer shell made of A3 cold-rolled steel with electrostatic powder coating for corrosion resistance and cleanroom-compatible surface integrity.
• High-efficiency thermal insulation using 100 mm thick ultra-fine glass fiber cotton, minimizing standby heat loss and improving energy reproducibility during extended aging cycles.
• Standardized Ø50 mm test port on left sidewall, sealed with silicone gasket, facilitating external power/signal feedthrough for in-situ monitoring or load application.

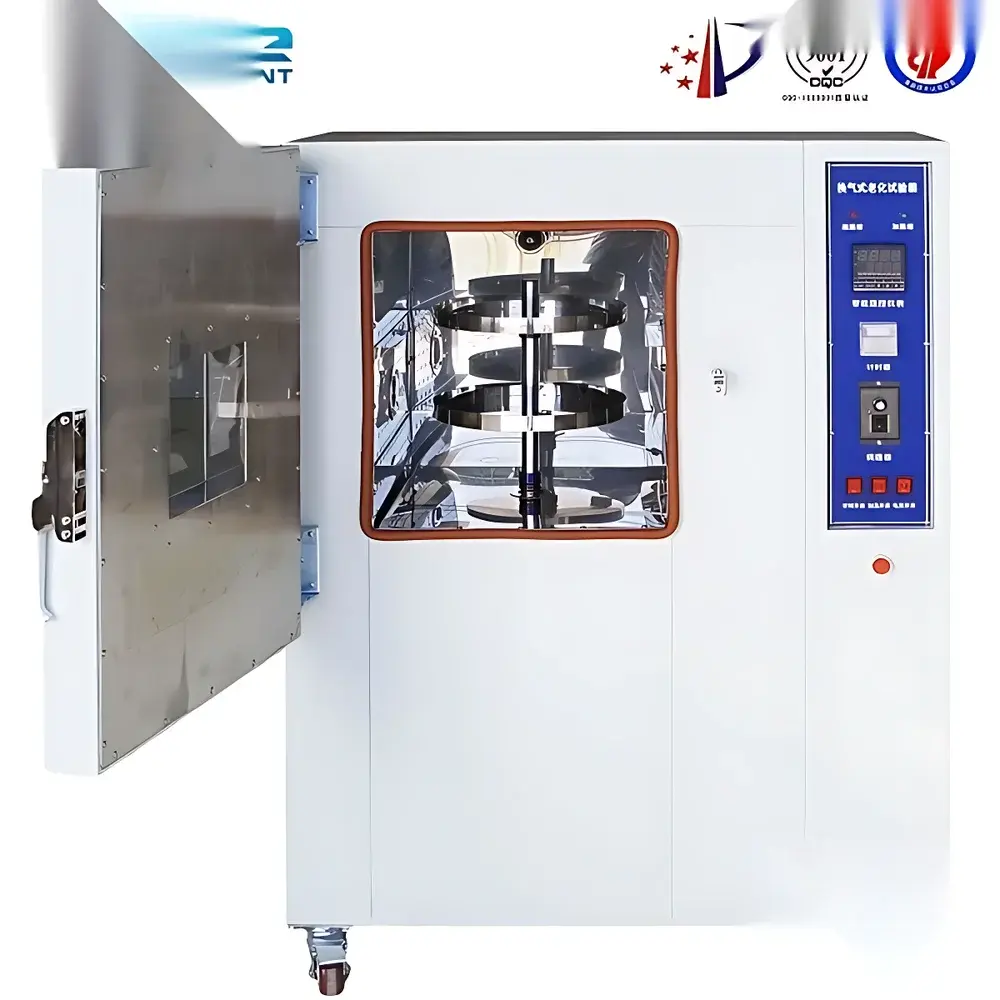

• Optional rotating turntable (Φ250–Φ700 mm) mounted on low-RPM motor drive, ensuring uniform thermal exposure for asymmetrical or multi-specimen configurations.

Sample Compatibility & Compliance

The OK-HQ chamber accommodates a broad range of non-volatile, thermally stable specimens—including insulated wires, rubber compounds, synthetic leather, woven fabrics, and molded plastic parts—under defined thermal-oxygen stress. It meets the mechanical, thermal, and airflow performance criteria specified in ASTM D5423-09 (Type II oven classification), ASTM D5374-93(2005) for thermal aging of electrical insulation, UL 1581 Section 1060 (heat aging of wire insulation), and harmonized national standards including GB/T 2423.2 (IEC 60068-2-2), JIS C 0068, VDE 0470, and IEC 60811 series. All models are configured for GLP-aligned operation: temperature logs, cycle timestamps, and parameter settings are traceable via controller memory; optional RS485/Modbus interface enables integration into centralized lab data management systems compliant with FDA 21 CFR Part 11 audit trail requirements.

Software & Data Management

While the base configuration utilizes a standalone LED-display microcontroller, optional PC connectivity (via RS485 or USB-to-serial adapter) enables remote parameter programming, real-time temperature graphing, and automated report generation using OK’s proprietary LabAging Suite v3.x. The software supports CSV export of time-stamped temperature profiles, air exchange event logs, and alarm history—including overtemperature, fan failure, or door-open alerts. All data files include embedded metadata (operator ID, sample ID, test standard reference, calibration certificate number), satisfying ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Applications

This chamber is routinely deployed in quality assurance labs for: evaluating thermal endurance indices (IEC 60216) of polymer insulation systems; verifying compliance of automotive wiring harnesses per SAE J1128; conducting comparative aging studies on halogen-free flame-retardant (HFFR) compounds; validating shelf-life stability of medical device packaging materials per ISO 11607; and performing accelerated life testing of consumer electronics enclosures exposed to tropical climatic profiles. Its compact footprint and precise air exchange control make it especially suitable for laboratories with limited floor space yet stringent regulatory reporting obligations.

FAQ

What standards does the OK-HQ chamber specifically comply with?

It conforms to ASTM D5423-09 (Type II), ASTM D5374-93(2005), UL 1581, GB/T 2423.2, IEC 60068-2-2, JIS C 0068, and VDE 0470.

Can the air exchange rate be validated independently?

Yes—the chamber includes dedicated terminals for connecting external airflow meters; its built-in digital voltage/current/watt-hour meter allows verification of fan power consumption against nominal airflow curves.

Is the turntable speed adjustable?

The standard turntable operates at fixed low RPM (≤6 rpm) to prevent specimen displacement; variable-speed drive is available as a factory-configured option.

Does the controller support password-protected parameter locking?

Yes—administrator-level access requires 4-digit PIN authentication to modify temperature setpoints, timer values, or air exchange parameters, supporting ISO 17025 change-control protocols.

What maintenance intervals are recommended for long-term reliability?

Biannual inspection of heating element continuity, quarterly cleaning of air intake filters and exhaust ducts, and annual calibration of temperature sensors against NIST-traceable references are advised per OK’s Maintenance Protocol MP-OKHQ-2023.
