English Product Name

Overview

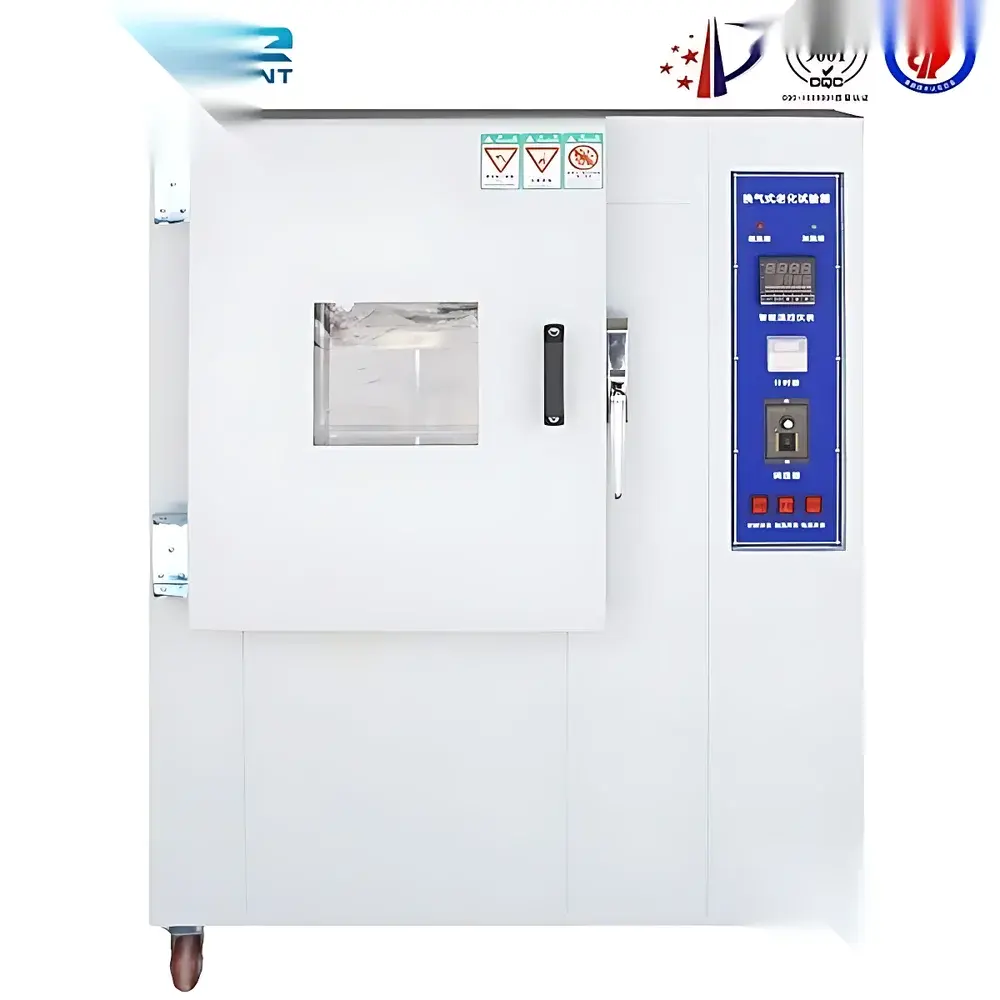

The OK-HQ Series Natural Convection Thermal Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging evaluation of polymeric, elastomeric, and insulating materials under controlled, ventilated high-temperature conditions. Unlike forced-convection ovens, this chamber operates on natural convection principles—relying on buoyancy-driven airflow to maintain thermal homogeneity while enabling precise regulation of air exchange rate. It is specifically calibrated for applications requiring standardized thermal degradation assessment per ASTM D5423-09 (Type II laboratory oven specification) and ASTM D5374-93 (2005) for electrical insulation materials. The chamber integrates a programmable air exchange control mechanism, allowing users to define both frequency (2–100 cycles/hour) and duration (1 minute to 99 hours) of fresh ambient air introduction—critical for simulating real-world oxidative aging in cables, wire insulation, rubber compounds, textiles, and plastic components. Its design ensures stable thermal profiles across the entire working volume without mechanical turbulence, making it suitable for long-duration stability testing where minimal airflow disturbance is required.

Key Features

• Stainless steel inner chamber (SUS304 mirror finish) with argon-arc welded construction for corrosion resistance and cleanroom-compatible surface integrity.
• Exterior cabinet fabricated from A3 cold-rolled steel with electrostatic powder coating for durability and aesthetic consistency.
• Microprocessor-based PID temperature controller with LED digital display, offering ±0.1°C setting and indication resolution and built-in timer (1–9999 minutes).
• Horizontal forced-air circulation system with high-temperature-resistant centrifugal blower and optimized baffle configuration to ensure ±2°C temperature uniformity across the working space.

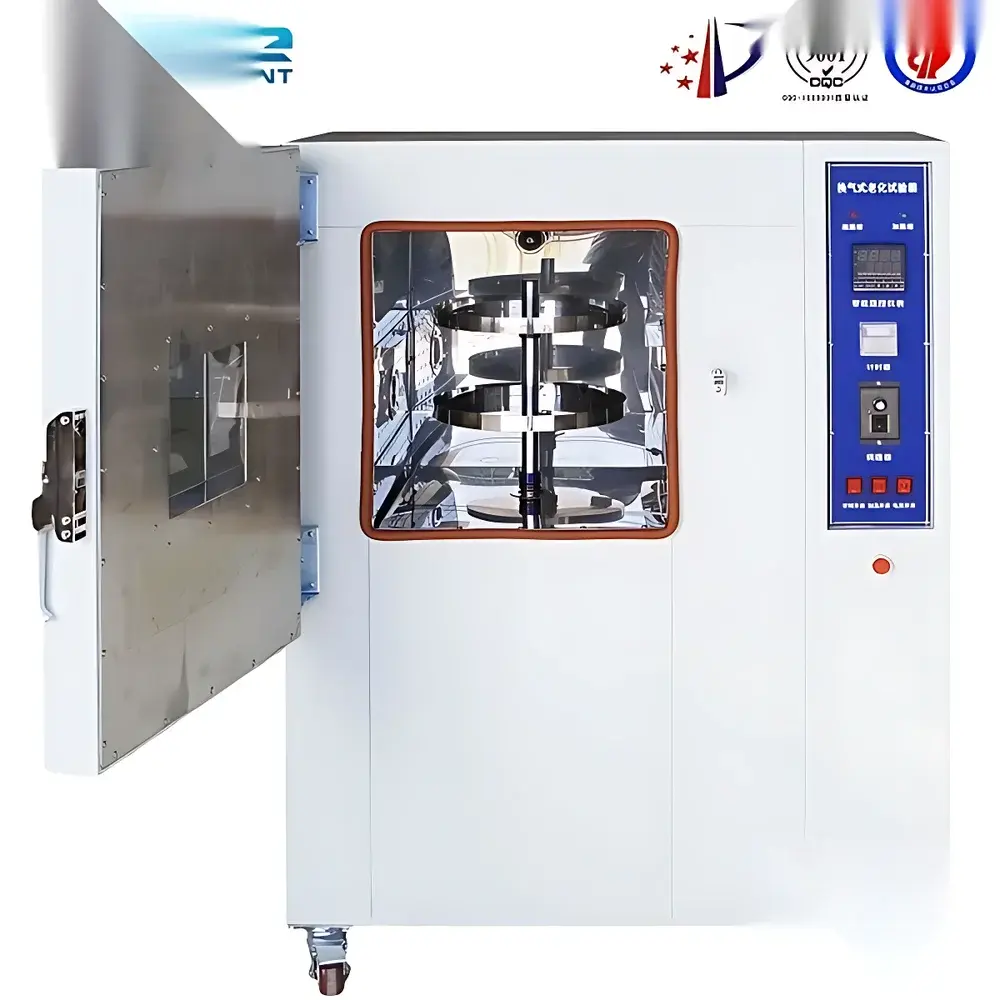

• Integrated rotating turntable (diameter options: Φ250–Φ700 mm) for uniform exposure of cylindrical or asymmetric specimens during aging cycles.
• Standard 50 mm diameter test port on left side wall, sealed with silicone gasket, for external power/signal line feed-through without compromising chamber integrity.
• Multi-layer insulation using ultra-fine glass fiber cotton (≥100 mm thickness) to minimize thermal loss and improve energy efficiency.
• Large observation window with tempered glass and integrated LED lighting enables real-time visual monitoring without opening the chamber door.
• Comprehensive safety architecture including over-temperature cutoff, motor overheat protection, leakage current detection, short-circuit interruption, and over-current relay.

Sample Compatibility & Compliance

The OK-HQ chamber accommodates a broad spectrum of non-volatile solid samples—including insulated wires, PVC and PE cable jackets, silicone rubber seals, synthetic leather, woven fabrics, and thermoplastic housings. Its natural convection airflow profile avoids mechanical stress on delicate specimens while delivering reproducible oxidation kinetics. The system complies with multiple international standards governing thermal aging of electrical insulation and polymer materials: ASTM D5423-09 (Type II forced-ventilation laboratory oven requirements), ASTM D5374-93 (2005) for thermal endurance testing, UL 1581 (Section 1060), IEC 60811-201, VDE 0472-811, JIS C 3005, and GB/T 2951 series. All models are configured to support GLP-compliant documentation workflows when paired with optional data logging modules and audit-trail-enabled software.

Software & Data Management

While the base unit features a standalone LED-PID controller, optional RS485/RS232 communication interface enables integration with PC-based data acquisition platforms. When used with OK’s proprietary LabControl Suite (v3.2+), users gain access to automated test sequence programming, real-time temperature and air exchange cycle logging, CSV export for statistical analysis (e.g., Arrhenius modeling), and electronic signature support aligned with FDA 21 CFR Part 11 requirements. Calibration records, operator logs, and deviation alerts are timestamped and stored with immutable audit trails—facilitating internal QA reviews and regulatory inspections.

Applications

• Accelerated aging of wire and cable insulation per UL 1581 and CSA C22.2 No. 0.3.
• Oxidative degradation studies of elastomers and thermosets under ISO 188 and ASTM D573 protocols.
• Thermal endurance evaluation of encapsulation resins and potting compounds in electronics manufacturing.
• Pre-qualification testing of automotive interior trim materials per SAE J2233 and VW TL 226.
• Stability screening of medical device polymer components under ISO 10993-12 simulated-use conditions.
• Reference aging for comparative material selection in aerospace composite development (per ASTM D3045).

FAQ

What distinguishes natural convection aging chambers from forced-air ovens?

Natural convection chambers rely on thermal buoyancy for air movement, minimizing mechanical shear on specimens—ideal for fragile or low-density materials where forced airflow may cause displacement or uneven heating.

Can the air exchange rate be validated and documented?

Yes. The chamber includes calibrated digital voltmeter, ammeter, and watt-hour meter inputs to calculate actual volumetric flow rates using standard fan performance curves and chamber pressure differential measurements.

Is third-party calibration certification available?

OK provides NIST-traceable calibration certificates (optional) covering temperature uniformity, fluctuation, and air exchange timing accuracy—fully compliant with ISO/IEC 17025 laboratory requirements.

Does the system support multi-step aging profiles?

With the optional LabControl Suite, users can program up to 99 segmented thermal cycles—including ramp-hold-cool sequences with variable air exchange parameters per segment.

What maintenance intervals are recommended for long-term reliability?

Biannual inspection of heating elements, periodic verification of door seal integrity, and annual recalibration of the PID controller and air exchange actuator are advised per OK’s Maintenance Protocol MP-HQ-2023.
