Overview

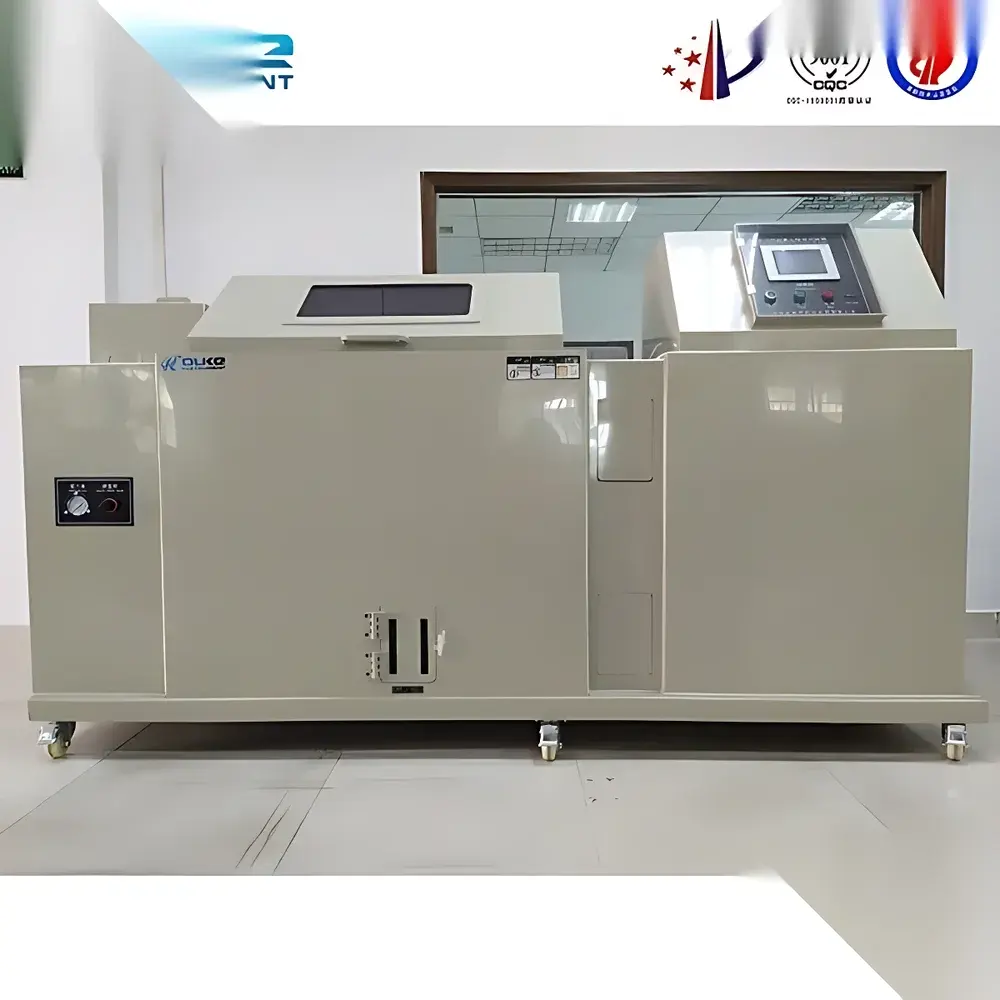

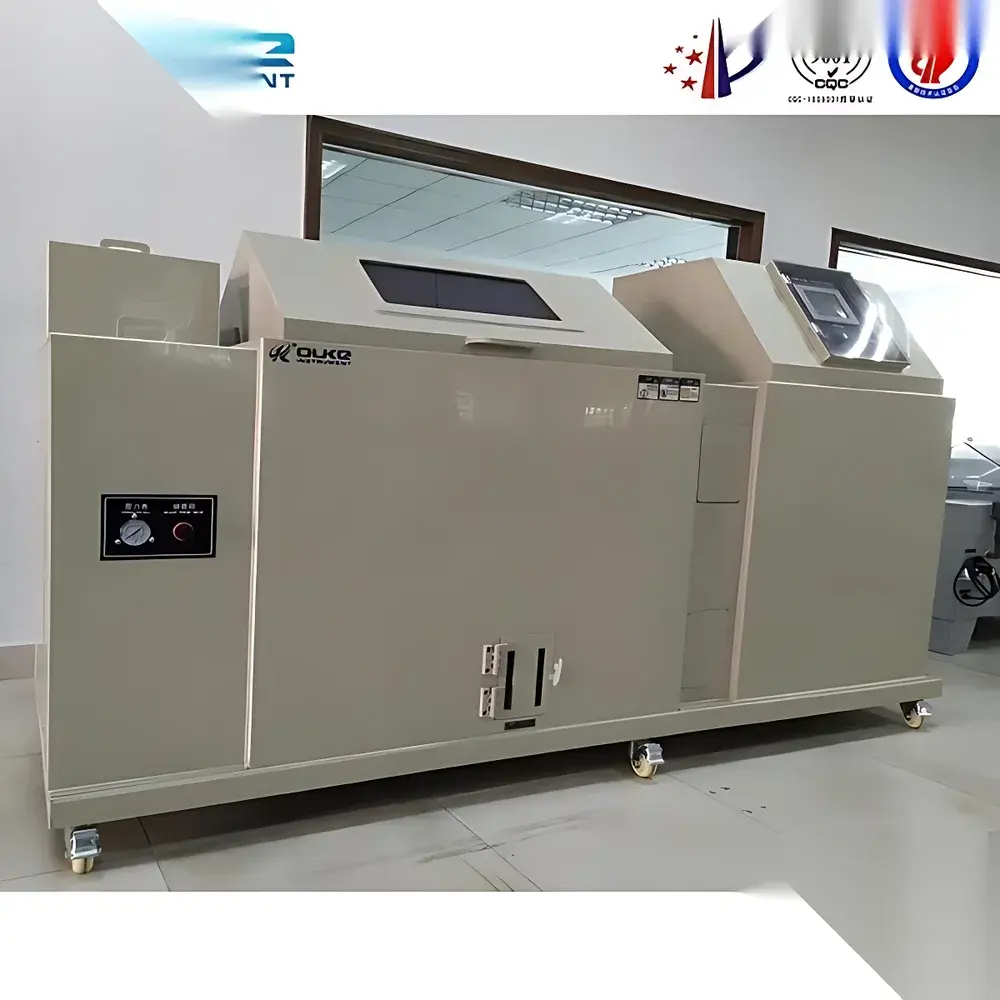

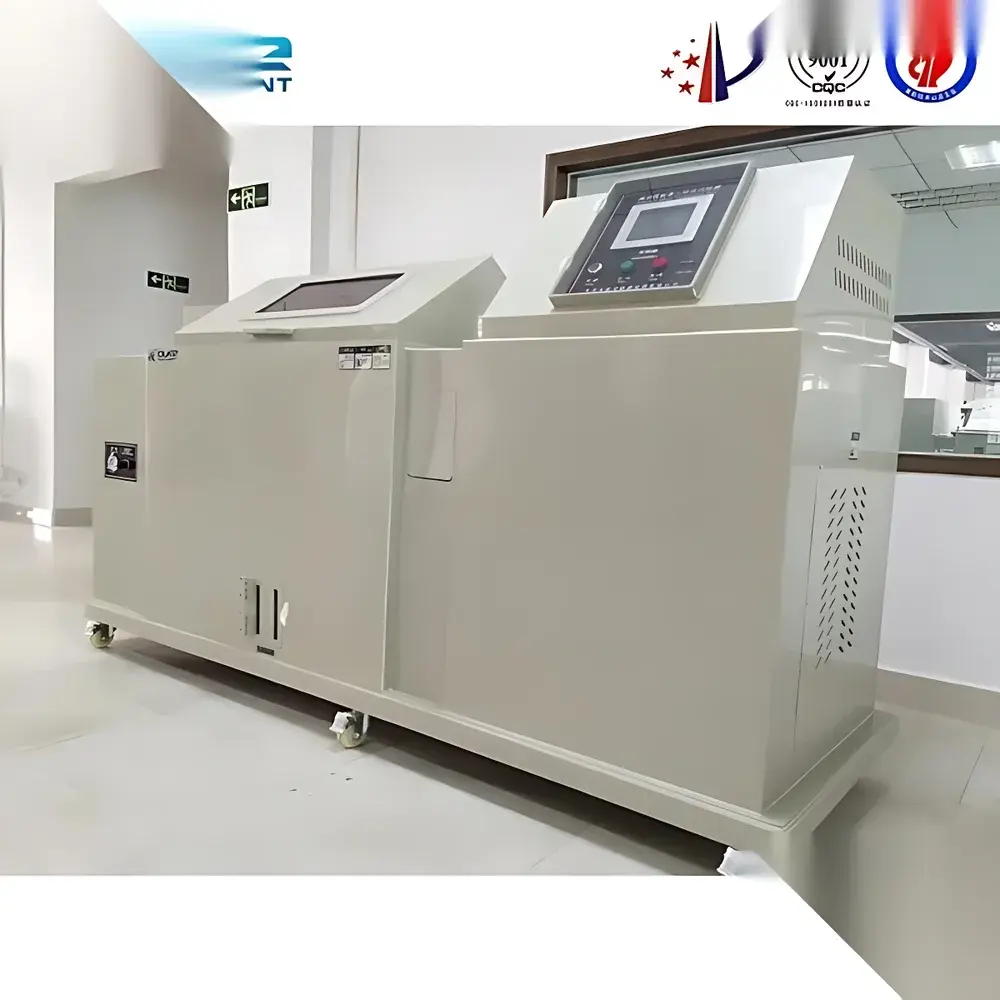

The OK-SH Series Industrial-Scale Salt Spray Test Chamber is a rigorously engineered environmental test system designed for accelerated corrosion evaluation of metallic and coated materials under controlled saline fog conditions. Based on the fundamental principle of continuous or cyclic salt mist exposure—governed by standardized electrochemical degradation mechanisms—the chamber replicates aggressive marine or industrial atmospheric environments to assess coating adhesion, galvanic protection integrity, and substrate corrosion resistance. Its monolithic fiberglass-reinforced polyester (FRP) construction ensures long-term structural stability, chemical inertness, and zero leakage—critical for maintaining strict compliance with ASTM B117, ISO 9227, and GB/T 2423.17 test protocols. Unlike modular or sheet-metal alternatives, the seamless FRP body eliminates crevices where salt residue can accumulate, thereby ensuring reproducible deposition rates and minimizing cross-contamination between test cycles.

Key Features

• Monolithic FRP chamber body with integral water-seal design—eliminates salt fog leakage and guarantees uniform internal pressure distribution during spray operation.
• Programmable 50-segment controller supporting nested cycle logic: each segment configurable for duration (0–999 h 59 min), spray mode (continuous/cyclic), and repetition count (1–999 cycles per group or infinite loop).
• Independent temperature control via PID-regulated platinum RTD (PT100 Ω) sensor and nickel-chromium heating elements—ensuring thermal stability ≤ ±0.5°C and uniformity ≤ ±2°C across full working volume.
• Tower-type spray system with non-crystallizing nozzles and integrated salt solution preheating—maintains equilibrium between solution temperature and chamber ambient, critical for stable deposition rate (1–2 mL/80 cm²·h).
• Comprehensive safety architecture: dual-level overtemperature cutoff, low-level salt solution detection, leakage current protection, short-circuit interruption, and automatic power-resume function preserving test continuity after unexpected outages.
• Optional data logging module available: real-time recording of chamber temperature and relative humidity with timestamped CSV export—fully compatible with GLP/GMP audit requirements.

Sample Compatibility & Compliance

The OK-SH chamber accommodates diverse sample geometries via adjustable V-shaped stainless-steel sample racks (standard configuration), supporting flat panels, fasteners, electronic enclosures, automotive components, and aerospace hardware up to 120 L chamber capacity. All wetted components—including nozzles, funnels, collection funnels, and solution delivery tubing—are fabricated from corrosion-resistant stainless steel (AISI 316), copper-nickel alloy, or fluoropolymer-lined materials. The system meets mandatory calibration traceability requirements per ISO/IEC 17025 when used with certified reference standards. It is validated for conformance to ASTM B117 Annex A1 (fog collection verification), ISO 9227 Clause 6.3 (deposition rate homogeneity), and GB/T 2423.17–2022 Section 5.2 (chamber performance validation). Optional upgrade paths include integrated humidity control modules enabling combined salt-spray/humidity cycling per ISO 16701 or ASTM G85 Annex A5.

Software & Data Management

The embedded LED-based PID controller supports local parameter setting and real-time monitoring without external PC dependency. For regulated environments, optional RS485/Modbus RTU interface enables integration into centralized laboratory information management systems (LIMS) or SCADA platforms. Logged temperature and humidity data (when equipped with recorder option) are stored in tamper-evident binary format with cryptographic time-stamping—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Audit trails capture operator ID, parameter changes, alarm events, and session start/stop timestamps. Exported datasets include ISO 8601-compliant timestamps, measurement uncertainty metadata, and calibration certificate references—facilitating automated report generation per ISO/IEC 17025 clause 7.8.2.

Applications

This chamber is routinely deployed in quality assurance laboratories for qualification testing of zinc-plated steel fasteners (per ISO 4042), anodized aluminum alloys (ASTM D1730), automotive under-hood components (SAE J2334), marine-grade stainless steels (ASTM A967), and printed circuit board conformal coatings (IPC-CC-830B). It supports failure analysis workflows—including time-to-white-rust initiation, red-rust propagation kinetics, and intergranular corrosion assessment under chloride-laden atmospheres. In R&D settings, it serves as a primary tool for comparative evaluation of new anti-corrosion inhibitors, self-healing polymer coatings, and nanocomposite barrier layers. Its dual-mode capability (standalone salt spray or extended humid-salt cycling) enables simulation of diurnal coastal exposure patterns, making it suitable for ISO 11997-1 and ASTM D6899 validation studies.

FAQ

What international standards does this chamber comply with?
It is fully compliant with ASTM B117–22, ISO 9227:2022, GB/T 2423.17–2022, and IEC 60068-2-11. Optional configurations support ISO 16701 and ASTM G85 Annex A5 for cyclic corrosion testing.
Can the chamber perform humidity-only or combined humidity/salt tests?
Yes—the base model operates in pure salt spray mode; optional humidity control modules enable programmable RH regulation (85–95% RH) for hybrid test profiles.
Is calibration documentation included?
Each unit ships with a factory calibration certificate traceable to NIST-equivalent national metrology institutes, covering temperature uniformity, spray deposition rate, and controller accuracy.
What maintenance intervals are recommended?
Daily visual inspection of nozzles and solution filters; monthly cleaning of the FRP interior with deionized water; annual verification of RTD sensor drift and PID controller linearity per ISO/IEC 17025 procedures.
Does the system support remote monitoring or network integration?
Yes—via optional RS485/Modbus RTU or Ethernet/IP interface, enabling integration with enterprise LIMS, MES, or cloud-based predictive maintenance platforms.
