Overview

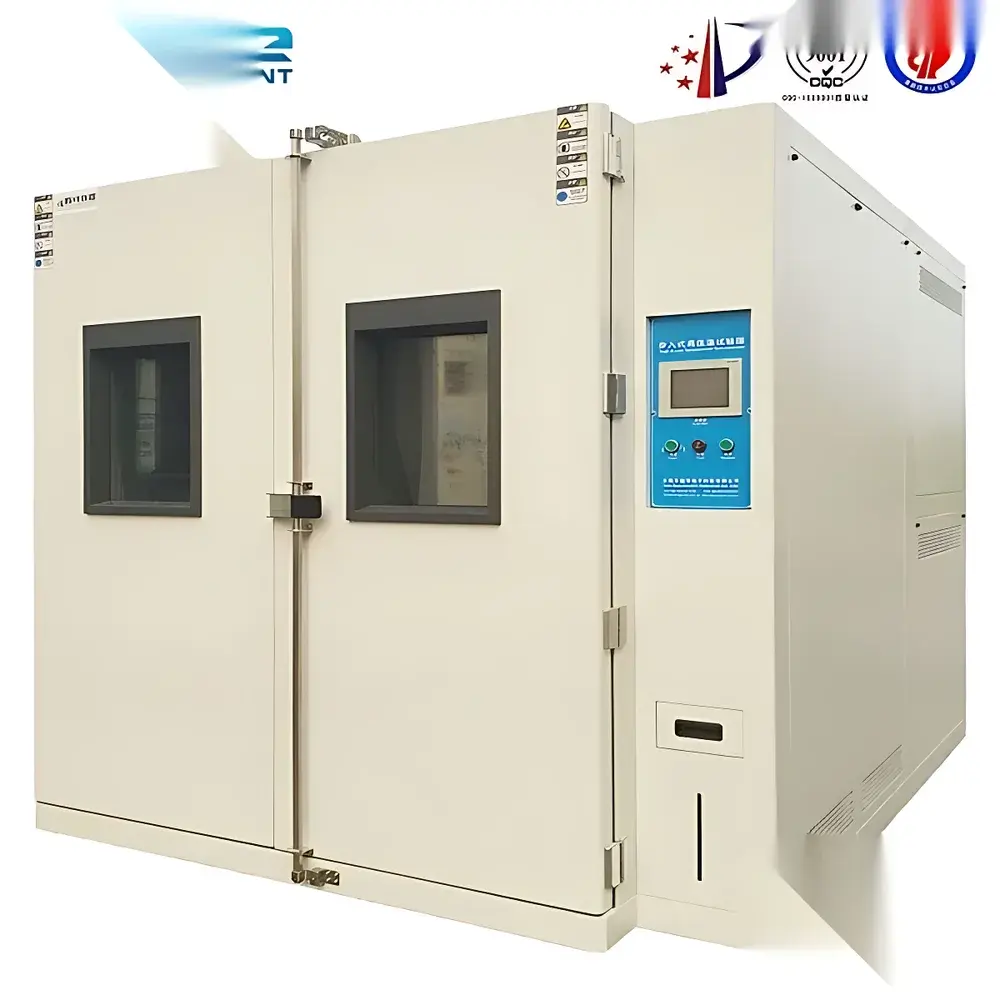

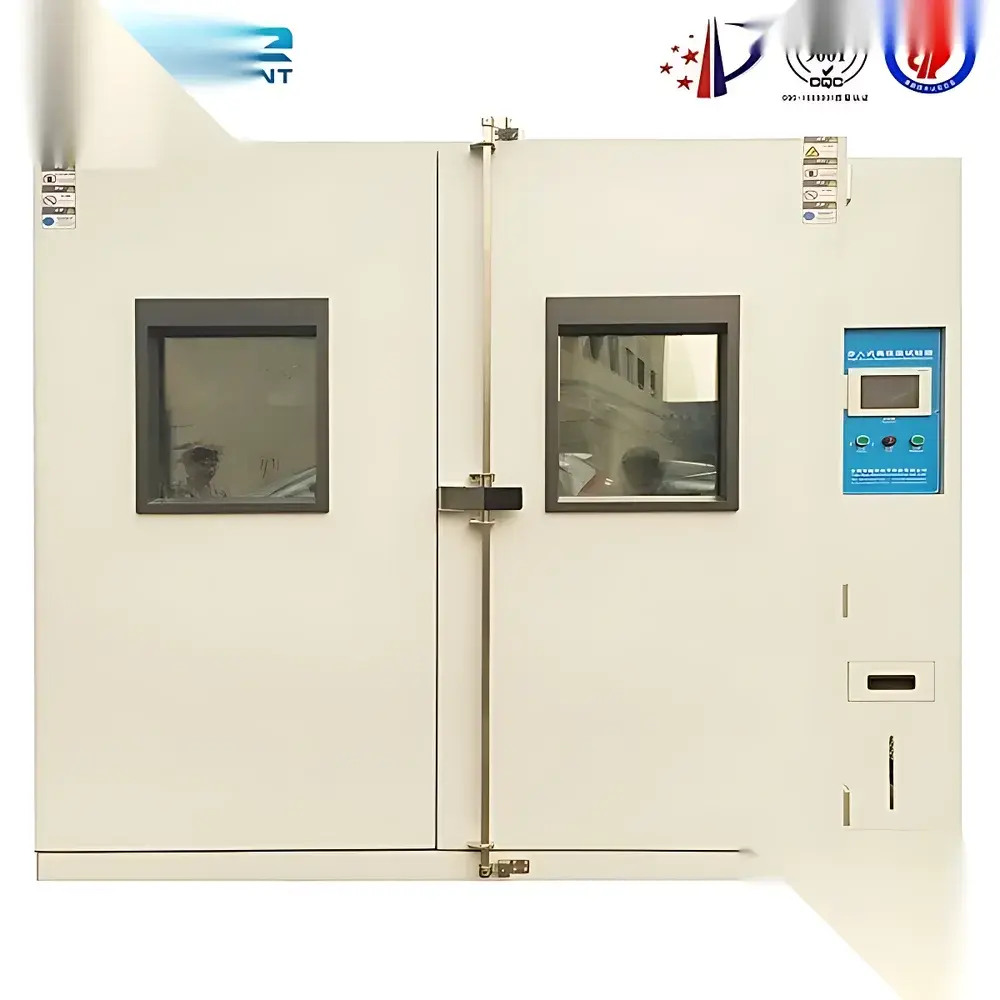

The Custom-Built Large-Scale Environmental Test Chamber for Audio Component Validation is an industrial-grade climatic chamber engineered to replicate extreme and dynamic temperature-humidity profiles for reliability validation of high-fidelity audio hardware—including speaker enclosures, amplifier chassis, DSP modules, and multi-layer PCB assemblies used in professional sound systems. Designed around a dual-wall structural architecture with vacuum-bonded insulation layers, the chamber maintains thermal stability within ±0.5 °C and humidity uniformity within ±2.0 %RH across the full working volume—critical for assessing condensation resistance, material creep under cyclic stress, and long-term dimensional stability of acoustic baffle materials. Its control architecture implements real-time adaptive PID tuning synchronized with refrigerant subcooling and humidification steam saturation algorithms, enabling precise execution of complex test sequences defined per IEC 60068-2-30 damp heat cycling protocols and GB/T 2423 series environmental stress screening requirements.

Key Features

• Double-walled chamber construction: Inner lining of electropolished SUS#304 mirror-finish stainless steel (non-porous, corrosion-resistant, easy-clean surface); outer shell fabricated from either brushed SUS#304 or powder-coated stainless steel for mechanical durability and cleanroom compatibility.
• High-efficiency thermal envelope: 120 mm thick composite insulation comprising rigid polyurethane foam (thermal conductivity ≤0.022 W/m·K) backed by 40 mm glass wool layer—minimizing thermal bridging and ensuring low standby energy consumption.
• Intelligent TEMI touchscreen controller (model TEMI 300 series): Graphical HMI interface supporting multi-segment ramp-soak profiles, data logging at 1-second intervals, password-protected parameter editing, and alarm event timestamping with automatic email/SMS notification via optional Ethernet module.
• Refrigeration system featuring Tecumseh hermetic scroll compressors with parallel circuitry and electronic expansion valves—enabling stable operation down to –70 °C with minimal oil carryover and consistent superheat control across variable load conditions.
• Steam-based humidification system with stainless-steel boiler, PID-controlled water level sensor, and auto-drain function—ensuring rapid RH response and eliminating mineral deposit accumulation during extended high-humidity tests.
• Integrated safety suite compliant with IEC 61000-4-5 surge immunity and EN 60204-1 machinery safety standards: Includes independent overtemperature cutout, compressor discharge temperature monitoring, phase-loss detection, and interlocked access door switches.

Sample Compatibility & Compliance

This chamber accommodates large-format audio components such as floor-standing loudspeaker cabinets (up to 2.2 m height), powered subwoofer arrays, and rack-mounted signal processing units. Internal dimensions are fully customizable—from 1.5 m³ to 25 m³—with adjustable-height sample racks rated for 100 kg per tier. All standard configurations meet ISO/IEC 17025 calibration traceability requirements when paired with NIST-traceable reference sensors (optional). The system supports full audit readiness for GLP/GMP-regulated validation activities, including FDA 21 CFR Part 11-compliant electronic records when equipped with validated software add-ons. Test profiles align with GB/T 2423.1–2023 (cold storage simulation), GB/T 2423.2–2023 (high-temperature aging), and GB/T 2423.34–2012 (damp heat cycling)—as well as IEC 60068-2-1, -2-2, and -2-30 for international certification submissions.

Software & Data Management

The embedded TEMI controller logs all operational parameters—including chamber setpoints, actual T/RH values, compressor runtimes, and alarm history—to internal flash memory (16 GB). Optional PC connectivity via RS485/Modbus RTU or Ethernet/IP enables integration into centralized MES or LIMS platforms. With the optional DataStation Pro software package, users can generate PDF test reports compliant with ISO/IEC 17025 Annex A.2, configure automated backup to network drives, and apply statistical process control (SPC) overlays on time-series plots. All software modules undergo annual verification against NIST SP 800-53 security controls and support role-based access management with full audit trail logging.

Applications

• Accelerated life testing of voice coil formers, cone adhesives, and rubber surround materials under combined thermal-hygric stress.
• Validation of ingress protection (IP) ratings for outdoor-rated amplifiers and DSP controllers subjected to condensation cycles.
• Thermal shock evaluation of multi-die audio SoCs mounted on aluminum-clad PCBs.
• Humidity-induced leakage current measurement on Class-D amplifier output stages per IEC 60950-1 Annex Q.
• Material compatibility testing between cabinet laminates (MDF, HDF, bamboo composites) and adhesive systems under tropical storage conditions (40 °C / 95 %RH).

FAQ

What is the standard temperature and humidity range for this chamber?

Standard configuration covers –70 °C to +180 °C and 10–98 %RH; extended ranges available upon request.

Can the chamber operate continuously for 30 days without maintenance?

Yes—designed for unattended operation up to 720 hours with scheduled preventive maintenance every 6 months.

Is remote monitoring supported out-of-the-box?

Remote viewing of real-time chamber status and historical trends is enabled via built-in web server; full remote control requires optional secure VPN gateway module.

Does the system include calibration documentation?

Factory calibration certificate (traceable to NIM China) is included; ISO/IEC 17025-accredited calibration service available separately.

How is power failure recovery handled?

Upon AC restoration, the controller resumes the last active test segment with configurable restart logic (cold start vs. resume-from-interrupt).
