English Product Name

Overview

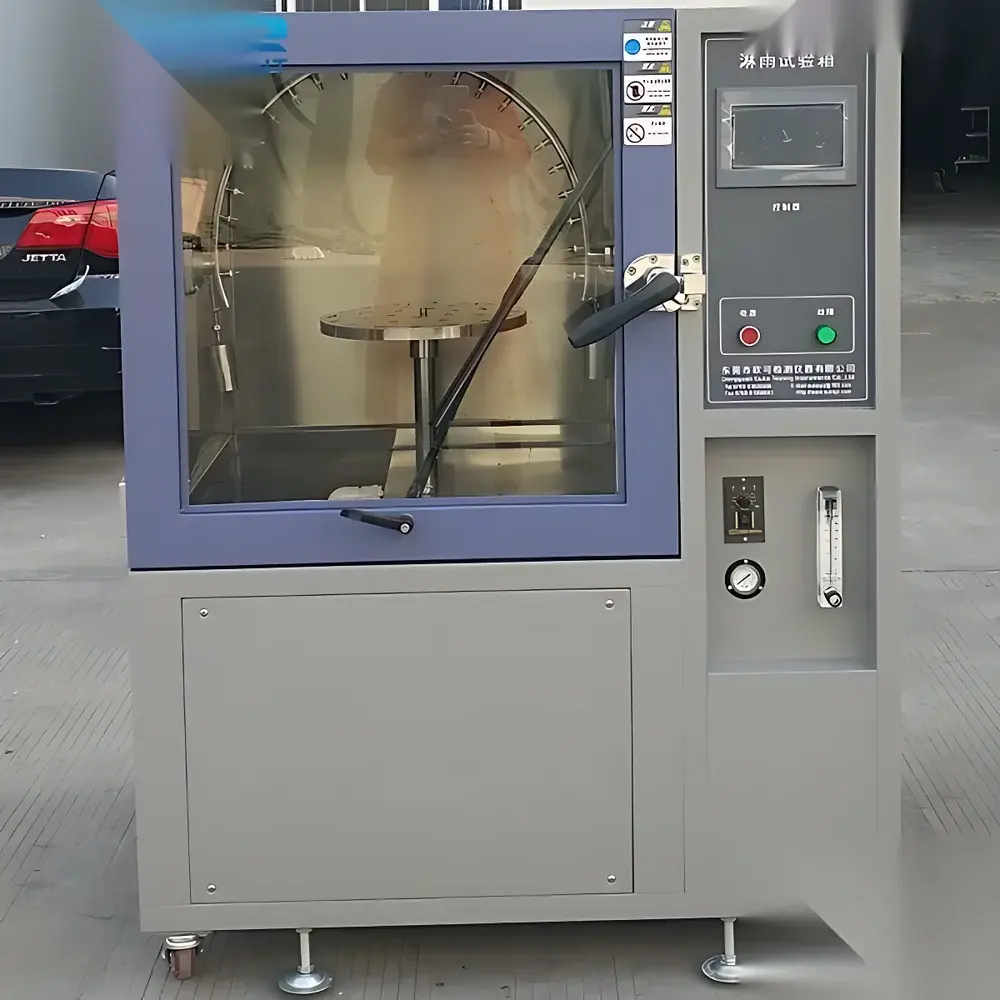

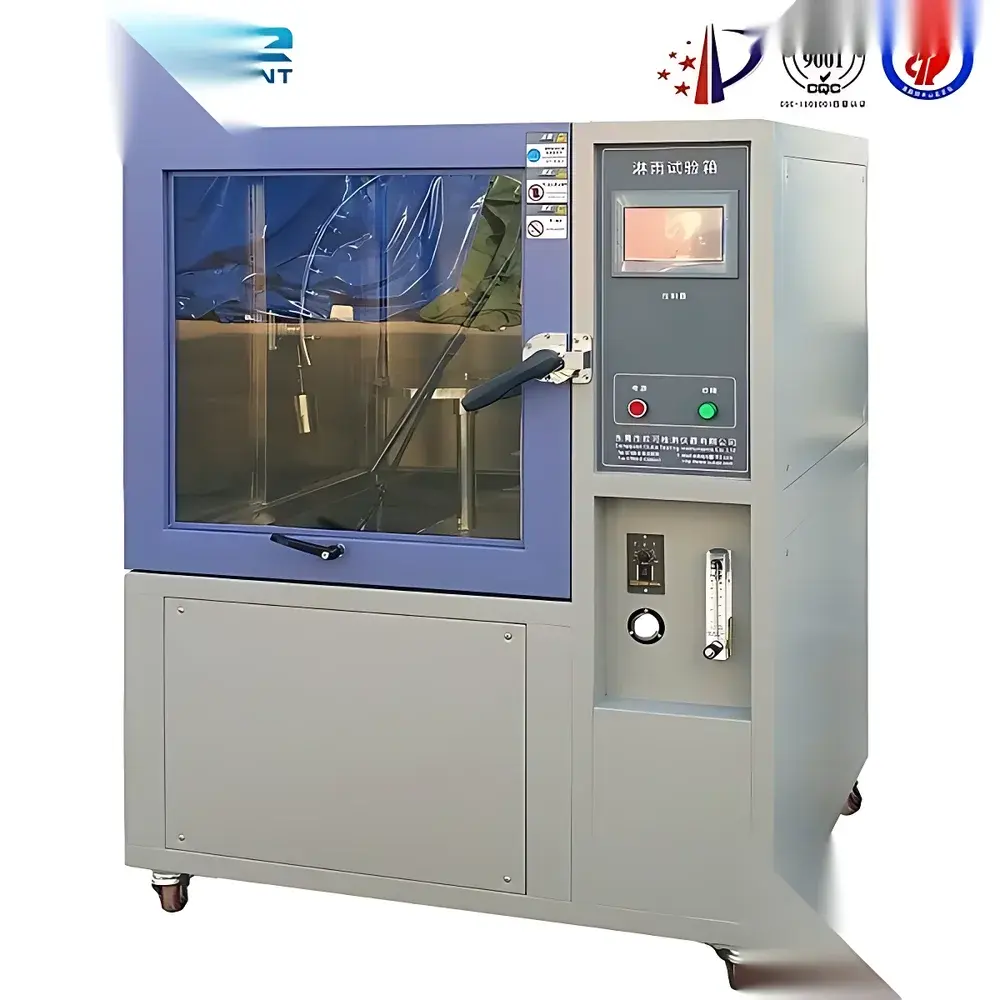

The LS-800 Advanced Rain Simulation Test Chamber is an engineered environmental test system designed to replicate controlled, reproducible rain exposure conditions in accordance with international ingress protection (IP) standards—specifically IPX1 through IPX6—as defined in IEC 60529, ISO 20653, and SAE J575. It operates on the principle of dynamic water impingement: pressurized deionized or distilled water is delivered through a precisely calibrated, motor-driven oscillating spray arm, while the test specimen rotates on a regulated turntable. This dual-axis motion—oscillating spray trajectory combined with rotational sample presentation—ensures uniform, statistically representative wetting across complex geometries. Unlike static drip chambers, the LS-800 simulates real-world rainfall dynamics—including wind-driven oblique impact, intermittent intensity variation, and cyclic exposure—making it suitable for evaluating both short-term functional integrity and long-term corrosion resistance of enclosures, optical housings, electronic assemblies, and vehicular lighting systems under accelerated environmental stress.

Key Features

• Full 304 stainless steel construction—including chamber body, spray arm, reservoir, and piping—ensures long-term resistance to chloride-induced pitting and electrolytic corrosion during repeated saline or hard-water testing.
• Laser-drilled, CNC-bent semi-circular spray arm (375 mm radius) with 25 precisely spaced 0.4 mm nozzles enables repeatable flow distribution and eliminates nozzle clogging through optimized internal geometry and smooth bore finish.
• Programmable oscillation control (±45° to ±180° range) with digital angular feedback and variable-speed inverter-driven actuation (0–60°/s) allows precise emulation of rainfall angles—from vertical drizzle (IPX1/IPX2) to high-velocity side-spray (IPX5/IPX6).
• Independent, PID-regulated turntable drive (0–5 rpm) ensures consistent exposure rotation without mechanical backlash; load capacity up to 100 kg supports full-size automotive headlamps, control cabinets, or military-grade avionics enclosures.
• Integrated touch-screen controller (Moeller/Klockner) provides multi-step test sequencing, real-time monitoring of flow rate (via calibrated rotameter), oscillation angle/speed, table RPM, and elapsed time—with audit-trail-capable event logging compliant with GLP/GMP documentation requirements.
• Tempered glass observation door with integrated wiper and LED illumination permits continuous visual inspection without interrupting test cycles; dual-layer silicone gasketing maintains IP54-rated sealing integrity at the access interface.

Sample Compatibility & Compliance

The LS-800 accommodates a broad spectrum of test specimens: from compact PCB modules and handheld medical devices (IEC 60601-1) to large-format automotive lighting assemblies (ECE R112, SAE J1757), industrial control panels (UL 50E), and aerospace avionics enclosures (MIL-STD-810H Method 512.6). Its physical configuration satisfies test method requirements for IPX1 (dripping water), IPX2 (tilted dripping), IPX3 (oscillating tube), IPX4 (splashing water), IPX5 (water jet), and IPX6 (powerful water jet), as verified by third-party calibration against ISO/IEC 17025-accredited reference standards. All wetted surfaces are compatible with ASTM D1193 Type IV water and optional 5 wt% NaCl solution for salt-assisted corrosion screening per ISO 9227.

Software & Data Management

The embedded controller features a CE-compliant, 7-inch resistive touch interface with intuitive icon-based navigation. Test programs are defined using stepwise logic: dwell time, oscillation amplitude, angular velocity, table rotation speed, and flow rate can be independently scheduled per phase. Data—including real-time flow (L/min), cumulative volume, cycle count, and fault events—is timestamped and exportable via USB 2.0 to CSV or Excel-compatible formats. Optional RS485 Modbus RTU protocol enables integration into centralized lab management systems (LIMS) and supports 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable audit trails when paired with validated software extensions.

Applications

This chamber serves critical validation functions across regulated industries: verifying enclosure integrity of Class II medical devices prior to ISO 13485 certification; qualifying automotive exterior lamps per ECE Regulation 112 and FMVSS 108; validating outdoor telecom cabinets against Telcordia GR-3108 moisture ingress thresholds; supporting MIL-STD-810H environmental tailoring for ground vehicle electronics; and enabling comparative durability studies of conformal coatings, gasket materials, and hydrophobic surface treatments under cyclic rain-corrosion stress. Its robust architecture and metrological traceability make it suitable for accredited test laboratories performing third-party conformance verification.

FAQ

What IP ratings can the LS-800 validate?

It fully supports test procedures for IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 per IEC 60529 and ISO 20653.

Is the chamber compatible with saltwater testing?

Yes—full 304 stainless steel wetted components and corrosion-resistant seals permit use with ASTM D1193 Type IV water or 5% NaCl solution per ISO 9227 neutral salt spray protocols.

Can test parameters be logged and exported for regulatory submission?

Yes—time-stamped operational data (flow, angle, RPM, duration) is stored internally and exportable via USB or RS485; optional software packages provide 21 CFR Part 11 audit compliance.

What maintenance intervals are recommended for long-term calibration stability?

Nozzle calibration verification every 500 operating hours; annual verification of flow meter accuracy against NIST-traceable standards; biannual inspection of rotary feedthrough torque and seal integrity.

Does the system include a water filtration or recirculation option?

Standard configuration includes a dedicated stainless steel reservoir and booster pump; optional 5-µm particulate filtration and closed-loop deionization recirculation kits are available for extended test campaigns.
