Overview

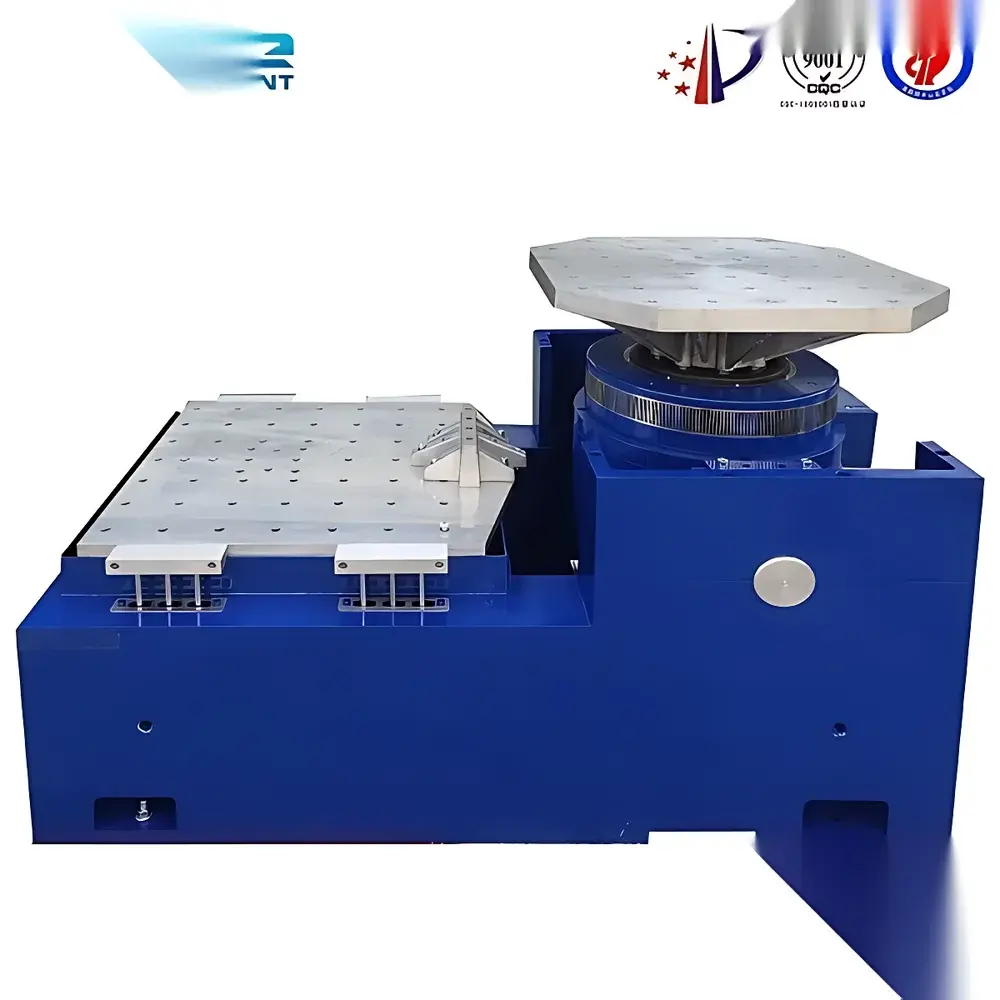

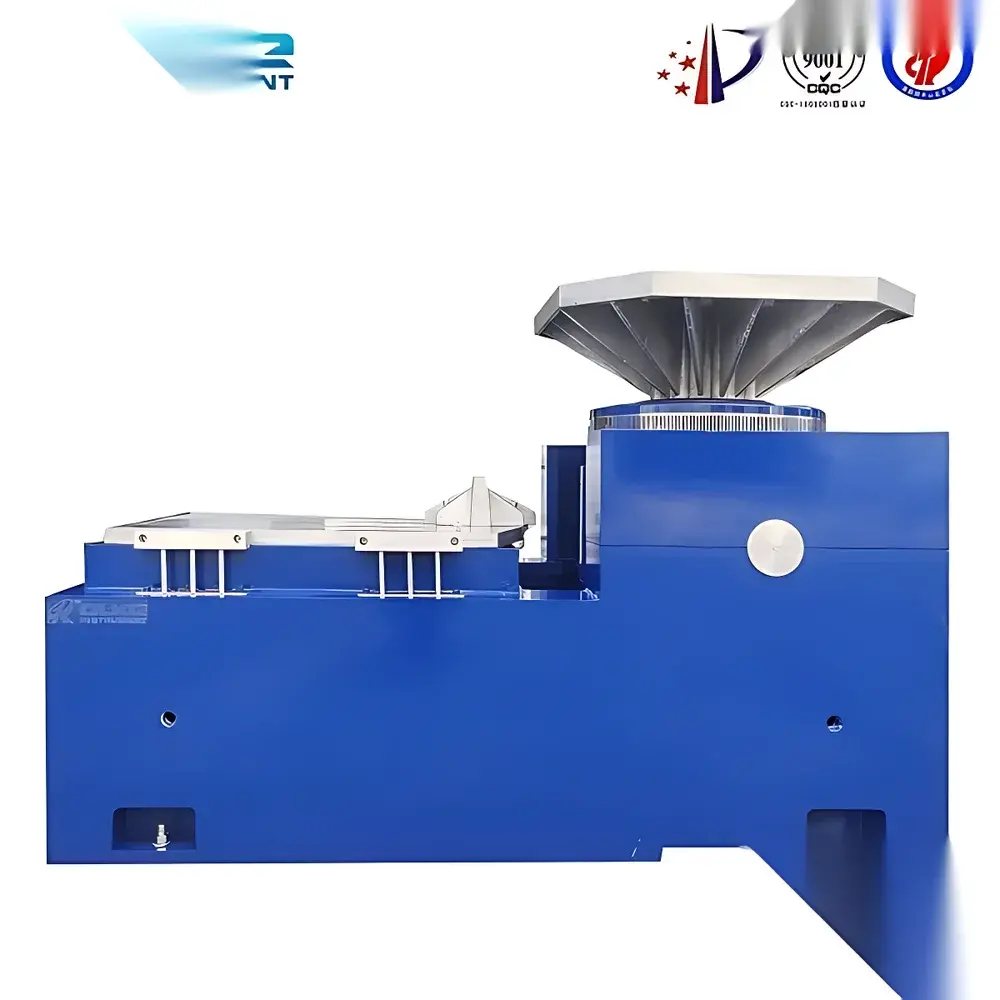

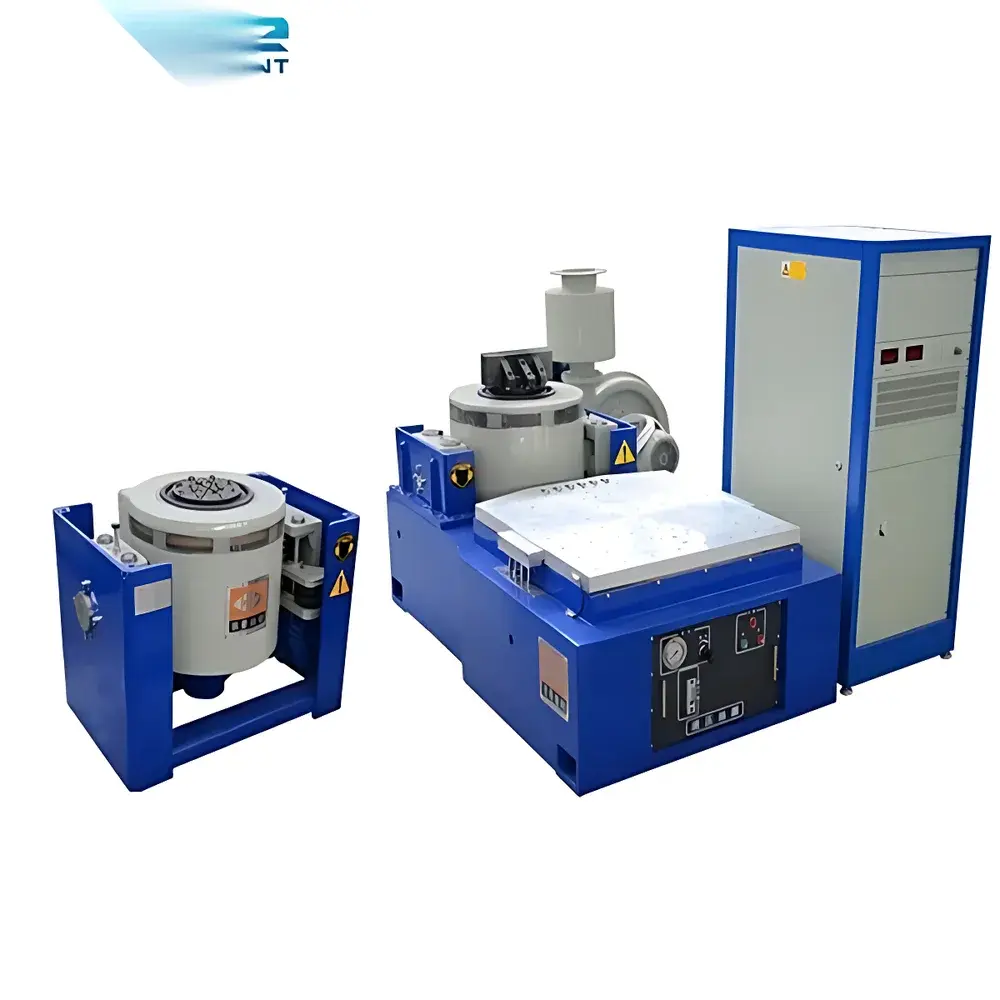

The Multi-Axis Electrodynamic Vibration Shaker System with Integrated Environmental Chamber is an engineered solution for combined environmental stress screening (ESS) and mechanical vibration testing in compliance with IEC 60068-2-6, ISO 10326-1, MIL-STD-810H Method 514.8, and ASTM D999. Designed for laboratory validation and production-line qualification, this system enables synchronized application of sinusoidal vibration and controlled thermal-hygric conditions—critical for evaluating structural integrity, solder joint reliability, connector robustness, and packaging performance under real-world transport and operational stresses. Unlike single-axis shakers, its modular platform architecture supports both vertical (Z-axis) and horizontal (X/Y) excitation modes through precise mechanical repositioning, enabling triaxial test sequence emulation without requiring three independent shakers. The electrodynamic actuator employs high-efficiency rare-earth magnet topology and low-thermal-resistance voice coil cooling, delivering consistent force output across the full 5–2000 Hz bandwidth while maintaining long-term calibration stability.

Key Features

• Integrated dual-function design: Combines a high-force electrodynamic shaker (2.94 kN peak) with a climatic chamber (−20 °C to +130 °C / 40–98 % RH) on a motorized precision positioning platform.
• Modular interface system: Standardized Ø200 mm vertical and 1000 × 1000 mm horizontal mounting ports with dual-seal cryo-thermal bellows ensure pressure-balanced, leak-tight coupling during dynamic operation.
• Programmable sweep & resonance tracking: CT-2000/PD digital controller supports automated frequency sweep cycles, dwell-at-resonance testing, and manual resonance point identification per IEC 60068-2-64 Annex B.
• Energy-optimized architecture: Sealed control cabinet with 60 % power reduction versus legacy analog systems; thermally decoupled shaker-to-chamber interface minimizes heat transfer interference.
• Operator-safe configuration: Physically isolated control unit with E-stop interlock, IP54-rated enclosure, and redundant over-acceleration/over-temperature cut-off circuits compliant with EN 61000-6-2 and EN 61000-6-4.
• Maintenance-integrated design: Field-replaceable armature assembly, tool-free access panels, and predictive diagnostic logging reduce mean time to repair (MTTR) to <30 minutes.

Sample Compatibility & Compliance

The system accommodates specimens up to 120 kg mass and 150 mm footprint, supporting PCB assemblies, automotive ECUs, medical device housings, aerospace avionics modules, and sealed consumer electronics enclosures. Its chamber interface geometry permits rapid blind plate interchange (three included) for dedicated vertical vibration, horizontal vibration, or standalone thermal-humidity cycling—enabling full traceability per ISO/IEC 17025 clause 7.8. All temperature and humidity sensors are NIST-traceable and calibrated annually per ILAC-G8:2022. Vibration output is verified using certified reference accelerometers (PCB Piezotronics Model 352C33) and validated against ISO 5347-13 for shaker calibration. The system meets electromagnetic compatibility requirements for Class A industrial environments and supports audit-ready documentation for FDA 21 CFR Part 11-compliant electronic records when paired with optional GLP/GMP software modules.

Software & Data Management

Control and data acquisition are managed via the embedded CT-2000/PD firmware with USB 2.0 and Ethernet (TCP/IP) connectivity. Real-time waveform monitoring, spectral analysis (FFT up to 8192 lines), and pass/fail limit checking are supported natively. Export formats include CSV, MATLAB .mat, and UFF58 for post-processing in MATLAB, Python (SciPy), or commercial FEA tools. Optional add-ons include: (1) Test Sequence Manager for multi-step environmental-vibration profiles; (2) Audit Trail Module with user-level permissions, electronic signatures, and immutable event logs per 21 CFR Part 11 Subpart B; (3) Remote Diagnostics Gateway enabling secure vendor-assisted troubleshooting without compromising network security.

Applications

This system serves as a core qualification asset in R&D labs and QA departments across regulated and high-reliability sectors. Typical use cases include: accelerated life testing of MEMS sensors under thermal-cycling + vibration; validation of battery module mounting integrity in EV powertrain simulations; verification of sterile barrier system integrity for ISO 11607-compliant medical packaging; fatigue assessment of solder joints in 5G baseband modules per JEDEC JESD22-B103; and mechanical shock/vibration resilience testing of IoT edge devices deployed in industrial IoT gateways. Its ability to replicate combined stresses aligns directly with IPC-9701A, SAE J1211, and NASA-HDBK-7005 methodologies for physics-of-failure modeling.

FAQ

Does the system support random vibration testing?

No—this configuration is optimized for sinusoidal excitation only. Random vibration capability requires upgrade to the optional VCS-5000 series controller and associated power amplifier.
Can the environmental chamber operate independently of vibration?

Yes—the climatic chamber is fully functional as a standalone thermal-humidity chamber when disconnected from the shaker platform.
What calibration documentation is provided upon delivery?

A full factory calibration certificate (traceable to NIST and PTB standards), including shaker force linearity, temperature/humidity sensor accuracy, and platform positional repeatability (±0.1 mm), is supplied with each unit.
Is remote software update supported?

Firmware updates are performed via secure HTTPS-based OTA protocol with SHA-256 signature verification and rollback capability.
What safety certifications does the system hold?

CE marking (EMC Directive 2014/30/EU, LVD Directive 2014/35/EU), UL 61010-1, and RoHS 3 compliance are standard. Optional ATEX Zone 2 certification available upon request.
