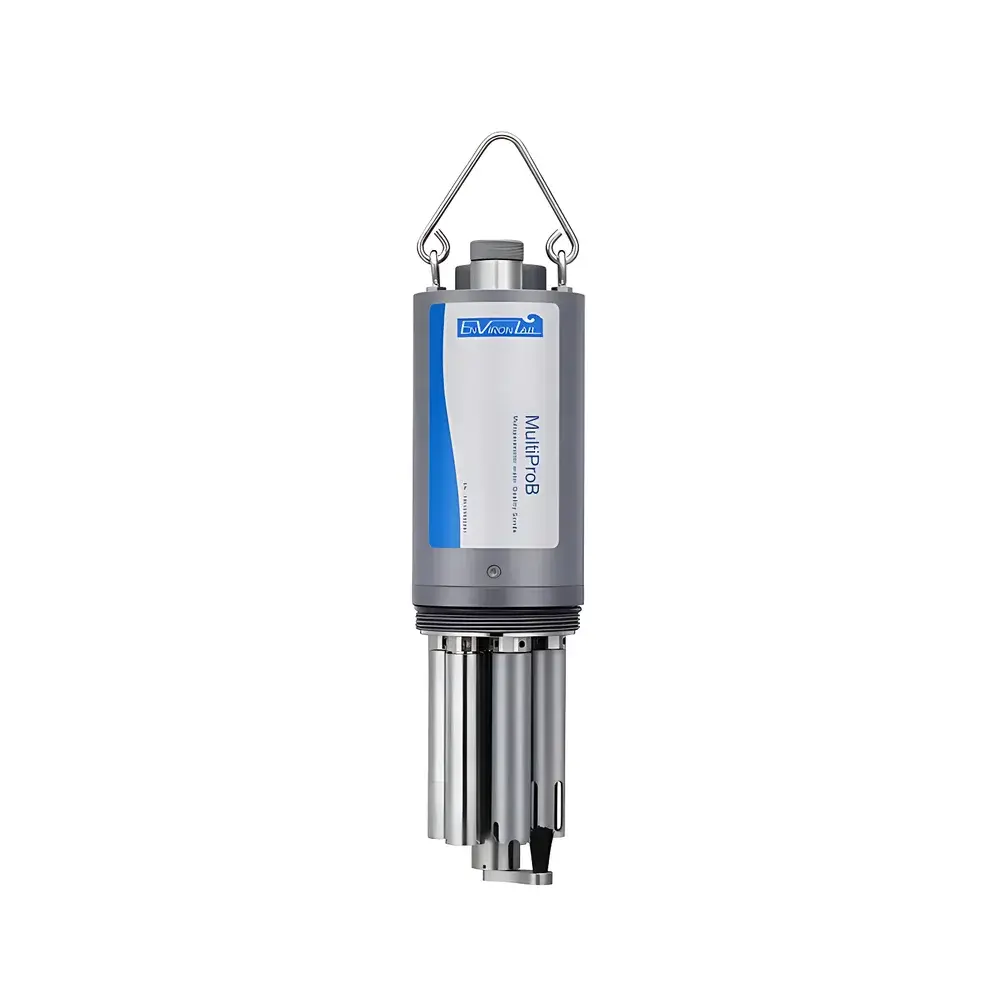

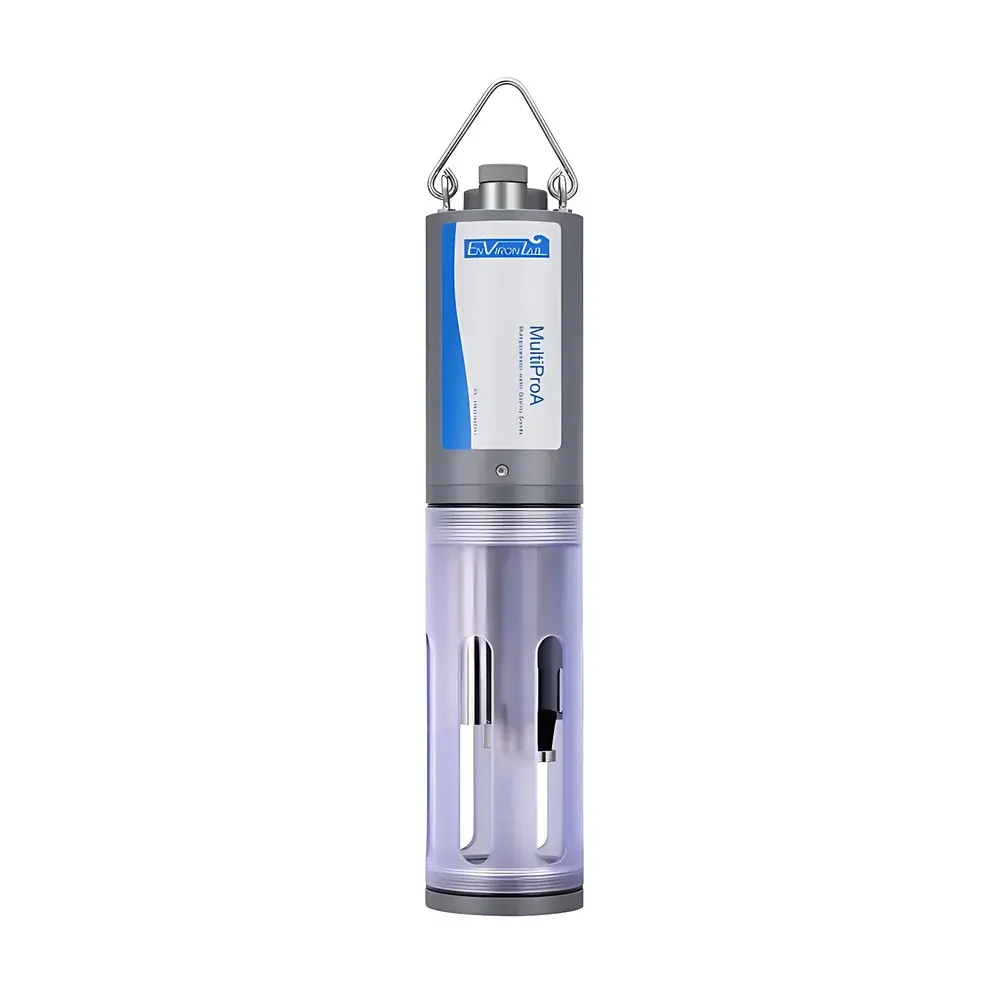

Environ Lab Multipro Series Multi-Parameter Water Quality Analyzer

Overview

The Environ Lab Multipro Series Multi-Parameter Water Quality Analyzer is an engineered field-deployable platform designed for high-fidelity, multi-analyte measurement in diverse aquatic environments—from shallow freshwater streams and municipal drinking water reservoirs to deep offshore marine zones and industrial wastewater outfalls. Built upon a modular, sensor-agnostic architecture, the Multipro employs standardized digital probe interfaces and embedded environmental compensation algorithms to ensure metrological consistency across variable thermal, hydrostatic, and biofouling conditions. Its core measurement principles include optical fluorescence (for chlorophyll-a, phycocyanin, and oil-in-water), amperometric and optical dissolved oxygen detection, potentiometric pH/ORP sensing with dual-junction reference design, four-electrode conductivity measurement with automatic surface resistance compensation, and UV-Vis absorbance at 254 nm and 540 nm for COD estimation. The system operates under ISO 7027-compliant turbidity methodology and integrates real-time temperature compensation via integrated PT1000 thermistors across all sensor modules—ensuring traceable accuracy per ASTM D3859 (pH), ASTM D888 (DO), and ISO 7888 (conductivity).

Key Features

• Modular probe architecture: All sensors—including EVN-7300 pH, EVN-7320 conductivity, EVN-7311 DO, EVN-7100 turbidity, EVN-7110 chlorophyll-a, EVN-7120 phycocyanin, EVN-7130 oil-in-water, EVN-7330 ammonia-nitrogen, and EVN-7170 COD (UV254)—are hot-swappable in situ without calibration loss or tool requirement.
• Ruggedized dual-compartment housing: IP67-rated enclosure with physically isolated battery and electronics chambers prevents circuit failure even if the battery compartment floods.
• Depth-rated performance: Certified for continuous operation up to 250 m submersion depth; titanium alloy and POM construction provide long-term corrosion resistance in seawater per ASTM B117 salt-spray testing.
• Autonomous field station capability: Onboard non-volatile memory supports scheduled logging, time-stamped data capture, and alarm-triggered sampling—enabling unattended deployment on buoys, moorings, or riverbank telemetry nodes.
• Self-maintaining optical sensors: Integrated mechanical wipers and pulsed LED activation routines mitigate biofilm accumulation on turbidity, chlorophyll, and oil sensors—reducing maintenance frequency and supporting GLP-compliant long-term monitoring protocols.

Sample Compatibility & Compliance

The Multipro accommodates natural and engineered water matrices including raw surface water, treated potable water, activated sludge effluent, brackish estuarine samples, and hypersaline aquaculture ponds. All probe designs comply with relevant international standards: pH/ORP electrodes meet ISO 10523 and USP ; conductivity measurements align with ISO 7888 and ASTM D1125; dissolved oxygen sensors satisfy ISO 5814 requirements for membrane-free optical DO; and UV254-based COD estimation follows EPA Method 415.3 principles for surrogate organic load quantification. The system supports audit-ready data integrity through optional 21 CFR Part 11–compliant software configuration, including electronic signatures, user access control, and immutable audit trails.

Software & Data Management

The Multipro is supported by Environ Lab’s AquaLink Desktop Suite—a validated Windows application enabling sensor calibration management, real-time telemetry visualization, spectral diagnostics, and compliance reporting. Field data are stored in IEEE 754-compliant floating-point format with embedded metadata (GPS coordinates, operator ID, calibration timestamps). Export options include CSV, Excel (.xlsx), and netCDF for integration into SCADA, LIMS, or GIS platforms. Firmware updates are delivered via signed OTA packages with SHA-256 verification. Remote diagnostics include impedance spectroscopy of electrode health, LED drive current logs, and thermal drift profiling—supporting predictive maintenance planning under ISO 13374 condition monitoring guidelines.

Applications

• Regulatory compliance monitoring: Continuous tracking of pH, DO, and conductivity in NPDES-permitted discharge points per 40 CFR Part 136.
• Drinking water source protection: Early detection of algal blooms (via chlorophyll-a and phycocyanin) and organic contamination (via UV254-COD) in watershed intakes.
• Industrial process control: Real-time ammonia-nitrogen and oil-in-water measurement in cooling tower circuits and refinery effluents.
• Ecological research: High-resolution vertical profiling of stratified lakes using depth-synchronized multi-parameter acquisition.
• Emergency response: Rapid deployment during spill events with handheld readout and GPS-tagged incident mapping.

FAQ

Can the Multipro operate both as a handheld unit and as a fixed online sensor?
Yes—the same host unit functions autonomously with internal battery and memory for portable surveys, or connects to external power and telemetry infrastructure for permanent installation.
Are ammonia-nitrogen and COD sensors available off-the-shelf?
Ammonia-nitrogen (EVN-7330) and UV254-based COD (EVN-7170) sensors require factory configuration and are not stocked as standard items; lead time applies for custom orders.
Does the system support NIST-traceable calibration?
All primary sensors ship with individual calibration certificates referencing NIST-traceable standards; field recalibration uses certified buffer solutions and conductivity standards compliant with ISO 9001 laboratory practices.
What is the expected service life of optical components?
Infrared and UV LEDs are rated for ≥100,000 hours of operation; fluorescence detectors maintain signal-to-noise ratio stability over ≥5 years under typical field exposure per IEC 60068-2-68 humidity cycling tests.
Is firmware update capability available in remote locations?
Yes—firmware updates can be applied via USB or Bluetooth Low Energy (BLE) from any Android/iOS device running the AquaLink Mobile Companion app, with rollback support and version validation.
