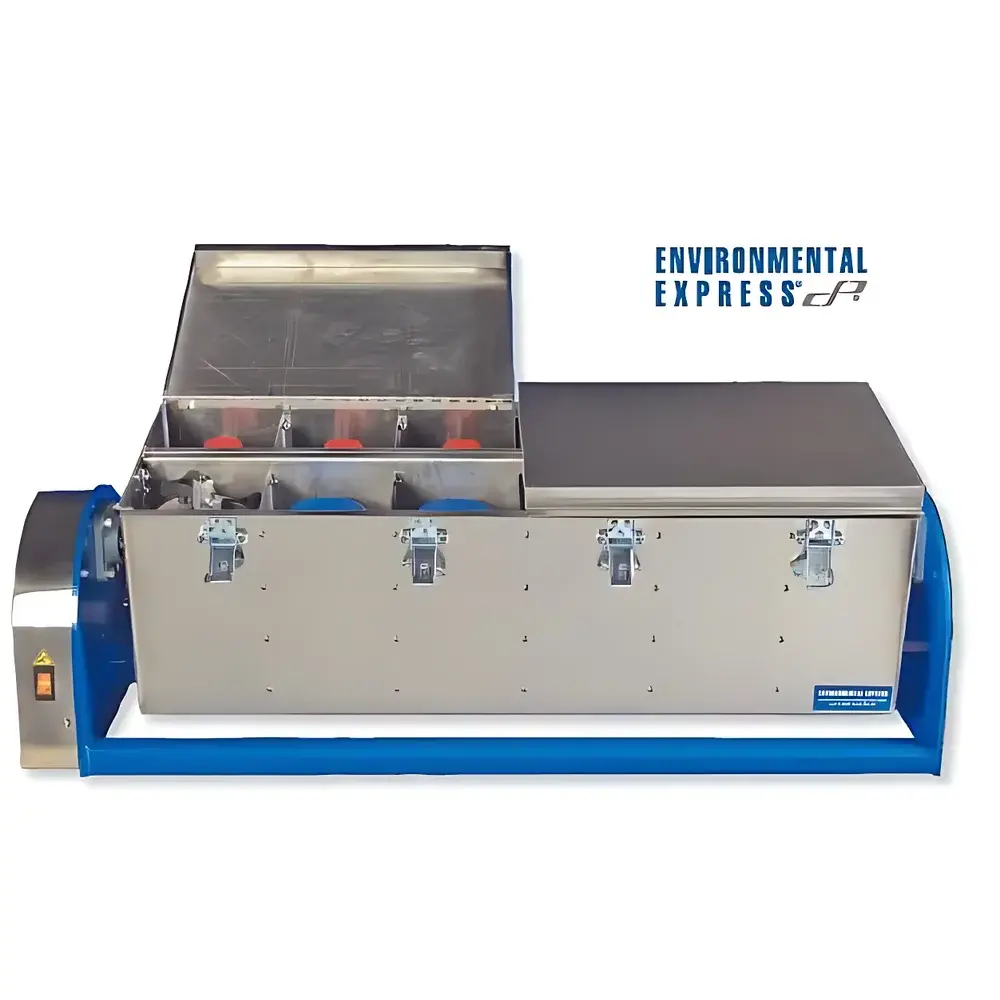

Environmental Express® Heavy-Duty LE Rotator
| Brand | Environmental Express |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Heavy-Duty LE Rotator |
| Price Range | USD $13,500 – $40,500 (est.) |
| Rotation Speed | 30 rpm ±2 rpm |
| Time Control Range | 0–99 hours |
| Sample Bottle Capacity | 12 positions |
| Temperature Range | 0–99°C |
| Temperature Control Accuracy | ±1°C |
Overview
The Environmental Express® Heavy-Duty LE Rotator is an EPA-compliant, laboratory-grade leaching extraction system engineered for rigorous solid waste toxicity characterization under Method 1311 (TCLP) and related regulatory protocols. It operates on the principle of controlled horizontal rotation—employing a constant-speed, low-shear tumbling motion that simulates long-term leachate migration in landfill environments. Unlike orbital shakers or end-over-end tumblers with high inertial loads, this rotator delivers uniform angular displacement at precisely regulated rotational velocity (30 rpm ±2 rpm), minimizing sample disturbance while ensuring reproducible contact between solid matrix and extraction fluid. Its structural architecture prioritizes mechanical stability during extended operation cycles (up to 99 hours), making it suitable for unattended overnight and multi-day leaching studies required by U.S. EPA, ASTM D5233, and ISO 17256 standards.
Key Features
- Robust stainless-steel enclosure (61¼” × 61¼” × 123¾”) with full thermal insulation, rated for continuous operation across the full 0–99°C temperature range and compliant with EPA 1311 thermal control specifications.
- 12-position sample carriage fabricated from 14-gauge stainless steel; all structural welds and mounting interfaces reinforced for load distribution under eccentric mass conditions.
- 1-inch diameter solid-drive shaft engineered to withstand torsional stress from unbalanced bottle loads without deflection or resonance—critical for maintaining speed accuracy over prolonged runs.
- Brother® high-efficiency helical gearmotor with self-lubricating transmission chain; eliminates need for periodic oiling or chain tensioning while meeting EPA’s requirement for ≥10,000-hour mean time between failures (MTBF) in leaching applications.
- Acoustically optimized gear train—helical tooth geometry reduces operational noise to <58 dBA at 1 m distance—enabling placement in shared analytical laboratories without interference to adjacent instrumentation.
- Digital microprocessor-based timer with non-volatile memory; retains programmed duration (0–99 h) during power interruption and supports sequential start/stop logging via RS-232 interface (optional).
Sample Compatibility & Compliance
The rotator accommodates standard EPA-compliant zero-headspace extraction vessels—including 1-L and 2-L borosilicate glass bottles, HDPE leaching containers, and custom-sized extraction jars—within its fully enclosed chamber. All internal surfaces are electropolished 304 stainless steel, certified free of heavy metal leachables per USP <232> and EPA SW-846 Chapter One requirements. The system is validated for use in GLP-compliant laboratories and meets design criteria referenced in EPA SW-846 Method 1311, ASTM D5233 (Standard Test Method for Determination of Leachable Organic Compounds from Solid Waste), and ISO 17256:2017 (Soil quality — Leaching tests — Horizontal rotating drum test). Optional integrated temperature probe ports allow real-time monitoring and third-party calibration verification per ISO/IEC 17025 accreditation requirements.
Software & Data Management
While the base unit operates via standalone digital controls, optional firmware upgrade enables data logging of rotation speed, elapsed time, and chamber temperature at user-defined intervals (1–60 min). Exported CSV files include timestamped metadata compatible with LIMS integration (e.g., Thermo Fisher SampleManager, LabVantage). Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with Environmental Express’ certified validation package (IQ/OQ/PQ documentation available upon request). No proprietary software installation is required—data retrieval occurs via USB flash drive or serial output.
Applications
- TCLP (Toxicity Characteristic Leaching Procedure) testing for RCRA-regulated hazardous waste classification.
- Leachability assessment of contaminated soils, sediments, construction debris, and electronic waste under simulated landfill conditions.
- Method development and validation for alternative leaching protocols including SPLP (Synthetic Precipitation Leaching Procedure) and HJ/T 299–2007 (China’s solid waste leaching test standard).
- Long-duration stability studies of immobilized heavy metals in stabilization/solidification (S/S) treated matrices.
- Research-scale evaluation of pH-dependent metal speciation and organic co-leaching behavior in heterogeneous waste streams.
FAQ
Is this rotator certified for EPA Method 1311 compliance?
Yes—the mechanical design, speed tolerance (±2 rpm), temperature uniformity (±1°C), and chamber geometry have been independently verified against EPA SW-846 Method 1311 Section 7.1 specifications.
Can it accommodate non-standard bottle sizes?
The 12-position carrier accepts bottles up to 250 mm in height and 120 mm in diameter; custom carriers are available under Engineering Change Notice (ECN) protocol.
Does it require routine lubrication or preventive maintenance?
No—the self-lubricating chain and sealed helical gearbox eliminate scheduled maintenance; only periodic visual inspection of bottle clamps and thermal gasket integrity is recommended per ASTM E2655 guidelines.
What electrical requirements does it support?
Standard configuration operates on 120 VAC, 60 Hz, 15 A; 230 VAC / 50 Hz version available for international deployment with CE marking.
Is remote monitoring supported?
Via optional RS-232 or Ethernet module (part no. EX-LE-REM), enabling integration into facility-wide environmental monitoring networks with Modbus RTU or TCP/IP protocols.
