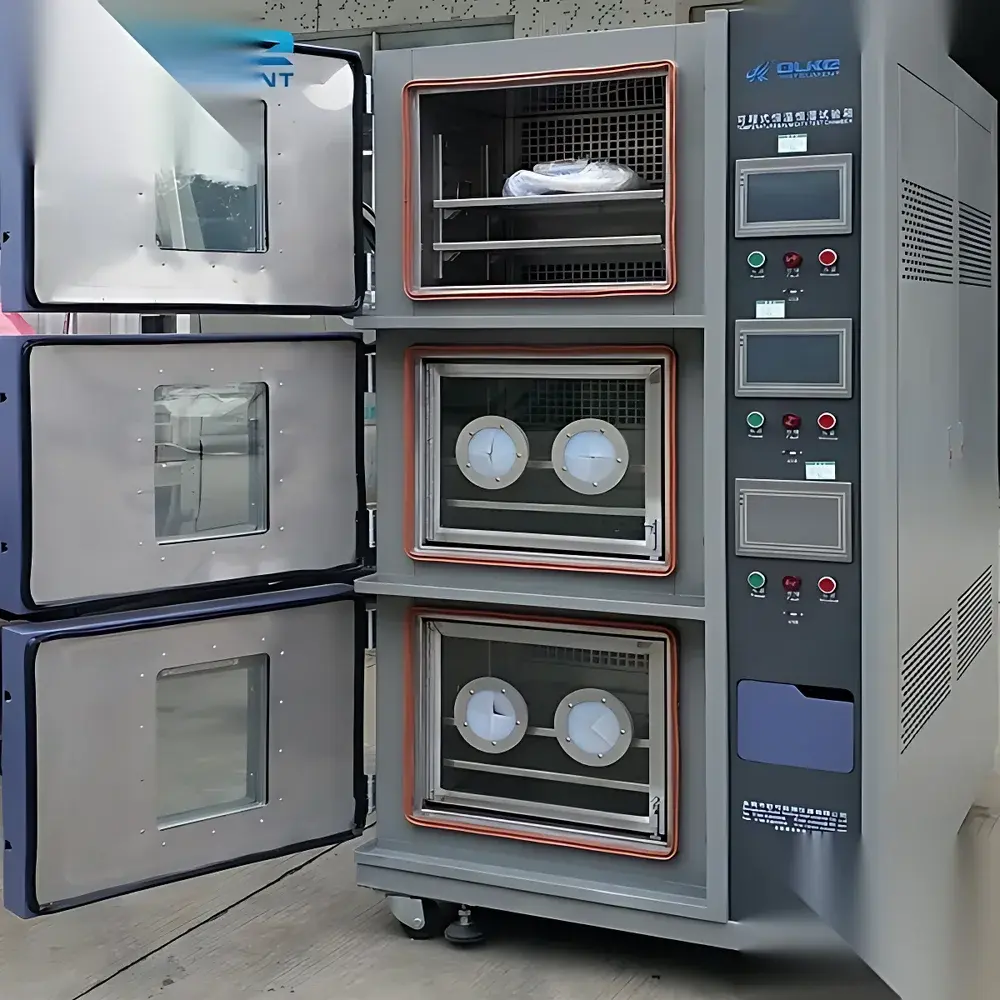

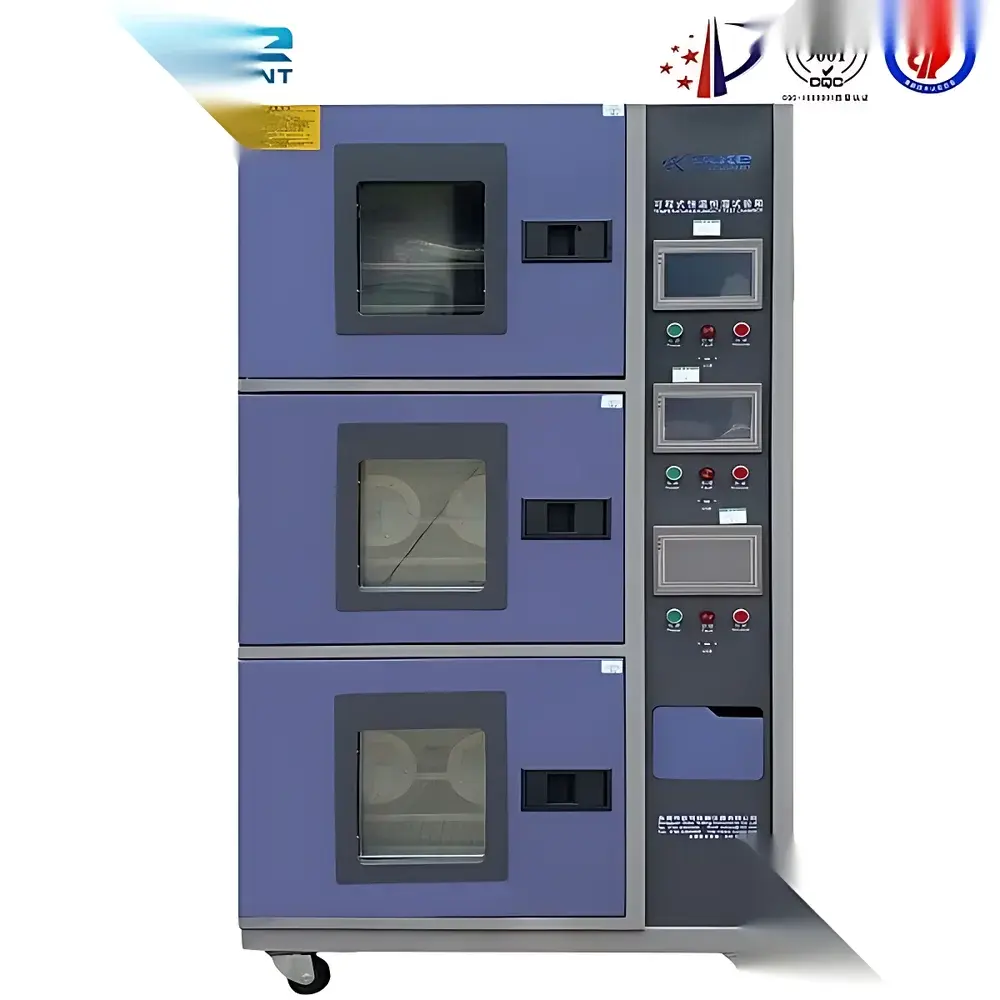

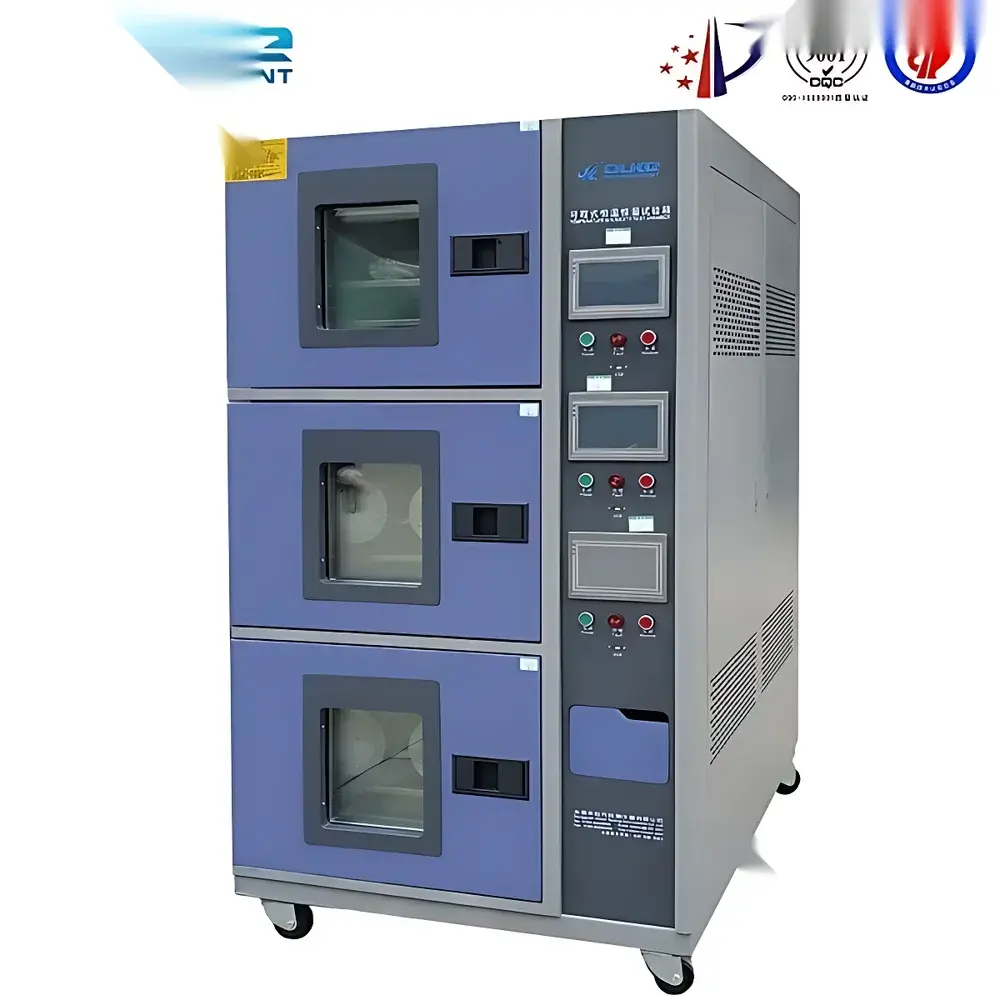

Environmental Test Chamber – 0°C Temperature and Humidity Controlled Chamber

Overview

The Environmental Test Chamber – 0°C Temperature and Humidity Controlled Chamber is a precision-engineered environmental simulation system designed for long-term, stable operation at precisely controlled low-temperature and high-humidity conditions. Operating on the principle of balanced heating, cooling, humidification, and dehumidification via a BTHC (Balanced Temperature & Humidity Control) system, this chamber maintains rigorous thermal and hygrometric stability through PID-controlled SSR (Solid-State Relay) actuation. Unlike transient thermal shock systems, it delivers continuous, uniform conditioning—critical for reliability testing of electronic components, polymer materials, pharmaceutical packaging, and automotive interiors under sustained sub-zero ambient exposure. The chamber’s core architecture integrates a full-capillary refrigeration circuit with automatic capacity modulation, eliminating reliance on mechanical expansion valves and ensuring superior temperature ramp linearity, reduced thermal overshoot, and enhanced energy efficiency over extended test cycles.

Key Features

• Advanced BTHC control architecture: Real-time dynamic balancing of heating/humidification output against thermal/hygrometric load loss, enabling stable 0°C ±0.5°C and 20–98% RH ±2.5% RH operation without drift.
• Full-capillary refrigeration system with auto-load capacity adjustment: Delivers faster, smoother, and more repeatable temperature transitions than conventional thermostatic expansion valve (TXV) designs—particularly critical during prolonged low-temperature holds.
• Imported multi-function touch-screen controller with intuitive HMI: Supports programmable multi-step profiles, real-time data logging, alarm history, and user-level access control—compliant with basic GLP documentation requirements.
• High-integrity chamber construction: Seamless stainless-steel interior, double-wall insulated housing with high-density polyurethane foam (≥100 mm thickness), and plane-type non-reactive door handle for ergonomic, contamination-free operation.
• Robust auxiliary interface support: Standard RS-485 Modbus RTU port for integration into centralized lab monitoring networks; optional Ethernet/IP or Profibus-DP modules available upon request.

Sample Compatibility & Compliance

This chamber accommodates standard test specimens up to 1 m³ volume (custom walk-in configurations available), supporting rigid and flexible materials including PCB assemblies, lithium-ion battery modules, medical device housings, elastomeric seals, and coated metal substrates. All operational parameters—including temperature uniformity (±1.0°C), humidity uniformity (±3.0% RH), and recovery time after door opening—are validated per GB/T 5170.2–1996 (thermal performance) and GB/T 5170.5–1996 (humidity performance). It meets the test condition definitions specified in IEC 60068-2-1 (cold test), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), and aligns with functional requirements of MIL-STD-810G Method 502.6 and ASTM D4332 for conditioning prior to mechanical or electrical evaluation.

Software & Data Management

The embedded controller firmware supports local data storage (≥30 days of 1-second interval logs) with timestamped event tagging (e.g., door open/close, alarm trigger, setpoint change). Export formats include CSV and PDF reports compliant with internal QA traceability protocols. For regulated environments, optional validation packages (IQ/OQ documentation templates) and 21 CFR Part 11–ready audit trail add-ons are available—enabling secure user authentication, electronic signatures, and immutable record retention. Remote monitoring via secure HTTPS web interface is supported when paired with an external industrial gateway (not included).

Applications

• Pre-conditioning of electronics prior to HALT/HASS screening at sub-zero operating thresholds.
• Accelerated aging studies of moisture-barrier films used in flexible OLED encapsulation.
• Stability assessment of cold-chain pharmaceutical packaging under ISO 13485–aligned environmental stress protocols.
• Material embrittlement evaluation of thermoplastic elastomers (TPEs) and polyolefin blends at 0°C with controlled humidity cycling.
• Calibration verification of handheld hygrometers and digital temperature sensors per ISO/IEC 17025 laboratory requirements.

FAQ

What is the minimum achievable temperature with full humidity control?
The chamber achieves stable 0°C operation at 20–98% RH. For sub-zero humidity control (e.g., –20°C @ 30% RH), optional low-temperature humidification modules and enhanced dew-point suppression systems are required.
Is cooling water connection mandatory?
Yes—continuous chilled water supply (10–28°C, 0.1–0.3 MPa) is essential for condenser heat rejection during extended low-temperature operation. Air-cooled variants are available but limited to ≥–10°C minimum setpoints.
Can the chamber be validated for GMP use?
Yes—full IQ/OQ documentation, sensor calibration certificates (NIST-traceable), and 21 CFR Part 11 compliance modules can be supplied as optional deliverables.
How does load affect temperature uniformity?
Uniformity specifications (±1.0°C) apply to empty-chamber conditions per GB/T 5170.2. With 30% volumetric load of low-thermal-mass samples, deviation remains within ±1.5°C—verified via 9-point mapping per IEC 60068-3-5.
Are custom interior dimensions supported?
Yes—walk-in chambers from 2 m³ to 50 m³ are engineered to client-specified footprint, door configuration, and internal shelving layouts, with structural integrity certified to local building codes.
