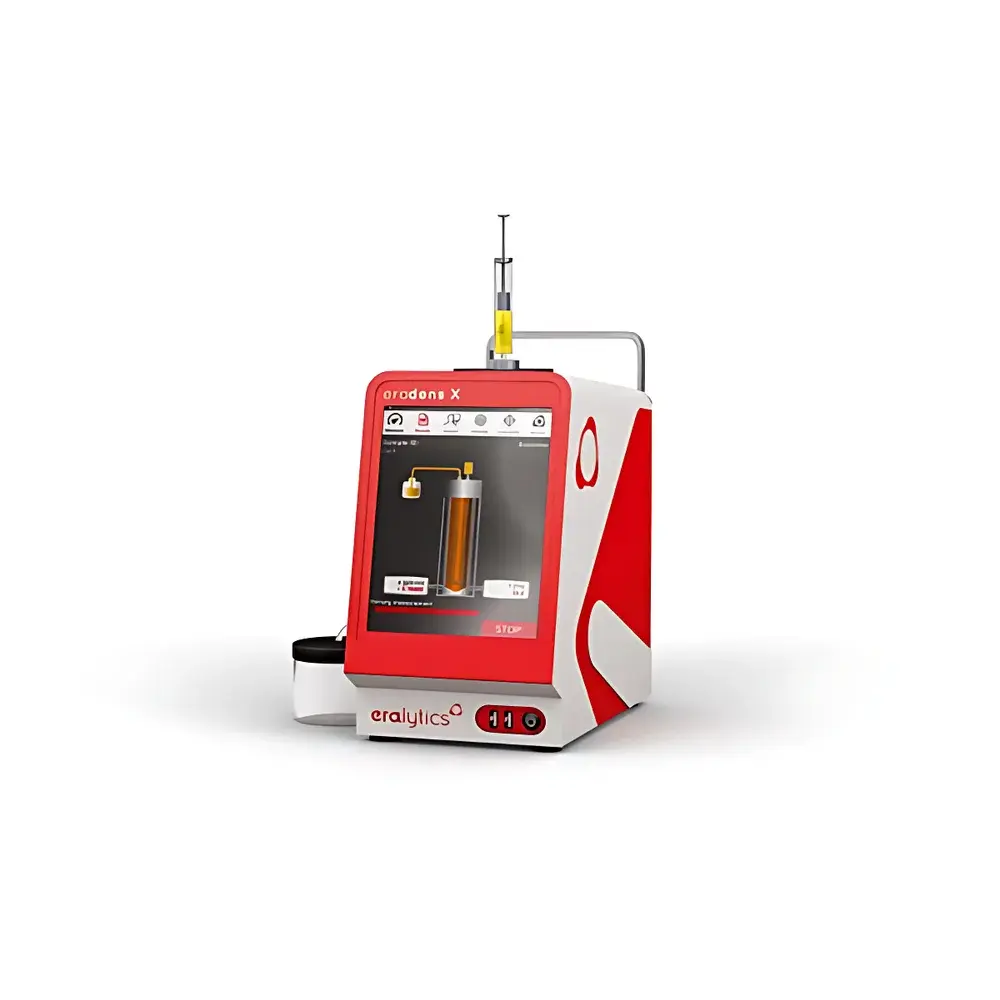

ERALYTICS ERAdens X High-Precision Oscillating U-Tube Densimeter

Overview

The ERALYTICS ERAdens X is a high-precision, portable oscillating U-tube densimeter engineered for traceable, laboratory-grade density measurement of liquids under field or benchtop conditions. Based on the fundamental principle of oscillating tube metrology—where the resonant frequency of a precisely machined, vertically oriented U-shaped glass or metal tube filled with sample correlates inversely to its density—the ERAdens X delivers SI-traceable results with exceptional long-term stability. Its compact architecture integrates a hermetically sealed, corrosion-resistant aluminum housing and a proprietary vertical oscillation system that eliminates sensitivity to external vibration and orientation, making it uniquely suited for both accredited laboratory environments and mobile applications in refineries, pipelines, and marine terminals. Designed to meet the stringent requirements of ASTM D4052 (Standard Test Method for Density, Relative Density, and API Gravity of Crude Petroleum and Liquid Petroleum Products by Digital Density Meter) and SH/T 0604 (Chinese standard for petroleum product density determination), the ERAdens X supports regulatory compliance workflows including GLP and GMP data integrity protocols.

Key Features

• Vertical oscillating U-tube sensor with patented mechanical damping design—ensures immunity to ambient vibration and positional drift without requiring leveling or isolation tables.
• High-resolution capacitive temperature sensor integrated directly into the oscillation cell, enabling real-time thermal compensation across the full 0–100 °C operating range.
• Full-range viscosity correction algorithm—automatically compensates for damping effects induced by high-viscosity samples (e.g., heavy fuel oils, bitumen dilutions), maintaining accuracy across diverse liquid classes.
• FillingProof™ technology—detects micro-bubbles via controlled pressure-induced density shift analysis rather than optical transmission, ensuring reliable operation with opaque, turbid, or colored samples including crude oil, biodiesel blends, and asphaltene suspensions.
• 10.1-inch industrial-grade capacitive touchscreen with glove-compatible interface—supports multi-touch gestures, customizable measurement templates, and on-device result annotation.
• No moving parts in the measurement path—eliminates wear-related calibration drift and reduces maintenance intervals to annual verification only.

Sample Compatibility & Compliance

The ERAdens X is validated for use with hydrocarbon-based liquids, aqueous solutions, alcohols, glycols, lubricants, biofuels, and formulated chemical products. It complies with ISO/IEC 17025-relevant measurement uncertainty budgets when operated within specified environmental conditions (temperature stability ±0.1 °C/h, humidity <80% RH non-condensing). Instrument firmware includes configurable audit trail logging per FDA 21 CFR Part 11 requirements, supporting electronic signature capture, user access levels, and immutable record retention. Calibration traceability is maintained through NIST-traceable reference standards certified to ISO 17034, with optional factory calibration certificates available upon request.

Software & Data Management

Embedded firmware v4.2 provides local data storage for up to 10,000 measurement records with timestamp, operator ID, temperature, density, and metadata tags. Export options include CSV via USB flash drive, direct Ethernet transfer to LIMS or ELN systems using TCP/IP-based ASCII protocol, and optional OPC UA server integration for Industry 4.0 process monitoring. The ERAdens Connect desktop application (Windows/macOS) enables remote configuration, batch report generation with statistical summaries (mean, SD, RSD, confidence intervals), and automated calibration curve management. All exported files retain embedded digital signatures compliant with EU eIDAS regulation.

Applications

• Petroleum & Petrochemicals: API gravity calculation, custody transfer verification, distillation cut characterization, and blending control of gasoline, diesel, jet fuel, and residual oils.
• Chemical Manufacturing: Quality release testing of solvents, monomers, and polymer precursors; density-based concentration monitoring in reaction vessels.
• Pharmaceutical & Biotech: Excipient density screening, solvent recovery validation, and formulation consistency checks per USP guidelines.
• Academic & Metrology Labs: Reference material certification, inter-laboratory comparison studies, and primary density standard dissemination.
• Marine & Field Operations: On-site bunker fuel inspection, tank farm inventory reconciliation, and pipeline slug detection via real-time density profiling.

FAQ

Is the ERAdens X suitable for measuring highly viscous samples such as bitumen or heavy fuel oil?

Yes—its adaptive viscosity correction algorithm and FillingProof™ bubble detection ensure accurate density determination for samples up to 1,000 mPa·s at measurement temperature, provided minimum fill volume (2 mL) and thermal equilibration time are observed.
Does the instrument require periodic recalibration by the user?

No routine recalibration is required. The ERAdens X employs a drift-compensated oscillator design with factory-performed multi-point calibration traceable to national metrology institutes. Annual verification using certified reference materials is recommended for ISO/IEC 17025 compliance.
Can the device be operated in explosive atmospheres?

The standard ERAdens X is not ATEX or IECEx certified. For hazardous area deployment, consult ERALYTICS for intrinsically safe variants with modified enclosure ratings (e.g., Ex ib IIB T4 Ga).
What data security features support regulated environments?

Firmware implements role-based access control (RBAC), encrypted local database, tamper-evident audit logs with hash chaining, and export file signing using X.509 certificates—all aligned with ALCOA+ principles for data integrity.
Is temperature control external or built-in?

The ERAdens X features a fully integrated Peltier-based thermostatic system with active cooling/heating capability, enabling precise setpoint control from 0 °C to 100 °C at ±0.02 °C stability without external chillers or baths.
