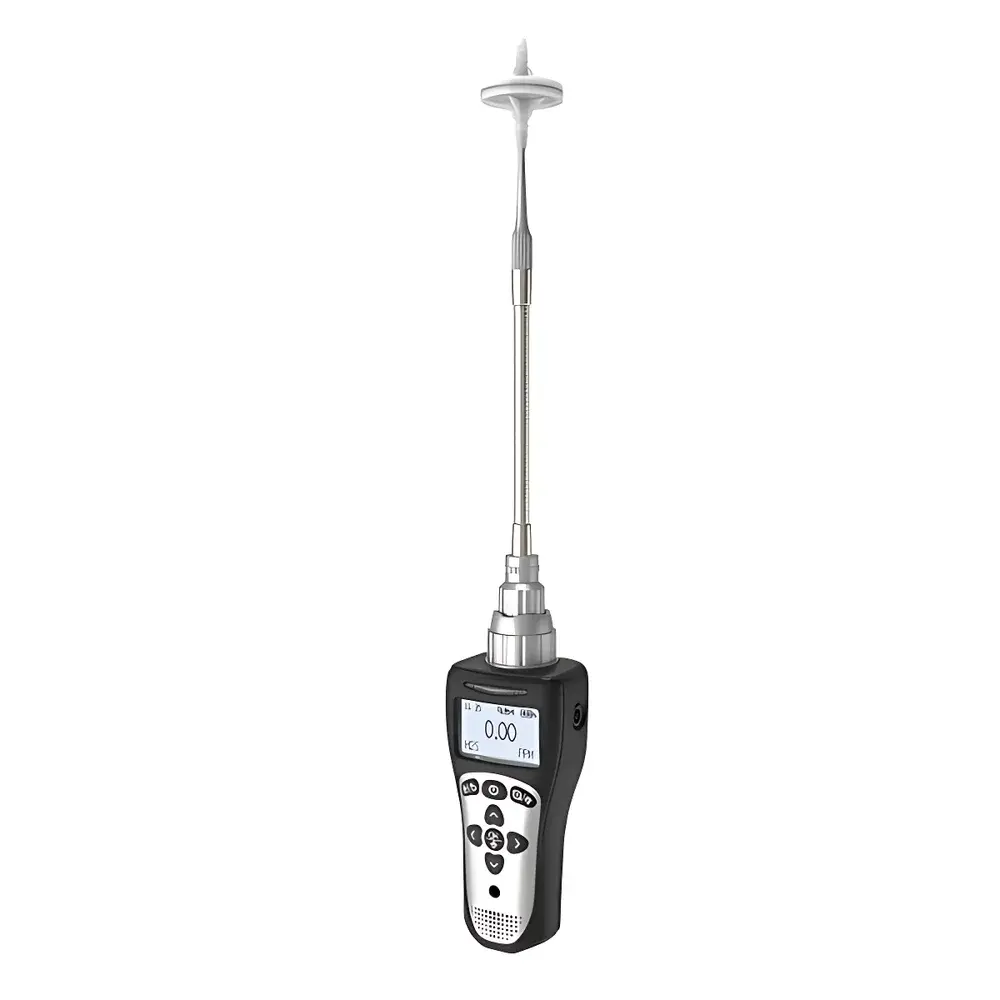

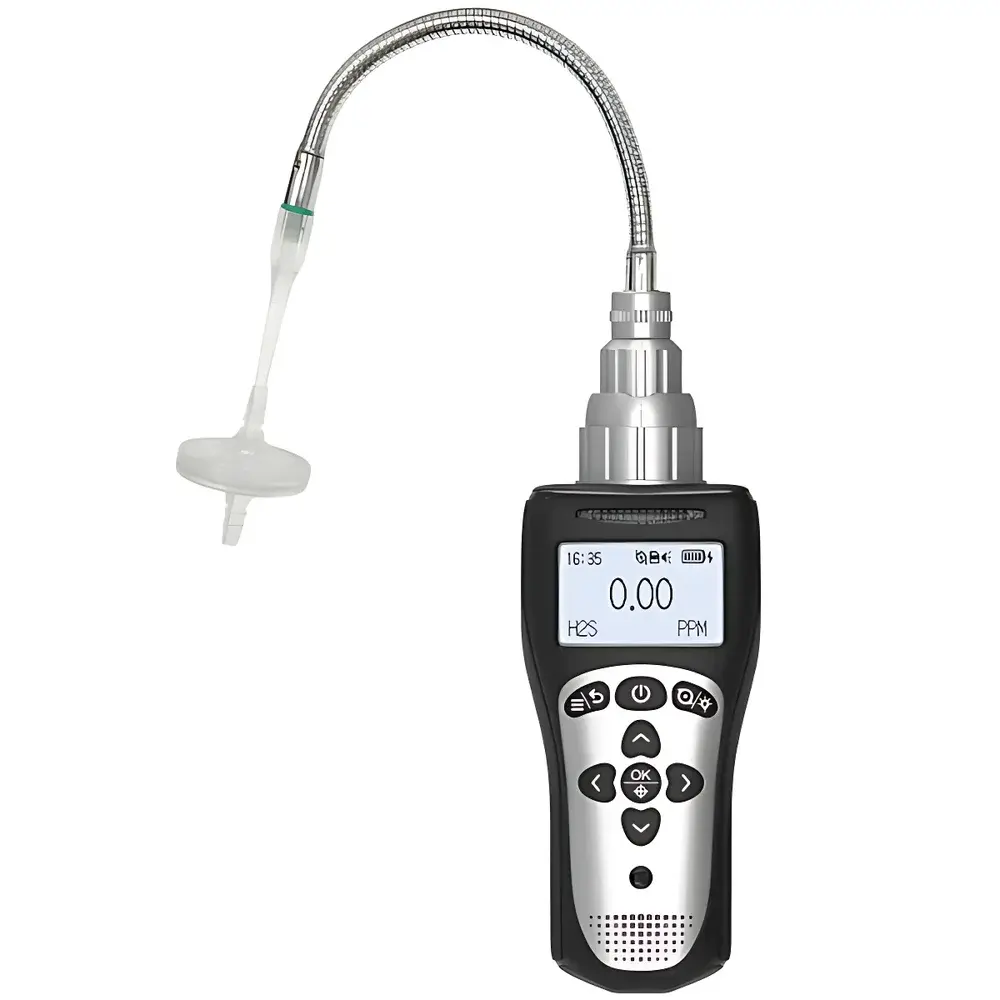

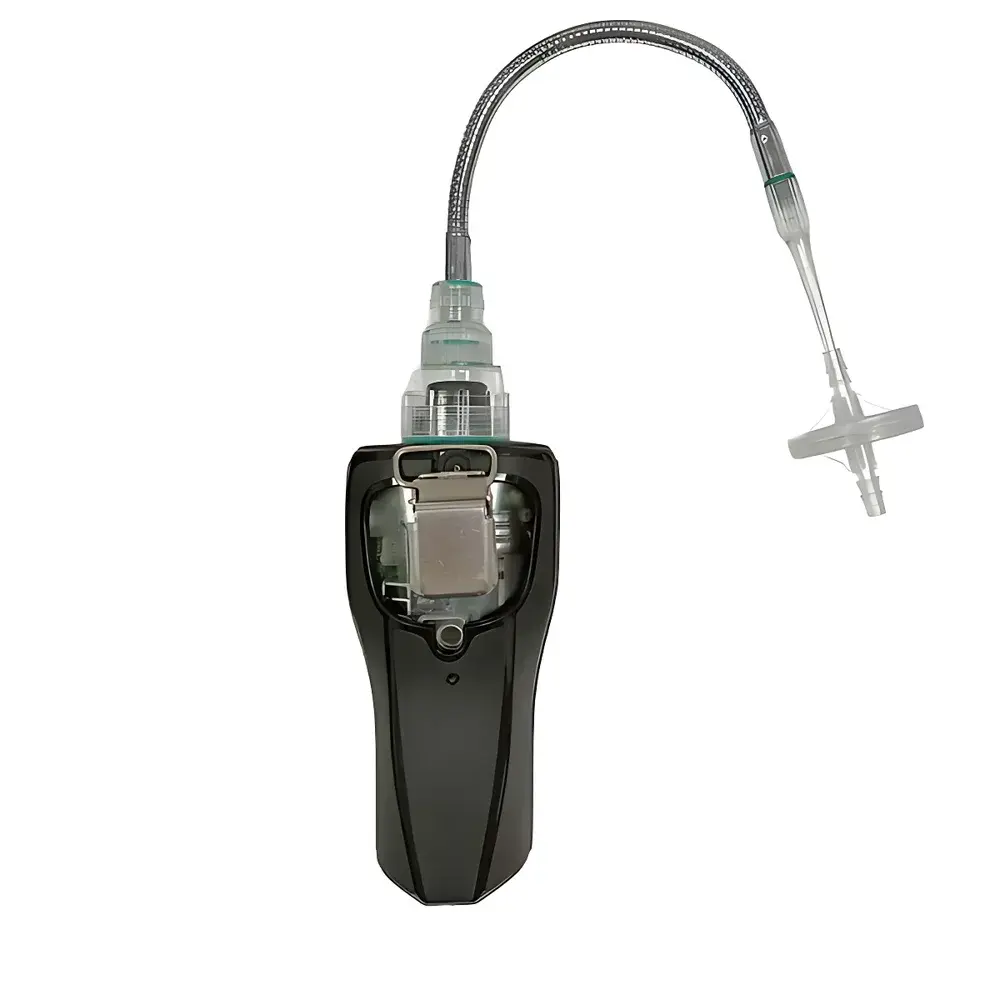

Eranntex MS104K-L-CH2O Portable Formaldehyde Gas Detector

Overview

The Eranntex MS104K-L-CH2O is a certified intrinsically safe, portable formaldehyde (CH₂O) gas detector engineered for high-reliability ambient air quality monitoring in occupational and environmental safety applications. It employs a temperature-compensated electrochemical sensor optimized for formaldehyde detection across seven selectable concentration ranges—from ultra-low (0–1 ppm) to high-level industrial exposure (up to 50,000 ppm)—enabling precise quantification in diverse scenarios including indoor air quality assessment, post-remediation verification, laboratory fume hood validation, and emergency response during chemical spills or off-gassing events. The instrument operates on the principle of selective electrochemical oxidation, where formaldehyde diffuses through a permeable membrane into an electrolytic cell, generating a current linearly proportional to gas concentration. This measurement architecture ensures robust performance under variable humidity (10–95% RH, non-condensing) and temperature (-20 °C to +50 °C, optionally -40 °C to +70 °C), with T90 response time ≤20 seconds and recovery time ≤30 seconds—meeting critical requirements for real-time hazard identification per GB 50493–2019 and OSHA PEL/ACGIH TLV alignment.

Key Features

• Intrinsically safe design certified to Ex ia IICT4 Ga per GB/T 3836.1–2021 and GB/T 3836.4–2021, suitable for Zone 0/1 hazardous locations.
• Dual sampling modes: integrated micro-pump suction (flow rate adjustable) and passive diffusion—configurable via firmware for flexible deployment in confined spaces, ducts, or open-area surveys.
• IP68-rated housing constructed from flame-retardant polycarbonate with rubberized impact protection; withstands drops from ≥5 m and full submersion (1 m for 30 min).
• Multi-parameter display on backlit LCD: real-time CH₂O concentration, selected unit (ppm, mg/m³, µmol/mol, %LEL), battery status, alarm flags, pump operation indicator, and timestamped data logging status.
• Comprehensive alarm system supporting dual-threshold (low/high), TWA/STEL, and interval-based alarms with simultaneous audible (≥85 dB), visual (high-intensity LED strobe), vibratory, and voice alerts.
• Advanced diagnostics including automatic zero tracking, pump blockage detection, sensor degradation warning, and mis-calibration prevention logic that rejects invalid span adjustments.
• Expandable connectivity: standard USB-C interface (2-hour full charge, 2100 mAh Li-polymer battery; optional 4500 mAh), with Bluetooth 5.0 module available for wireless telemetry and remote configuration.

Sample Compatibility & Compliance

The MS104K-L-CH2O is validated for formaldehyde-specific detection in complex matrices including humid indoor air, construction material off-gas emissions, wastewater treatment headspaces, and industrial exhaust streams. Cross-sensitivity to common interferents (e.g., methanol, acetaldehyde, CO) is minimized via proprietary electrode formulation and digital filtering algorithms. Regulatory compliance includes mandatory Chinese standards for toxic gas detection: GB 15322.3–2019 (portable toxic gas detectors), GB 50493–2019 (design criteria for petrochemical facility alarm systems), and metrological certification under CPA (China Metrology Accreditation). While not FDA 21 CFR Part 11 or ISO/IEC 17025 accredited out-of-box, the device supports GLP/GMP-aligned workflows through audit-trail-capable data export (CSV/Excel), time-stamped calibration logs, and firmware-locked configuration parameters—facilitating integration into validated QA/QC protocols.

Software & Data Management

Data acquisition and reporting are managed via Eranntex’s PC-based ConfigTool v3.2 and mobile-compatible Eranntex Link app (iOS/Android). The instrument stores ≥100,000 timestamped records onboard—including concentration values, alarm events, battery voltage, pump runtime, and calibration history—with user-definable logging intervals (1 s to 24 h). Export options include direct USB-C transfer, Bluetooth sync, or cloud upload (via optional gateway). All stored data retain immutable timestamps and device serial identifiers. Firmware updates preserve calibration coefficients and user preferences. Audit-ready reports can be generated with customizable headers, regulatory reference tags (e.g., “Per GB 50493–2019 Section 5.2.3”), and signature fields for field technician attestation.

Applications

• Occupational hygiene monitoring in furniture manufacturing, plywood mills, and textile dyeing facilities where formaldehyde exposure exceeds 0.1 ppm (OSHA STEL).
• Post-remediation verification following formaldehyde abatement in residential and commercial buildings (per EPA IAQ guidelines and China’s GB/T 18883–2022).
• Emergency response by fire departments and HAZMAT teams during transportation incidents involving formalin solutions or phenol-formaldehyde resins.
• QA/QC in pharmaceutical cleanrooms and medical device sterilization validation (where formaldehyde is used as low-temperature sterilant).
• Academic research on VOC emission profiles from building materials, adhesives, and insulation foams.
• Environmental site assessments near landfills, composting facilities, and wastewater treatment plants with potential formaldehyde generation pathways.

FAQ

What detection principle is used for formaldehyde measurement?
The MS104K-L-CH2O uses a high-selectivity electrochemical sensor optimized for formaldehyde, with optional infrared (IR) or photoionization (PID) modules available for multi-gas configurations.
Is the instrument suitable for continuous unattended monitoring?
It is designed primarily for spot-checking and personal exposure monitoring; for fixed-site continuous operation, consider Eranntex’s wall-mounted MS5000 series with 4–20 mA output and relay control.
Can calibration be performed in the field without external equipment?
Yes—zero calibration is fully automatic; span calibration requires only a certified CH₂O calibration gas cylinder and the included calibration cap; one-button guided procedure minimizes operator error.
Does the device meet international explosion protection standards such as ATEX or IECEx?
It complies with Chinese national explosion-proof standards (GB/T 3836); ATEX/IECEx certification is not currently held but may be pursued upon request for specific export markets.
How is data integrity ensured during long-term storage?
All logged data include hardware-generated timestamps, cyclic redundancy checksums (CRC-16), and write-protection against accidental overwrites—supporting traceability requirements under GB/T 19001–2016 (ISO 9001) and GB/T 24001–2016 (ISO 14001).
