Eranntex MS400-C3H3N Portable Acrylonitrile (C₃H₃N) Gas Detector

Overview

The Eranntex MS400-C3H₃N is a certified intrinsically safe, portable multi-gas detector engineered for real-time, field-deployable quantification of acrylonitrile (C₃H₃N) in occupational and environmental settings. Acrylonitrile — a volatile organic compound (VOC) classified as a Group B1 probable human carcinogen by the U.S. EPA and regulated under OSHA PEL (2 ppm TWA, 10 ppm STEL) and ACGIH TLV (1 ppm TWA) — demands precise, rapid, and reliable detection due to its high toxicity, flammability (LEL = 3.05% vol), and reactivity. The MS400-C3H₃N employs a configurable sensor architecture, with electrochemical sensing as the default method for C₃H₃N detection, offering optimal sensitivity and selectivity in low-concentration industrial hygiene applications (0–10 ppm range). Optional detection principles—including photoionization (PID), catalytic bead (for LEL monitoring), infrared (NDIR), or thermal conductivity—can be integrated depending on measurement objectives (e.g., %LEL verification, purity analysis in nitrogen blanking, or high-concentration stack monitoring). Its robust firmware implements dynamic temperature and humidity compensation algorithms, ensuring metrological stability across extreme ambient conditions (−40 °C to +70 °C) and mitigating cross-sensitivity from common interferents such as acetone, acetaldehyde, and hydrogen cyanide.

Key Features

• Intrinsically safe design certified to Exia II CT4, compliant with IEC 60079-0 and GB 3836.1–2010 for use in Zone 0/1 hazardous areas.
• IP65-rated enclosure with integrated hydrophobic particulate filter, enabling continuous operation in high-humidity, dusty, or splash-prone environments (e.g., chemical loading docks, reactor manways, wastewater treatment basins).

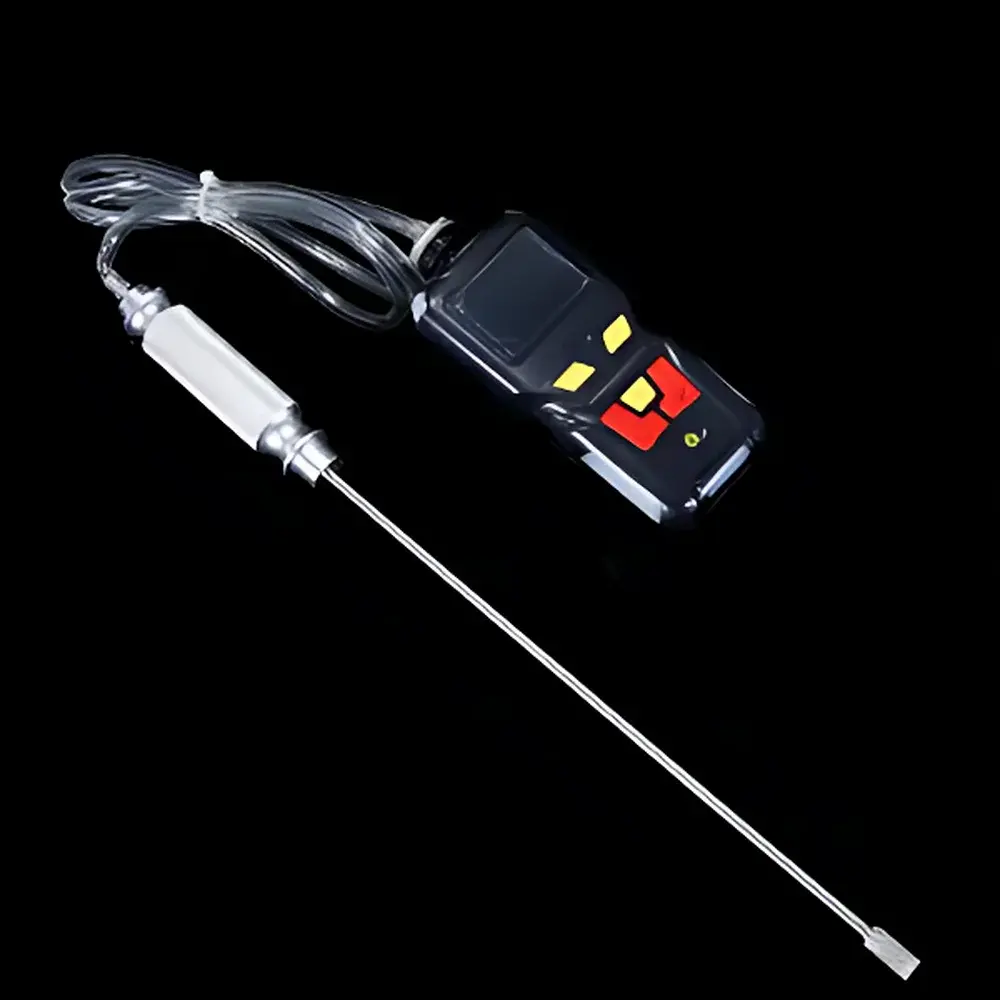

• Active pump-assisted sampling (500 mL/min flow rate) with 10-meter extendable probe option; supports remote sampling in confined spaces or elevated process lines without operator proximity.

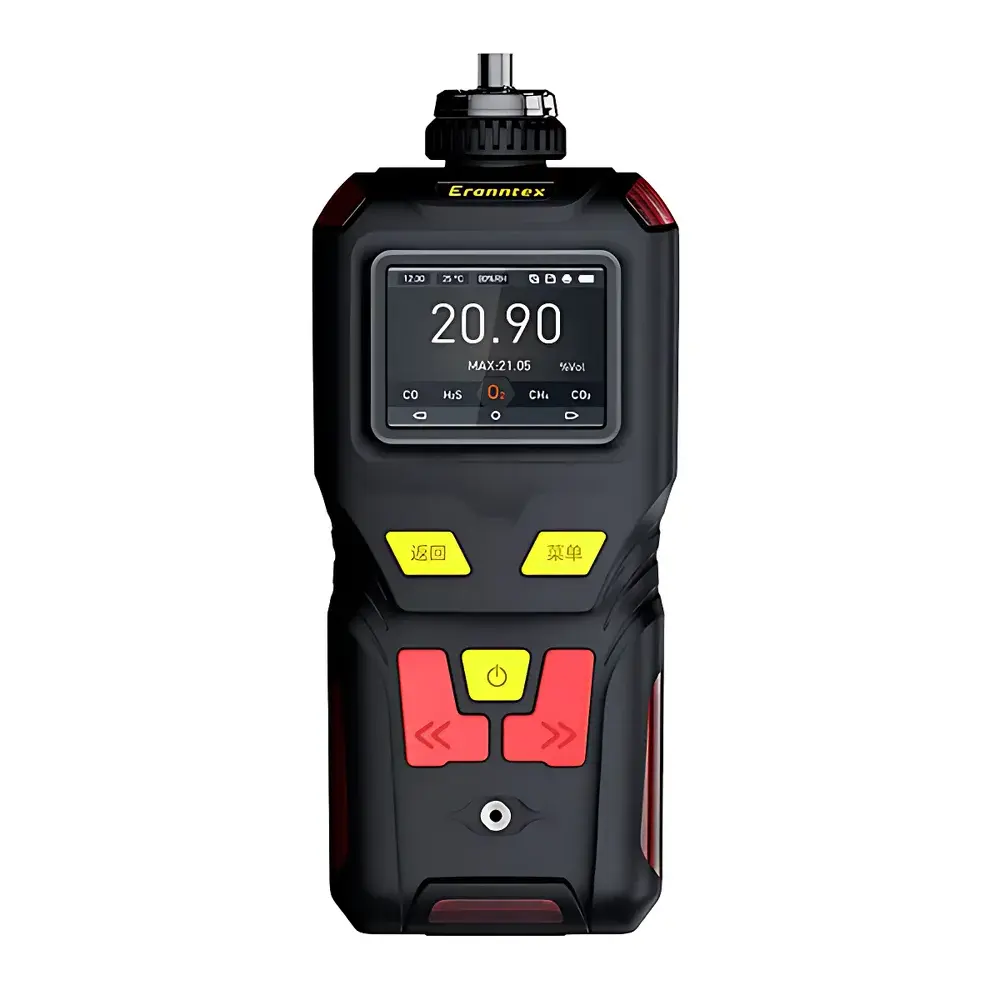

• 2.31″ high-resolution color TFT display with intuitive icon-driven interface; supports triple-view mode: simultaneous quad-gas readout, large-font single-channel focus, or real-time concentration trend graphing.
• Configurable alarm hierarchy: programmable low/high/interval/weighted-average thresholds with multi-modal alerting (85 dB audible, dual-color LED strobe, haptic vibration, and on-screen flash).
• Comprehensive data integrity system: 100,000-point internal logging (time-stamped, with temperature/humidity metadata), USB mass-storage export, and audit-ready event tagging (calibration, fault, alarm, battery status).
• Smart power management: 4600 mAh Li-polymer battery with five-level SOC indication; operates continuously >16 hours (typical), charges via universal USB input (5 V/2 A), and maintains full functionality during charging.

Sample Compatibility & Compliance

The MS400-C3H₃N is validated for direct measurement of acrylonitrile vapor in ambient air, inert carrier gases (N₂, Ar), and oxygen-enriched atmospheres. It meets national metrological requirements per China’s CMC certification (Certificate No. CMES-XXXXX), GB 12358–2006 (electrical safety), and JJG 693–2011 (calibration protocol for toxic gas detectors). For international deployment, it aligns with ISO 16000-23 (indoor air VOC monitoring), ASTM D5402 (solvent resistance testing), and OSHA 1910.1200 (HCS hazard communication). Sensor modules comply with EN 45544-1 (electrochemical sensors) and IEC 61000-4 series (EMC immunity). Optional high-temperature sampling accessories — including ceramic-filtered cooling handles rated to 400 °C — enable compliance with EPA Method 25A for stack gas analysis when paired with appropriate dilution and conditioning.

Software & Data Management

Data acquisition and reporting are managed through Eranntex’s PC-based EranntexLink™ software (Windows/macOS compatible, free download). The application supports GLP-compliant data review: time-synchronized waveform playback, statistical summary (min/max/avg/stdev), customizable report generation (PDF/CSV), and traceable calibration log export. All stored records include immutable timestamps, instrument ID, sensor serial numbers, and operator tags. Firmware v3.2+ enforces 21 CFR Part 11–aligned audit trails: every configuration change, alarm event, or zero/span adjustment is logged with user ID and timestamp. Remote firmware updates are performed securely over USB; no cloud dependency or third-party telemetry is implemented.

Applications

• Occupational health monitoring during acrylonitrile handling in ABS/SAN polymer production, acrylic fiber manufacturing, and nitrile rubber synthesis.
• Leak detection at storage tank vents, railcar unloading arms, and transfer hose connections per API RP 12R1 and NFPA 329.
• Confined space entry verification prior to maintenance in reactor vessels, distillation columns, or scrubber systems.
• Environmental compliance screening near fenceline monitors or remediation sites contaminated with legacy acrylonitrile spills.
• Process gas purity verification in nitrogen-purged reactors where residual C₃H₃N must remain below 1 ppm for catalyst protection.
• Emergency response triage during transportation incidents involving UN1093 acrylonitrile shipments.

FAQ

What detection principle is used for acrylonitrile in standard configuration?
Electrochemical sensing is the default and recommended method for ppb–ppm level acrylonitrile detection due to its high specificity, low power consumption, and linear response across the 0–10 ppm range.
Can the instrument measure acrylonitrile in high-temperature exhaust streams?
Yes — when equipped with the optional high-temperature sampling handle (ceramic filter + active cooling), the MS400-C3H₃N supports sample acquisition up to 400 °C, followed by inline dilution and condensate removal per EPA Method 25A protocols.
Is the device suitable for use in explosive atmospheres?
Yes — it carries Exia II CT4 intrinsic safety certification, permitting safe operation in Zone 0 (continuous gas presence) and Zone 1 (occasional gas presence) per IEC 60079-11.
How often does the sensor require calibration?
Field calibration is recommended before each day’s use (bump test) and full span/zero adjustment every 30 days or after exposure to concentrations exceeding 150% of full scale; sensor life is typically 24–36 months for electrochemical modules.
Does the device support regulatory audit requirements such as 21 CFR Part 11?
Yes — firmware and software implement electronic signatures, audit trails, role-based access control, and tamper-evident data logging fully aligned with FDA 21 CFR Part 11 Subpart B for electronic records and signatures.
