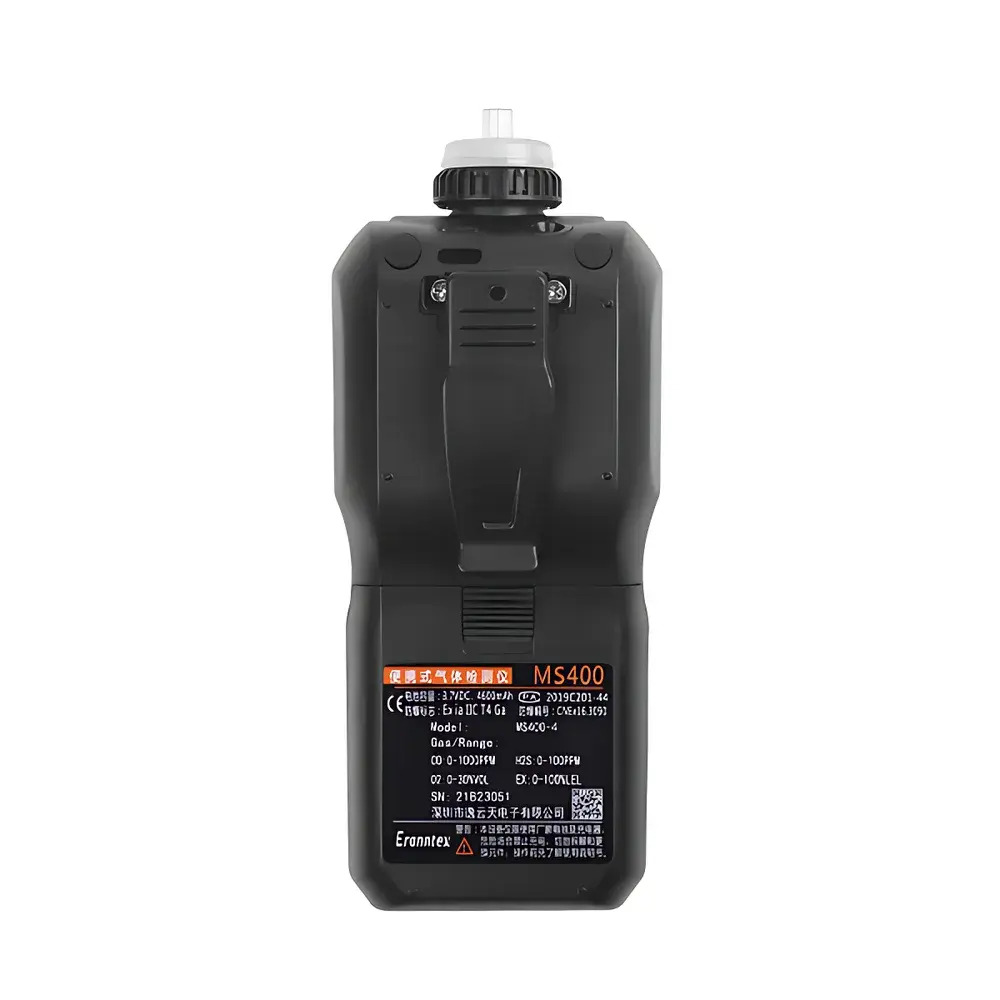

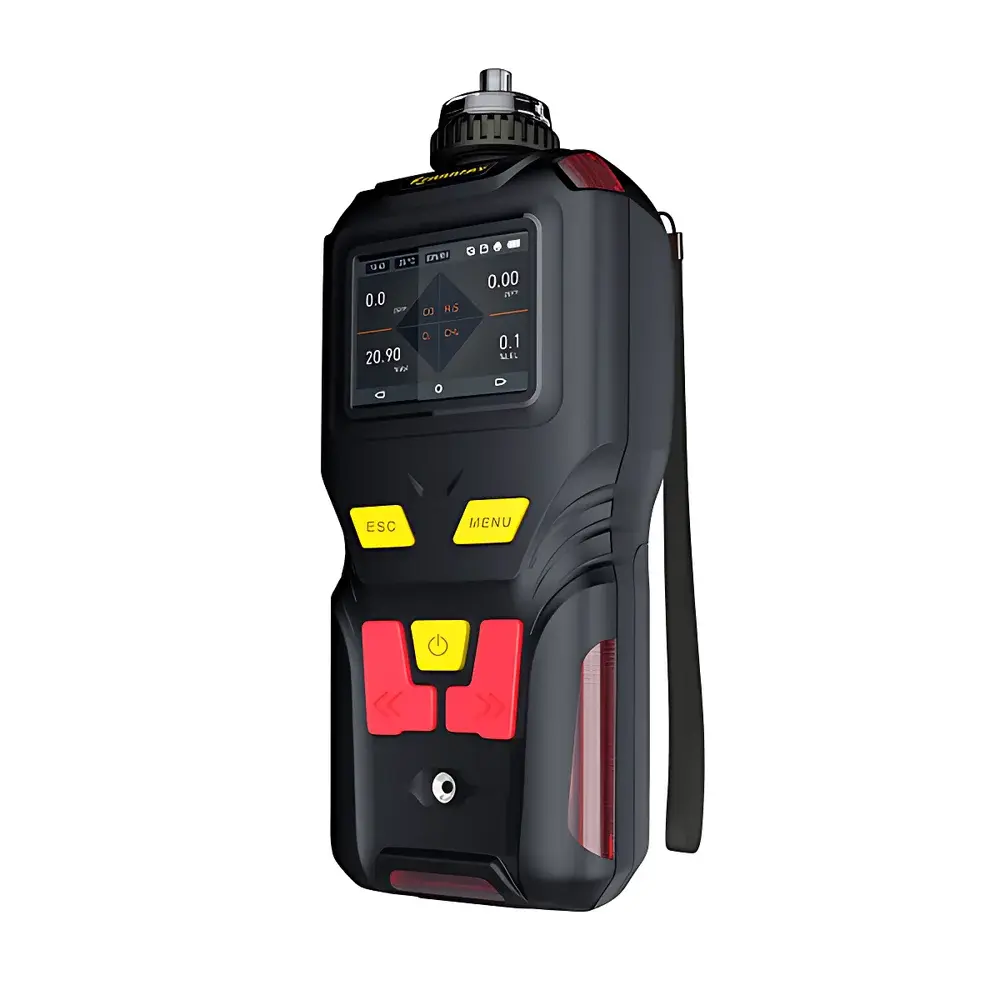

Eranntex MS400-H2 Portable Hydrogen Gas Detector

Overview

The Eranntex MS400-H2 Portable Hydrogen Gas Detector is an intrinsically safe, field-deployable instrument engineered for real-time, quantitative detection of hydrogen (H₂) in industrial and laboratory environments where flammability, purity verification, or leak monitoring is critical. Based on electrochemical sensing technology—optimized for low-concentration H₂ detection (0–100 ppm range) with high selectivity and minimal cross-sensitivity—the MS400-H2 delivers stable baseline performance under variable ambient conditions. Its dual-mode operation supports both diffusion-limited and active pump-assisted sampling, enabling reliable measurements in confined spaces, pipeline manifolds, hydrogen refueling stations, electrolyzer enclosures, and fuel cell test benches. The device complies with fundamental safety requirements outlined in IEC 60079-0 (explosive atmospheres) and GB 12358–2006 (Chinese national standard for portable combustible gas detectors), ensuring operational integrity in Class I, Division 1 hazardous locations.

Key Features

• Intrinsically safe design certified to Ex ia II CT4, suitable for Zone 0/1 applications without external barriers
• IP65-rated enclosure with integrated hydrophobic particulate filter, enabling robust operation in high-humidity, dusty, or splash-prone environments

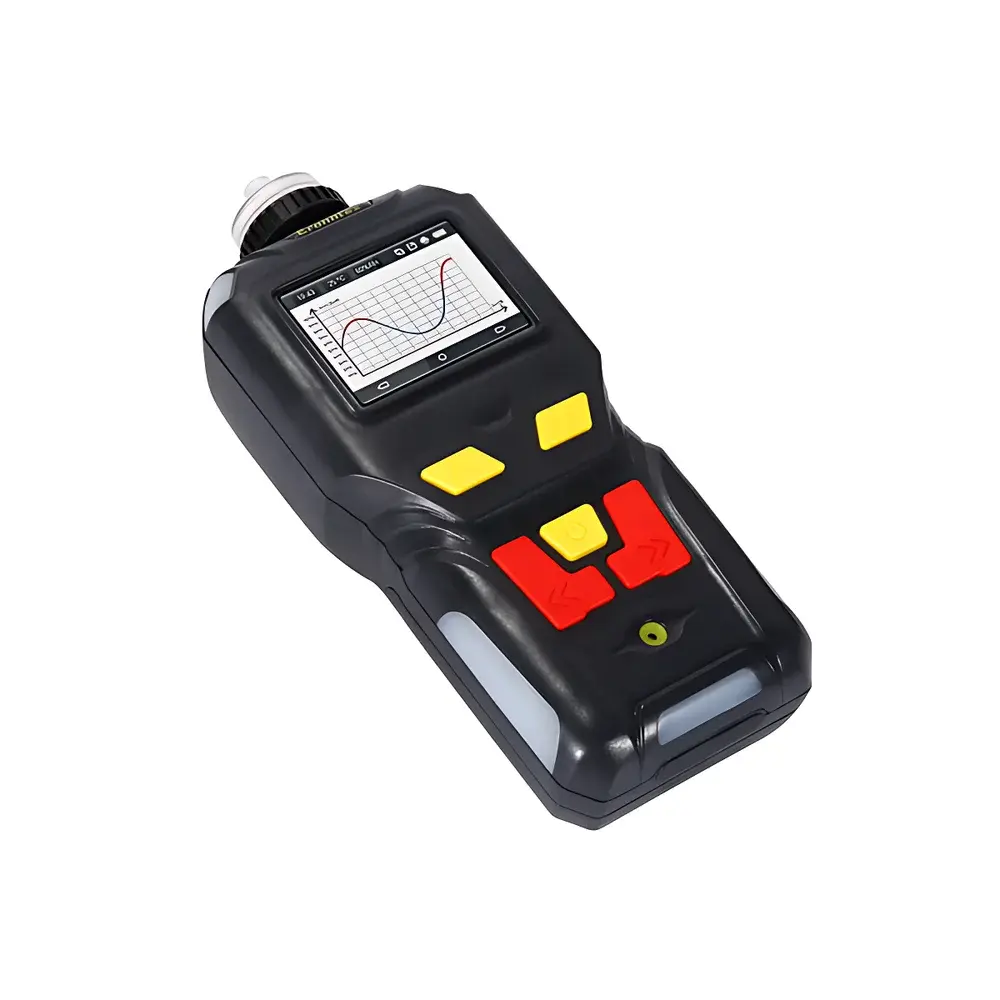

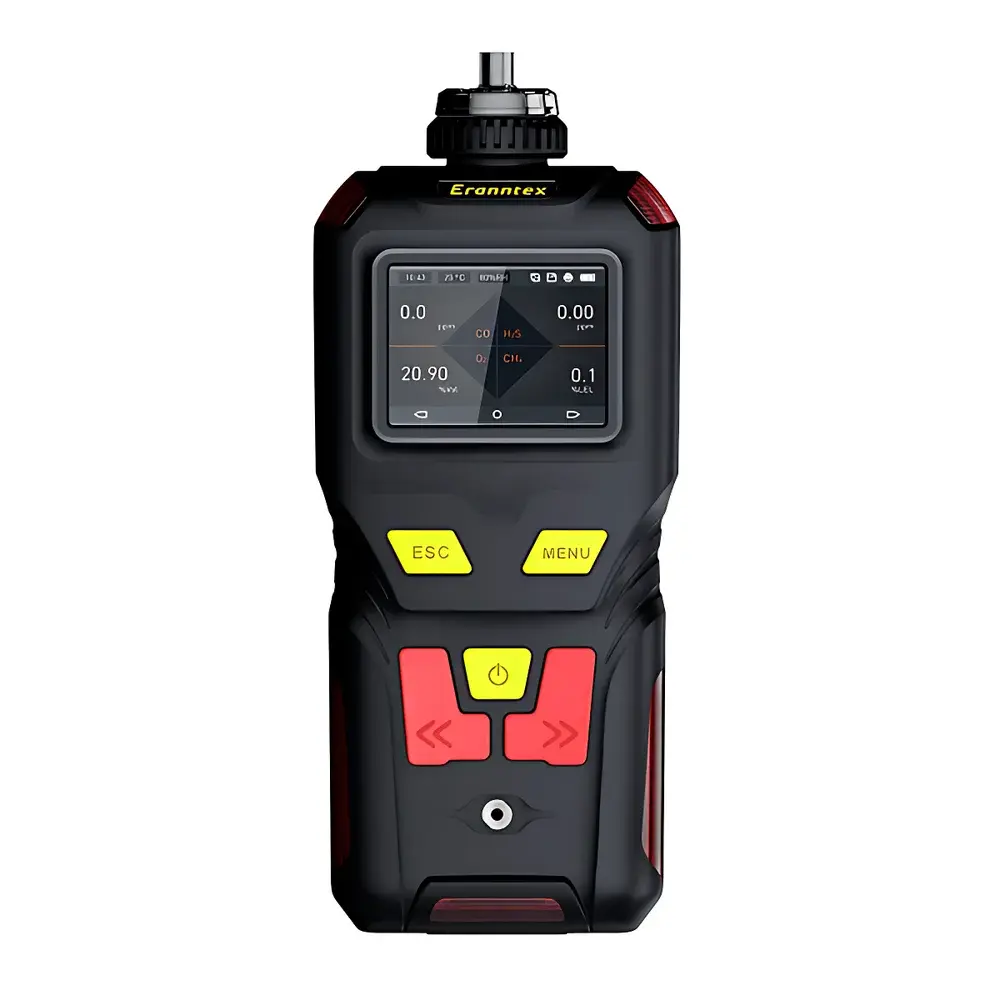

• 2.31-inch high-resolution color TFT display with intuitive icon-based menu navigation and multi-language UI (English/Chinese)
• Built-in micro-pump with 500 mL/min flow rate and extendable sampling capability (>10 m via optional PTFE tubing)
• Multi-level alarm system: visual (dual-color LED), audible (≥85 dB), and tactile vibration—with configurable thresholds (low/high/interval/weighted average)
• Advanced data management: 100,000-point internal storage with timestamped logging; USB interface for firmware updates, data export, and charging
• Long-duration power autonomy: 4600 mAh rechargeable Li-polymer battery with five-stage charge-state indication, overvoltage/overcurrent/thermal protection, and hot-swap capability during operation
• Auto-zero tracking and three-point span calibration support—traceable to NIST-traceable standards—to maintain measurement fidelity across extended deployment cycles

Sample Compatibility & Compliance

The MS400-H2 is validated for use in binary and multi-component gas matrices, including H₂/N₂, H₂/O₂, H₂/air, and H₂/CO₂ mixtures typical in PEM electrolysis, ammonia synthesis off-gas, and semiconductor process lines. It meets metrological requirements per China’s CMC (Manufacturing License for Measuring Instruments) certification and conforms to GB/T 18204.2–2014 for ambient hydrogen monitoring. While not FDA 21 CFR Part 11–compliant out-of-the-box, audit-ready data logs—including calibration history, fault events, and sensor lifespan tracking—support GLP/GMP-aligned documentation workflows when paired with validated third-party software. Optional high-temperature sampling accessories (e.g., cooled probe handles rated to 400 °C) extend applicability to post-combustion or reformer exhaust streams.

Software & Data Management

Data acquisition and reporting are facilitated through Eranntex’s proprietary PC-based software, distributed free of charge with each unit. The application enables CSV export, time-series visualization, statistical analysis (min/max/average), and PDF report generation with embedded instrument metadata (serial number, firmware version, calibration date). All stored records include UTC timestamps, sensor ID, ambient temperature/humidity (if equipped), and alarm status flags. Firmware updates are delivered via signed HEX packages to ensure cryptographic integrity. For integration into SCADA or MES platforms, the optional RS485 Modbus RTU interface provides register-mapped access to live concentration values, battery level, pump status, and diagnostic codes—enabling centralized fleet monitoring and predictive maintenance scheduling.

Applications

• Hydrogen production facilities: real-time purity verification of PEM/alkaline electrolyzer output (≤5 ppm H₂O interference tolerance)
• Fuel cell vehicle maintenance bays: leak detection around high-pressure storage tanks and stack interfaces
• Chemical manufacturing: monitoring H₂ concentration in reactor purge streams and catalyst regeneration off-gas
• Power generation: turbine enclosure surveillance for generator cooling gas leaks (H₂-cooled turbogenerators)
• Research laboratories: controlled-atmosphere glovebox integrity checks and catalytic reaction effluent analysis
• Emergency response: rapid hazard mapping following transportation incidents involving compressed hydrogen cylinders

FAQ

What hydrogen detection principle does the MS400-H2 employ by default?
The standard configuration uses a high-stability electrochemical sensor optimized for 0–100 ppm H₂ detection. Thermal conductivity (TCD) and catalytic bead variants are available upon request for higher-range or inert-background applications.
Can the MS400-H2 operate continuously while charging via USB?
Yes—USB hot-plug functionality allows uninterrupted measurement during charging, with intelligent power-path management ensuring sensor bias stability.
Is calibration traceable to international standards?
Calibration certificates include reference to certified gas standards (ISO 6141, ISO 6145) and can be issued with NIST-traceable documentation upon request.
How is sensor drift compensated during long-term deployment?
The instrument implements automatic zero-tracking algorithms and supports scheduled bump testing; full 3-point calibration is recommended every 6 months or after exposure to >10,000 ppm H₂.
Does the device support ATEX or IECEx certification?
The current MS400-H2 holds GB Ex ia II CT4 certification. ATEX/IECEx versions are under development and expected to launch in Q4 2025.
