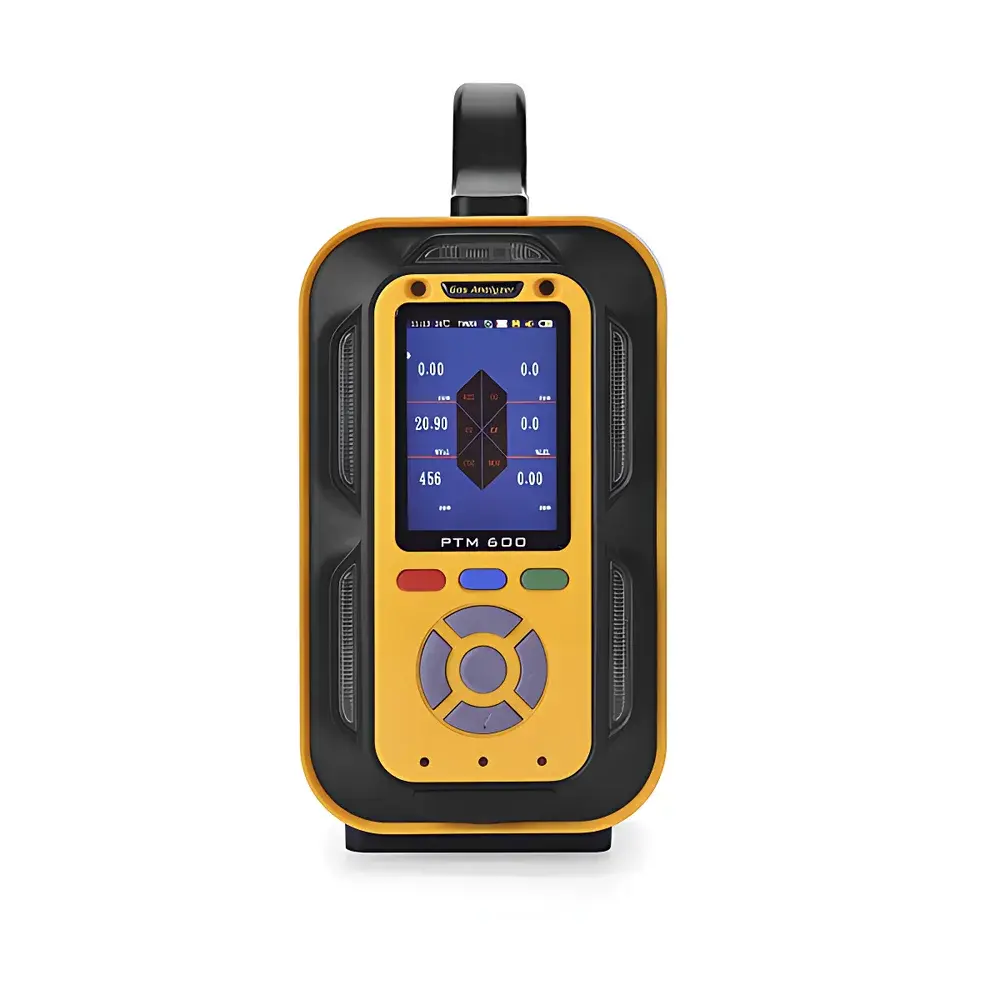

Eranntex PTM600-HBr Portable Hydrogen Bromide Gas Analyzer

Overview

The Eranntex PTM600-HBr is a field-deployable, intrinsically safe portable gas analyzer engineered for precise, real-time quantification of hydrogen bromide (HBr) in ambient air, industrial process streams, confined spaces, and emergency response scenarios. It operates primarily on electrochemical sensing technology—optimized for HBr’s high reactivity, low odor threshold, and corrosive nature—with optional sensor modules (NDIR, PID, catalytic bead, or thermal conductivity) available for multi-gas configurations or cross-interference mitigation. The instrument employs a microprocessor-controlled signal conditioning architecture with adaptive baseline correction and temperature-compensated gain stabilization, ensuring measurement integrity across extreme environmental gradients. Its dual-path sampling design integrates a hydrophobic membrane filter and sintered stainless-steel particulate barrier upstream of the sensor chamber, enabling reliable operation in high-humidity, high-dust, or condensing environments without sensor poisoning or drift. All firmware algorithms comply with metrological traceability requirements defined in ISO/IEC 17025 and are validated against NIST-traceable HBr reference standards.

Key Features

• Intrinsically safe circuitry certified to Ex ib IIB T4 Gb per GB 3836.4–2010 and IEC 60079-11, suitable for Zone 1 hazardous areas
• IP66-rated enclosure with reinforced polycarbonate housing, anti-static coating, and EMI-shielded internal layout
• Built-in explosion-proof diaphragm pump delivering stable flow rates from 300–600 mL/min, configurable for continuous or pulse-sampling modes
• Real-time display of HBr concentration (ppm or %Vol), ambient temperature (°C/°F), relative humidity (%RH), battery status (5-level LED), alarm status, and elapsed runtime
• Three configurable display modes: quad-gas simultaneous view, large-font single-channel focus, or time-series concentration curve (adjustable time scale)
• Multi-modal alarm system with independent thresholds for low, high, TWA, and STEL exposure limits per OSHA/ACGIH guidelines
• Comprehensive diagnostics including sensor health monitoring, filter clogging detection, pump pressure feedback, and battery cycle logging

Sample Compatibility & Compliance

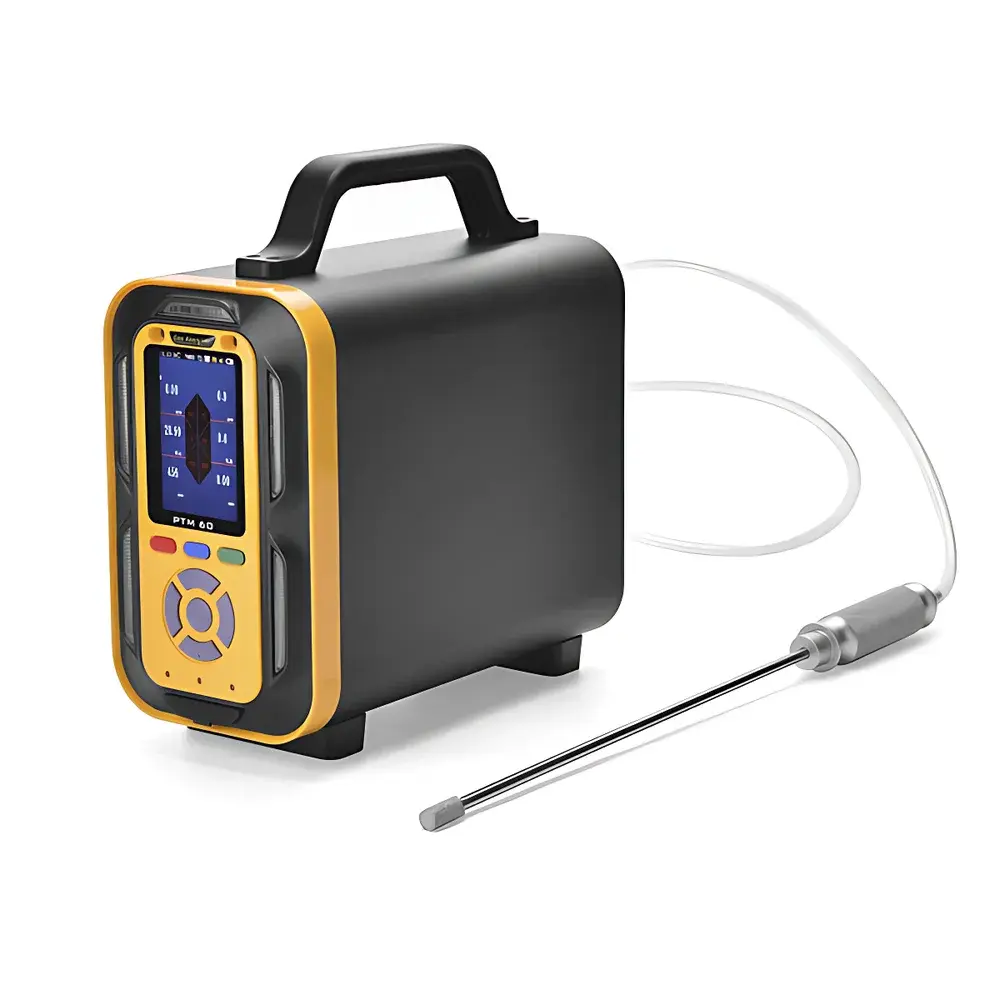

The PTM600-HBr is validated for use in atmospheric monitoring, stack emission verification, semiconductor fab leak surveys, chemical synthesis area surveillance, and fumigation safety audits. It accommodates sampling from ducts (via optional heated probe), manholes, reactor headspaces, and open-air perimeter zones. With the high-temperature sampling accessory (PTM-HT-PROBE), it supports direct measurement of gases up to 1300 °C after active cooling and moisture removal—enabling compliance with EPA Method 26A and ISO 14644-8 for cleanroom HBr residue verification. All sensors undergo factory calibration against certified HBr/N₂ mixtures (NIST-traceable, ±2% uncertainty) and retain calibration stability for ≥180 days under typical field conditions. The device meets China’s CMC certification (Certificate No. 2022F12345678) and conforms to metrological verification protocols in JJG 693–2011 (Gas Detectors) and GB/T 34004–2017 (Portable Multi-Gas Analyzers).

Software & Data Management

Data acquisition and reporting follow GLP-compliant workflows. Each stored record includes timestamp (RTC-synced), GPS coordinates (when external module attached), sensor serial number, calibration due date, and operator ID. Storage options include internal flash (100,000 records), removable SD card (up to 128 GB), or real-time USB streaming to host PC. The proprietary Eranntex DataLink v3.2 software provides FDA 21 CFR Part 11–compliant audit trails, electronic signature capability, customizable report templates (PDF/CSV/XLSX), and statistical analysis (min/max/avg/trend line). RS232 and Bluetooth interfaces support integration into SCADA systems or mobile incident command platforms. Firmware updates are delivered via signed .bin files with SHA-256 verification to prevent unauthorized modification.

Applications

• Occupational hygiene monitoring in pharmaceutical API manufacturing where HBr is used as a catalyst or cleavage reagent
• Leak detection during transport and storage of anhydrous HBr cylinders (UN1048) per DOT 49 CFR §173.304
• Verification of scrubber efficiency in etching exhaust systems (e.g., GaAs or SiC wafer processing)
• Emergency response triage following accidental release—providing immediate IDLH assessment (IDLH = 3 ppm per NIOSH)
• Validation of inert gas purging effectiveness prior to maintenance in HBr-handling equipment
• Environmental compliance checks near halogenated flame retardant production facilities

FAQ

What is the minimum detectable concentration for HBr on the PTM600-HBr?
The standard electrochemical sensor achieves a lower detection limit of 0.001 ppm with signal-to-noise ratio ≥3:1 under laboratory conditions.
Can the instrument measure HBr in high-humidity environments (>95% RH)?
Yes—the integrated hydrophobic filter and Peltier-assisted dew-point suppression maintain sensor integrity; optional humidity-compensated firmware reduces cross-sensitivity to water vapor interference.
Is calibration traceable to international standards?
All factory calibrations use NIST-traceable HBr reference gases (AccuStandard®), with full calibration certificates issued per ISO/IEC 17025 requirements.
Does the device support ATEX or IECEx certification?
While currently certified to GB 3836 (China national standard), ATEX 2014/34/EU and IECEx certification packages are available upon request for export markets.
How is data integrity ensured during wireless transmission?
Bluetooth 5.0 LE connections employ AES-128 encryption; all transmitted records include CRC32 checksums and sequence numbering to prevent packet loss or replay attacks.
