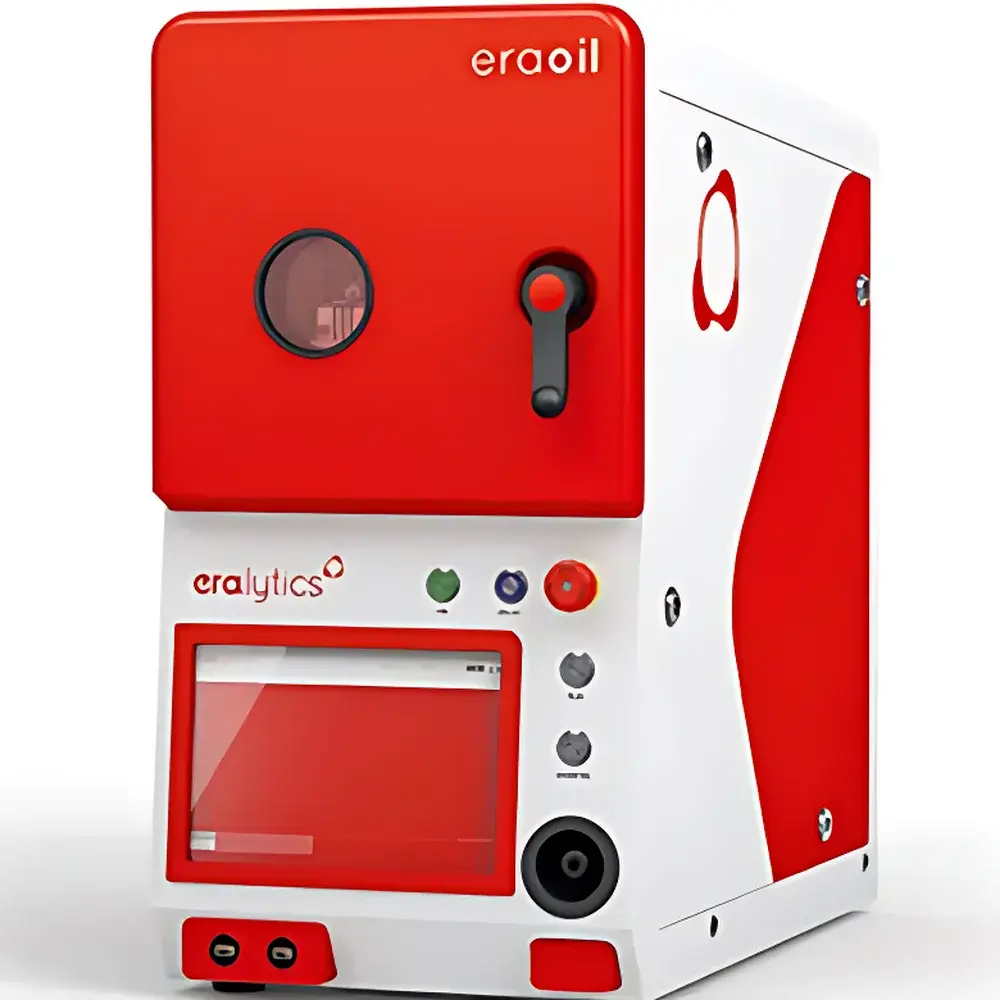

ERAOIL Mini Portable Elemental Spectrometer for Oil Analysis

Overview

The ERALYTICS ERAOIL is a compact, self-contained rotating disk electrode optical emission spectrometer (RDE-OES) engineered for rapid, on-site elemental analysis of industrial fluids. Unlike inductively coupled plasma (ICP) techniques, the ERAOIL employs arc spark excitation between a rotating carbon electrode and a liquid sample surface, generating element-specific atomic emission lines captured by a high-resolution CMOS detector array. This solid-state detection architecture—combined with real-time background correction algorithms—enables quantitative multi-element measurement without digestion, dilution, or external gas supply. Designed for reliability in non-laboratory settings, the ERAOIL delivers laboratory-grade data in under 30 seconds per sample, supporting condition monitoring, contamination screening, and additive package verification across lubrication, fuel, and coolant management workflows.

Key Features

• Full RDE-OES system in a single benchtop enclosure: includes integrated electrode dressing mechanism, active ventilation for fume control, and temperature-stabilized optical path.
• Automated 32-element quantification (e.g., Fe, Cu, Al, Cr, Pb, Si, Na, Ca, Mg, Zn, P, B, Mo, V, Ni, Sn, Ag, Ti, Mn, K, Li) with sub-ppm detection limits for transition metals and wear indicators.
• Optional high-sensitivity module extends LOD to 0.1 ppm for light elements including potassium, lithium, sodium, and vanadium—critical for low-additive formulations and early-stage contamination detection.
• Zero-sample-prep workflow: direct analysis of neat oils and aqueous fluids using standardized 4-mL sample cups; no acid digestion, filtration, or internal standard addition required.
• Dedicated embedded industrial PC with 10-inch capacitive touchscreen interface; all firmware, calibration libraries, and reporting tools reside onboard—no external computer dependency.
• Compliance-ready architecture: preconfigured methods aligned with ASTM D6595 (used oil analysis), ASTM D6728 (new lubricant additive analysis), and NB/SH/T 0865 (Chinese national standard for oil spectrometry).

Sample Compatibility & Compliance

The ERAOIL accepts a broad range of fluid matrices without modification: mineral- and synthetic-based engine oils, turbine oils, gear oils, diesel and jet fuels, glycol-based coolants, phosphate ester hydraulic fluids, and process water streams. Its robust plasma initiation logic adapts to varying conductivity and viscosity (0.5–500 cSt), ensuring stable arc formation across ISO VG 10 to VG 680 fluids. All certified calibrations are traceable to NIST SRMs and validated per ISO/IEC 17025 requirements. The system supports audit-ready data integrity via timestamped measurement logs, operator ID tagging, and electronic signature fields—fully compatible with GLP and GMP documentation frameworks where applicable.

Software & Data Management

ERALYTICS’ proprietary SpectraView™ software runs natively on the embedded PC and provides intuitive method setup, real-time spectral visualization, and automated pass/fail trending against OEM-defined alert thresholds. Data export conforms to ASTM E1382-compliant CSV and XML formats, enabling seamless integration into CMMS (e.g., SAP PM, IBM Maximo) and LIMS platforms. Full audit trail functionality records every instrument parameter change, calibration event, and result modification—including user identity, timestamp, and reason-for-change—meeting FDA 21 CFR Part 11 requirements when configured with digital certificate authentication.

Applications

• Wear debris monitoring in predictive maintenance programs for turbines, compressors, gearboxes, and hydraulic systems.
• Additive depletion profiling in new and in-service lubricants to verify formulation integrity and service life extension potential.
• Contaminant identification (e.g., coolant ingress via Na/Ca/Si spikes, dirt ingestion via Si/Al/Ti, fuel dilution via C/H ratio proxies).
• Quality assurance of incoming base oils and finished lubricants prior to blending or packaging.
• Field-based compliance testing for rail, marine, and power generation fleets operating under ISO 4406 or SAE J183 specifications.
• Research and development of low-ash, ashless, or bio-based lubricant formulations requiring precise alkali metal quantification.

FAQ

Does the ERAOIL require argon or other carrier gases to operate?

No. The RDE-OES principle eliminates dependence on external plasma-supporting gases. Operation is fully self-contained.
Can the ERAOIL analyze water-based coolants or antifreeze solutions?

Yes. It is validated for direct analysis of ethylene glycol, propylene glycol, and phosphate-ester coolants with automatic conductivity compensation.
Is method validation support available for ISO/IEC 17025 accreditation?

Yes. ERALYTICS provides full validation documentation packages—including precision, accuracy, LOD/LOQ studies, and interlaboratory comparison reports—upon request.
How often does the carbon electrode require replacement?

Under typical use (5–10 samples/day), electrode lifetime exceeds 500 analyses; the integrated dresser maintains optimal geometry automatically.
Can historical data be migrated from legacy ICP or RDE instruments?

Yes. SpectraView™ supports import of ASTM-compatible CSV templates and offers cross-platform calibration mapping tools for continuity of trend analysis.
