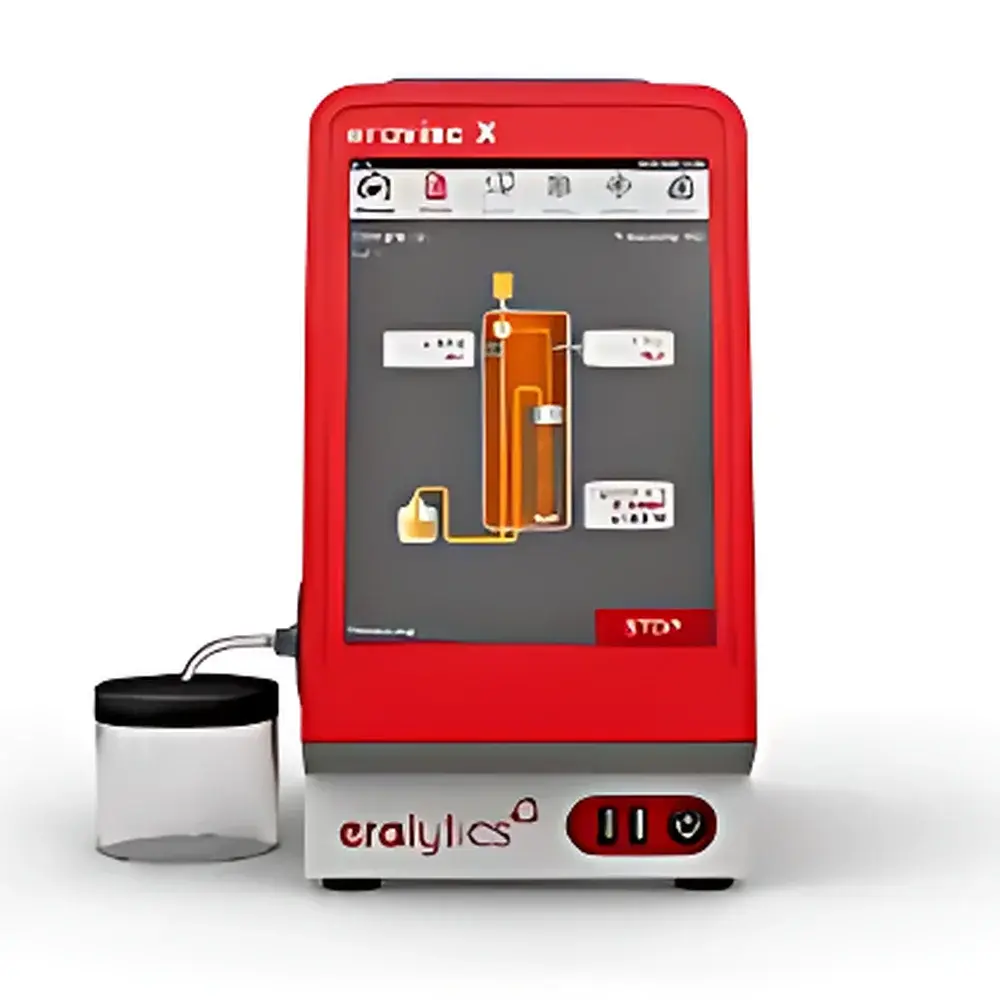

ERAVISC X Portable Kinematic Viscosity Analyzer by ERALYTICS

Overview

The ERALYTICS ERAVISC X is a fully integrated, portable kinematic viscosity analyzer engineered for high-precision, regulatory-compliant measurement of petroleum-based liquids—including lubricants, fuels, base oils, and in-service oils. Unlike conventional capillary viscometers reliant on gravity-driven flow timing, the ERAVISC X employs a patented pressure-driven capillary principle: it measures the transient pressure drop across a temperature-controlled metal capillary as sample fluid evacuates under controlled differential pressure. This method eliminates reliance on manual timing, meniscus observation, or calibration with reference oils—enabling direct determination of kinematic viscosity (ν) in seconds. Simultaneously, an oscillating U-tube densitometer (ASTM D4052/D5002 compliant) operates in parallel, delivering density (ρ) at identical or independent temperatures. Dynamic viscosity (η) is calculated in real time via η = ν × ρ, and viscosity index (VI) is automatically derived per ISO 2909 and ASTM D2270 using dual-point kinematic viscosity data at 40 °C and 100 °C. The system’s core architecture—metal capillary embedded in Peltier-cooled copper block, oscillating stainless-steel U-tube, and micro-pressurized fluidics—is designed for long-term stability, minimal drift, and immunity to ambient vibration or orientation, making it suitable for both laboratory and field deployment.

Key Features

• True four-parameter analysis in a single 3 mL sample injection: kinematic viscosity, density, dynamic viscosity, and viscosity index.
• Dual independent thermal control: Peltier modules regulate viscosity capillary (15–100 °C) and density U-tube (0–100 °C) with ±0.02 °C accuracy and ramp rates up to ±20 °C/min.
• FillingProof™ technology: Patented acoustic and pressure-based bubble detection and quantification within the U-tube—ensuring measurement validity before result generation.
• Integrated drying pump and environmental pressure sensor: Enables automatic atmospheric compensation and residual solvent removal without external gas lines or desiccants.
• Industrial 8.4″ multi-language touchscreen interface with intuitive workflow navigation, real-time parameter visualization, and on-screen pass/fail flagging per ASTM repeatability criteria.
• Rugged aluminum enclosure (IP54-rated), shock-absorbing internal mounts, and metal-sensor construction ensure operational integrity in mobile labs, refinery environments, and marine platforms.

Sample Compatibility & Compliance

The ERAVISC X is validated for use with transparent and mildly opaque hydrocarbon liquids—including mineral oils, synthetic lubricants, diesel, jet fuel, heavy fuel oil (HFO), biodiesel blends, and used engine oils. It excludes highly viscous bitumens (>1000 mm²/s), suspensions with particulates >5 µm, or corrosive halogenated solvents outside material compatibility limits (316 stainless steel, Hastelloy C-276 wetted parts). All measurement protocols align with globally recognized standards: kinematic viscosity per ASTM D445 (with automated deviation correction), ASTM D7042 (high-shear modified method), ISO 3104, and ISO 23581; density per ASTM D4052, ASTM D5002, ISO 12185, and SH/T 0604; VI per ISO 2909 and ASTM D2270. The instrument supports full audit trails, user-level access control, electronic signatures, and 21 CFR Part 11–compliant data handling when connected to LIMS or validated network environments.

Software & Data Management

Firmware includes embedded analytical software with GLP/GMP-aligned data governance: all measurements are timestamped, user-attributed, and stored with raw pressure/time curves, thermal profiles, and bubble detection logs. Over 100,000 complete test records—including metadata, calibration history, and environmental conditions—are retained onboard. Export options include PDF reports (customizable per lab template), CSV files with SI-unit columns, and direct LIMS transmission via Ethernet or USB. Remote diagnostics and firmware updates are supported through secure HTTPS-enabled Ethernet connectivity. Optional software modules provide statistical process control (SPC) charting, trend analysis across batches, and automated alerting for out-of-spec results relative to configurable limits.

Applications

• Lubricant QC & Formulation: Rapid verification of multigrade oils per SAE J300, additive package consistency, and base stock classification using VI and density correlations.
• Fuel Blending & Specification Monitoring: On-site verification of diesel cetane improver effects, biofuel blend homogeneity, and residual fuel stability—without off-site lab turnaround.
• In-Service Oil Analysis (ISO 4406, ASTM D7687): Field-deployable detection of viscosity degradation, fuel dilution, glycol contamination, and oxidation byproducts via deviation from baseline VI and density trends.
• Research & Development: High-throughput screening of novel synthetic esters, PAOs, and ionic liquid lubricants across extended temperature ranges with traceable uncertainty budgets.
• Regulatory Audits & Third-Party Certification: Standalone compliance with ISO/IEC 17025 requirements when operated within documented SOPs and calibrated per ERALYTICS Certificate of Calibration (traceable to NIST and PTB standards).

FAQ

Does the ERAVISC X require calibration with certified reference oils?
Yes—initial factory calibration is performed using NIST-traceable viscosity standards. Users must perform periodic verification using at least two reference oils spanning the intended measurement range, per ASTM D445 Annex A1. Calibration coefficients are stored per user-defined method.
Can the instrument measure samples below 15 °C?
Kinematic viscosity measurement is limited to 15–100 °C due to capillary flow physics and Peltier thermal design. Density measurement remains valid from 0 °C, enabling cold-density corrections for VI calculations.
Is cleaning required between samples?
The integrated drying pump and solvent flush protocol (using approved low-residue solvents such as heptane or toluene) enables full system purge in <90 seconds. No disassembly or manual wiping is necessary.
How is temperature equilibration verified before measurement?
The system monitors real-time thermal gradients across the capillary block and U-tube using redundant Pt100 sensors. Measurement initiates only after ΔT < 0.01 °C over 10 seconds, satisfying ASTM D7042 thermal stability criteria.
What cybersecurity safeguards are implemented for network-connected units?
Ethernet interface supports VLAN segmentation, TLS 1.2 encryption for remote sessions, disabled default credentials, and configurable password policies—all aligned with IEC 62443-3-3 Level 1 requirements for laboratory instrumentation.
