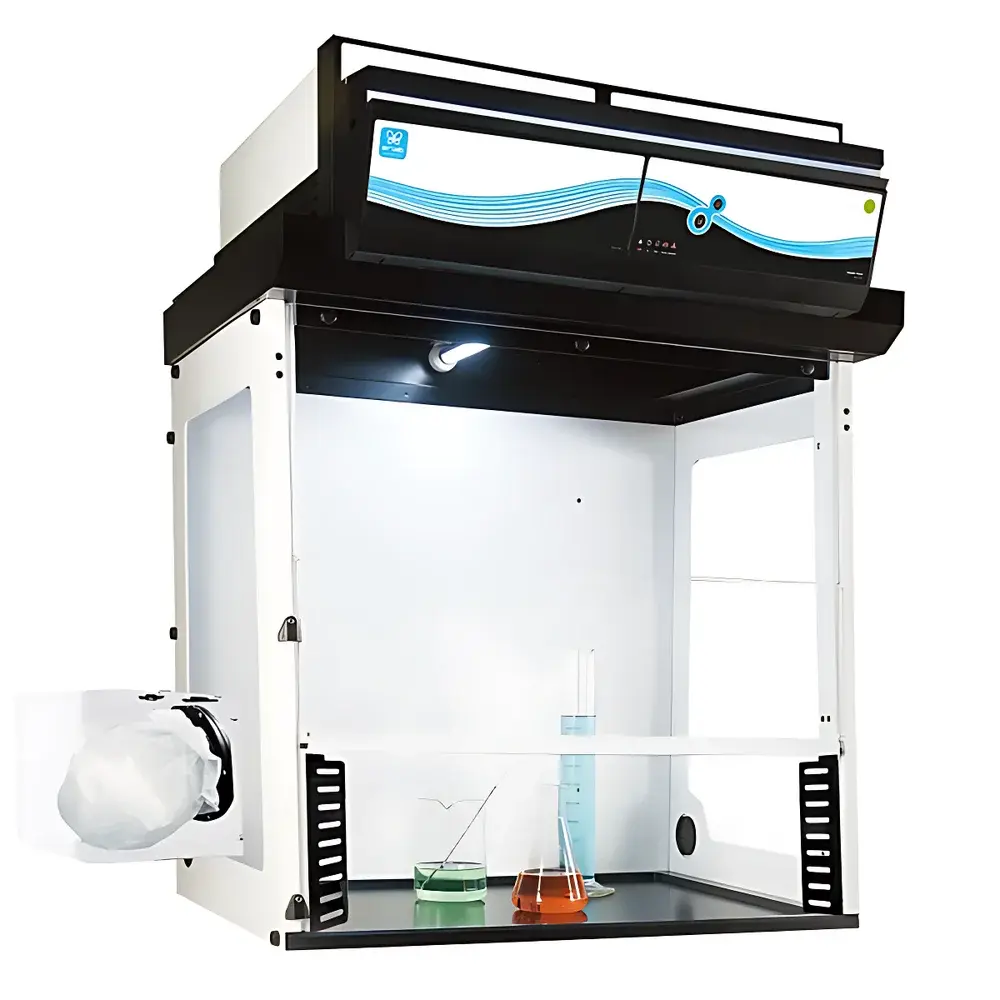

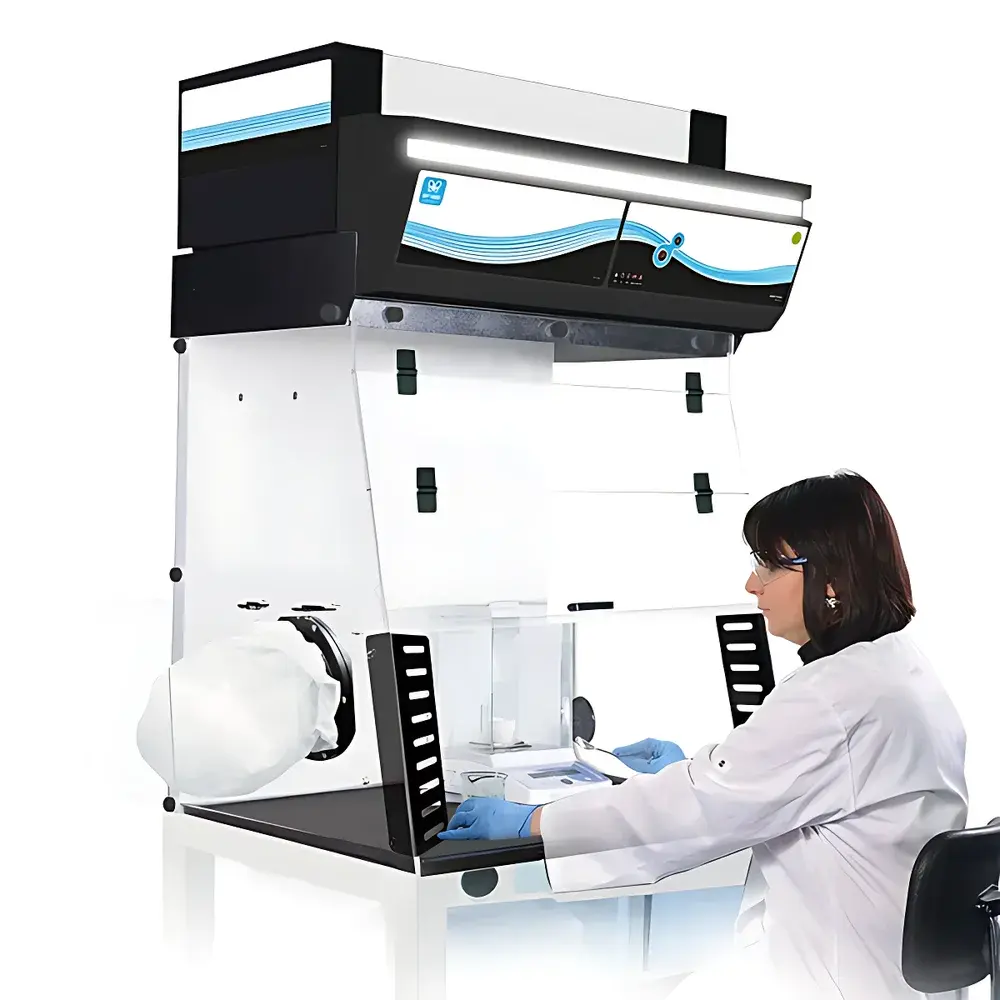

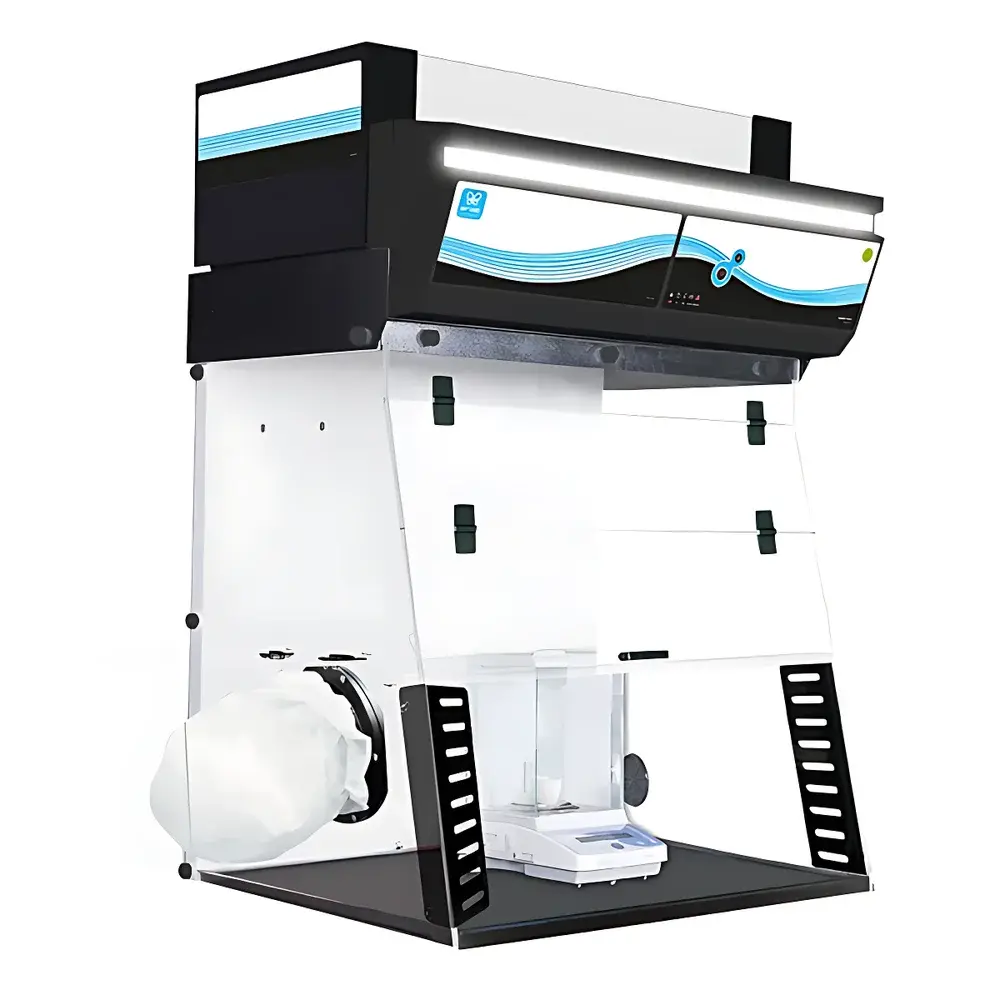

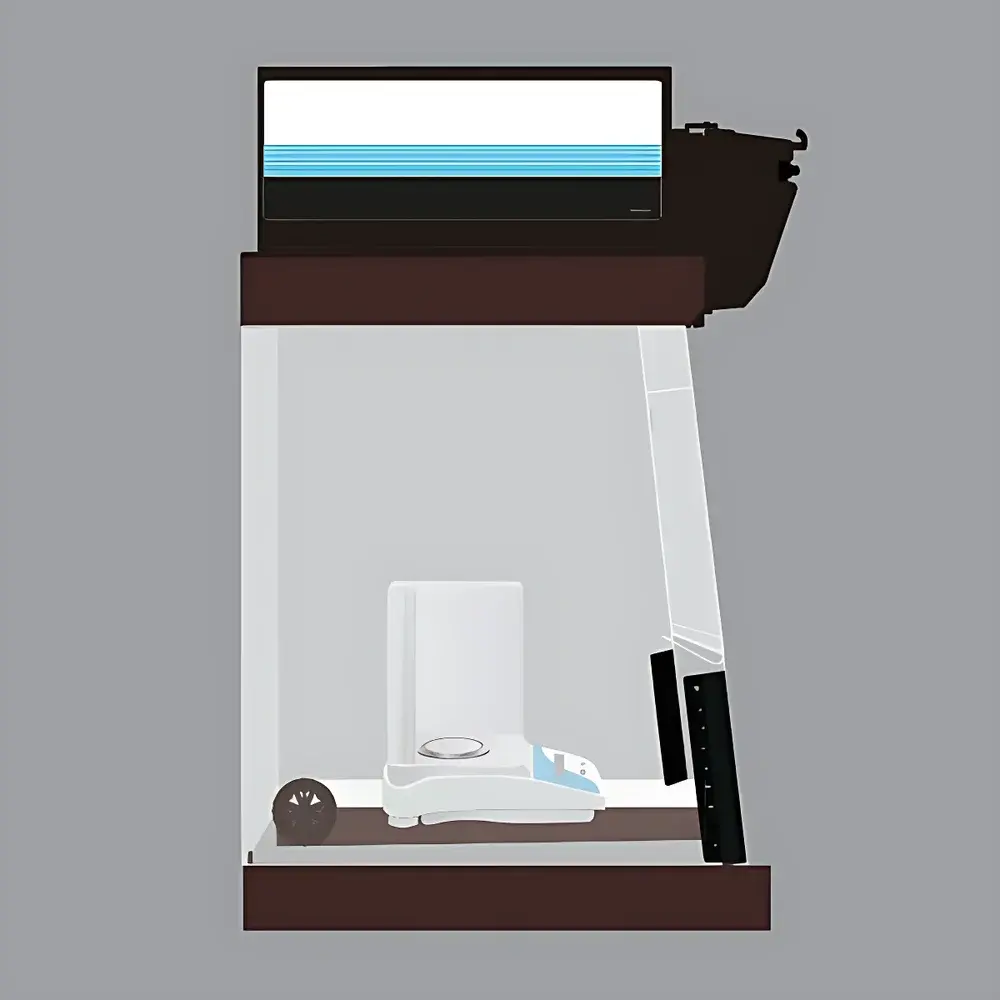

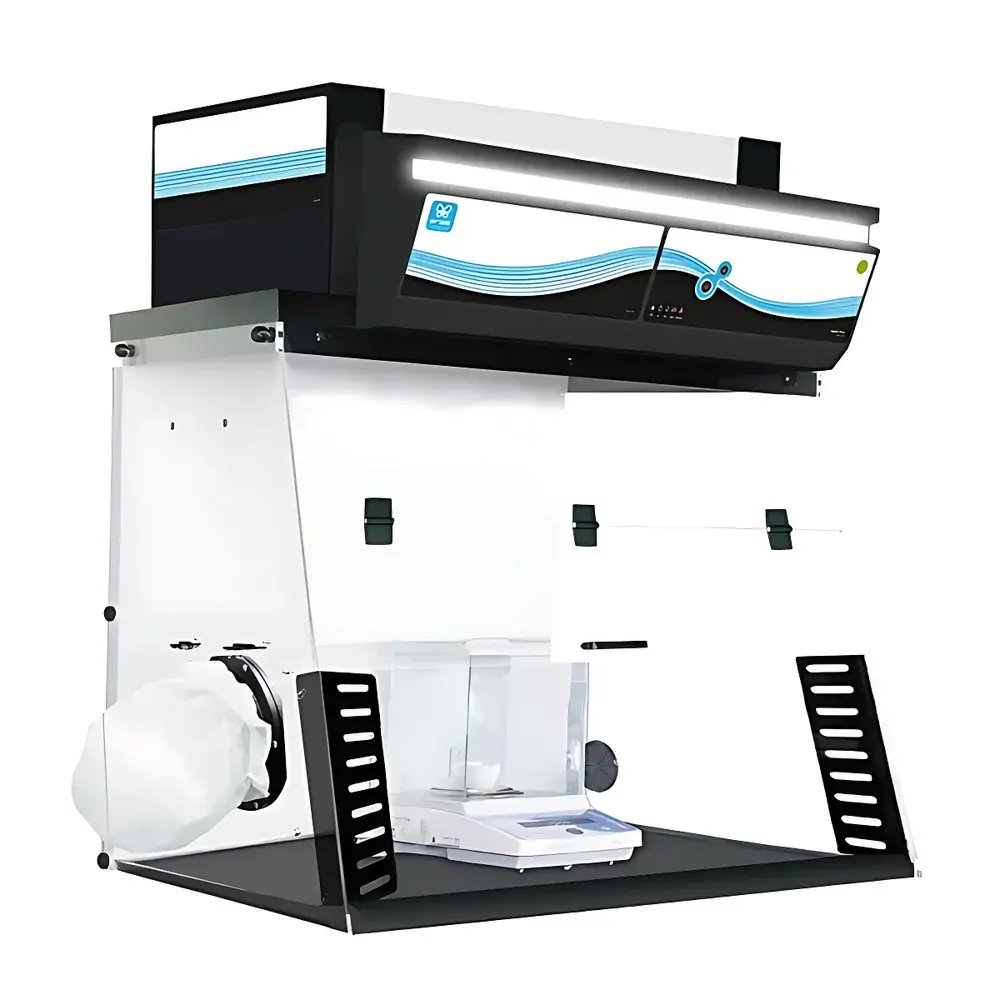

Erlab 483W Smart Precision Weighing Enclosure with Air Purification
| Brand | Erlab |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | 483W Smart |
| Price Range | USD 7,000 – 14,000 |
Overview
The Erlab 483W Smart Precision Weighing Enclosure is an engineered containment solution designed for the safe, accurate, and repeatable weighing of highly potent, toxic, or sensitizing chemical powders and reagents in pharmaceutical, biotechnology, and R&D laboratories. Operating on the principle of dynamic air purification via recirculating laminar airflow and dual-stage molecular filtration (pre-filter + activated carbon + HEPA/ULPA), the unit maintains a negative pressure gradient at the operator interface while delivering ISO Class 5 (Class 100) clean air across the weighing zone. It is specifically validated for use with compounds classified under Occupational Exposure Banding (OEB) Levels 3 to 5 — corresponding to occupational exposure limits (OELs) ≤ 10 µg/m³ — and complies with ICH Q5C, USP , and EU GMP Annex 1 requirements for handling high-potency active pharmaceutical ingredients (HPAPIs).
Key Features
- Integrated eGuard Smart Monitoring System: Real-time telemetry of airflow velocity, filter saturation status, sash position, alarm events, and operational hours — accessible via secure web dashboard or optional SNMP integration into facility BMS.
- Dual-Stage Filtration Architecture: Combines a MERV 13 pre-filter, high-capacity impregnated activated carbon bed (optimized for acidic, basic, and volatile organic compounds), and a ULPA filter (≥99.9995% @ 0.12 µm) to ensure consistent removal efficiency across diverse chemical classes.
- Vibration-Isolated Work Surface: Integrated passive damping platform compliant with ISO 2631-1 for microbalance and analytical balance compatibility (e.g., Mettler Toledo XSE, Sartorius Quintix).
- Energy-Efficient Recirculation Mode: Up to 70% reduction in HVAC load versus ducted fume hoods; typical power consumption ≤ 180 W during continuous operation.
- Ergonomic Design: Motorized sash with position memory, LED task lighting (500–600 lux, flicker-free), and adjustable work height (720–820 mm) aligned with ANSI/BIFMA ergonomic guidelines.
- Structural Integrity: All-welded stainless steel (AISI 304) chassis with epoxy-coated steel interior; fully compliant with EN 14175-3 and NFPA 45 fire safety standards for laboratory enclosures.
Sample Compatibility & Compliance
The 483W Smart accommodates standard benchtop analytical balances (up to 350 mm depth × 250 mm width × 300 mm height), volumetric flasks, vials, and powder dispensing tools. Its containment performance has been verified per EN 14175-3 face velocity mapping and ASHRAE 110 tracer gas testing (SF₆), achieving ≤0.05 ppm average leakage at 0.5 m/s face velocity. The system supports audit-ready documentation packages including IQ/OQ protocols, filter validation reports (DOP/PAO testing), and OEL-based risk assessment templates aligned with ISO 14644-1, ASTM D6370, and EU REACH Article 37 requirements.
Software & Data Management
The embedded eGuard firmware logs all critical operational parameters with timestamped entries, supporting GLP/GMP-compliant data integrity per FDA 21 CFR Part 11 (electronic signatures, audit trail, user access control). Data export is available in CSV and PDF formats; optional API integration enables synchronization with LIMS (e.g., LabWare, Thermo SampleManager) or EHS platforms. Filter life prediction algorithms utilize real-time VOC sensor feedback and cumulative runtime metrics to trigger proactive maintenance alerts — reducing unplanned downtime and ensuring continuous compliance.
Applications
- Weighing of cytotoxic APIs, kinase inhibitors, and peptide therapeutics under OEB4–OEB5 conditions.
- Formulation development for inhalable dry powder aerosols requiring low-dose accuracy (±0.1 mg).
- QC/QA release testing of reference standards where cross-contamination must be mitigated below detection thresholds.
- Stability studies involving light- or moisture-sensitive compounds, leveraging the enclosure’s sealed environment and optional UV-C decontamination cycle.
- Teaching laboratories performing hazard-based chemistry modules under controlled exposure scenarios.
FAQ
What OEB levels is the 483W Smart certified for?
It is validated for routine use with OEB3 through OEB5 compounds, supported by third-party containment testing reports.
Can it be integrated into an existing building management system (BMS)?
Yes — via Modbus TCP or BACnet/IP protocol support through the optional eGuard Gateway module.
Does the unit require external ducting or make-up air?
No — it operates as a self-contained recirculating system; no external exhaust or dedicated HVAC supply is required.
How often must filters be replaced?
Carbon filter replacement interval is typically 6–12 months depending on chemical load; ULPA filters are rated for ≥5 years under normal lab conditions, verified annually via integrity testing.
Is the vibration isolation platform compatible with microbalances?
Yes — the passive damping system meets ISO 2631-1 criteria for Vibration Magnitude Factor (VMF) ≤ 0.3, suitable for sub-microgram precision instruments.
