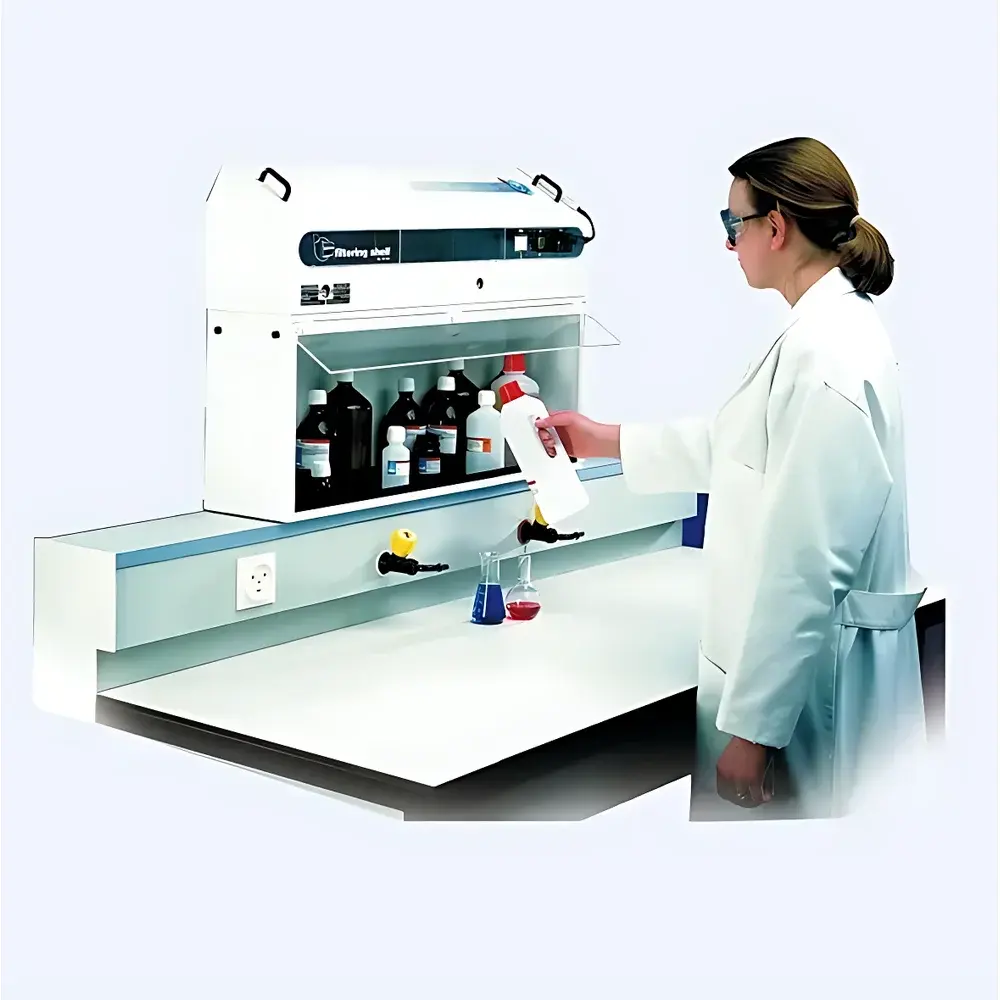

Erlab Captair Smart Shelf 812A/812B/812C Pharmaceutical Storage Cabinet

Overview

The Erlab Captair Smart Shelf 812 series is a line of self-contained, ductless pharmaceutical storage cabinets engineered for safe, localized containment of volatile chemical vapors emitted from stored reagents, solvents, and active pharmaceutical ingredients (APIs). Unlike traditional ventilated cabinets requiring external ducting or building exhaust infrastructure, the 812 series integrates an ultra-quiet centrifugal fan and a high-capacity molecular filtration system into a compact, modular footprint. Its operation relies on active air recirculation: ambient air is drawn from the cabinet interior through a pre-filter, passed across a certified activated carbon–impregnated molecular filter (validated per AFNOR NFX 15-211 for organic vapor adsorption efficiency), and returned to the laboratory environment—free of hazardous concentrations. This closed-loop design ensures continuous vapor mitigation without compromising room pressure balance or HVAC load, making it ideal for QC laboratories, formulation development suites, and GMP-compliant analytical support areas where spatial constraints and regulatory flexibility are critical.

Key Features

• Three mounting configurations: desktop (812A), floor-standing with integrated base (812B), and wall-mounted (812C)—all sharing identical internal storage volume and filtration performance.
• Transparent tempered glass door with magnetic seal, enabling real-time visual inventory verification while maintaining vapor-tight integrity during operation.
• Low-noise operation at ≤45 dBA—suitable for placement directly adjacent to analytical workstations, fume hoods, or balance enclosures without acoustic interference.
• Energy-efficient DC motor-driven fan delivering consistent 75 m³/h airflow and 25 air changes per minute, ensuring rapid vapor capture and uniform internal concentration control.
• AFNOR NFX 15-211–certified molecular filter cartridge with documented adsorption capacity for common pharmaceutical solvents (e.g., methanol, acetone, dichloromethane, ethyl acetate) and low-molecular-weight amines.
• Integrated power management: 20 W nominal consumption, 220 V / 50 Hz input, 0.17 A draw—compatible with standard European laboratory circuits and uninterruptible power supply (UPS) systems for continuity in critical storage applications.

Sample Compatibility & Compliance

The Captair Smart Shelf 812 series accommodates standard pharmaceutical primary containers—including amber glass bottles (up to 1 L), HDPE solvent carboys, aluminum foil–wrapped vials, and sealed polypropylene trays—within its standardized 738 × 188 × 348 mm internal cavity. It is not intended for flammable liquid storage exceeding Class IIB flashpoint thresholds or for pressurized gas cylinders. From a regulatory standpoint, the unit supports compliance with EU Directive 2004/40/EC (electromagnetic compatibility), IEC 61000-6-3 (emission standards), and ISO 14644-1 Class 8 cleanroom-compatible operation when installed in controlled environments. While not a Class II biological safety cabinet, its vapor containment performance aligns with Good Manufacturing Practice (GMP) Annex 1 expectations for “controlled storage of potent compounds” and supports audit readiness under EMA and FDA inspection protocols related to environmental monitoring and material segregation.

Software & Data Management

The Captair Smart Shelf 812 series operates as a standalone, firmware-controlled device with no embedded microprocessor or digital interface. Filter service life is tracked manually via usage logs aligned with AFNOR-recommended exposure limits and typical lab solvent profiles; Erlab provides downloadable filter replacement templates compatible with electronic laboratory notebooks (ELNs) such as LabArchives or IDBS E-WorkBook. Optional QR-coded filter labels enable traceability integration into asset management systems (e.g., SAP PM or IBM Maximo). Though the unit lacks native network connectivity, its stable electrical signature and predictable maintenance intervals facilitate inclusion in facility-wide preventive maintenance schedules governed by ISO/IEC 17025 or GLP Annex III requirements for equipment calibration and servicing documentation.

Applications

• Secure interim storage of reference standards and working solutions prior to HPLC/UPLC analysis.
• Containment of residual solvent vapors during stability-indicating assay preparation in QC labs.
• Localized vapor control for high-potency compound handling in early-phase drug development labs.
• Supplemental vapor management adjacent to gloveboxes or isolators where secondary containment redundancy is required.
• Storage of temperature-sensitive APIs in ambient-controlled rooms where refrigerated cabinets are impractical.

FAQ

Does the Captair Smart Shelf 812 require external ductwork or building exhaust?

No. It is a fully ductless, recirculating system relying solely on internal molecular filtration.
How often must the molecular filter be replaced?

Filter lifetime depends on solvent type, volatility, and cumulative exposure duration; Erlab recommends replacement every 6–12 months under typical pharmaceutical lab usage, with AFNOR-defined breakthrough testing advised for high-use environments.
Can the shelf be used for storing flammable liquids?

It is not rated for Class I flammable liquid storage per NFPA 30 or EN 14470-1; use only for low-volatility or low-hazard solvents within defined occupational exposure limits.
Is the unit compliant with FDA 21 CFR Part 11 for electronic records?

As a non-digital, non-data-generating device, it falls outside Part 11 scope; however, its maintenance logs and filter change records may be maintained in compliant ELNs to satisfy ALCOA+ data integrity principles.
What safety certifications does the unit hold?

CE marking per Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; conformity to AFNOR NFX 15-211 for vapor adsorption performance is independently verified and documented in the technical file.
