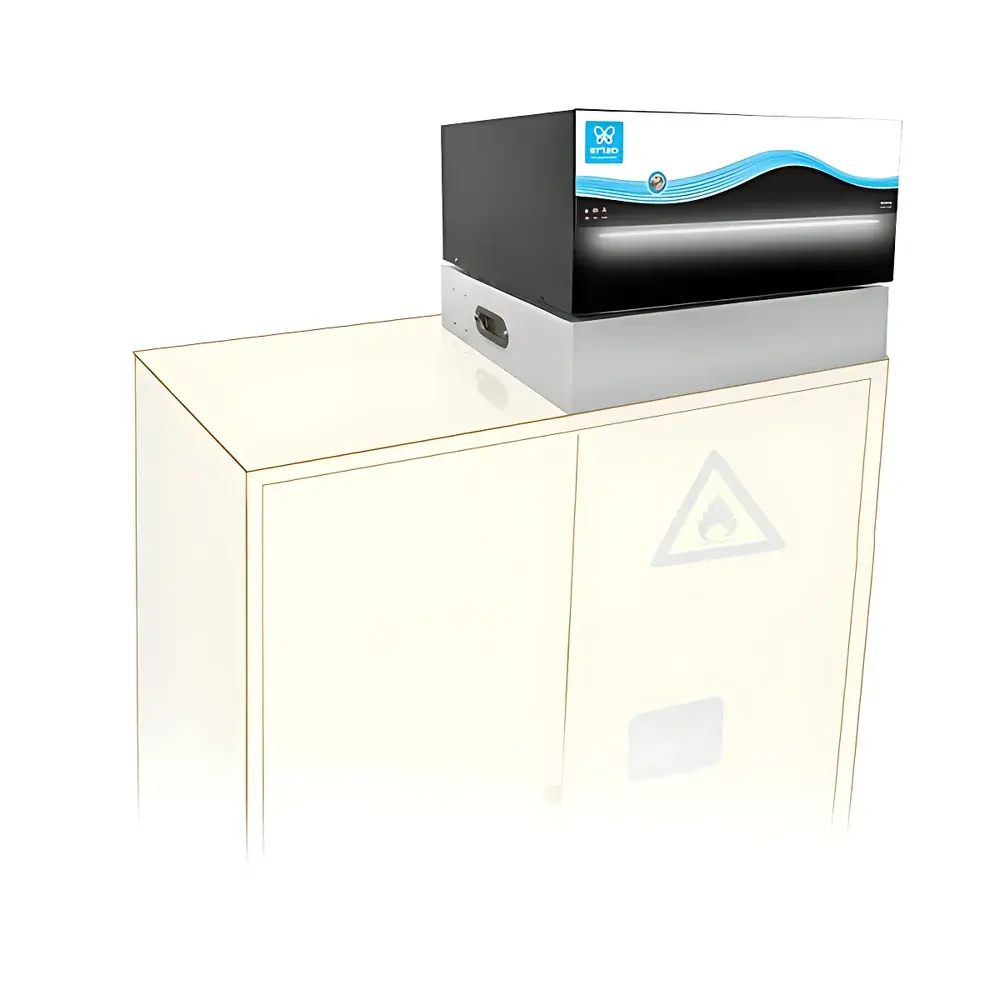

Erlab Chemtrap H402 Smart Fire-Rated Chemical Storage Cabinet with Integrated Active Filtration System

Overview

The Erlab Chemtrap H402 Smart is a fire-rated, self-contained chemical storage cabinet engineered to integrate active filtration directly into standard laboratory chemical storage infrastructure. Unlike conventional passive cabinets, the Chemtrap H402 Smart employs a recirculating airflow system coupled with replaceable, application-specific filter cartridges—enabling continuous removal of volatile hazardous substances from the internal cabinet atmosphere without external ducting. Its operation is grounded in adsorption-based air purification principles, where targeted sorbent media capture vapors via physical and chemical interactions. Designed for compliance with NFPA 30, EN 14470-1 (Class 15/30/90), and OSHA 1910.1200 requirements for hazardous material containment, the unit functions as both a structural safety enclosure and an engineered local exhaust control device—reducing operator exposure during routine access while maintaining ambient lab air quality.

Key Features

• Fire-rated construction certified to EN 14470-1 Class 30 (30-minute fire resistance) and compliant with UL 1275 and NFPA 30 standards for flammable liquid storage.
• Smart sensor-driven operation: infrared presence detection and acoustic activation enable hands-free, context-aware fan and filter status feedback—minimizing energy use during idle periods.

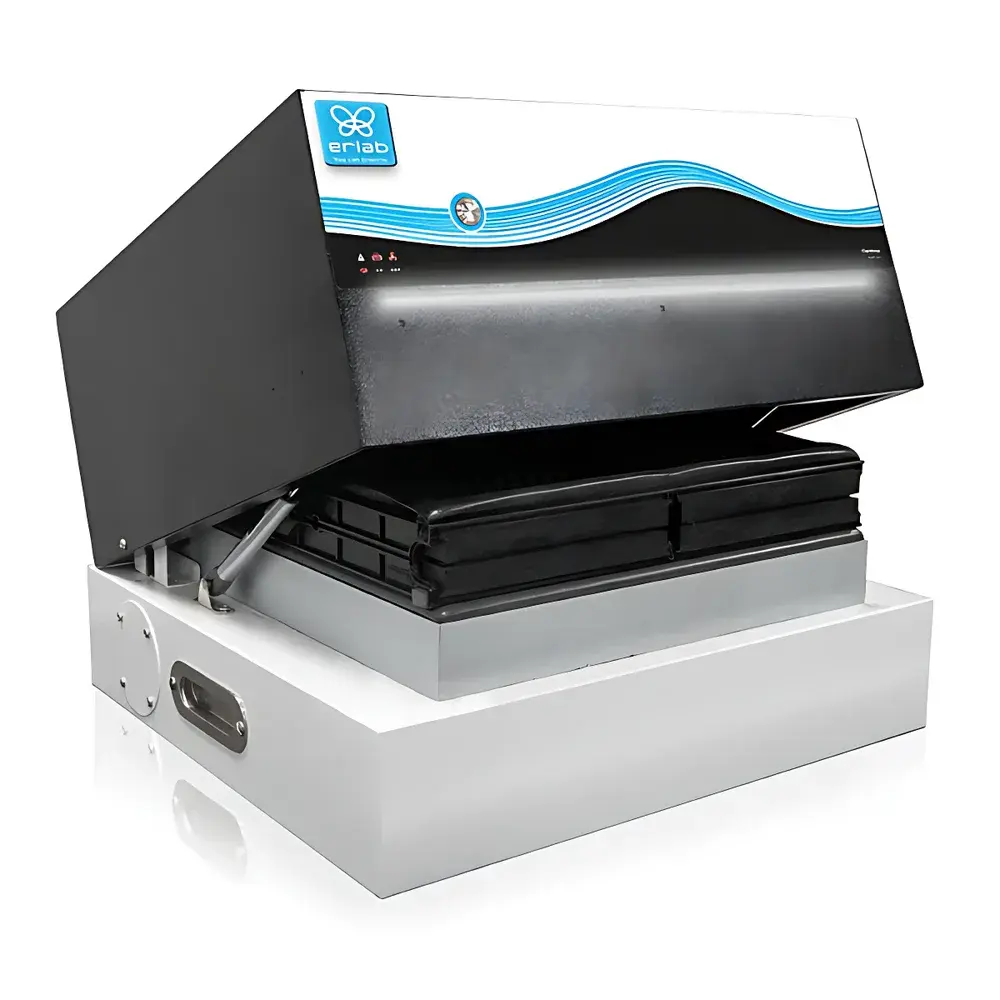

• Modular, tool-free filter cartridge system supporting three chemically selective configurations: Molecode S (for organic solvents including acetone, ethanol, toluene, and xylene), Molecode A (for inorganic acids such as HCl, HNO₃, and H₂SO₄), and Molecode F (specifically formulated for formaldehyde and low-molecular-weight aldehydes).
• Ductless recirculation architecture eliminates need for building HVAC integration or wall penetrations—ideal for modular labs, historic buildings, or temporary facilities where structural modification is restricted.
• Integrated real-time monitoring: LED status indicators display filter saturation level, airflow integrity, and operational mode; optional RS-485 interface supports integration into centralized lab environmental management systems.
• Energy-efficient EC motor with variable-speed control maintains consistent face velocity (0.5 m/s ±10%) across filter life cycle, reducing power consumption by up to 40% compared to fixed-speed alternatives.

Sample Compatibility & Compliance

The Chemtrap H402 Smart accommodates standard 4L and 20L chemical containers, including HDPE, glass, and stainless-steel carboys, with adjustable internal shelving and spill-containment sumps. Filter selection must align with stored chemical classes per GHS hazard statements and SDS Section 8 exposure controls. The cabinet meets EU CE marking requirements under the Machinery Directive 2006/42/EC and the ATEX 2014/34/EU directive for use in Zone 2 environments. It supports GLP-compliant documentation through optional audit-trail logging (via connected software), satisfying traceability requirements under ISO/IEC 17025 and FDA 21 CFR Part 11 when deployed in regulated pharmaceutical or clinical research settings.

Software & Data Management

While the base Chemtrap H402 Smart operates autonomously via embedded firmware, optional Erlab Connect™ software (v3.2+) enables remote configuration, predictive filter lifetime estimation, and exportable CSV logs of runtime hours, cumulative airflow volume, and alarm events. All data entries include timestamp, user ID (if authenticated), and system-generated event codes—supporting 21 CFR Part 11 electronic record integrity through role-based access control and digital signature capability. Firmware updates are delivered via secure HTTPS OTA protocol with SHA-256 verification.

Applications

• Academic and industrial laboratories requiring localized VOC control for solvent storage in teaching labs, synthetic chemistry suites, and analytical prep areas.
• Pharmaceutical QC labs storing reference standards, stability samples, and excipients where formaldehyde off-gassing from packaging materials poses inhalation risk.
• Hospitals and pathology departments managing histology reagents (e.g., xylene, formalin) in proximity to staff workstations.
• Environmental testing facilities handling EPA Method 8260/8270 analytes in non-ducted lab spaces subject to local air quality ordinances.
• Research institutions deploying mobile or reconfigurable lab modules where permanent ventilation infrastructure is unavailable.

FAQ

Does the Chemtrap H402 Smart require external ductwork or make-up air?

No—it operates as a closed-loop recirculating system and requires no external venting, duct installation, or dedicated make-up air supply.
How often must filters be replaced?

Filter service intervals depend on chemical type, concentration, and frequency of cabinet access; typical lifetimes range from 6–12 months for Molecode S/A and 3–6 months for Molecode F under average lab usage conditions.
Can multiple filter types be installed simultaneously?

No—only one cartridge type may be installed at a time, selected based on the primary hazard class stored within the cabinet.
Is the cabinet suitable for storing oxidizers or pyrophorics?

No—Chemtrap H402 Smart is rated exclusively for flammable liquids (Class I), combustible liquids (Class II/III), and corrosive substances as defined by NFPA 30 and UN transport classifications; it is not approved for Division 1.1–1.4 explosives, organic peroxides, or water-reactive materials.
What certifications does the unit hold for international deployment?

CE (EN 14470-1, EN 61000-6-3, EN 61000-6-4), UKCA, and TÜV-tested fire resistance certification; regional electrical safety approvals available upon request (e.g., ETL for North America, PSE for Japan).
