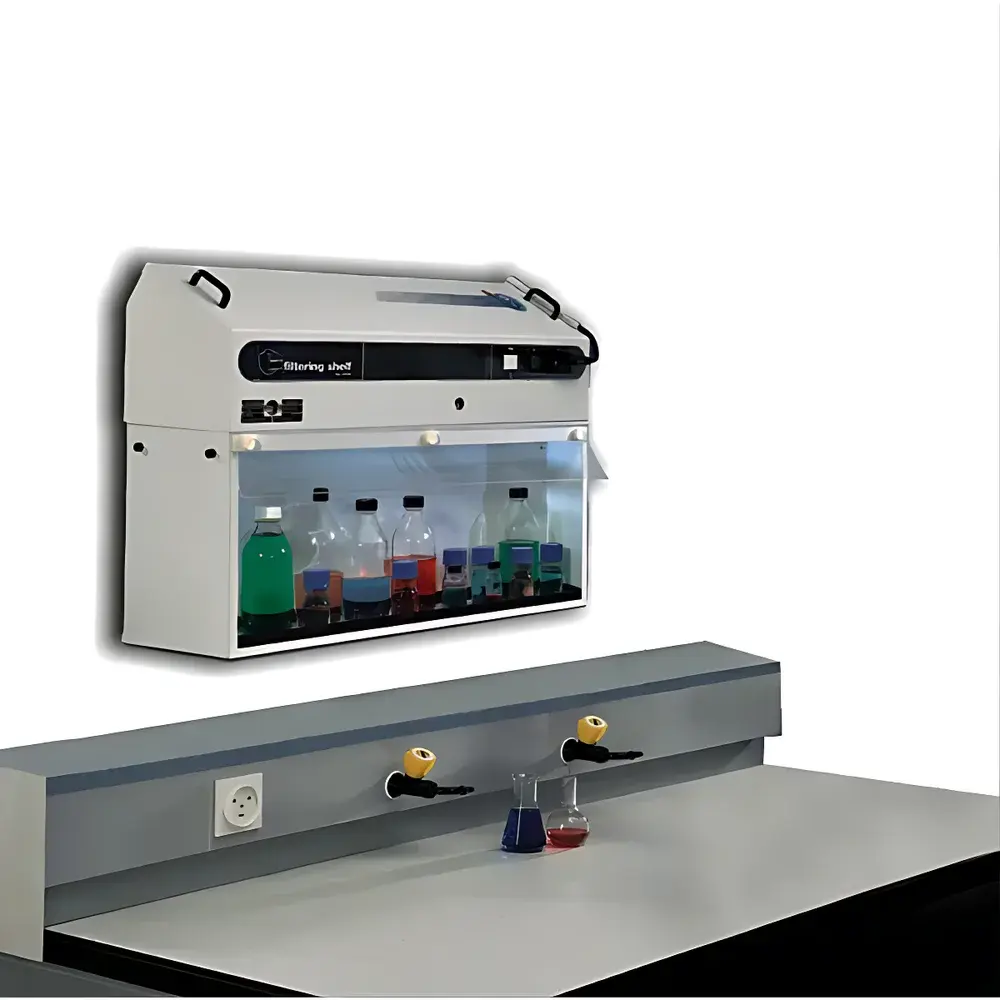

Erlab Shelf 812C Benchtop Chemical Storage Enclosure

Overview

The Erlab Shelf 812C is a compact, benchtop-scale chemical storage enclosure engineered for continuous, low-risk containment and molecular-level air purification in laboratory environments where intermittent or daily handling of volatile reagents occurs. Unlike conventional ventilated cabinets that rely on ducted exhaust to external infrastructure, the Shelf 812C operates as a closed-loop recirculating system—drawing ambient air through its open-front access zone, passing it across a replaceable multi-stage molecular filter (comprising activated carbon and specialized impregnated media), and returning purified air directly into the lab space. This design eliminates the need for external ductwork, HVAC integration, or structural modifications, making it suitable for satellite labs, QC/QA workstations, teaching facilities, and regulated production areas where space, installation flexibility, and operational continuity are critical constraints. Its core principle is dynamic adsorption-based gas-phase contaminant control, compliant with ISO 16000-23 for indoor air quality assessment and aligned with OSHA 29 CFR 1910.1200 (HCS) requirements for hazard communication and exposure mitigation.

Key Features

• Open-front ergonomic access design enables rapid, unobstructed placement and retrieval of standard laboratory containers without compromising containment integrity.
• Integrated high-efficiency axial fan maintains consistent face velocity (~0.3–0.4 m/s) across the access plane, ensuring stable inward airflow and minimizing fugitive emissions during use.
• Molecular filtration module utilizes dual-layer media: granular coconut-shell activated carbon for broad-spectrum organic vapor adsorption, plus chemically impregnated alumina for targeted removal of acidic gases (e.g., HCl, HF, SO₂) and aldehydes.
• Wall-mountable or freestanding configuration supports flexible deployment—no floor anchoring or ceiling penetration required; powered via standard IEC C13 inlet with built-in thermal overload protection.
• Filter saturation indicator (optional LED status panel) provides visual alert when replacement is recommended based on cumulative runtime and typical loading profiles per ASTM D5228-18 guidelines.
• Structural housing fabricated from powder-coated cold-rolled steel with non-sparking hardware, meeting UL 1278 Class II electrical safety standards for laboratory equipment.

Sample Compatibility & Compliance

The Shelf 812C is validated for safe storage and short-term staging of common laboratory chemicals including solvents (acetone, ethanol, hexane), weak acids (acetic acid, dilute nitric acid), bases (ammonium hydroxide), and halogenated compounds (chloroform, dichloromethane), provided container integrity is maintained and volumes remain within 0.5 L nominal capacity. It is not intended for long-term archival storage, pyrophoric substances, or pressurized cylinders. The unit complies with EN 14175-5:2021 (fume cupboard performance criteria for recirculating enclosures), supports GLP documentation workflows via optional filter log templates, and facilitates audit readiness under ISO/IEC 17025:2017 Clause 6.4 (environmental conditions) and FDA 21 CFR Part 11 (when paired with Erlab’s optional digital logging accessory).

Software & Data Management

While the base Shelf 812C operates as a standalone mechanical system without embedded firmware, Erlab offers an optional Bluetooth-enabled SmartFilter Module (SFM-120) that records cumulative operating hours, estimates remaining filter service life using real-time temperature/humidity compensation, and exports CSV logs compatible with LIMS or internal QA tracking systems. All filter replacements are traceable via serialized QR-coded labels adhering to ISO 9001:2015 clause 8.5.2 (identification and traceability). No cloud connectivity or proprietary software installation is required for core functionality.

Applications

• QC laboratories performing routine titrations, pH calibration, or standard solution preparation requiring daily access to stabilized reagent stocks.
• GMP-regulated environments where solvent staging near analytical instruments (e.g., HPLC autosamplers, GC injectors) must avoid cross-contamination and maintain ambient air quality thresholds.
• University teaching labs managing rotating chemical inventories across multiple student sections while minimizing facility retrofit costs.
• Pharmaceutical R&D spaces utilizing small-molecule libraries stored in vial racks or 0.5 L HDPE carboys, necessitating localized vapor suppression without altering room ventilation balance.
• Contract manufacturing organizations (CMOs) deploying modular cleanroom-adjacent prep zones compliant with EU GMP Annex 1 draft guidance on environmental monitoring.

FAQ

Does the Shelf 812C require external ducting or make-up air systems?
No. It is a self-contained recirculating unit designed for plug-and-play operation without HVAC interface.
What is the recommended filter replacement interval?
Under typical usage (8 hrs/day, moderate volatility load), replacement is advised every 6–12 months; actual service life depends on chemical profile and exposure duration, monitored via optional SFM-120 module.
Can it be used for storing flammable liquids?
Yes—provided containers are UL-listed, sealed, and quantities comply with NFPA 30 Chapter 9 limits for indoor storage; the cabinet itself is not explosion-proof but mitigates vapor accumulation.
Is wall mounting mandatory?
No. It ships with universal mounting brackets but may be placed on a stable countertop or lab bench with ≥100 mm rear clearance for airflow.
Does Erlab provide validation documentation for regulatory submissions?
Yes—Factory Acceptance Test (FAT) reports, filter media CoA (Certificate of Analysis), and EN 14175-5 test summaries are available upon request for IQ/OQ protocol development.
