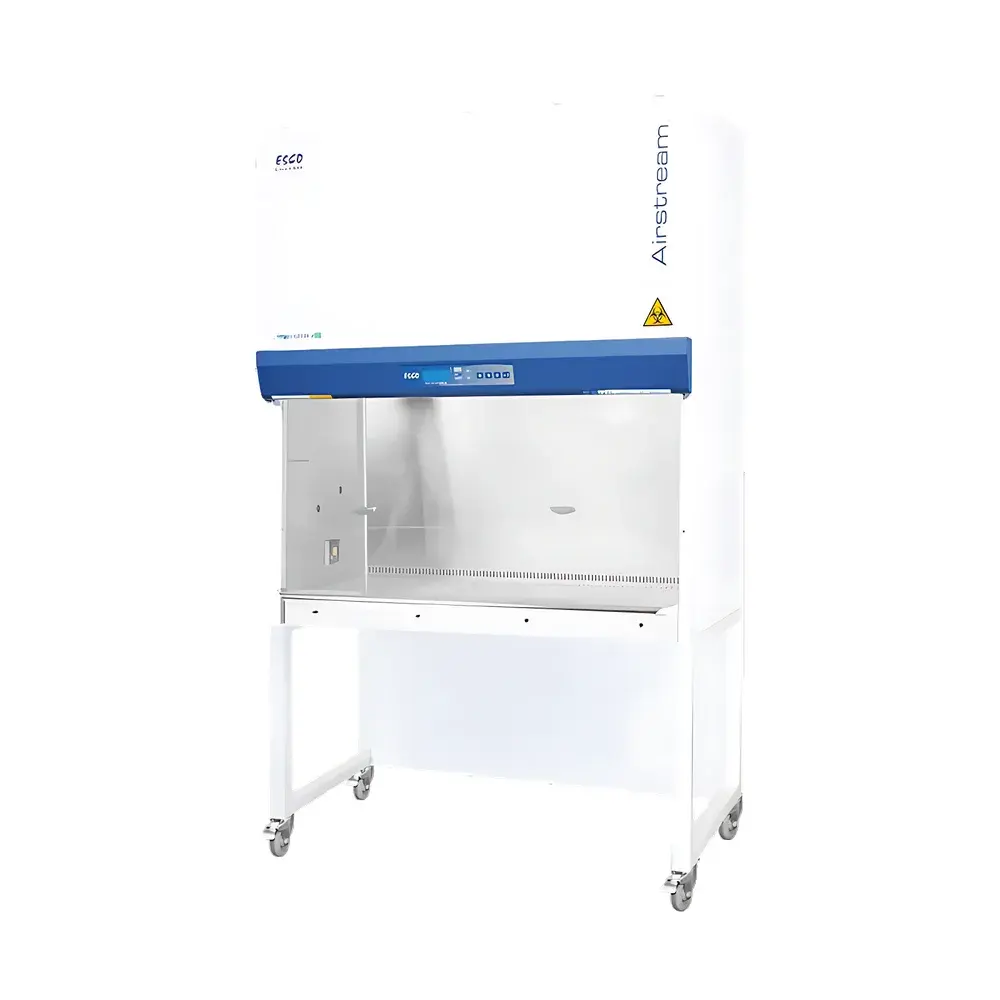

Esco AB2-S Series Class II Type B2 Biosafety Cabinet

Overview

The Esco AB2-S Series Class II Type B2 Biosafety Cabinet is a total-exhaust, ducted biosafety system engineered for applications requiring simultaneous protection of personnel, product, and the external environment against biological, chemical, and radioactive hazards. Unlike recirculating Class II A2 cabinets, the AB2-S draws 100% of air from the laboratory environment, passes it through dual ULPA filtration stages—first in the supply plenum and again in the exhaust path—and expels all air externally via dedicated ductwork. This design eliminates any risk of cross-contamination from recirculated air and ensures full containment of volatile toxic compounds, radionuclides, and aerosolized pathogens. The cabinet operates under negative pressure relative to the laboratory, maintaining inward inflow at 0.53 m/s (105 fpm) across the work opening and a uniform downward downflow of 0.33 m/s (65 fpm) across the work surface—both dynamically regulated by a brushless DC ECM motor system with real-time airflow compensation. Its structural integrity, airflow uniformity, and leak-tight construction comply strictly with YY 0569-2011 (China’s national standard for biosafety cabinets), and its performance is validated per ISO 14644-1 Class 5 (ISO Class 5 / Federal Standard 209E Class 100) cleanroom requirements within the work area.

Key Features

• ULPA filtration with Minimum Particle-Penetrating Size (MPPS) efficiency ≥99.999%, ensuring sub-micron particulate and microbial removal from both supply and exhaust airstreams.
• Sentinel Gold microprocessor control panel featuring large-format Chinese-language display, programmable UV timer, real-time airflow monitoring, and audible/visual alarm thresholds for inflow/downflow deviation, filter saturation, and door position.
• Dynamic Chamber™ aerodynamic design optimized for laminar, low-turbulence airflow distribution—minimizing eddy formation and enhancing operator safety during high-risk manipulations.
• Monolithic stainless steel work surface with seamless shallow-dish geometry—no welds, seams, or fasteners—to prevent biofilm accumulation and facilitate decontamination.
• ESCO ISOCIDE™ antimicrobial coating applied to all exposed cabinet surfaces (including sash, side panels, and front grille), inhibiting surface colonization by bacteria, fungi, and molds without leaching or degradation over time.
• DC ECM motor-driven blower system delivering constant airflow despite filter loading or static pressure fluctuations—reducing energy consumption by up to 40% compared to conventional AC motor systems.
• Ergonomic integrated hand rest positioned above the work surface to promote neutral wrist posture and prevent accidental obstruction of the front intake grille.

Sample Compatibility & Compliance

The AB2-S accommodates a wide range of microbiological, pharmaceutical, and hazardous material handling protocols—including sterile cell culture, recombinant DNA work, cytotoxic drug compounding, and radiopharmaceutical synthesis. Its total-exhaust configuration renders it suitable for use with volatile organic solvents (e.g., acetone, ethanol, chloroform), gaseous halogenated agents, and unsealed radioactive isotopes (e.g., I-125, P-32, H-3). All units are certified to YY 0569-2011 (equivalent in scope to NSF/ANSI 49 and EN 12469) and registered as Class II Type B2 medical devices under China’s CFDA (now NMPA) regulatory framework. Optional accessories—including gas/vacuum exhaust valves, HEPA-filtered exhaust dampers, and HVAC isolation baffles—support integration into facility-wide ventilation management systems compliant with ASHRAE 110, WHO TRS 961 Annex 2, and EU GMP Annex 1 requirements for containment-critical operations.

Software & Data Management

The Sentinel Gold control system supports comprehensive operational logging via RS232 serial interface. Logged parameters include real-time inflow and downflow velocity, fan speed, UV exposure duration, sash height, filter differential pressure, and alarm event timestamps. Data export is compatible with LIMS and electronic lab notebook (ELN) platforms using ASCII-formatted CSV output. Audit trail functionality meets GLP and GMP documentation requirements, including user authentication (via optional PIN code), immutable event logs, and timestamped parameter changes. Firmware updates are performed locally via USB port, with version verification and rollback capability. No cloud connectivity or remote access features are implemented—ensuring data sovereignty and alignment with institutional IT security policies.

Applications

• Containment of airborne pathogens in BSL-2 and BSL-3 laboratories performing non-aerosol-generating procedures.
• Handling of open-vessel cytotoxic preparations in hospital pharmacy cleanrooms (USP and compliant environments).
• Radioisotope labeling and purification workflows where volatile radionuclide containment is mandated.
• Chemical synthesis involving low-boiling-point solvents or reactive intermediates requiring continuous dilution ventilation.
• Stem cell expansion and gene therapy vector production under ISO Class 5 environmental controls.
• Quality control testing of sterile injectables and biologics in regulated manufacturing settings.

FAQ

Does the AB2-S require external ducting?
Yes. As a Type B2 cabinet, it must be connected to a dedicated, hard-ducted exhaust system with balanced make-up air supply to maintain stable room pressure and airflow performance.
Can the AB2-S be used for microbiological work without chemical exposure?
Yes—its ULPA filtration and negative-pressure containment provide superior protection for sensitive cell cultures compared to Class II A2 cabinets, especially when working with low-biomass or fastidious organisms.
Is the ISOCIDE™ coating effective against SARS-CoV-2 or other enveloped viruses?
While ISOCIDE™ is validated against broad-spectrum bacteria and fungi, its antiviral efficacy is not independently certified for specific human pathogens; surface disinfection protocols remain essential per institutional biosafety guidelines.
What maintenance intervals are recommended for ULPA filters?
Filter service life depends on usage intensity and ambient particulate load; typical replacement occurs every 3–5 years. Differential pressure monitoring via the Sentinel Gold panel triggers preventive maintenance alerts.
Are electrical configurations available for North American 120 V / 60 Hz operation?
Yes—the AB2-S series includes variants designated AB2-S2 (110–120 V AC, 60 Hz) and AB2-S3 (220–240 V AC, 60 Hz), ensuring compatibility with global power infrastructures.
