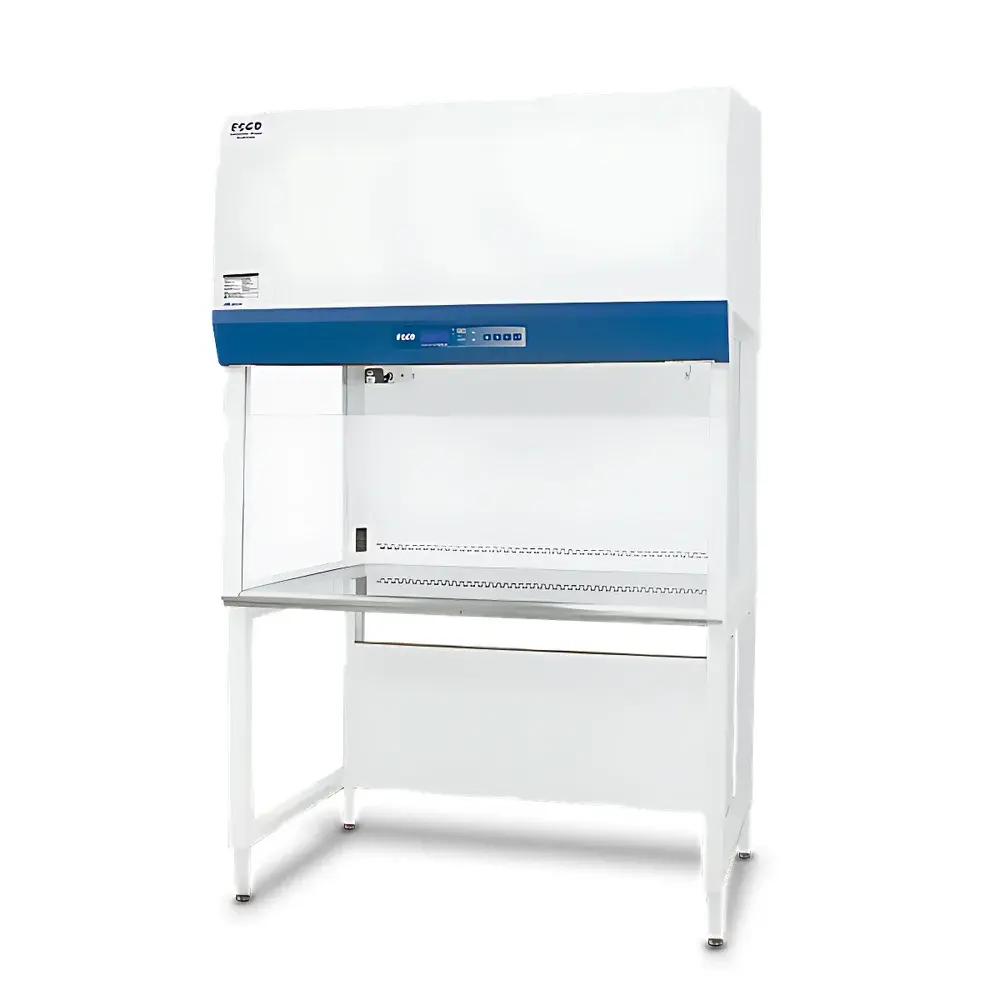

Esco Airstream Gen3 Vertical Laminar Flow Cabinet with Glass Side Panels

Overview

The Esco Airstream Gen3 Vertical Laminar Flow Cabinet with Glass Side Panels is an ISO 3 (Class 1)-rated laminar airflow workstation engineered for critical aseptic applications in pharmaceutical R&D, cell culture laboratories, semiconductor packaging, and high-purity analytical sample preparation. Utilizing unidirectional vertical airflow generated by a brushless DC ECM fan and conditioned through a certified HEPA H14 filter (≥99.995% efficiency at 0.3 µm), the cabinet delivers uniform, turbulence-free air across the work surface—minimizing particle resuspension and ensuring consistent operator and product protection. Unlike conventional horizontal flow hoods, the vertical configuration directs filtered air downward from the top plenum, isolating the work area from ambient room contaminants while enabling ergonomic access and full visibility via tempered glass side panels. Each unit undergoes individual factory validation per EN 12469, including microbial challenge testing for both product protection (e.g., simulated microbial ingress into sterile media) and cross-contamination control (e.g., tracer organism transfer between adjacent zones), establishing traceable performance compliance prior to shipment.

Key Features

• Sentinel Gold microcontroller with real-time display of airflow velocity, filter differential pressure, operational status, and alarm history—supporting GLP/GMP audit-ready event logging.
• ISO-SCIDE™ silver-ion antimicrobial coating applied to all exposed stainless steel and polymer surfaces, validated per ISO 22196 to inhibit bacterial colonization (including Staphylococcus aureus and Escherichia coli) for ≥99.9% reduction over 24 hours.
• Spill-resistant work surface with integrated 15-mm-deep containment lip and seamless welded corners—designed to retain accidental liquid spills without compromising airflow integrity or requiring disassembly.
• Brushless DC ECM fan system delivering stable airflow across variable filter loading conditions; automatically compensates for up to 70% filter resistance increase while maintaining ±5% velocity tolerance at setpoint.
• Acoustically optimized chamber geometry and vibration-damped mounting reduce operational noise to ≤54.5 dBA at 1 m—enabling extended use in shared laboratory environments without auditory fatigue.
• Glass side panels fabricated from 6-mm tempered safety glass with anti-reflective coating—providing full lateral visibility while meeting IEC 61000-4-2 ESD requirements for electrostatic-sensitive workflows.

Sample Compatibility & Compliance

The LVG series accommodates a broad range of sample formats—from Petri dishes, multiwell plates, and bioreactor vessels to wafers and optical substrates—without airflow disruption. Internal dimensions are precisely engineered to support standard ISO Class 3 cleanroom accessories, including glove ports, pass-through chambers, and integrated UV-C decontamination modules (optional). All structural materials—including AISI 304 stainless steel work surface, anodized aluminum frame, and medical-grade polymer gaskets—are non-shedding, non-outgassing, and compliant with USP and ISO 14644-1 for particulate cleanliness. Units are supplied with full EN 12469 test reports, including airflow visualization (smoke studies), particle count verification (via ISO 21501-4 calibrated laser particle counter), and microbial barrier efficacy data. Optional IQ/OQ documentation packages align with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

Sentinel Gold firmware supports configurable alarm thresholds (e.g., low airflow, high filter delta-P, door open), with event timestamps stored in non-volatile memory for ≥12 months. USB export enables CSV-formatted logs compatible with LIMS integration and automated report generation. Optional Ethernet connectivity (LVG-Net module) provides remote monitoring via SNMPv3 and TLS-secured HTTP API—allowing centralized fleet management across multi-site facilities. Audit trails include user ID, timestamp, parameter change, and reason code—fully compliant with ALCOA+ principles for data integrity in regulated environments.

Applications

• Aseptic handling of primary human cells and stem cell lines under GMP Annex 1-aligned conditions.
• Preparation of sterile injectables and ophthalmic solutions requiring ISO 3 background environments.
• Microelectronics assembly involving photomasks, MEMS devices, and nanoscale thin-film deposition.
• High-sensitivity PCR setup and NGS library preparation where aerosol-mediated contamination must be eliminated.
• Calibration and handling of reference standards in metrology labs requiring sub-100-particle/m³ environments.

FAQ

What cleanroom classification does the LVG cabinet achieve?
It delivers ISO 3 (Class 1) particle concentration levels in the work area when operated per specifications—verified via ISO 21501-4-compliant particle counting.
Is the HEPA filter certified to a specific efficiency standard?
Yes—each H14-grade HEPA filter is individually tested to EN 1822-1 and certified for ≥99.995% particle capture at 0.3 µm MPPS.
Can the cabinet be integrated into a building management system (BMS)?
With the optional LVG-Net interface, real-time status and alarms can be transmitted via Modbus TCP or BACnet/IP protocols.
Does Esco provide validation support for GxP-regulated installations?
Yes—comprehensive IQ/OQ protocols, traceable calibration certificates, and risk-based URS alignment services are available upon request.
How often should the HEPA filter be replaced?
Filter life depends on ambient air quality and usage intensity; typical service intervals range from 3–5 years, monitored continuously via Sentinel Gold delta-P tracking.
