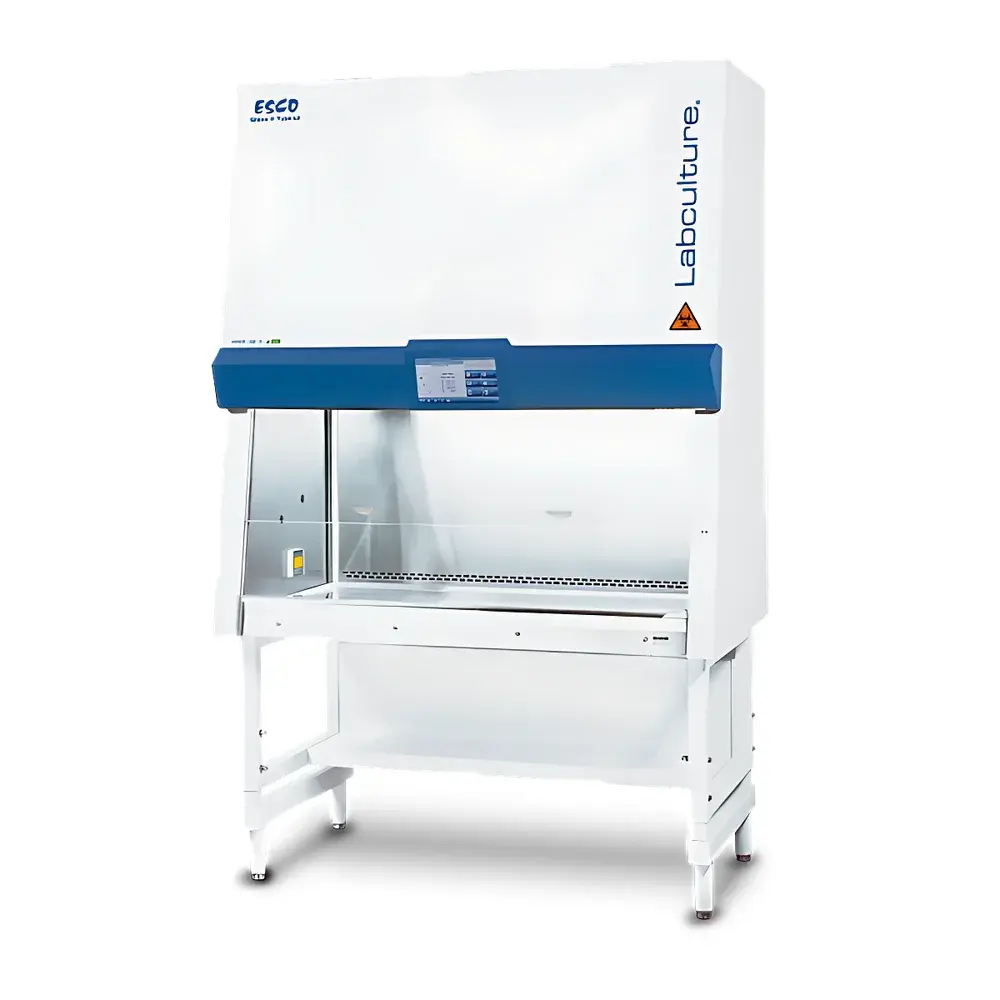

Esco Labculture A2 Class II Biological Safety Cabinet (E-Series)
| Brand | Esco |
|---|---|
| Origin | Singapore |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | LA2-A |
| Pricing | Available Upon Request |
| External Dimensions (L×W×H) | Varies by variant (LA2-3A to LA2-8A) |
| Internal Work Area Dimensions | 970–2440 mm (L) × 623 mm (W) × 670 mm (H) |
| Inflow Velocity | 0.53 m/s (105 fpm) |
| Downflow Velocity | 0.35–0.33 m/s (70–65 fpm) |
| Power Supply | 220 VAC, 50 Hz |
| Filtration | Dual Minipleat ULPA filters (≥99.999% @ 0.1–0.3 µm) |
| Compliance | NSF/ANSI 49, EN 12469, YY 0569, JIS K 3800 |
| Control System | Sentinel Gold microprocessor-based digital display with RS232 interface |
| Ergonomics | 10° forward tilt, ADA-compliant angled control panel and handrest, seamless stainless steel work surface, ISOCIDE antimicrobial coating |
Overview
The Esco Labculture A2 Class II Biological Safety Cabinet (E-Series) is an engineered solution for laboratories requiring simultaneous protection of personnel, product, and environment during microbiological, molecular, or cell culture work. Designed in accordance with the fundamental aerodynamic principles of Class II, Type A2 cabinets—namely, inward inflow (for operator protection), downward laminar downflow (for product sterility), and recirculation of ~70% of filtered air within the work area—the Labculture E-Series integrates advanced airflow management with robust mechanical architecture. Its dual Minipleat ULPA filtration system delivers ≥99.999% particle capture efficiency for challenge aerosols sized 0.1–0.3 µm, exceeding standard HEPA performance (≥99.97% @ 0.3 µm). The cabinet operates under negative pressure relative to the laboratory while maintaining a positively pressured inner plenum to prevent cross-contamination between zones. This configuration meets the strictest international biosafety infrastructure requirements and supports applications ranging from BSL-2 research to GLP-compliant quality control.
Key Features
- Energy-efficient EC (electronically commutated) DC motor technology—reducing power consumption up to 40% versus conventional AC blowers while delivering stable, low-noise airflow across variable load conditions.
- Dual ULPA filters certified per IEST-RP-CC001.3, each rated for ≥99.999% removal efficiency at the most penetrating particle size (MPPS) of 0.1–0.3 µm.
- Monolithic 304 stainless steel work surface fabricated without seams, welds, or fasteners—eliminating microbial harborage points and enabling rapid decontamination via autoclaving, vaporized hydrogen peroxide (VHP), or liquid disinfectants.
- Sentinel Gold digital control system featuring a high-contrast, full-graphic LCD display showing real-time inflow/downflow velocities, filter life status, alarm history, and operational mode (e.g., normal, standby, night mode).
- 10° forward tilt of the front sash and angled control panel—designed to reduce operator fatigue and improve posture alignment per ADA accessibility guidelines and ISO 13732-1 ergonomics standards.
- ISOCIDE® antimicrobial powder coating applied to all external painted surfaces, inhibiting bacterial colonization on non-stainless components without compromising chemical resistance or cleanability.
- Optimized side-wall exhaust grilles and enhanced rear baffle geometry—improving containment integrity by minimizing turbulence-induced particle escape at critical boundary zones.
- RS232 serial port enables integration with laboratory building management systems (BMS) or centralized monitoring platforms for audit-ready data logging compliant with FDA 21 CFR Part 11 and ISO/IEC 17025 traceability requirements.
Sample Compatibility & Compliance
The Labculture A2 cabinet is validated for use with a broad spectrum of biological agents classified under BSL-2 containment, including but not limited to Escherichia coli BL21(DE3), Bacillus subtilis, mammalian cell lines (e.g., HEK293, CHO-K1), and recombinant DNA constructs. It is unsuitable for work involving volatile toxic chemicals or radionuclides due to its partially recirculated airflow design. All units undergo factory-certified performance testing per NSF/ANSI 49 (2022 edition), EN 12469:2000+A1:2009, China’s YY 0569–2011, and Japan’s JIS K 3800:2010. Each cabinet ships with a full compliance dossier—including airflow visualization reports, smoke pattern validation, and filter integrity test records—supporting facility accreditation under CLIA, CAP, or APHL frameworks.
Software & Data Management
The Sentinel Gold controller stores up to 1,000 event logs with timestamps, including door position changes, alarm triggers (e.g., airflow deviation >±10%, filter saturation), and user-initiated mode transitions. Audit trail functionality complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulated environments. Data export via RS232 supports CSV-formatted output compatible with LIMS integration or custom SCADA dashboards. Firmware updates are performed offline using encrypted USB drives to maintain cybersecurity integrity per NIST SP 800-53 controls. No cloud connectivity is embedded—ensuring data sovereignty and alignment with institutional IT security policies.
Applications
- Microbiological isolation and subculturing of clinical or environmental isolates
- Transfection and passaging of adherent and suspension mammalian cell lines
- Preparation of sterile media, reagents, and master cell banks under cGMP Annex 1-aligned practices
- Handling of low-risk viral vectors (e.g., lentiviral pseudotypes lacking envelope glycoproteins)
- Quality control testing of pharmaceutical intermediates where particulate control and operator safety are co-prioritized
- Teaching laboratories requiring durable, intuitive biosafety infrastructure with minimal maintenance overhead
FAQ
What certification standards does the Labculture A2 cabinet meet?
It is independently certified to NSF/ANSI 49, EN 12469, YY 0569, and JIS K 3800—covering structural integrity, airflow containment, filter efficiency, and electrical safety.
Can this cabinet be ducted to an external exhaust system?
Yes—optional canopy or hard-ducted configurations are available; installation must comply with local mechanical codes and maintain minimum static pressure thresholds specified in the Installation Manual.
How often should ULPA filters be replaced?
Under typical BSL-2 usage (8 hrs/day, 5 days/week), ULPA filters last 5–7 years; replacement intervals are dynamically calculated by the Sentinel Gold system based on cumulative runtime and differential pressure delta.
Is the cabinet compatible with vaporized hydrogen peroxide (VHP) decontamination?
Yes—the monolithic stainless steel chamber, ISOCIDE-coated exterior, and sealed electronics housing are fully VHP-resistant when operated in dedicated decon mode per Esco’s validated protocol.
Does the system support electronic signature and audit trail for 21 CFR Part 11 compliance?
While the base Sentinel Gold controller provides time-stamped, non-editable event logs, full Part 11 compliance requires integration with a validated third-party LIMS or ELN platform that manages user authentication and electronic signatures.
