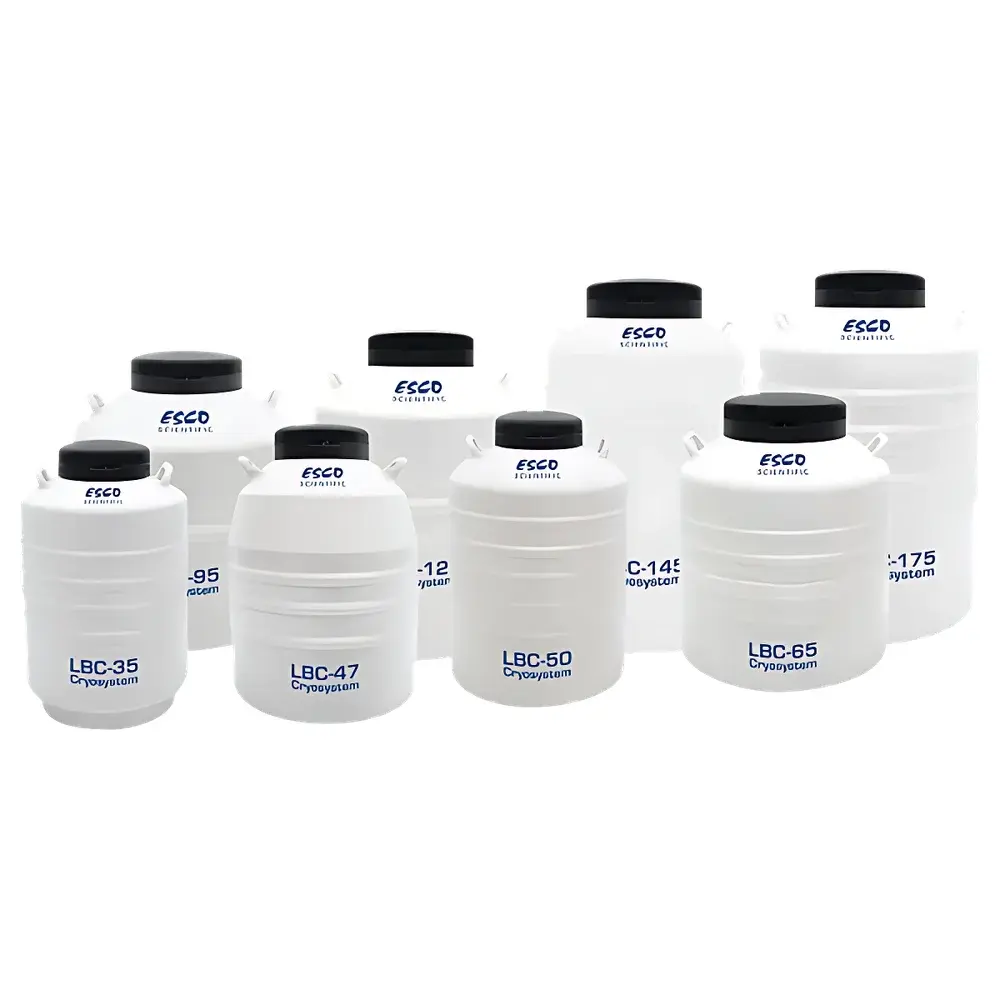

Esco LBC Series Liquid Nitrogen Biological Storage Containers

Overview

The Esco LBC Series Liquid Nitrogen Biological Storage Containers are engineered for reliable, long-term cryopreservation of sensitive biological specimens—including cell lines, primary cultures, stem cells, embryos, and tissue samples—in research laboratories, biobanks, and early-stage biorepository facilities. Designed around a dual-wall aluminum vacuum-jacketed architecture, the LBC series leverages high-efficiency passive insulation to minimize liquid nitrogen (LN₂) boil-off while maintaining stable ultra-low temperatures (≤ –196 °C) throughout the storage chamber. Its optimized geometry—featuring wide-neck openings (125–216 mm), shallow depth-to-volume ratios, and vertically stacked square-canister racks—enables rapid, ergonomic access without compromising thermal stability. Unlike deep-well vertical dewars, the LBC’s compact footprint and lightweight construction support flexible placement in space-constrained cleanrooms, cell culture suites, and modular biosafety cabinets—making it particularly suited for labs transitioning from pilot-scale cryostorage to structured sample management systems.

Key Features

• Low static evaporation rate (0.36–0.87 L/day), achieved through multi-layer superinsulation: alternating layers of low-thermal-conductivity cellulose-based paper and high-reflectivity aluminum foil reduce radiative heat transfer across the vacuum gap.
• Five-year vacuum integrity warranty, supported by integrated cryo-adsorbent material (activated charcoal + zeolite) within the annular space to scavenge residual gases and suppress convective heat transfer over time.
• Structural integrity ensured by aerospace-grade 6061-T6 aluminum for both inner and outer vessels—providing high strength-to-weight ratio, corrosion resistance, and non-magnetic compatibility with adjacent lab instrumentation.
• Standard locking lid with dual-point stainless-steel latches prevents unauthorized access and accidental opening during routine operation or transport.
• Wide-neck design accommodates standard 25- or 100-slot cryoboxes on square-format lift-out racks; all models feature uniform rack spacing for cross-model compatibility and scalable inventory expansion.
• Optional Esco SmartLN₂ Monitoring System integrates a plug-in neck tube sensor that continuously logs LN₂ level and vapor-phase temperature, triggers configurable email/SMS alerts upon threshold breach, and supports audit-ready data export via USB or Ethernet.

Sample Compatibility & Compliance

The LBC series is validated for storage of vials, straws, cryobags, and microtubes conforming to ISO 8662-1 (cryogenic containers), ASTM F2623 (performance requirements for cryogenic storage systems), and ANSI Z358.1 (emergency eyewash/shower proximity guidelines). All units are supplied with CE marking per EU Directive 2014/34/EU (ATEX) for safe use in non-hazardous laboratory environments. As specified by Esco, these containers are designated exclusively for research and industrial applications; they are not certified under FDA 21 CFR Part 820, ISO 13485, or IVD regulations—and therefore are not intended for clinical specimen banking, transplant logistics, or diagnostic sample archiving. Documentation includes full traceability of vacuum pump-down records, helium leak test reports, and material certifications compliant with RoHS and REACH directives.

Software & Data Management

When equipped with the optional SmartLN₂ module, the LBC system interfaces with Esco’s CryoTrack™ Lite software—a Windows-based application supporting GLP-compliant data logging, user-defined alarm profiles, and electronic signature-enabled audit trails per FDA 21 CFR Part 11 requirements. Data files are timestamped, encrypted, and exportable in CSV or PDF formats for integration into LIMS platforms such as LabVantage or Thermo Fisher SampleManager. The embedded sensor firmware undergoes annual NIST-traceable calibration verification, and firmware updates are delivered via secure HTTPS portal with version-controlled release notes and change logs.

Applications

• Long-term preservation of induced pluripotent stem cells (iPSCs) and human embryonic stem cells (hESCs) requiring minimal thermal cycling.
• High-frequency retrieval workflows in academic core facilities managing >10,000 cryovials across multiple projects.
• Staging storage for biobanking initiatives prior to migration into automated -150 °C mechanical freezers or large-scale LN₂ vaults.
• Backup cryostorage for GMP-grade cell therapy manufacturing suites where redundancy and manual accessibility are critical.
• Field-deployable cryocontainment in mobile research laboratories operating under ISO/IEC 17025-accredited quality frameworks.

FAQ

Is the LBC series suitable for storing clinical-grade human tissues?
No. The LBC containers are classified as research-use-only equipment and do not meet regulatory requirements for clinical or diagnostic applications under FDA, EMA, or PMDA guidelines.
Can the SmartLN₂ system be retrofitted to existing LBC units?
Yes—provided the unit has an unmodified neck tube configuration and was manufactured after Q3 2020; retrofit kits include hardware, calibration certificate, and software license.
What maintenance is required to sustain the 5-year vacuum warranty?
Annual visual inspection of O-rings and lid seal integrity is recommended; no scheduled vacuum re-pumping or internal servicing is required under normal operating conditions.
Are custom rack configurations available for non-standard vial formats?
Esco offers OEM rack engineering services for validated 0.5 mL, 1.8 mL, and 5.0 mL external-thread vials; lead time is 8–12 weeks from drawing approval.
Does the LBC series comply with earthquake-resistant mounting standards?
All models ≥95 L include pre-drilled base flanges compatible with ISO 14122-3 anchoring kits; seismic qualification testing per IBC 2021 Appendix Chapter A1 is available upon request.
