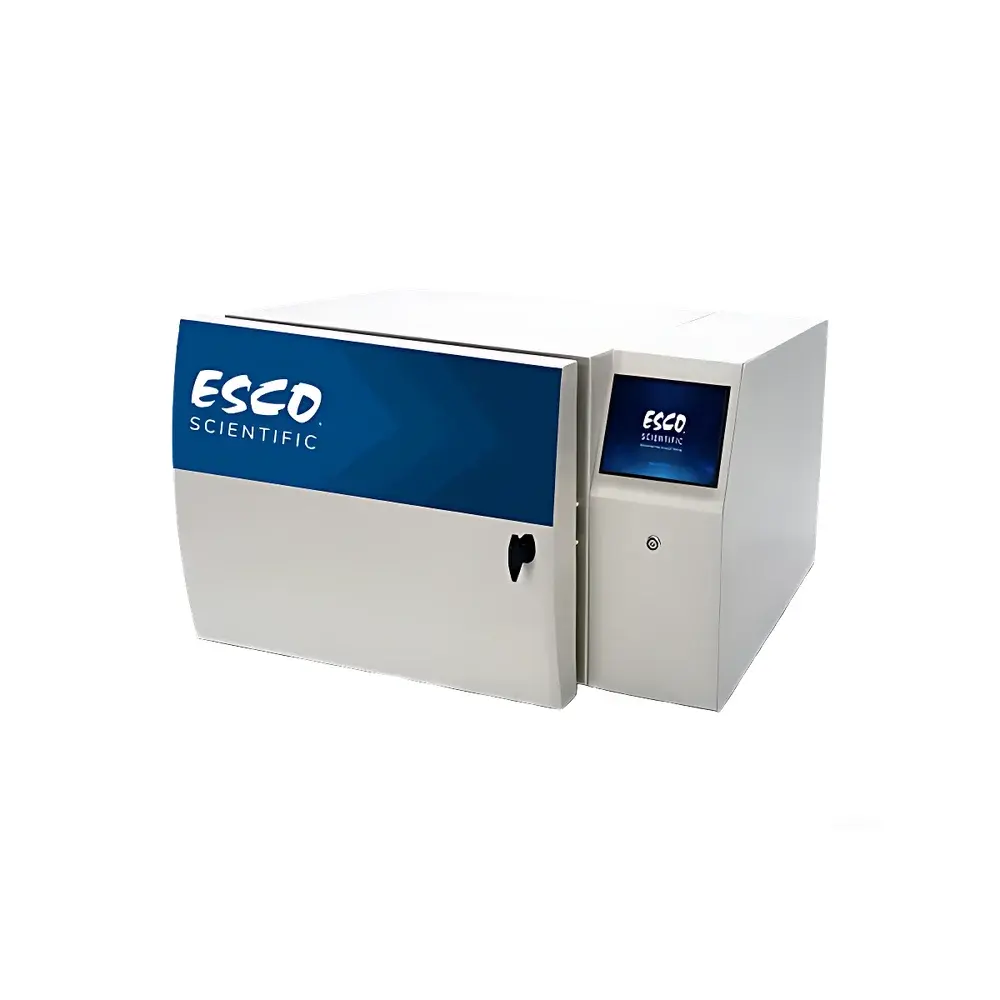

Esco PCS Programmable Cooling System
| Brand | Esco |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | Esco PCS |
| Pricing | Upon Request |
Overview
The Esco PCS Programmable Cooling System is a precision-engineered cryopreservation instrument designed for controlled-rate freezing of biologics—including primary cells, stem cells, hybridomas, and tissue samples—prior to long-term storage in liquid nitrogen. It operates on the principle of programmable conductive and convective heat transfer, utilizing liquid nitrogen as the primary cryogen and integrating active airflow management to ensure thermal uniformity across the sample chamber. Unlike passive freezing methods (e.g., isopropanol-filled containers), the Esco PCS delivers reproducible cooling profiles with user-defined ramp rates (typically ranging from –0.1 °C/min to –50 °C/min), minimizing intracellular ice crystal formation and preserving membrane integrity, viability, and functional recovery post-thaw. Its architecture complies with fundamental requirements for Good Laboratory Practice (GLP) and supports qualification protocols essential for regulated environments such as cell therapy manufacturing and biobanking.
Key Features
- Intuitive 7-inch capacitive touchscreen interface with preloaded, editable freeze protocols—including standard profiles for PBMCs, mesenchymal stem cells (MSCs), and induced pluripotent stem cells (iPSCs)
- Integrated dual-solenoid liquid nitrogen injection system enabling precise, pulse-width-modulated cryogen delivery for rapid response and fine-grained rate control
- Horizontal laminar airflow system with brushless DC fan ensures uniform temperature distribution (< ±0.5 °C deviation across chamber volume at –40 °C)
- Dual-temperature monitoring: real-time simultaneous logging of chamber ambient temperature and actual sample temperature via optional external thermocouple probe (type T or K, calibrated to NIST traceable standards)
- Electronic door interlock mechanism: automatically engages during program execution; physical access denied until cooling cycle completion and chamber warm-up to ≥–20 °C
- Onboard data logging with timestamped CSV export (via USB port); supports audit trail generation per FDA 21 CFR Part 11 requirements when used with validated LIMS integration
Sample Compatibility & Compliance
The Esco PCS accommodates standard cryogenic formats including 1.8 mL and 2.0 mL external-thread cryovials (Nunc, Corning, Greiner), 96-well cryo plates, and custom aluminum freezing racks (max. dimensions: W300 × D300 × H250 mm). Chamber volume is 12 L with removable stainless-steel shelf for flexible loading configurations. The system meets ISO 13485:2016 design control requirements for medical device-related bioprocessing equipment and supports Installation Qualification (IQ) and Operational Qualification (OQ) documentation packages aligned with ASTM F1308–22 (Standard Guide for Validation of Cryopreservation Protocols). It is routinely deployed in GLP-compliant biobanks and GMP-aligned ATMP (Advanced Therapy Medicinal Product) facilities under EU Annex 1 and USP <1043> guidance.
Software & Data Management
The embedded firmware (v3.2+) enables full-cycle parameter definition: hold steps, linear/non-linear ramps, plateau durations, and endpoint conditions (e.g., “hold at –80 °C until vial core reaches –75 °C”). All temperature/time data are stored with microsecond-resolution timestamps and linked to unique program IDs. Exported datasets include chamber setpoint, chamber actual, sample probe reading, LN₂ consumption estimate, and system status flags (e.g., door open event, fan fault, low LN₂ pressure). Optional PC-based software (Esco CryoControl Suite) provides advanced visualization, comparative curve overlay, statistical process control (SPC) charting, and electronic signature support compliant with ALCOA+ data integrity principles.
Applications
- Cryopreservation of clinical-grade hematopoietic stem cells (HSCs) and CAR-T cell products under cGMP conditions
- Standardized freezing of reference cell lines (e.g., ATCC, ECACC) for biobank accreditation (ISO 20387)
- Optimization of freeze-thaw protocols for extracellular vesicles (EVs) and viral vectors (AAV, lentivirus)
- Thermal process validation for lyophilization cycle development and stability studies
- Reproducible cryo-fixation of tissue specimens for electron microscopy and spatial transcriptomics workflows
FAQ
Does the Esco PCS support remote monitoring or network connectivity?
Yes—optional Ethernet/Wi-Fi module enables secure HTTP/HTTPS API access for integration with facility SCADA systems and centralized monitoring platforms.
Can the system be qualified for use in FDA-submitted biologics manufacturing processes?
Yes—Esco provides IQ/OQ templates compliant with Annex 15 and supports User Requirement Specification (URS) alignment for regulatory submissions.
What is the typical cooling rate accuracy and repeatability over 10 consecutive runs?
Under controlled ambient conditions (20–25 °C, ≤60% RH), rate deviation is ≤±0.2 °C/min for ramps between –1.0 and –10.0 °C/min, verified per ASTM E2022–21.
Is liquid nitrogen level monitoring included as standard?
Yes—the system features an ultrasonic LN₂ level sensor with visual alarm and automatic shutdown if level falls below operational threshold.
Are calibration certificates provided with the unit?
Each unit ships with factory calibration reports for chamber and probe sensors (traceable to NIST or PTB standards), valid for 12 months from date of commissioning.
