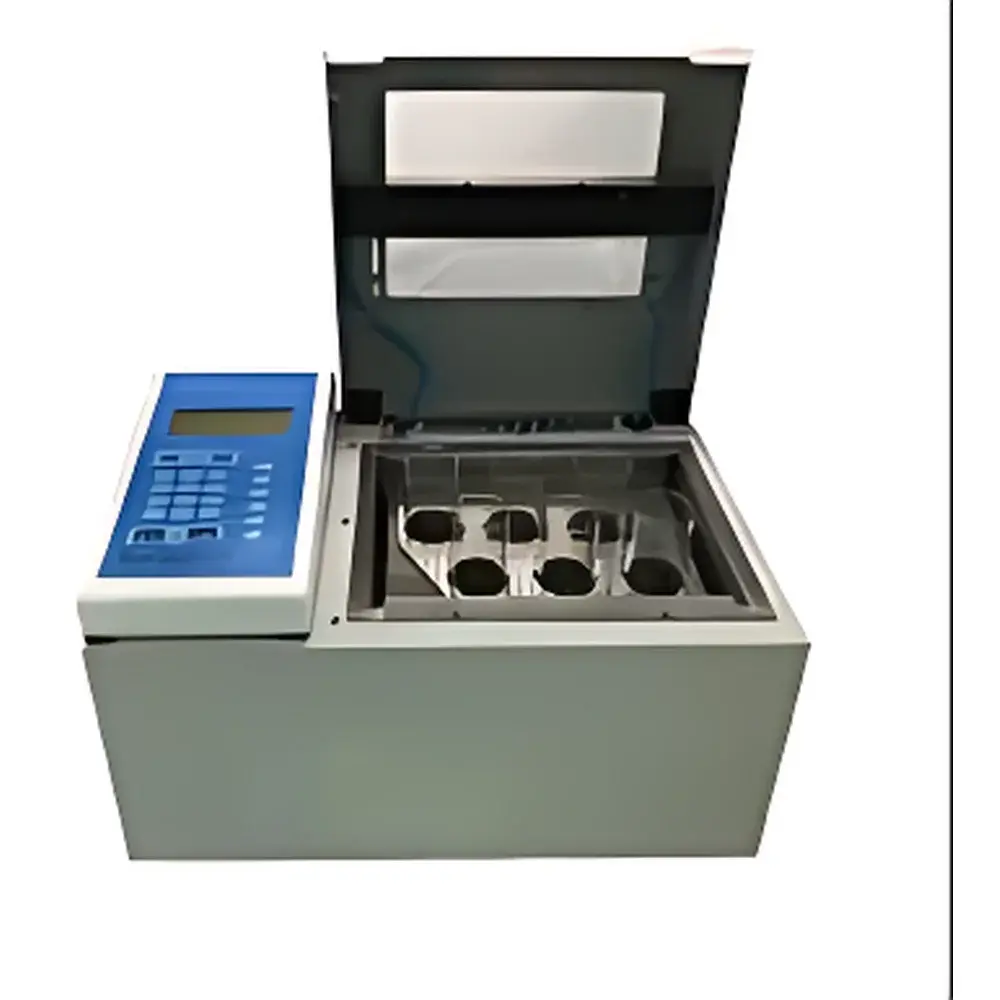

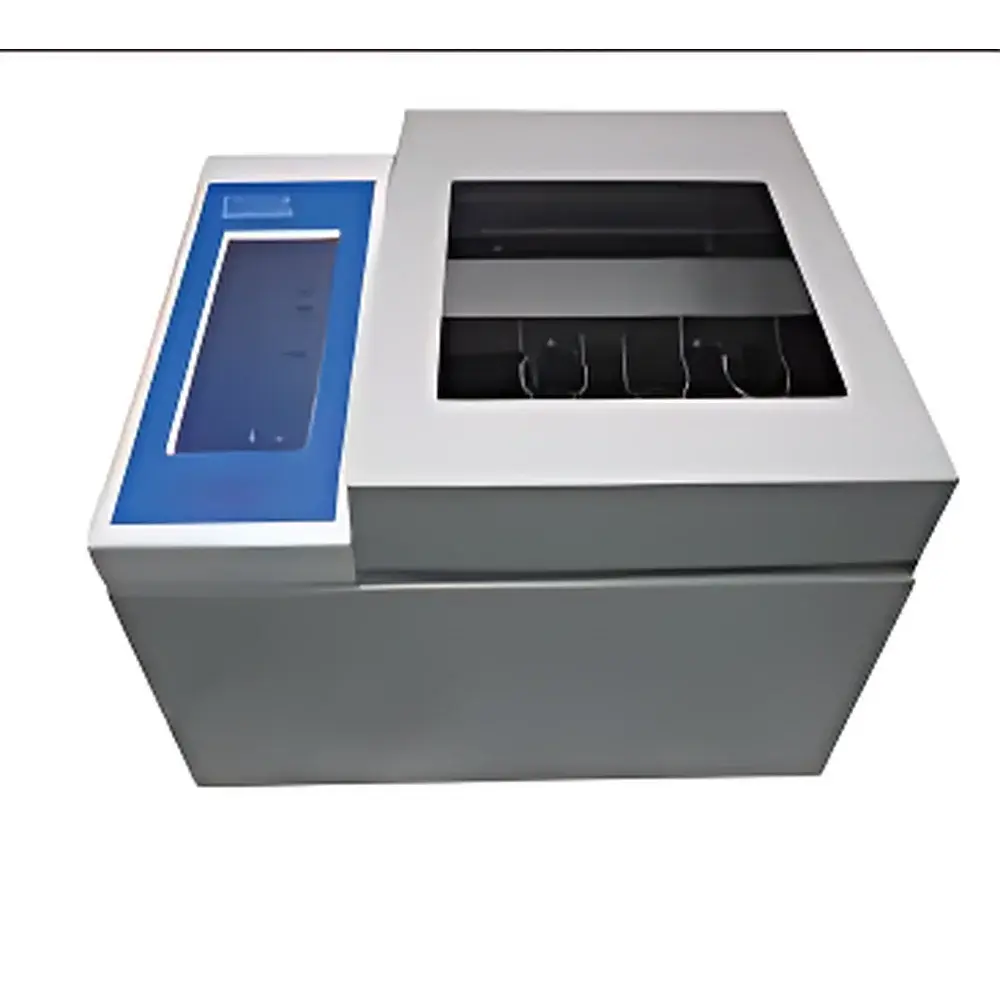

EURO TECH ET3302A Automated Nitrogen Evaporator

Overview

The EURO TECH ET3302A Automated Nitrogen Evaporator is an engineered solution for controlled, reproducible solvent removal in analytical sample preparation workflows. It operates on the principle of gentle, inert gas-assisted evaporation—using precisely regulated nitrogen flow directed over sample surfaces within a thermostatically controlled water bath. Unlike open-flame or rotary evaporation methods, the ET3302A eliminates thermal degradation risks, cross-contamination, and operator exposure to volatile organic compounds. Its closed-system architecture, combined with real-time optical endpoint detection, enables unattended operation while maintaining strict adherence to method-defined final volumes (e.g., 1.0 mL residual or complete dry-down). The instrument is purpose-built for laboratories performing routine extraction, cleanup, and concentration steps prior to GC, HPLC, LC-MS, or ICP-MS analysis—particularly in environmental, food safety, clinical toxicology, and pharmaceutical QC environments.

Key Features

• Optical endpoint sensing system: Non-contact infrared-based detection monitors meniscus position and halts gas flow automatically upon reaching user-defined final volume—eliminating over-evaporation and manual intervention.
• Programmable water bath temperature control: Adjustable from ambient to 95 °C with ±2–4 °C stability; integrated overtemperature protection prevents thermal damage to samples or glassware.
• Dual-tube compatibility: Accommodates six 50 mL or six 200 mL borosilicate glass tubes simultaneously—no tooling required for rapid tube exchange.
• Independent gas pressure regulation: Digital PSI control (4–25 PSI range) per channel ensures uniform flow distribution across all six positions—even with variable sample viscosity or surface tension.
• Self-diagnostic firmware: Continuously monitors critical subsystems—including optical sensor integrity, heater resistance, solenoid valve actuation, and bath-level sensors—and logs fault codes with descriptive error messages for traceable troubleshooting.
• Space-efficient benchtop design: Compact footprint (W × D × H ≈ 380 × 320 × 290 mm) allows integration into fume-hood-free lab spaces without compromising safety or performance.

Sample Compatibility & Compliance

The ET3302A accepts standard conical-bottom 50 mL and 200 mL borosilicate test tubes (e.g., Kimble Chase, Wheaton), eliminating need for proprietary consumables. All wetted components are chemically resistant to common organic solvents including methanol, acetonitrile, ethyl acetate, hexane, and dichloromethane. The system meets essential requirements for GLP and ISO/IEC 17025-accredited laboratories: temperature calibration traceability to NIST standards, electronic log retention (≥180 days), and configurable audit trail settings. When operated with validated LIMS-integrated software, it supports FDA 21 CFR Part 11 compliance—including electronic signatures, role-based access control, and immutable record archiving.

Software & Data Management

The ET3302A includes embedded firmware with local LCD interface for immediate parameter entry (target temperature, gas pressure, endpoint volume, run duration). Optional PC-based software (ET-Control Suite v3.2+) provides method library management, remote monitoring via Ethernet/USB, automated report generation (PDF/CSV), and export of full run metadata—including time-stamped temperature profiles, gas pressure logs, and endpoint confirmation timestamps. All data files include checksum validation and support digital signature embedding for regulatory submission readiness.

Applications

• Environmental analysis: Concentration of pesticide residues, PAHs, PCBs, and herbicides from aqueous extracts prior to GC-ECD or GC-MS/MS.
• Food & beverage testing: Cleanup and concentration of mycotoxins (aflatoxin B1, ochratoxin A) from immunoaffinity-purified fractions.
• Clinical toxicology: Preparation of urine and plasma samples for benzodiazepine or opioid screening by LC-MS/MS.
• Pharmaceutical QC: Residual solvent removal from API intermediates following synthesis or crystallization steps.
• Forensic chemistry: Parallel processing of blood or tissue extracts for drug-of-abuse confirmation assays.

FAQ

What is the recommended inlet gas pressure for optimal performance?
A regulated supply of ≥35 PSI at the wall outlet is required; the instrument’s internal regulator delivers stable output between 10–18 PSI under typical operating conditions.
Can the optical sensor be used above 60 °C?
No—the optical module must be physically removed during water bath operation above 60 °C to prevent thermal drift and long-term sensor degradation.
Is the ET3302A compatible with non-aqueous solvents such as chloroform or DMSO?
Yes, provided appropriate ventilation and secondary containment are implemented; however, evaporation rates and endpoint accuracy may vary due to differences in vapor pressure and surface tension.
Does the system support external triggering or integration with robotic liquid handlers?
Yes—RS-232 and TTL-compatible dry-contact I/O ports enable synchronization with autosamplers or track-and-trace systems for fully automated sample-to-report workflows.
What maintenance intervals are recommended for sustained accuracy?
Biannual verification of bath temperature uniformity (per ASTM E2251), annual optical sensor recalibration using certified reference menisci, and quarterly inspection of O-rings and gas line fittings are advised per manufacturer guidelines.
