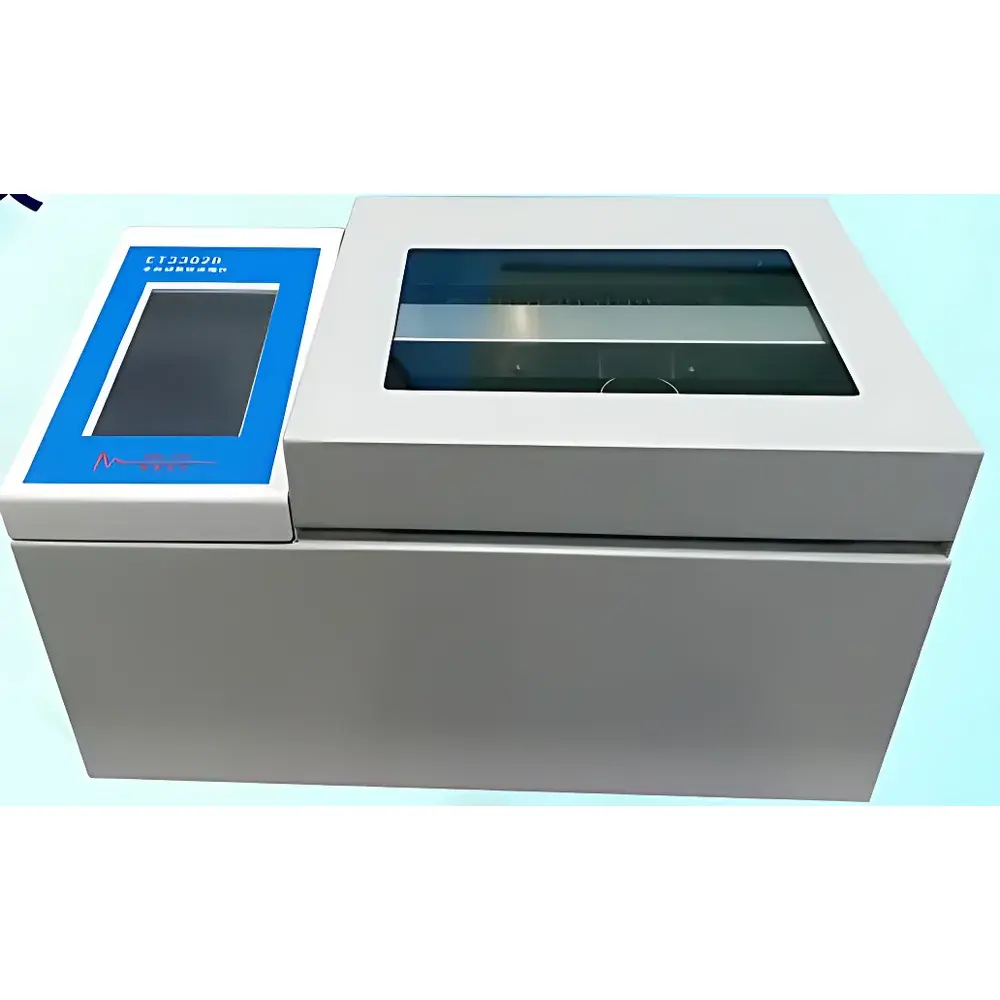

EURO TECH ET3302B Automated Nitrogen Evaporator

Overview

The EURO TECH ET3302B Automated Nitrogen Evaporator is an engineered solution for controlled, parallel sample concentration in analytical laboratories performing environmental testing, food safety analysis, clinical toxicology, and pharmaceutical residue quantification. It operates on the principle of gentle, inert-gas-assisted solvent removal—using precisely regulated nitrogen flow directed tangentially across sample surfaces in heated water baths—to accelerate evaporation while minimizing analyte loss, oxidation, or thermal degradation. Unlike open-vessel evaporation or vacuum centrifugation, the ET3302B integrates real-time optical endpoint detection, programmable temperature control, and pressure-regulated gas delivery into a compact benchtop architecture—eliminating the need for fume hood installation and reducing manual intervention without compromising method robustness.

Key Features

• Compact footprint (54 × 31 × 35 cm) designed for high-density lab environments—no fume hood required
• Patented optical endpoint sensor system with dual threshold options (0.5 mL or 1.0 mL) for precise termination of evaporation; sensor automatically disengages above 60 °C to prevent thermal damage
• Simultaneous processing of six samples using interchangeable 50 mL or 200 mL borosilicate glass tubes—compatible with standard volumetric calibration markings
• 7-inch capacitive touchscreen interface with intuitive icon-driven navigation, real-time status monitoring, and embedded diagnostic logging
• Four operational modes: Auto-Endpoint (sensor-triggered), Manual (user-initiated stop), Timer (fixed duration), and Hybrid (Auto-Endpoint + Timer fallback)
• Independent regulation of water bath temperature (ambient to 60 °C, ±1 °C accuracy) and nitrogen pressure (4–25 psi range, factory-calibrated at 10–18 psi at nozzle)
• Self-diagnostic firmware that continuously monitors endpoint sensor integrity, heater performance, solenoid valve actuation, and gas flow continuity—alerts displayed with fault codes and recommended actions
• Integrated exhaust port (5 cm ID) with 3 m flexible hose for connection to central lab ventilation or activated carbon scrubbers

Sample Compatibility & Compliance

The ET3302B accommodates common organic solvents (e.g., acetonitrile, ethyl acetate, hexane, methanol) and aqueous matrices across environmental, food, and clinical workflows. Its all-glass sample path—free of plastics contacting the liquid phase—ensures minimal leaching and supports trace-level analyses per EPA Method 525.3, ISO 17025-accredited validation protocols, and GLP-compliant documentation requirements. While not intrinsically certified for hazardous area use, its design adheres to IEC 61010-1 safety standards for laboratory electrical equipment. The system supports audit-ready operation when paired with validated SOPs and instrument logs—particularly relevant for laboratories subject to FDA 21 CFR Part 11 compliance where electronic records must be attributable, legible, contemporaneous, original, and accurate.

Software & Data Management

The ET3302B operates via embedded firmware with no external PC dependency. All method parameters—including target temperature, gas pressure setpoint, endpoint volume, mode selection, and timer duration—are stored locally in non-volatile memory with timestamped execution logs. Diagnostic events (e.g., heater timeout, sensor timeout, valve failure) are recorded with UTC timestamps and error identifiers. Data export is supported via USB flash drive (FAT32 formatted), enabling transfer of run logs and fault histories for internal review or regulatory submission. Optional integration with LIMS platforms is achievable through RS-232 serial output (ASCII protocol), permitting automated job initiation and status reporting within enterprise laboratory informatics ecosystems.

Applications

• Pre-concentration of pesticide residues in drinking water per EPA 508/525 series methods
• Reduction of extract volumes prior to GC-MS or LC-MS/MS injection in food contaminant screening (e.g., mycotoxins, veterinary drug residues)
• Final volume adjustment of biological fluid extracts (urine, plasma) in forensic toxicology workflows
• Sample cleanup support for solid-phase extraction (SPE) eluate concentration prior to instrumental analysis
• Routine QC/QA preparation of calibration standards and QC check standards requiring precise final volumes

FAQ

What is the maximum recommended nitrogen inlet pressure?
The system requires a regulated supply of ≥40 psi; the maximum allowable inlet pressure is 100 psi. The internal pressure regulator delivers 10–18 psi at the nozzle under typical operating conditions.
Can the optical sensor be used above 60 °C?
No—the optical sensor must be physically removed before operating the water bath above 60 °C to prevent irreversible thermal damage to the photodetector assembly.
Is the ET3302B compatible with non-aqueous solvents such as chloroform or DCM?
Yes—provided appropriate ventilation is maintained via the exhaust port and solvent compatibility with borosilicate glass is confirmed. Note that evaporation rates will vary significantly based on solvent vapor pressure and surface tension.
How is method reproducibility ensured across multiple users?
All parameters are saved as named methods with user-defined labels; password-protected administrator access prevents unauthorized modification of calibration settings or diagnostic thresholds.
Does the system support 24/7 unattended operation?
Yes—when configured in Timer or Auto-Endpoint mode with verified gas supply stability and adequate coolant volume, the ET3302B supports overnight and weekend runs with automatic shutdown upon completion or fault detection.
