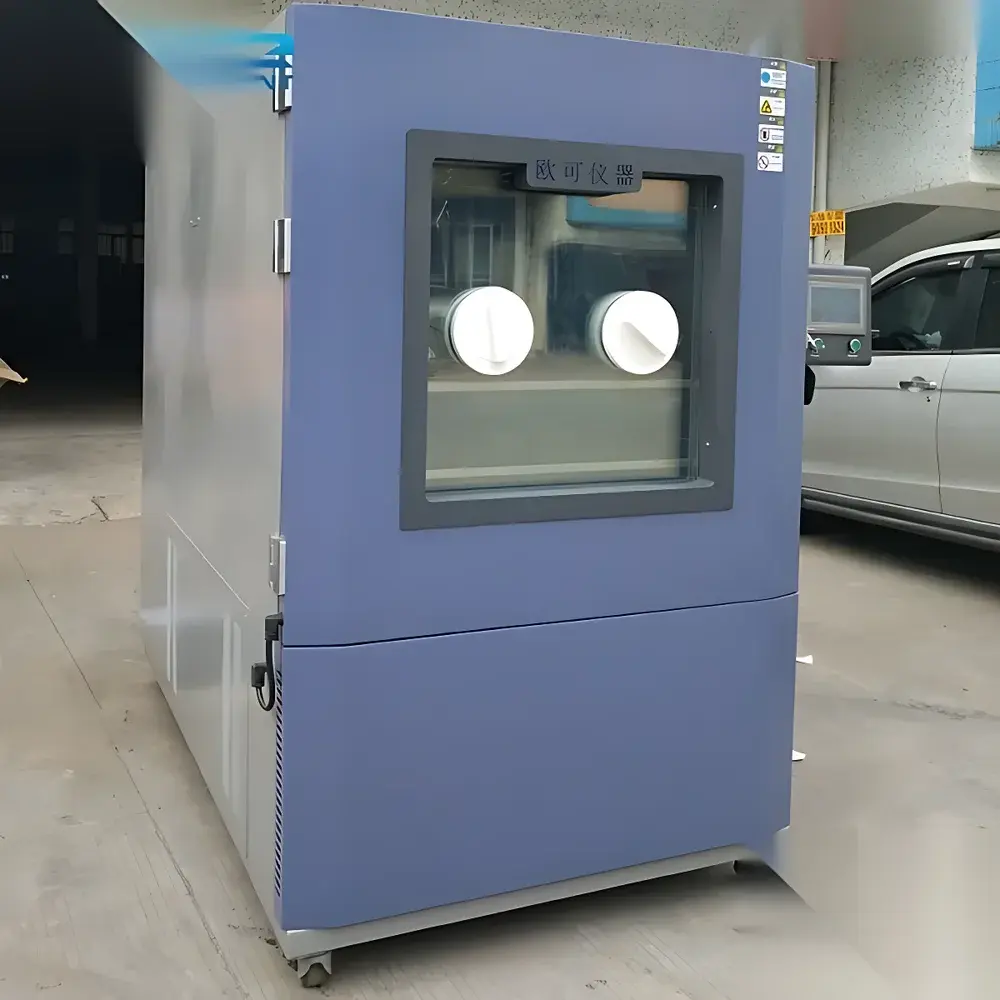

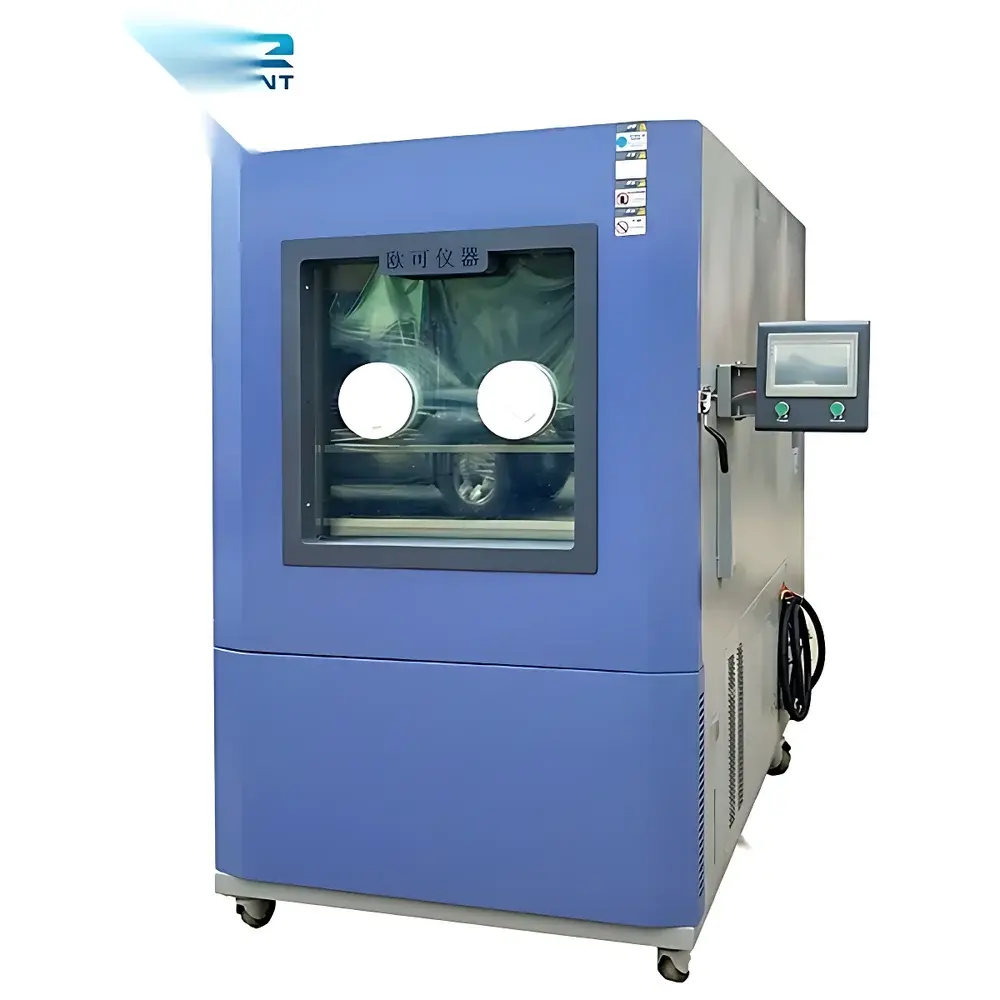

Eurotest ETC-8000 High-Low Temperature Environmental Test Chamber

Overview

The Eurotest ETC-8000 is a high-reliability, microprocessor-controlled high-low temperature environmental test chamber engineered for precision thermal stress evaluation of electronic components, automotive modules, aerospace subsystems, and industrial materials. It operates on forced-air convection principle with dual-stage cascade refrigeration architecture, enabling stable and repeatable temperature control across a wide operational range (–70°C to +180°C). Designed in accordance with international environmental testing standards—including IEC 60068-2-1/2, MIL-STD-810G, and GJB 150.3A/4A—the ETC-8000 delivers traceable thermal profiles suitable for qualification testing, accelerated life assessment, and pre-compliance screening in R&D and QA/QC laboratories. Its fully insulated double-wall stainless steel construction minimizes thermal leakage, while the integrated air circulation system ensures uniform temperature distribution (< ±2.0°C spatial variation per GB/T 5170.2–1996 verification protocol).

Key Features

• Smooth-radius exterior housing with matte-finish stainless steel cladding and ergonomic flush-mount handles for seamless integration into cleanroom or metrology-grade lab environments
• Hermetically sealed refrigeration circuit using environmentally compliant R404A/R23 mixed-refrigerant cascade system, optimized for rapid cooldown (–70°C in ≤65 min from ambient) and precise ramp-hold-soak profiling
• Low-noise axial fan assembly with variable-speed EC motor and vibration-damped mounting platform, achieving acoustic performance ≤65 dB(A) at 1-meter distance
• Integrated load-power interface (240 VAC / 16 A, terminal block access) supporting powered-in-situ testing of active devices under thermal stress (e.g., PCB functional validation, battery thermal runaway simulation)
• Double-glazed observation window with Philips LED illumination and built-in resistive anti-fog heater (12 V DC, 5 W/cm²), ensuring unobstructed visual monitoring during sub-zero operation
• Comprehensive safety architecture including overtemperature cut-off (dual independent sensors), compressor high-pressure switch, phase failure protection, and door interlock circuitry

Sample Compatibility & Compliance

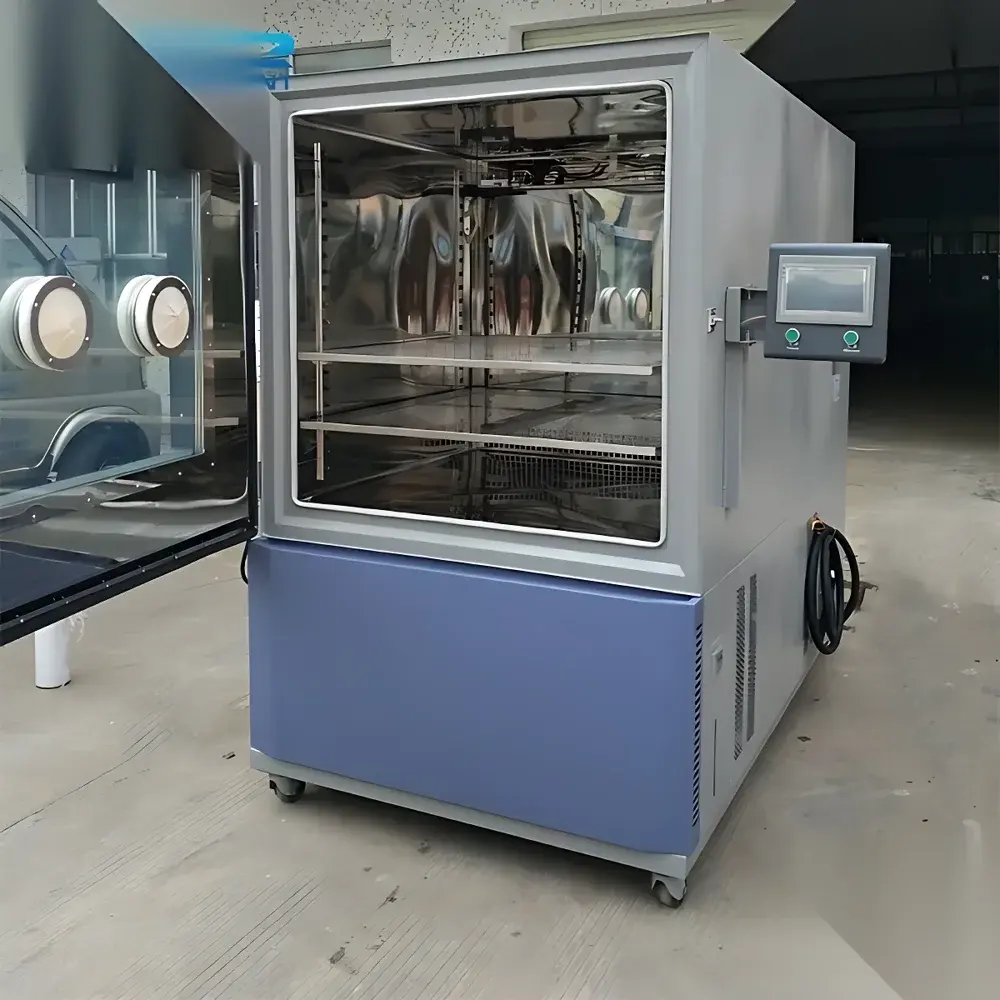

The ETC-8000 accommodates test specimens up to 650 mm × 650 mm × 700 mm (W×D×H) with standardized 4-point adjustable shelf support. Internal chamber surfaces are electropolished SUS304 stainless steel, resistant to oxidation and condensate corrosion under cyclic thermal loads. All thermal calibration procedures follow ISO/IEC 17025–compliant practices; factory certification includes NIST-traceable temperature mapping reports per IEC 60068-3-5. The chamber satisfies mandatory requirements for GLP/GMP-regulated thermal validation (e.g., IQ/OQ protocols) and supports audit-ready documentation for FDA 21 CFR Part 11–aligned systems when paired with Eurotest’s optional data logger module.

Software & Data Management

Equipped with Eurotest’s ET-Control v4.2 embedded controller featuring 7-inch capacitive touchscreen HMI, the ETC-8000 supports up to 99 programmable test cycles with 999 segments per cycle (ramp rate: 0.1–10.0°C/min). Real-time data logging records temperature, setpoint, alarm status, and power consumption at user-defined intervals (1 s–60 min). Export formats include CSV and PDF reports compliant with ASTM E29–22 rounding rules. Optional Ethernet/WiFi connectivity enables remote monitoring via secure HTTPS interface and integration into centralized MES or LIMS platforms. Audit trail functionality meets ISO 13485 and ICH Q9 requirements for change-controlled parameter modification history.

Applications

• Thermal shock pre-screening of semiconductor packages (JEDEC J-STD-020D.1 compliant profile generation)
• High-temperature aging tests for polymer encapsulants and conformal coatings (per IPC-9701A)
• Cold-start validation of automotive ECUs and ADAS sensors (–40°C soak per SAE J1211)
• Material coefficient of thermal expansion (CTE) characterization using strain-gauged reference samples
• Reliability qualification of lithium-ion battery cells under extreme thermal boundary conditions (UN 38.3 T1–T4 simulation)
• Environmental stress screening (ESS) for defense electronics per MIL-STD-883 Method 1010.8

FAQ

What standards does the ETC-8000 comply with for temperature uniformity verification?

Per GB/T 5170.2–1996 and IEC 60068-3-5, uniformity is validated using nine calibrated PT100 sensors placed on a 3×3 grid at working volume center plane; results are documented in the Certificate of Calibration included with shipment.

Can the chamber be configured for humidity control?

Yes—optional steam-humidification (10–98% RH, ±3% RH accuracy) and dehumidification modules are available as factory-installed upgrades; consult technical sales for dew point-limited low-temperature RH compatibility.

Is remote firmware update supported?

Firmware updates require authenticated USB drive upload via service mode; network-based updates are disabled by default to maintain IEC 62443-3-3 security compliance.

What is the typical lead time for delivery and installation?

Standard units ship within 6–8 weeks ex-factory; on-site commissioning and IQ/OQ support are available globally through Eurotest’s certified field engineer network.

Does the system support third-party SCADA integration?

Yes—Modbus TCP/IP and OPC UA (UA 1.04) drivers are embedded; full register map and API documentation provided under NDA upon request.
