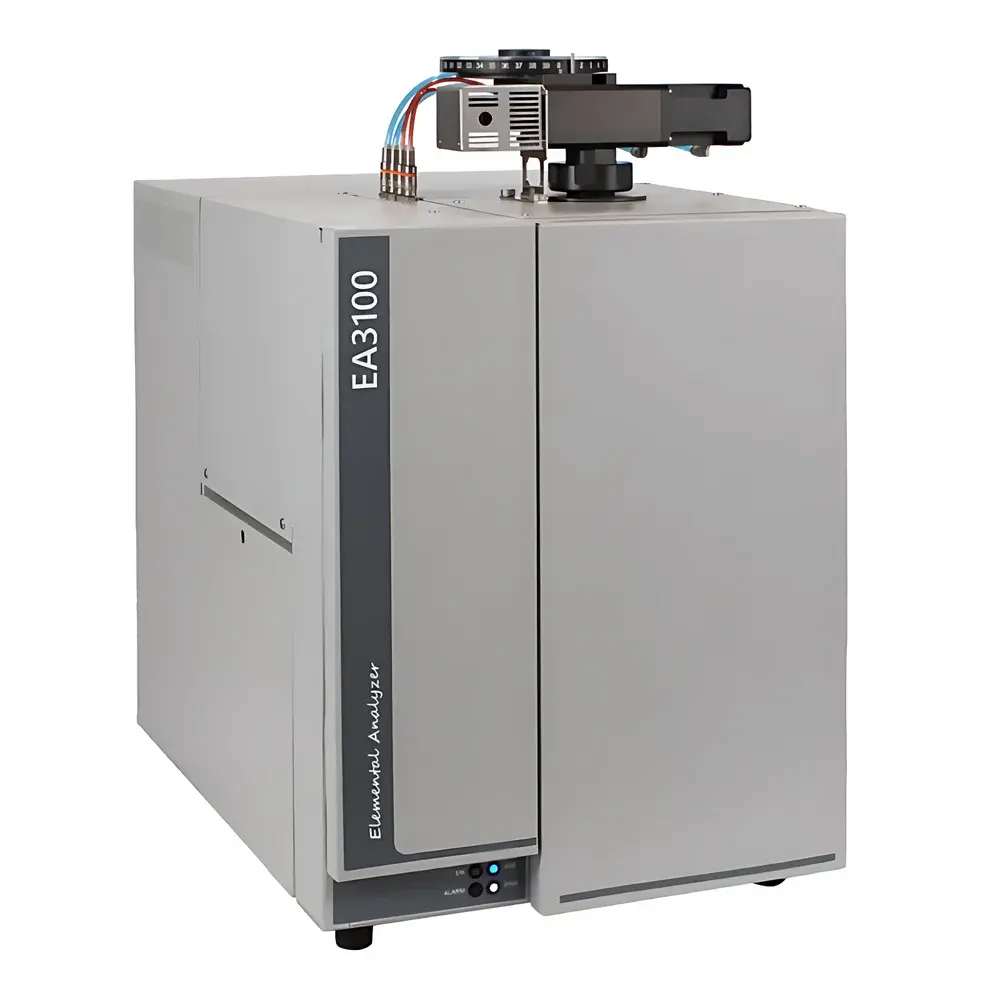

EuroVector EA3100 Organic Elemental Analyzer
| Brand | EuroVector |
|---|---|
| Origin | Italy |
| Model | EA3100 |
| Measurable Elements | C, H, N, S, O |
| Analysis Time | CN ≤ 3 min |
| Detection Limit | ppm-level |
| Measurement Accuracy | ±0.1% (relative) |
| Sample Introduction | Tin or silver capsules, filled to capacity |
| Detector Type | Thermal Conductivity Detector (TCD) |
| Combustion Temperature | TurboFlash dynamic combustion up to 1800 °C |
Overview
The EuroVector EA3100 Organic Elemental Analyzer is a high-performance, fully automated combustion-based instrument engineered for precise quantification of carbon (C), hydrogen (H), nitrogen (N), sulfur (S), and oxygen (O) in organic and organometallic samples. It operates on the principle of dynamic flash combustion—where sample aliquots are rapidly oxidized under precisely controlled oxygen flow and temperature conditions—followed by gas-phase separation via packed-column gas chromatography and detection using a high-stability thermal conductivity detector (TCD). Unlike static combustion systems, the EA3100’s proprietary TurboFlash technology delivers transient peak temperatures up to 1800 °C in milliseconds, ensuring complete and reproducible oxidation of refractory matrices—including polymers, pharmaceuticals, coals, soils, and complex biomaterials—without catalyst degradation or incomplete conversion artifacts. This architecture enables robust elemental recovery across diverse sample classes while maintaining compliance with international method standards such as ASTM D5291, ISO 16968, USP , and EN 15407.
Key Features
- TurboFlash dynamic combustion system: Programmable oxygen injection volume and flow rate enable stoichiometrically optimized oxidation, minimizing CO/NOx formation and maximizing analyte release efficiency.
- Modular gas delivery architecture with push-fit quick-connect fittings: Eliminates need for torque tools during maintenance; reduces downtime and leak risk during column or reactor replacement.
- Integrated real-time leak detection and auto-standby wake-up protocol: Continuously monitors carrier and reactive gas integrity; transitions seamlessly between operational and low-power standby states without manual intervention.
- Multi-color status LED array: Provides at-a-glance verification of combustion chamber readiness, GC oven stabilization, detector equilibrium, and data acquisition status.
- Unified software platform supporting multi-instrument network operation: Enables synchronized acquisition from up to eight EA3100 units; supports time-aligned calibration, batch processing, and cross-instrument statistical comparison.
- Optimized chromatographic separation: Uses durable, low-bleed packed columns with tailored retention characteristics for CO2, H2O, N2, SO2, and CO (for oxygen determination), reducing consumable cost per analysis and extending column lifetime beyond 2,000 injections under routine use.
Sample Compatibility & Compliance
The EA3100 accommodates solid, liquid, and viscous samples encapsulated in standard tin or silver boats/capsules—no derivatization or pre-treatment required for most matrices. It routinely handles challenging materials including activated carbons, lignocellulosic biomass, synthetic polymers (e.g., polyimides, PEEK), metal-organic frameworks (MOFs), and formulated drug substances. All analytical workflows support full audit trail generation compliant with FDA 21 CFR Part 11 requirements when operated with validated software configurations. Instrument qualification documentation aligns with ICH Q2(R2) guidelines for elemental impurity testing, and method validation packages are available for GLP- and GMP-regulated environments.
Software & Data Management
The EA3100 is controlled via EuroVector’s Elementar Suite v4.x—a Windows-based application featuring intuitive method editor, real-time chromatogram overlay, automated baseline correction, and customizable report templates. Raw signal data are stored in vendor-neutral HDF5 format with embedded metadata (operator ID, timestamp, calibration history, hardware configuration). The suite supports LIMS integration via ASTM E1384-compliant export protocols and includes built-in tools for uncertainty propagation calculation per ISO/IEC 17025 Annex A.3. Electronic signatures, role-based access control, and session logging meet ALCOA+ data integrity principles.
Applications
The EA3100 serves critical roles in quality control laboratories across multiple regulated and research-intensive sectors: determining elemental composition of petroleum coke and biochar per ASTM D7582; verifying API stoichiometry and residual solvent content in pharmaceutical manufacturing; quantifying nitrogen content in fertilizers and soil amendments (ISO 13878); characterizing heteroatom distribution in advanced battery cathode precursors; and supporting carbon footprint modeling through accurate C/H ratio assessment in sustainable packaging polymers. Its ppm-level detection sensitivity and sub-0.1% RSD repeatability make it suitable for both routine QC screening and method development in accredited testing facilities.
FAQ
What sample forms are compatible with the EA3100?
Solid powders, granules, films, tablets, and liquids can be analyzed after encapsulation in tin or silver capsules. Homogeneous sampling is essential; heterogeneous samples require representative sub-sampling prior to loading.
Is oxygen analysis performed using the same combustion module as CHNS?
Yes—oxygen is determined via pyrolytic decomposition in a separate graphite furnace zone followed by CO conversion and TCD detection; no additional hardware is required beyond the standard EA3100 configuration.
Can the EA3100 be integrated into an existing laboratory informatics infrastructure?
Yes—it supports OPC UA and ASTM E1384 interfaces for bidirectional communication with LIMS, ELN, and MES platforms, including full traceability of raw data, processed results, and instrument events.
What maintenance intervals are recommended for optimal performance?
Daily: capsule feeder inspection and ash trap cleaning. Quarterly: combustion tube inspection and TCD filament resistance check. Annually: full GC column replacement and system-wide leak test with certified reference gases.
Does the EA3100 comply with pharmacopeial requirements for elemental impurities?
When configured with appropriate calibration standards and operated under validated SOPs, the EA3100 meets USP / and ICH Q3D thresholds for Class 1–3 elements when used for total elemental load assessment in drug substances and excipients.
