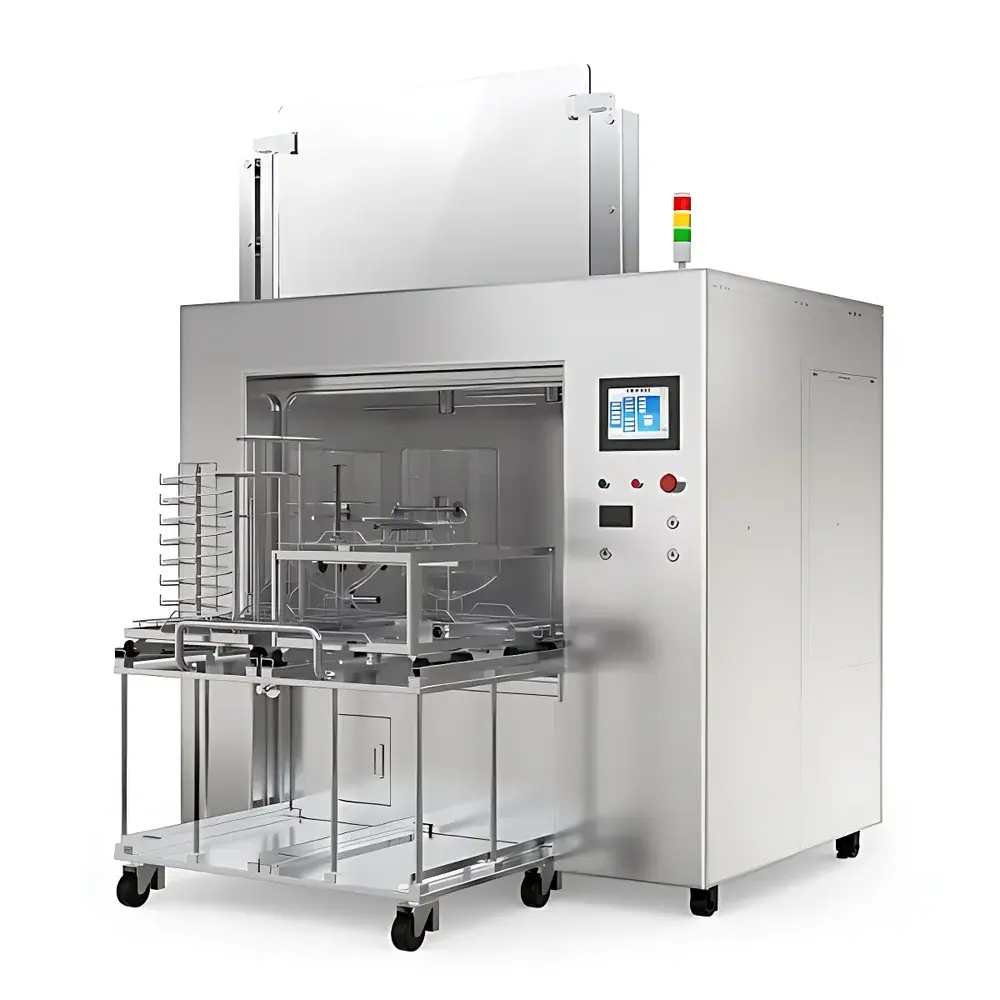

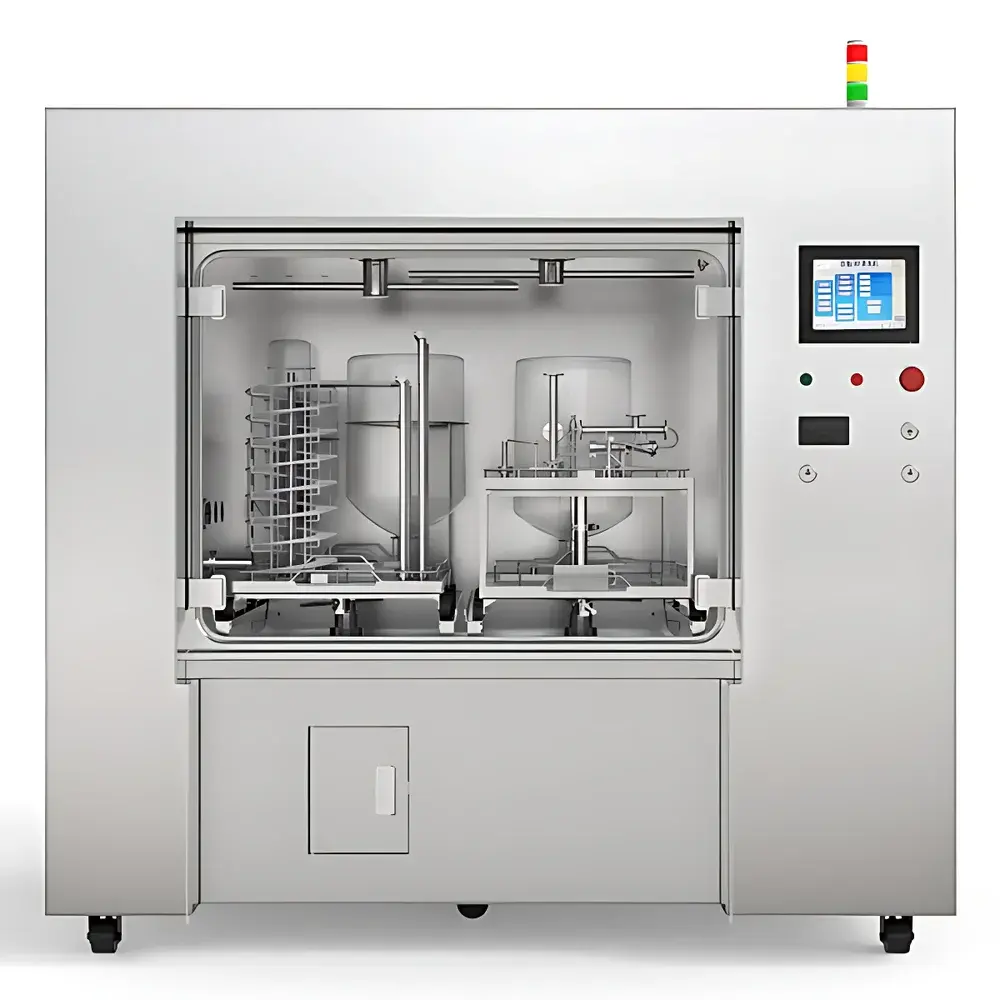

EURPING Poseidon I GMP-Compliant Laboratory Bottle Washer

Overview

The EURPING Poseidon I is a fully automated, large-capacity, GMP-compliant laboratory bottle washer engineered for pharmaceutical, biotechnology, diagnostics, and food-grade manufacturing environments. Designed in accordance with EN ISO 15883-1 for washer-disinfectors and aligned with current Good Manufacturing Practice (cGMP) requirements, the Poseidon I delivers reproducible, auditable, and validation-ready cleaning performance for critical process equipment. Its core function is to replace manual or semi-automated cleaning methods with a closed, thermally validated, and software-controlled system capable of processing high-value, complex geometries—including fermenters, large-volume glassware (e.g., carboys and atmospheric bottles), filling and packaging machine components, mixing vessels, funnels, trays, tooling dies, and sterile containers. The system operates on a dual-circulation pump architecture (1600 L/min total flow), ensuring uniform detergent distribution and mechanical energy delivery across all load configurations. With a 1050 L chamber volume and programmable thermal profiles up to 95 °C, it supports both alkaline (F1+25) and neutral detergent chemistries while maintaining strict thermal stability and rinse efficiency.

Key Features

• Robust stainless-steel construction: 304 SS exterior for structural integrity and corrosion resistance; electropolished 316L SS interior chamber for superior cleanability, chloride resistance, and compliance with pharmaceutical surface finish standards (Ra ≤ 0.8 µm typical).
• Dual high-flow circulation pumps (800 L/min each) with soft-start control—eliminating hydraulic shock during pump activation and protecting fragile or precision-machined components.
• Integrated water management: Real-time volumetric flow metering, dual-level liquid sensors (low/high alarm thresholds), and configurable inlet options including purified water, water-for-injection (WFI), and condensate—ensuring consistent conductivity and endotoxin control.
• Comprehensive safety architecture: Interlocked door with dual-hand operation, overtemperature cutoffs for heating elements, hot air blowers, and circulation pumps; leak detection sensors; ground-fault circuit interruption (GFCI); and visual status indication (green/yellow/red LED array mounted atop the unit).
• Thermally efficient drying module: Twin 700 W compressors delivering ≥145 m³/h of heated air per blower, with adjustable temperature (RT–120 °C) and duration (0–300 min). Drying air is injected directly into fixtures via dedicated channels on the wash rack, enabling internal cavity drying of hollow or deep-walled items.

Sample Compatibility & Compliance

The Poseidon I accommodates a broad spectrum of reusable process-contact equipment used in regulated life science operations. Verified compatibility includes stainless-steel fermenter parts (e.g., sight glasses, valves, sampling ports), borosilicate glass carboys (up to 100 L), modular filling nozzles, tablet press punches and dies, polymer trays, and custom-engineered fixtures. All cleaning cycles are developed and verified under cGMP and GAMP 5 principles. The system supports full validation documentation packages—including User Requirement Specifications (URS), Functional Specifications (FS), Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ)—performed by EURPING-certified validation engineers. Regulatory alignment includes EN ISO 15883-1 (washer-disinfector safety and performance), ISO 9001:2015 (quality management), ISO 14001:2015 (environmental management), ISO 45001:2018 (occupational health and safety), CE marking, and FDA 21 CFR Part 11 compliance for electronic records and signatures—including full audit trail, user access controls, and electronic signature capture.

Software & Data Management

The Poseidon I is equipped with an embedded industrial-grade HMI running a deterministic real-time OS. Cleaning programs are created, edited, and archived using a role-based interface with configurable user permissions (admin, operator, validator). Each cycle logs timestamped metadata—including temperature curves, flow rates, detergent concentration (via conductivity correlation), pressure differentials, door status, and alarm history—stored locally on encrypted internal memory. Data export is supported via USB 2.0 port (FAT32-formatted drives only) for CSV or PDF report generation. Optional Ethernet connectivity enables integration into centralized MES/LIMS platforms via Modbus TCP or OPC UA. All electronic records comply with FDA 21 CFR Part 11 requirements: electronic signatures are PKI-enabled, audit trails are immutable and time-stamped, and record retention policies are configurable per site SOPs.

Applications

The Poseidon I serves as a critical utility in quality-critical workflows where residue limits, bioburden reduction, and material compatibility are non-negotiable. Typical use cases include pre-sterilization cleaning of stainless-steel bioreactor components prior to SIP (steam-in-place), depyrogenation preparation of glass vials and syringes, post-production cleaning of tablet compression tooling to prevent cross-contamination, and routine decontamination of diagnostic assay plates and reagent reservoirs. It is widely deployed in API manufacturing suites, clinical trial material (CTM) labs, contract development and manufacturing organizations (CDMOs), and in-vitro diagnostic (IVD) production lines—where batch traceability, cleaning verification, and regulatory inspection readiness are operational imperatives.

FAQ

Does the Poseidon I support cleaning validation per FDA or EMA guidelines?
Yes. EURPING provides full IQ/OQ/PQ protocols aligned with ISPE GAMP 5, ASTM E2500, and EU Annex 15. All validation activities are performed by qualified personnel and documented per client URS and internal quality systems.
Can the system be integrated into an existing factory automation network?
Yes. Standard Modbus TCP and optional OPC UA interfaces enable bidirectional communication with SCADA, MES, or CMMS platforms for remote monitoring, predictive maintenance alerts, and electronic batch record linkage.
What detergent chemistries are validated for use with the Poseidon I?
F1+25 alkaline detergent is the primary validated chemistry. Alternative detergents—including low-foaming neutral formulations and enzymatic cleaners—may be qualified per client-specific residue testing and compatibility studies.
Is on-site installation and commissioning included?
Yes. EURPING provides turnkey commissioning services including mechanical completion verification, utility interface checks, cycle development, and operator training—all documented in SAT reports signed off by client QA.
How is data integrity ensured during long-term operation?
All cycle data is written to redundant non-volatile memory with CRC-32 checksum validation. Audit trails are tamper-evident, time-synchronized via NTP, and retained for configurable periods (default: 12 months), meeting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
