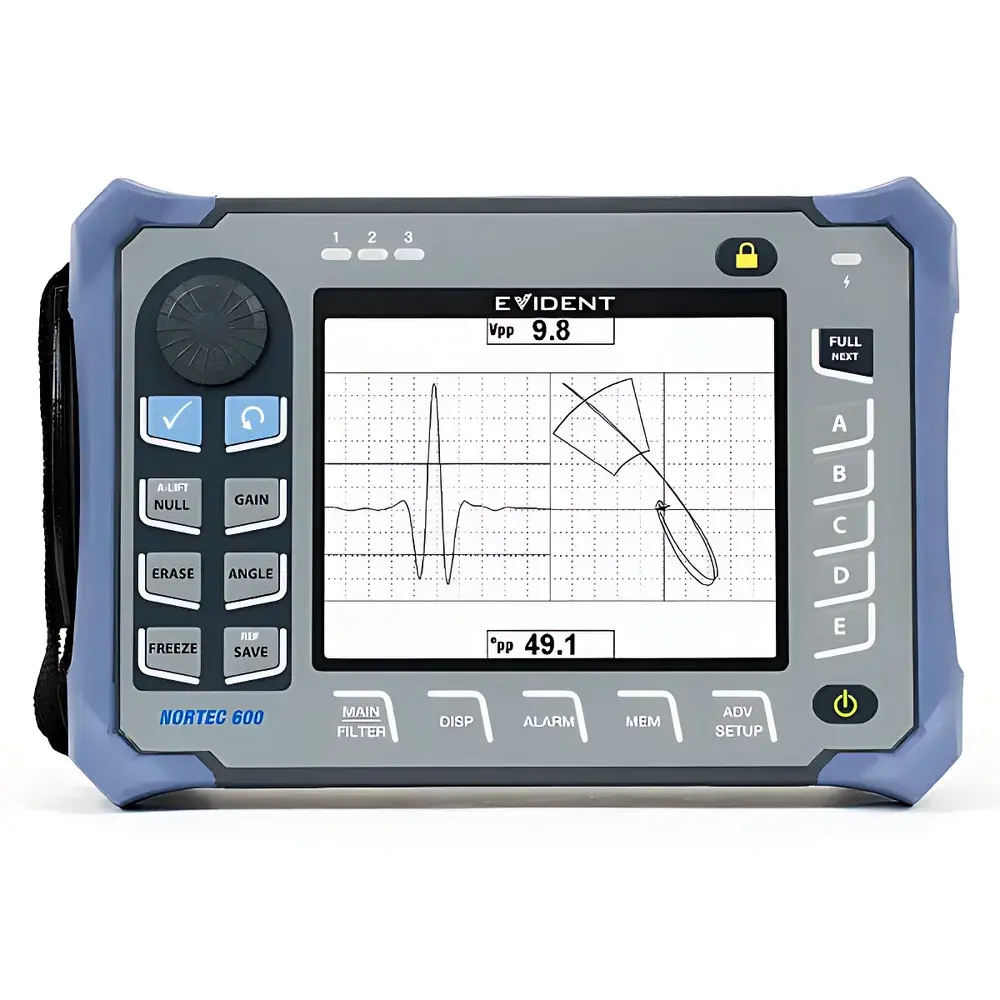

EVIDENT NORTEC 600 Eddy Current Testing Instrument

Overview

The EVIDENT NORTEC 600 is a high-performance, portable eddy current testing (ECT) instrument engineered for precision, reliability, and operational flexibility in demanding industrial environments. Based on the principle of electromagnetic induction, the NORTEC 600 generates alternating magnetic fields via probe coils, inducing eddy currents in conductive materials; disruptions caused by flaws, conductivity variations, or dimensional changes modulate these currents and are detected as impedance shifts in the receiving coil. This non-contact, non-destructive method enables rapid surface and near-surface inspection of metals—including aluminum, titanium, stainless steel, and copper alloys—without surface preparation or couplant. Designed for field-deployable use in aerospace, power generation, oil & gas, and manufacturing QA/QC workflows, the NORTEC 600 delivers laboratory-grade signal fidelity in a ruggedized handheld platform compliant with EN 15548—the European standard governing performance requirements for portable eddy current instruments.

Key Features

• 5.7-inch VGA display (640 × 480) with adjustable brightness and color palette support—optimized for visibility under direct sunlight or low-light conditions
• True full-screen mode accessible via single-button activation across all display types and applications
• Intuitive rotary-knob interface combined with streamlined menu architecture—reducing operator training time and minimizing misconfiguration risk
• Wide frequency range (10 Hz – 12 MHz) supporting both low-frequency subsurface inspection and high-frequency surface crack detection
• Real-time dual readout capability with on-the-fly parameter adjustment and live impedance vector updates
• Automatic internal balancing (via BNC input) and true automatic mixing for stable baseline compensation across varying lift-off and material conditions
• Enhanced filtering algorithms optimized for rotating scanner applications—improving signal-to-noise ratio in high-speed tube and bar inspection
• IP66-rated enclosure certified for dust-tightness and resistance to powerful water jets—validated for outdoor, offshore, and refinery environments
• Extended 10-hour battery life using rechargeable Li-ion pack; hot-swappable battery option available for uninterrupted operation
• Onboard file preview, configuration snapshot recall, and up to 500 stored setups (including calibration standards, probe definitions, and inspection templates)

Sample Compatibility & Compliance

The NORTEC 600 is compatible with standard absolute, differential, reflection, and array probes used across aerospace fastener hole inspection, heat exchanger tubing, weld seam evaluation, and aircraft skin screening. Its hardware architecture supports conductivity sorting, thickness gauging (for non-ferromagnetic plates ≤ 3 mm), and coating thickness measurement (with appropriate reference standards). All factory-calibrated configurations adhere to EN 15548 Annex A verification procedures, including linearity, frequency response, phase accuracy, and noise floor assessment. For regulated industries, the instrument supports audit-ready documentation workflows when integrated with EVIDENT’s PC-based NORTEC software suite—enabling traceable calibration logs, user access control, and electronic signature capture aligned with GLP and GMP principles. While not inherently 21 CFR Part 11–compliant out-of-the-box, the system can be validated for FDA-regulated applications through documented IQ/OQ protocols and secure networked data export.

Software & Data Management

Data acquisition, analysis, and reporting are managed via the NORTEC PC software (Windows-based), which provides bidirectional communication over USB or Ethernet. The software supports raw signal export in ASCII and binary formats, FFT spectral analysis, impedance plane overlay, and synchronized multi-channel waveform comparison. Inspection programs created on the instrument can be imported, edited, version-controlled, and deployed across fleets of NORTEC 600 units—ensuring consistency across shift changes and site locations. Built-in alarm logic (threshold-based, envelope, or pattern-matching) triggers visual, audible, and relay outputs; analog voltage outputs (0–10 V) enable integration with PLCs or automated sorting systems. All stored files include embedded metadata: date/time stamp, operator ID (if configured), probe type, frequency, gain, and filter settings—facilitating full traceability per ISO 9001 and AS9100 requirements.

Applications

• Aerospace: Fastener hole inspection in wing skins and fuselage panels per ASTM E309 and MIL-STD-1949
• Power Generation: Steam generator tube inspection in nuclear and fossil-fuel plants (ASME Section V, Article 8)
• Oil & Gas: Downhole tubing and pipeline girth weld screening for fatigue cracks and pitting corrosion
• Automotive: Brake rotor and suspension component integrity verification during final assembly
• Manufacturing: In-line conductivity sorting of aluminum extrusions and titanium billets
• Rail Transport: Wheelset and axle inspection for rolling contact fatigue initiation

FAQ

Does the NORTEC 600 support array probe connectivity?

Yes—it accepts standard 32-pin and 64-pin connector interfaces for phased-array and multiplexed ECT probes, with configurable channel mapping and independent gain control per channel.
Can I perform conductivity measurements with this instrument?

Yes—conductivity is calculated in %IACS using built-in reference standards; accuracy is ±0.5 %IACS when calibrated against NIST-traceable samples.
Is remote firmware update supported?

Firmware updates require connection to NORTEC PC software and must be performed offline; no over-the-air (OTA) capability is provided for security and regulatory compliance reasons.
What probe types are recommended for tubing inspection?

For heat exchanger tubes, we recommend bobbin-type differential probes (e.g., EVIDENT T-Series) operating at 100–500 kHz; for small-diameter tubing (<12 mm OD), pencil probes with 1–5 MHz bandwidth are optimal.
How does the instrument handle lift-off variation during scanning?

Lift-off compensation is achieved through real-time mixing, high-pass filtering, and dedicated lift-off rejection modes—preserving flaw sensitivity while suppressing topographical noise.
