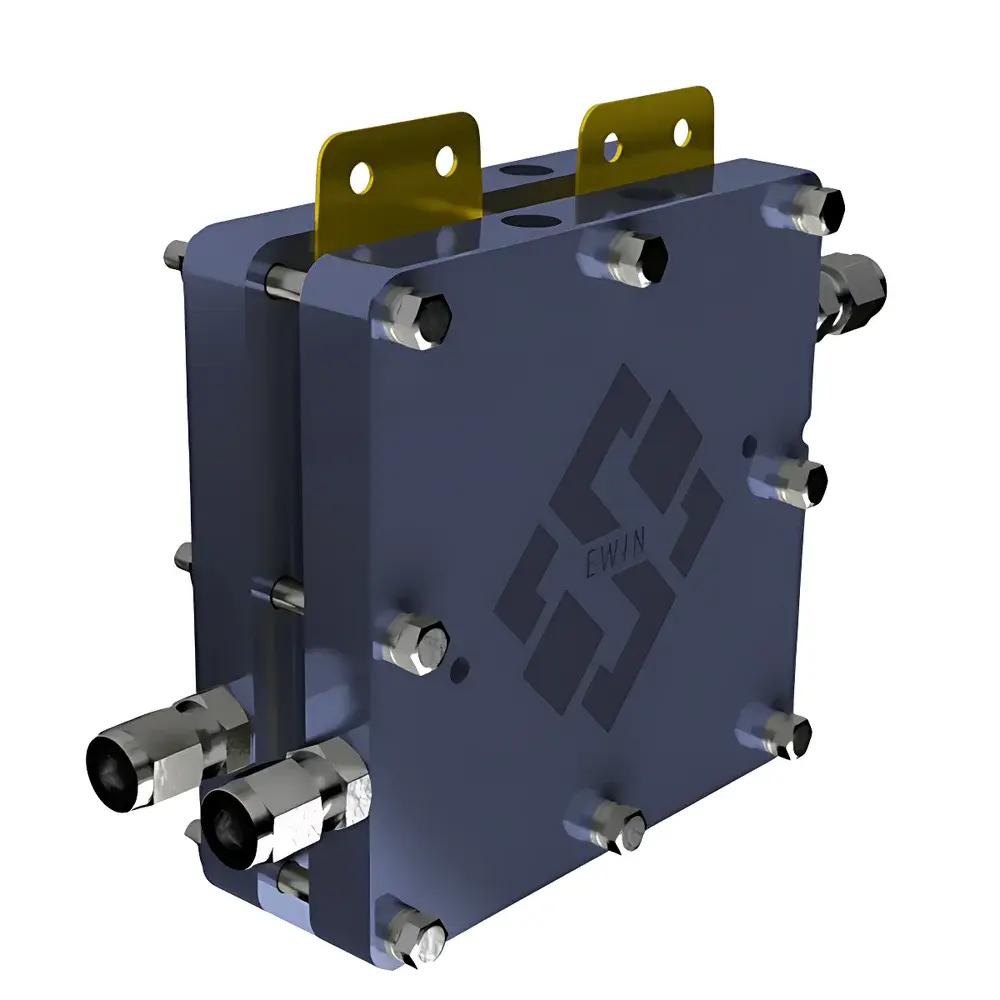

EWIN-TECH HM-200 Fuel Cell Membrane Electrode Assembly (MEA) Test Fixture

Overview

The EWIN-TECH HM-200 is a precision-engineered, laboratory-grade test fixture designed specifically for the electrochemical characterization of proton exchange membrane fuel cell (PEMFC) membrane electrode assemblies (MEAs). It enables controlled, repeatable, and metrologically traceable evaluation of key performance indicators—including polarization curves, electrochemical impedance spectroscopy (EIS), hydrogen crossover current density (H₂ permeation), electrochemical surface area (ECSA), activation overpotential, and ohmic overpotential—under well-defined thermal, pressure, and humidification conditions. Unlike generic electrical test fixtures or improvised clamp-based setups, the HM-200 implements a rigid, symmetric compression architecture that ensures uniform contact pressure distribution across the entire active area, minimizing interfacial contact resistance variability and eliminating measurement artifacts caused by non-uniform current collection or gas diffusion layer (GDL) deformation.

Key Features

• Rigid 316L stainless steel end plates with CNC-machined alignment features and calibrated torque-controlled fastening system to maintain consistent clamping pressure (up to 1.5 MPa) across repeated test cycles.
• Gold-plated copper current collectors with low bulk resistivity (< 2.2 µΩ·cm) and high corrosion resistance, ensuring stable electrical contact and minimal voltage drop during high-current operation (up to 2 A/cm²).
• Graphite-based bipolar plates with customizable flow field geometries—including serpentine, interdigitated, and parallel configurations—machined to ±15 µm dimensional tolerance for accurate gas distribution and water management studies.
• Viton® elastomer gasketing integrated into the sealing interface, rated for continuous operation at 80 °C and compatible with humidified H₂, O₂, and N₂ streams per ASTM D471 and ISO 1817 standards.
• Standardized 5 cm × 5 cm active area configuration (25 cm²), with optional custom active areas (e.g., 10 cm², 100 cm²) and flow field scaling available upon engineering review.
• Dual-port gas inlets and outlets with Swagelok® SS-4-OF2 threaded connections, supporting independent anode/cathode humidification control and backpressure regulation up to 3 bar (gauge).

Sample Compatibility & Compliance

The HM-200 accommodates standard commercial and research-grade PEMFC MEAs, including catalyst-coated membranes (CCMs) and gas diffusion electrodes (GDEs) with Nafion®, Gore-SELECT®, or Sustainion® membranes. It supports both dry and fully humidified testing protocols per DOE Fuel Cell Tech Team validation guidelines and aligns with ISO 21930:2017 (fuel cell systems — terminology and definitions) and ASTM D7273-22 (standard test method for measuring hydrogen crossover in PEMFC membranes). The mechanical design conforms to GLP-compliant test fixture requirements, enabling full auditability of assembly torque, seal compression, and thermal history when paired with calibrated torque wrenches and temperature loggers.

Software & Data Management

While the HM-200 is a hardware-only platform, it is fully interoperable with industry-standard potentiostats (e.g., BioLogic SP-300, Gamry Interface 5000P) and data acquisition systems supporting analog voltage/current output and digital trigger I/O. When used with compliant electrochemical workstations, all acquired datasets—including time-stamped EIS spectra, i–V sweeps, and chronoamperometric transients—can be exported in standardized formats (e.g., .mpt, .z, .csv) for post-processing in MATLAB, Python (via impedance.py), or commercial analysis suites such as ZView® or EC-Lab®. Full metadata capture—including clamping torque, inlet dew point, cell temperature, and backpressure—is supported via external sensor integration using IEEE 1451.2-compliant transducers.

Applications

• Accelerated durability testing (ADT) of novel catalyst layers and ionomers under cyclic load conditions.
• Quantitative comparison of hydrogen crossover rates across membrane thicknesses and composite formulations.
• In-situ determination of ECSA loss during start-stop cycling and open-circuit voltage hold experiments.
• Validation of GDL hydrophobicity treatments and microporous layer (MPL) optimization via localized current density mapping (when coupled with segmented current collectors).
• Supporting DOE and EU Joint Research Centre (JRC) benchmarking protocols for next-generation low-Pt and Pt-free MEAs.
• Teaching laboratories for undergraduate and graduate-level fuel cell electrochemistry courses requiring reproducible, hands-on MEA characterization.

FAQ

Is the HM-200 compatible with automated test stands?

Yes—the fixture includes M4 threaded mounting holes and standardized port spacing to integrate with programmable linear actuators and environmental chambers equipped with PID-controlled temperature/humidity modules.
Can I use the HM-200 for anion exchange membrane (AEM) fuel cell testing?

Yes—provided operating conditions remain within the specified temperature (≤80 °C), pressure (≤3 bar), and chemical compatibility envelope (e.g., avoiding strong alkalis above pH 13 for extended durations).
Does EWIN-TECH provide calibration certificates or torque verification documentation?

Upon request, EWIN-TECH supplies a factory-assembled verification report including clamping force vs. torque correlation data, contact resistance baseline measurements, and dimensional inspection records traceable to NIST-certified standards.
What level of technical support is available for experimental protocol development?

EWIN-TECH offers application engineering consultation—including test matrix design, gas stoichiometry calculation, and EIS parameterization—for academic and industrial users under signed NDA agreements.
Are replacement gaskets and current collectors available as spare parts?

Yes—Viton® gasket kits, gold-plated collector sets, and graphite plate refurbishment services are stocked and shipped globally within 5 business days.
