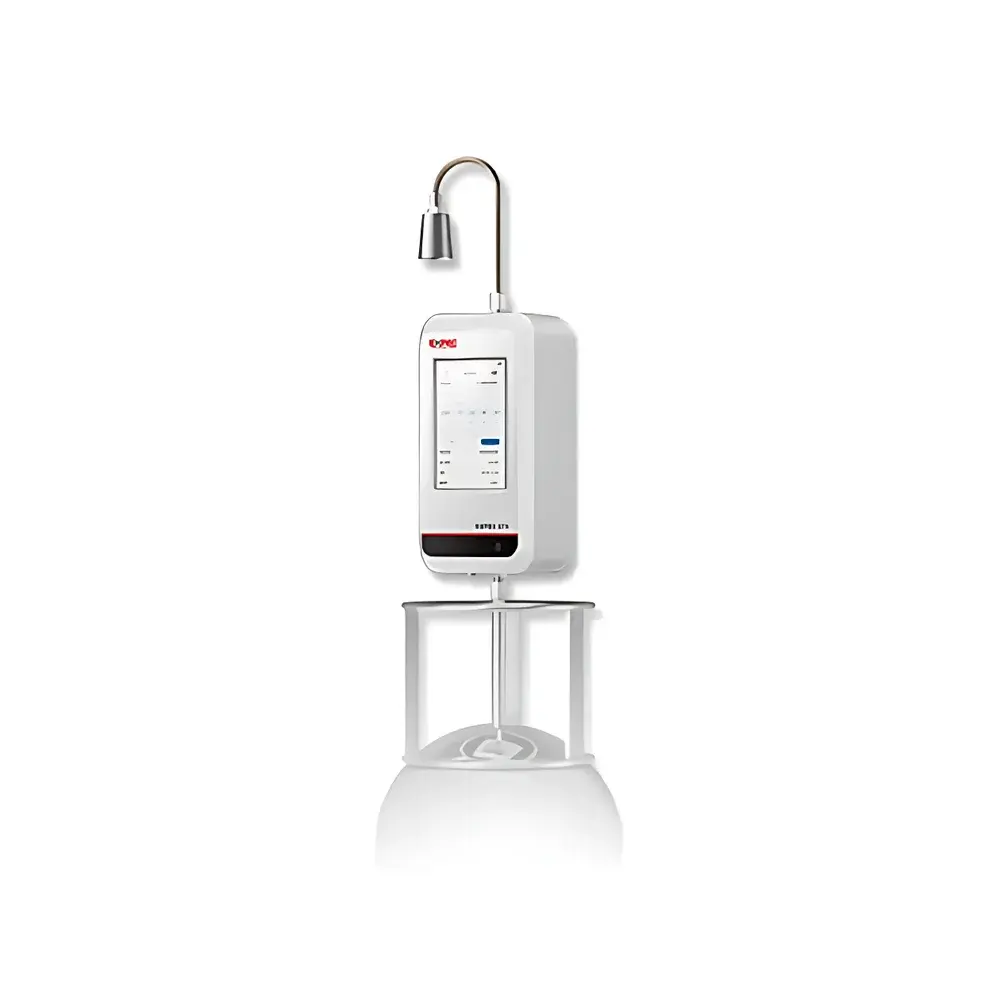

EXPEC 274 Single-Canister Air Sampling System

Overview

The EXPEC 274 Single-Canister Air Sampling System is a field-deployable, microprocessor-controlled active air sampler engineered for quantitative collection of volatile organic compounds (VOCs) and semi-volatile organic compounds (SVOCs) into electropolished stainless-steel Summa canisters. It operates on the principle of constant-flow, pressure-compensated sampling—utilizing a precision mass flow controller (MFC) calibrated traceably to NIST-traceable standards—to ensure volumetric accuracy across variable ambient temperature and barometric pressure conditions. Designed for compliance with U.S. EPA Method TO-14A, TO-15, and ASTM D6196, the system maintains inert sample integrity through an internally passivated flow path, minimizing adsorption, catalytic degradation, or surface-mediated artifact formation during extended sampling intervals (0.1–24 h). Its compact, ruggedized architecture supports unattended operation in remote or hazardous environments without external power dependency beyond its integrated rechargeable Li-ion battery (rated for ≥12 h continuous operation at 100 mL/min).

Key Features

• Integrated real-time flow control with automatic pressure and temperature compensation—ensuring adherence to defined sampling volumes per EPA requirements.
• Onboard leak verification protocol compliant with EPA Method TO-15 Section 8.2: automated pressurization, stabilization, and decay-rate calculation with pass/fail threshold reporting.
• High-fidelity pressure transducer (0–30 psia, ±0.1% FS) enabling accurate canister pressure normalization for subsequent GC-MS quantitation.
• Electropolished, chemically passivated (SilcoNert®-grade) internal wetted surfaces—including MFC, valves, and tubing—to preserve VOC reactivity and prevent memory effects.
• Dual-stage particulate filtration: front-mounted, user-replaceable 10 µm sintered stainless-steel filter followed by optional hydrophobic PTFE secondary filter for moisture exclusion.
• IP56-rated enclosure with reinforced polymer housing and sealed gasketed access panels—validated for operation at –20 °C to +50 °C and 10–95% RH non-condensing.
• Embedded 5-inch capacitive touchscreen interface with multilingual OS support (English, Spanish, Chinese), graphical real-time status dashboard, and configurable alarm thresholds.

Sample Compatibility & Compliance

The EXPEC 274 is validated for use with standard 1 L, 3 L, and 6 L electro-polished stainless-steel Summa canisters (US EPA Spec. 200.8 compliant). All fluidic interfaces employ metal-seated diaphragm valves and VCR fittings to eliminate elastomeric contact points. The system meets ISO/IEC 17025:2017 requirements for calibration traceability and supports audit-ready documentation per GLP and EPA Contract Lab Program (CLP) guidelines. Firmware implements time-stamped, tamper-evident event logging—including start/stop timestamps, flow deviations >±5%, pressure anomalies, and battery voltage trends—facilitating 21 CFR Part 11-compliant data governance when paired with EXPEC FieldSync’s encrypted cloud repository.

Software & Data Management

EXPEC FieldSync mobile application (iOS/Android) provides bidirectional wireless control: remote configuration of sampling parameters, live telemetry streaming, and push notifications for critical events (e.g., low battery, filter clogging, leak detection). All sampling metadata—including GPS coordinates (via smartphone), ambient T/P, operator ID, and canister lot number—is embedded in each exported CSV file. Raw logs are digitally signed and stored with SHA-256 hash integrity verification. Desktop software (EXPEC DataHub v3.1+) enables batch import into LIMS-compatible formats (ASTM E1467, ASTM E2807) and auto-generation of EPA Form 1002-compliant chain-of-custody reports.

Applications

• Ambient air monitoring networks requiring long-term, low-flow VOC profiling (e.g., benzene, toluene, xylenes, C2–C12 alkanes).
• Emergency response deployments following chemical releases—enabling rapid, standardized canister-based evidence collection under NFPA 472 protocols.
• Occupational hygiene assessments in industrial facilities (OSHA ID-255, NIOSH 1501) for time-weighted average (TWA) exposure reconstruction.
• Indoor air quality (IAQ) studies in schools, hospitals, and residential buildings per ASHRAE Standard 62.1.
• Method validation and reference material characterization in accredited environmental testing laboratories.

FAQ

Does the EXPEC 274 support multi-canister sequential sampling?
No—the EXPEC 274 is designed exclusively for single-canister operation. For multi-canister or multi-method sampling, consider the EXPEC 276 Series.
Is calibration certificate included with shipment?
Yes—each unit ships with a factory-issued calibration report traceable to NIST SRM 2710a, valid for 12 months from date of issue.
Can the system operate while charging?
Yes—continuous operation is supported during AC adapter use; battery charging occurs in parallel without interrupting sampling or data logging.
What maintenance intervals are recommended?
The particulate filter should be inspected before each deployment and replaced after 500 cumulative sampling hours or if pressure drop exceeds 2.5 psi; MFC recalibration is recommended annually or after mechanical shock.
Is firmware upgradable in the field?
Yes—over-the-air (OTA) updates are delivered via EXPEC FieldSync; version history and rollback capability are retained in device memory.
