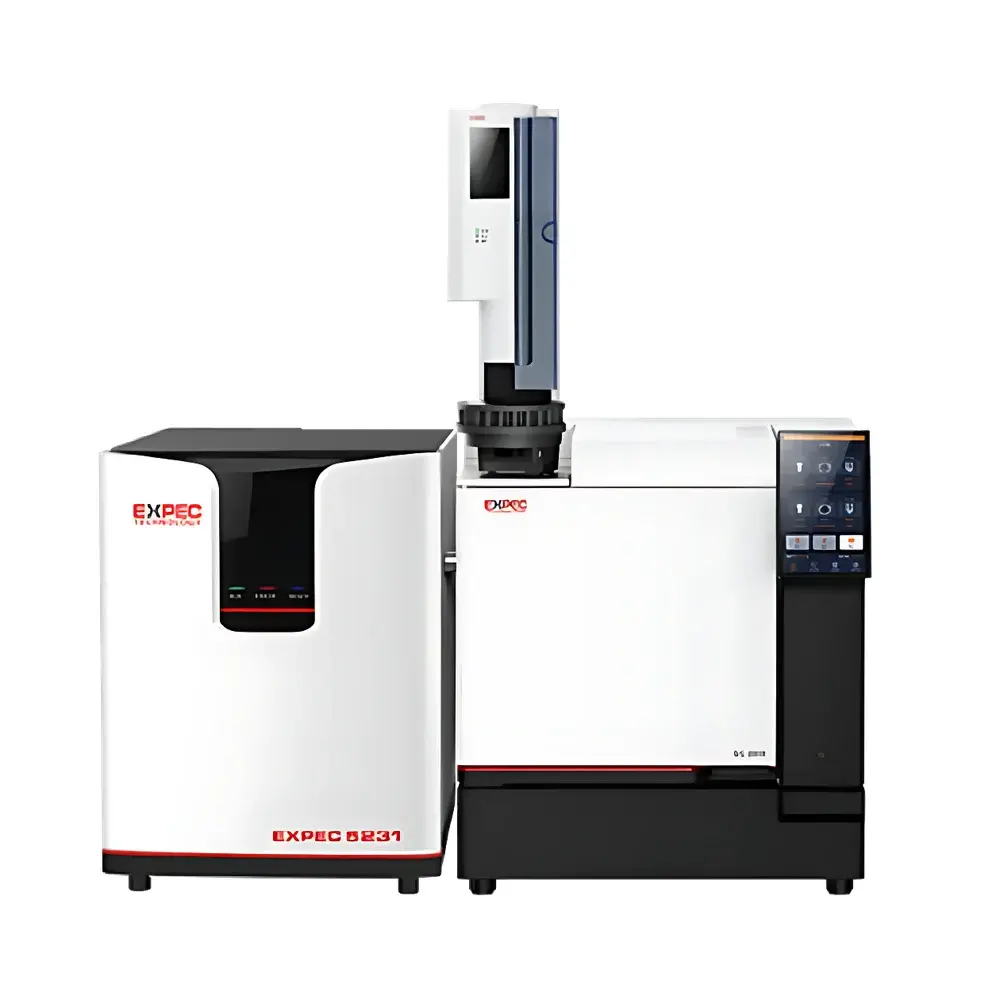

EXPEC 5231 Gas Chromatography-Tandem Quadrupole Mass Spectrometer (GC-MS/MS)

Overview

The EXPEC 5231 GC-MS/MS is a high-performance gas chromatography–tandem quadrupole mass spectrometry system engineered for trace-level quantitative and qualitative analysis of volatile and semi-volatile organic compounds. It operates on the principle of electron ionization (EI) coupled with triple quadrupole (QQQ) mass filtering and collision-induced dissociation (CID) in a pressurized hexapole collision cell. The instrument integrates a heated, cold-point-free GC–MS interface to ensure minimal analyte condensation and maximize ion transmission efficiency from the chromatographic effluent into the mass spectrometer. Its core architecture supports rigorous regulatory workflows—particularly those requiring compliance with EPA Methods (e.g., 8270, 8260), ISO 17025-accredited laboratories, and GLP/GMP environments where data integrity, reproducibility, and audit readiness are mandatory.

Key Features

• Electron Ionization (EI) Source with Full-Path Heating: Eliminates cold spots across the transfer line and ion source region, ensuring consistent desorption, ionization, and transmission of thermally labile and high-boiling compounds.
• Triple Quadrupole Mass Analyzer Architecture: Comprising Q1 (mass selection), Q2 (pressurized hexapole collision cell), and Q3 (mass analysis), enabling robust SRM, MRM, precursor ion scan, neutral loss scan, and product ion scan modes.
• Axial Acceleration Collision Cell: Enhances CID efficiency and reduces inter-channel crosstalk during MRM acquisition, improving signal-to-noise ratio and lowering detection limits without sacrificing duty cycle.
• Ultra-Stable Molybdenum Quadrupole Rods: Surface-gold-coated for chemical inertness and resistance to organic residue buildup; optimized for long-term mass axis stability and low drift under continuous operation.
• Pulse-Counting Electron Multiplier Detection: Delivers high-sensitivity detection with real-time noise suppression and linear dynamic range exceeding 10⁶.
• Dual RF Power Supply with Closed-Loop Adaptive Control: Compensates for thermal and environmental fluctuations, maintaining quadrupole field fidelity across ambient temperature and humidity variations (15–35 °C, 30–80% RH).

Sample Compatibility & Compliance

The EXPEC 5231 supports direct coupling with standard capillary GC systems and optional front-end sample introduction modules—including headspace samplers (HS), solid-phase microextraction (SPME) interfaces, and purge-and-trap concentrators—enabling method flexibility for complex matrices. It complies with international analytical standards including ASTM D5845 (petroleum hydrocarbons), ISO 10301 (pesticide residues), and US EPA SW-846 Method 8270D for semivolatile organic analysis. Data acquisition and processing adhere to ALCOA+ principles; Mass Expert software includes full 21 CFR Part 11 compliance features such as electronic signatures, audit trails, user role-based access control, and secure data archiving.

Software & Data Management

Mass Expert is a fully localized Chinese-language GC-MS/MS control and data analysis platform developed specifically for regulatory and routine laboratory workflows in China. It provides one-click auto-tuning, mass calibration, and method validation tools. The Intelligent MRM module enables rapid method setup via compound database import (e.g., NIST, Wiley, custom libraries), automatic transition optimization, and batch editing of retention time windows and dwell times. Reports are customizable per application domain—environmental, food safety, or pharmaceutical—with configurable templates aligned with CNAS, CMA, and provincial CDC reporting requirements. Raw data files (.raw) are stored in vendor-neutral formats compatible with third-party reprocessing tools.

Applications

• Environmental Monitoring: Quantification of PAHs, PCBs, organochlorine pesticides, phthalates, and emerging contaminants (e.g., PFAS precursors) in soil, water, and air samples.
• Food Safety Testing: Residue analysis of veterinary drugs, mycotoxins, plasticizers, and unapproved food additives in dairy, meat, grains, and infant formula.
• Pharmaceutical & TCM Quality Control: Identification and quantification of marker compounds, adulterants, and synthetic intermediates in traditional Chinese medicines and active pharmaceutical ingredients (APIs).
• Forensic Toxicology: Targeted screening and confirmation of controlled substances, designer drugs, and metabolites in biological fluids per forensic laboratory accreditation criteria (e.g., ISO/IEC 17025:2017).

FAQ

Does the EXPEC 5231 support 21 CFR Part 11-compliant data handling?
Yes—Mass Expert implements full electronic signature capability, immutable audit trails, and role-based permissions required for FDA-regulated environments.
Can the system be integrated with third-party GC instruments?
Yes—it features standardized GC communication protocols (e.g., RS-232, Ethernet) and is compatible with major vendors’ GC platforms, including Agilent, Thermo Fisher, and Shimadzu.
What sample introduction options are available beyond standard split/splitless injection?
Optional modules include automated headspace (HS), SPME autosampler, and purge-and-trap (P&T) systems—each validated for sensitivity and carryover performance.
Is remote monitoring and diagnostics supported?
Mass Expert includes secure remote access functionality for instrument status checks, method deployment, and basic troubleshooting via authenticated web interface.
How is mass calibration maintained over extended operation?
The system performs automated internal calibration using perfluorotributylamine (PFTBA) at user-defined intervals, with real-time correction of mass axis drift via closed-loop feedback algorithms.
