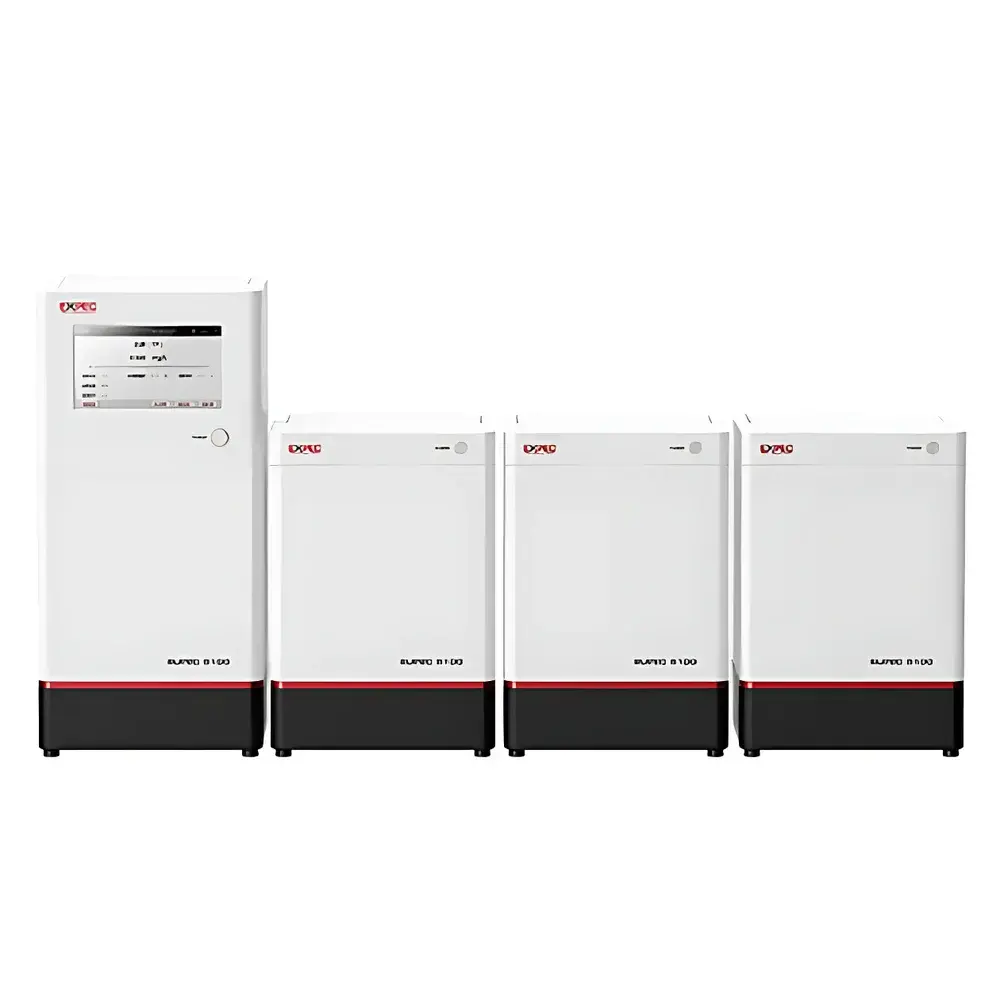

EXPEC SUPEC 5100 Automated Water Quality Analyzer

Overview

The EXPEC SUPEC 5100 Automated Water Quality Analyzer is an integrated, multi-parameter in-situ and online water analysis platform engineered for regulatory-grade monitoring of natural and anthropogenic water matrices. It operates on a hybrid analytical architecture that synergistically combines full-spectrum UV-Vis absorbance spectroscopy (190–1100 nm) with validated wet-chemical colorimetric reaction kinetics—enabling simultaneous high-speed spectral trend tracking (sub-second response) and reference-method traceable quantification. Unlike conventional single-mode analyzers, the SUPEC 5100 implements dual-mode operational logic: real-time spectral pattern recognition for rapid anomaly detection (e.g., organic load shifts, nitrate interference events), and discrete chemical digestion/complexation followed by photometric endpoint measurement for certified concentration reporting. This architecture directly addresses longstanding limitations in field-deployable instrumentation—namely the trade-off between temporal resolution and metrological traceability—while maintaining compliance with core environmental testing standards including HJ 636 (total nitrogen), HJ 536 (ammonia nitrogen), GB 11893 (total phosphorus), GB 11892 (permanganate index), and HJ 828 (COD_Cr).

Key Features

• Hybrid dual-mode operation: Full-spectrum absorbance profiling + EPA/ISO-aligned wet-chemical quantification
• Microfluidic precision dosing: Capable of accurate μL-level reagent and sample metering (±1.5% volumetric repeatability), minimizing consumption and waste generation
• Multi-parameter simultaneous analysis: COD, NH₃-N, TP, TN, and permanganate index; expandable to NO₃⁻, NO₂⁻, BOD₅ (indirect), TOC (via persulfate oxidation), SAC₂₅₄, and suspended solids (SP)
• Intelligent self-diagnostic system: Comprehensive real-time monitoring of reagent inventory, liquid aspiration status, thermal control stability (±0.3°C), optical path integrity, and pump actuation cycles
• Compact modular design: Integrated spectrophotometric module, fluidic manifold, and reagent storage compartment housed in IP65-rated enclosure; suitable for fixed-site deployment, mobile laboratories, vessel-mounted cruise systems, and emergency response vehicles
• High-resolution capacitive touchscreen interface: Intuitive GUI supporting multilingual operation, method selection, calibration logging, and alarm history review without external PC dependency

Sample Compatibility & Compliance

The SUPEC 5100 is validated for direct analysis of raw surface water, municipal wastewater effluent, industrial discharge streams (including pulp/paper, food processing, and petrochemical outfalls), and groundwater samples with turbidity ≤ 100 NTU and suspended solids ≤ 50 mg/L. All onboard wet-chemical methods adhere strictly to Chinese national environmental standards (HJ and GB series), with method equivalence demonstrated against ISO 6060 (COD), ISO 7150-1 (ammonia), ISO 6878 (phosphorus), and ISO 15681-2 (orthophosphate). The instrument’s data acquisition firmware supports audit-trail functionality compliant with GLP principles, including timestamped operator actions, calibration event logging, and uneditable method parameter versioning. While not pre-certified for FDA 21 CFR Part 11, its secure user authentication, electronic signature capability, and immutable data export (CSV/Excel-compatible) facilitate integration into regulated QA/QC workflows.

Software & Data Management

Embedded firmware provides local data storage (≥12 months of 15-minute interval readings), configurable alarm thresholds (predefined or user-defined), and automated report generation (daily/weekly/monthly summary PDFs). Remote access is supported via Modbus TCP, RS485, and optional 4G LTE connectivity for SCADA integration. Data export conforms to WQ-XML schema standards used by national water monitoring networks. Firmware updates are delivered via signed package files with SHA-256 verification to ensure integrity. Calibration curves are stored with metadata (date, operator ID, standard lot number, R² value), and drift correction algorithms apply baseline normalization using internal reference channels.

Applications

• Continuous monitoring of river, lake, and reservoir water quality at national surveillance stations
• Effluent compliance verification at WWTPs and industrial parks under discharge permit requirements
• Rapid deployment during pollution incident response—capable of autonomous operation for >72 hours on battery backup
• Mobile water quality mapping via vessel- or vehicle-mounted installations (e.g., “water taxi” surveys, coastal zone assessment)
• Supporting research on nutrient dynamics, organic matter degradation kinetics, and disinfection byproduct precursor tracking

FAQ

Does the SUPEC 5100 require daily manual maintenance?

No. Scheduled maintenance intervals are ≥30 days under continuous operation; only reagent replacement and optical window cleaning are required.
Can it operate unattended for extended periods?

Yes. With optional UPS and remote telemetry, it supports 30-day autonomous operation with automated fault recovery and email/SMS alerting.
Is method validation documentation available for regulatory submission?

Yes. EXPEC provides method verification reports per HJ/T 91–2019, including LOD/LOQ, precision (RSD ≤5%), spike recovery (85–115%), and inter-laboratory comparison data.
What sample pretreatment is necessary?

Raw intake requires only coarse filtration (100 µm mesh); no centrifugation or acid preservation is needed for standard parameters.
How is calibration performed?

Calibration uses NIST-traceable aqueous standards; automated multi-point calibration routines are programmable and logged with full traceability.
