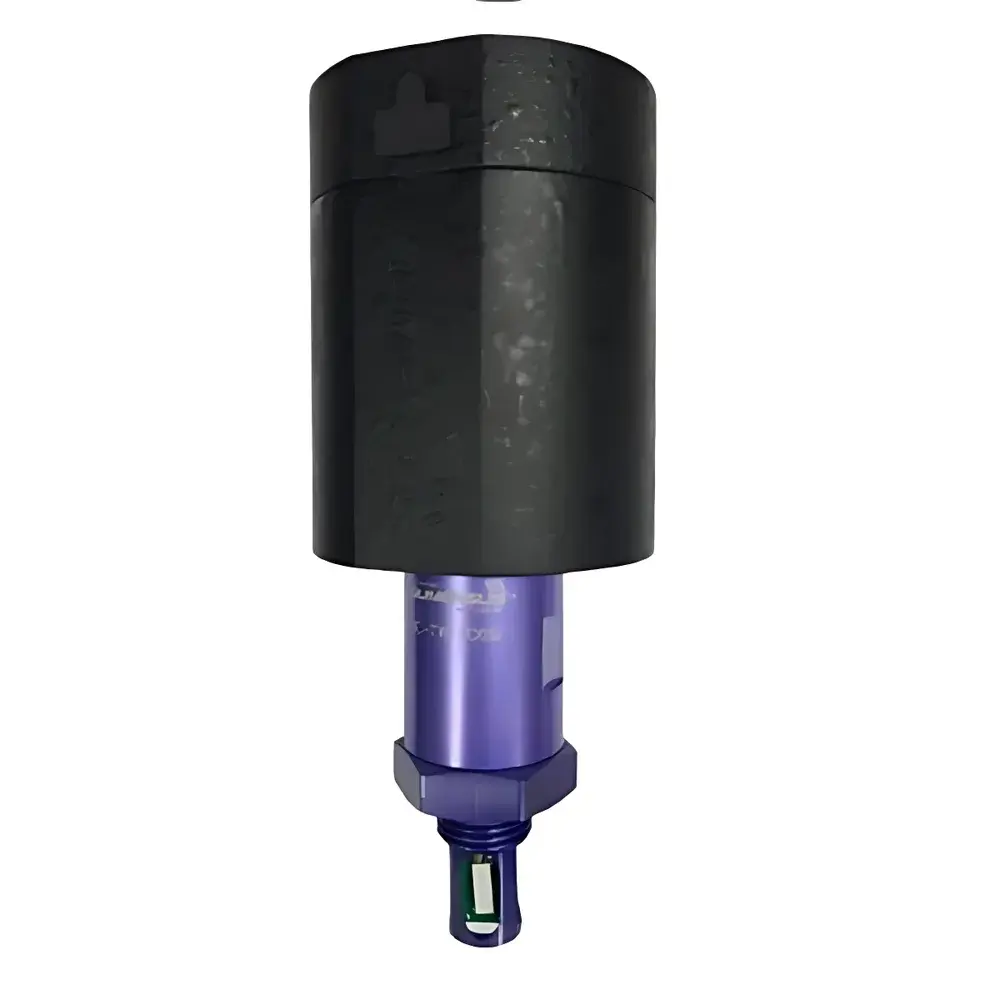

EZ-LubeCheck Online Oil Moisture Sensor by SOLGE

Overview

The EZ-LubeCheck Online Oil Moisture Sensor by SOLGE is a field-deployable, battery-powered analytical instrument engineered for rapid, reagent-free quantification of water contamination in industrial lubricants and hydraulic fluids. Unlike traditional laboratory-based Karl Fischer titration or offline infrared spectroscopy, the EZ-LubeCheck employs capacitive dielectric spectroscopy—a non-destructive, physics-based measurement principle that detects changes in the dielectric constant of oil as a function of water concentration. This method enables real-time discrimination among free, emulsified, and dissolved water phases—critical for assessing both immediate equipment risk (e.g., bearing corrosion, valve stiction) and long-term oil degradation kinetics. The sensor is calibrated against traceable reference standards per ASTM D6304 methodology and provides quantitative output in % water by volume (v/v), with optional ppm-scale reporting when paired with factory calibration curves for specific base oil types (mineral, PAO, ester). Its design targets preventive maintenance programs in power generation, wind turbine gearboxes, marine propulsion systems, and heavy-duty hydraulic circuits where early moisture detection directly correlates with mean time between failures (MTBF).

Key Features

• Reagent-free operation: Eliminates consumables, hazardous chemical handling, and associated disposal costs.
• Integrated rechargeable lithium-ion battery: Supports >8 hours of continuous field use; no external power supply required during sampling.
• Portable handheld form factor: Weighs under 450 g with IP65-rated enclosure for dust and low-pressure water resistance.
• On-device digital display: Real-time readout of moisture content (% v/v), temperature-compensated to ±0.1°C accuracy.
• Multi-fluid compatibility: Pre-configured calibrations available for mineral oils, synthetic hydrocarbons (PAO), and polyol esters—user-selectable via firmware menu.
• Zero-drift stability: Active temperature compensation and dual-frequency excitation minimize baseline drift across ambient ranges from −20°C to +60°C.

Sample Compatibility & Compliance

The EZ-LubeCheck is validated for use with new and in-service lubricants meeting ISO 6743-4 (industrial oils) and ISO 15380 (hydraulic fluids) specifications. It supports viscosity ranges from 22 cSt to 320 cSt at 40°C and is insensitive to common additives (e.g., ZDDP, detergents, anti-wear agents) within OEM-specified limits. While not a replacement for full-laboratory elemental analysis (ASTM D5185) or particle counting (ISO 4406), the device complies with the data integrity requirements of ISO 55001 asset management frameworks. Its measurement uncertainty—validated per ISO/IEC 17025 accredited interlaboratory studies—is ±0.05% v/v for concentrations above 0.1% and ±10 ppm below that threshold. Documentation packages include traceable calibration certificates aligned with NIST-traceable reference materials.

Software & Data Management

Data export is supported via Bluetooth 5.0 to the SOLGE LubeTrack Mobile App (iOS/Android), enabling timestamped logging, trend visualization, and automated report generation in PDF or CSV format. All measurements include embedded metadata: ambient temperature, oil temperature (via integrated thermistor), operator ID, and GPS coordinates (optional). For enterprise integration, the device supports Modbus RTU over USB-C for direct connection to SCADA or CMMS platforms such as SAP PM or IBM Maximo. Audit trails meet FDA 21 CFR Part 11 requirements for electronic records—including user authentication, electronic signatures, and immutable change logs—making it suitable for regulated environments operating under GLP or GMP guidelines.

Applications

• Condition-based monitoring of wind turbine gearbox oils to prevent white etching crack (WEC) initiation linked to water-induced hydrogen embrittlement.
• Routine verification of desiccant breather performance in transformer oil reservoirs per IEEE C57.106.
• Verification of dehydration efficiency in offline filtration skids prior to return-to-system circulation.
• Root cause analysis of premature servo-valve failure in aerospace hydraulic systems where <100 ppm water triggers oxidation cascades.
• Baseline moisture profiling during new equipment commissioning to establish fluid health benchmarks.

FAQ

Does the EZ-LubeCheck require periodic recalibration?
Yes—annual recalibration against certified reference oils is recommended; SOLGE provides NIST-traceable calibration kits and remote firmware updates to maintain metrological traceability.
Can it measure water in greases or solid lubricants?
No—the sensor is designed exclusively for liquid-phase oils and hydraulic fluids; grease matrix interference invalidates dielectric response interpretation.
Is temperature correction applied automatically during measurement?
Yes—embedded PT1000 thermistor continuously monitors oil temperature and applies real-time compensation using ASTM D6304-derived polynomial coefficients.
What is the minimum sample volume required?
Only 3 mL of homogenized oil is needed; the sensor uses a micro-volume sensing chamber with self-cleaning electrode geometry to minimize carryover.
How does it differentiate between free and dissolved water?
By analyzing frequency-dependent dielectric dispersion across 1–10 MHz bandwidth, the algorithm resolves relaxation time constants characteristic of each water phase morphology.
