Fangyuan Instruments DR120 Coating Thickness Gauge for Electrophoretic, Enamel, Anti-Corrosion, Powder-Coated and Painted Surfaces

Overview

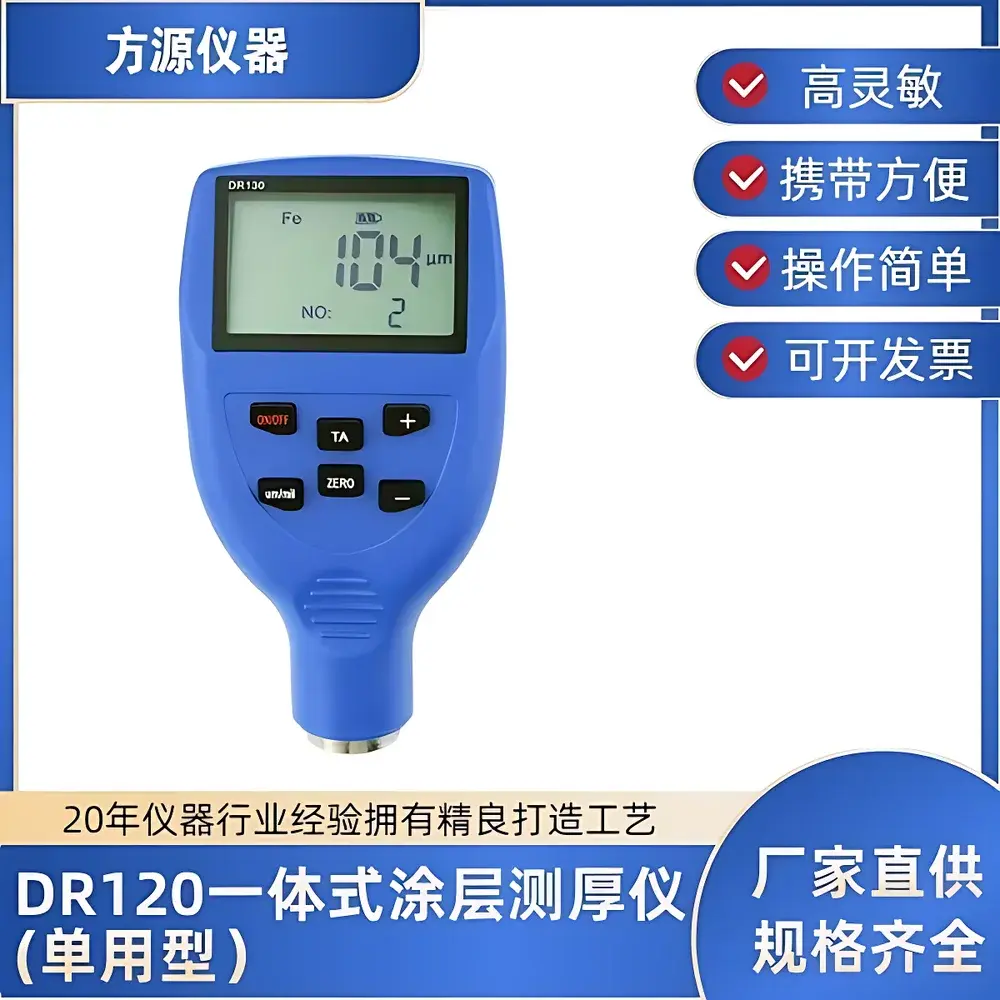

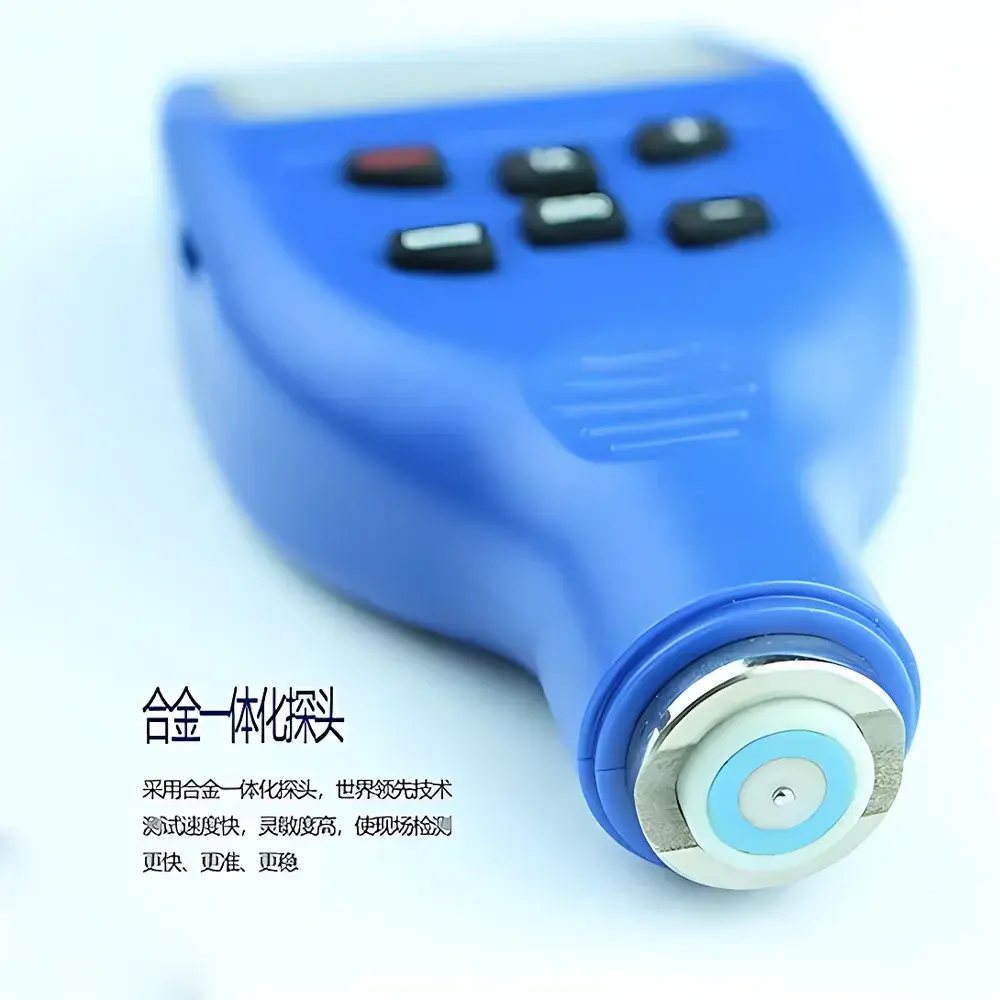

The Fangyuan Instruments DR120 Coating Thickness Gauge is a portable, non-destructive electromagnetic induction (for ferrous substrates) and eddy current (for non-ferrous substrates) measurement instrument engineered for rapid, field-ready verification of dry film thickness (DFT) across industrial coating systems. It is specifically calibrated and validated for consistent performance on electrophoretic deposition (EDP) coatings, vitreous enamel layers, corrosion-resistant polymer linings, thermoset powder coatings, and liquid-applied paints applied to metallic substrates. The device operates in accordance with the fundamental principles defined in ISO 2178 (magnetic induction for non-magnetic coatings on magnetic base metals) and ISO 2360 (eddy current for non-conductive coatings on non-magnetic conductive base metals), ensuring traceable compliance with international quality control protocols used in automotive OEM finishing lines, appliance manufacturing, pipeline fabrication, and infrastructure maintenance.

Key Features

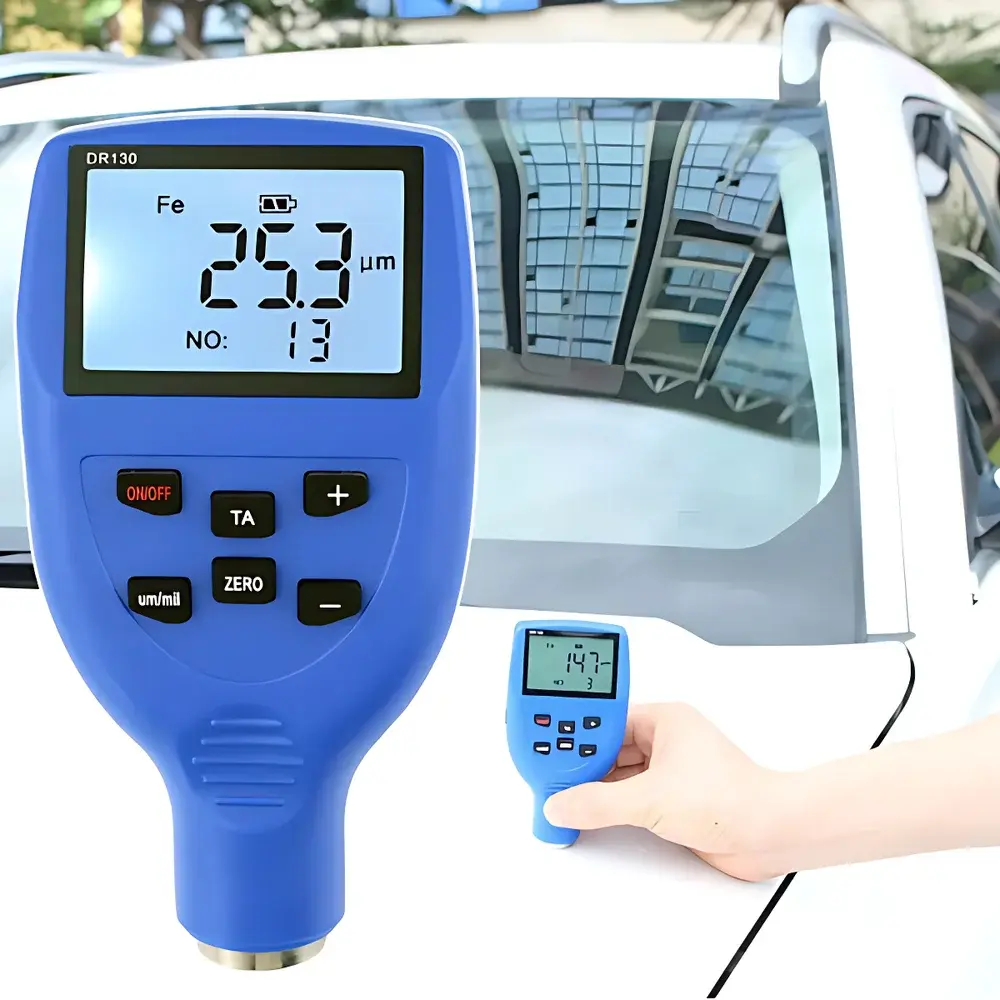

• High-resolution backlit LCD display with 128 × 64 pixel matrix — enables legible readings under low-light or outdoor ambient conditions, including nighttime inspection scenarios.
• Ergonomic anti-slip housing with contoured grip geometry — reduces operator fatigue during extended use and minimizes risk of accidental drop during overhead or confined-space measurements.
• Tactile silicone-dome membrane keys — provide positive actuation feedback, resist dust and moisture ingress (IP52-rated enclosure), and maintain operational integrity after >100,000 press cycles.
• Intelligent power management system — automatically powers down after 180 seconds of inactivity; extends battery life to ≥2,000 measurements per set of two AAA alkaline cells (IEC LR03).
• Zero-point calibration function — supports substrate-specific offset correction without external reference standards, improving measurement repeatability across heterogeneous production batches.
• Single-unit measurement mode with immediate result retention — eliminates need for continuous trigger holding, enabling efficient spot-checking on curved or narrow surfaces such as pipe elbows, flange edges, and sheet metal bends.

Sample Compatibility & Compliance

The DR120 is validated for use on flat, slightly curved, or moderately irregular metallic surfaces where coating adhesion is stable and substrate conductivity is uniform. It accommodates base materials including low-carbon steel, stainless steel (austenitic grades require eddy-current mode verification), aluminum alloys, copper, and brass. Measurement range spans 0–1250 µm (0–49.2 mils) with typical resolution of 1 µm below 100 µm and 0.1% of reading above 100 µm. While not certified to ASTM D7091 or ISO 19840 for field corrosion protection audits, its output is suitable for internal process control, pre-shipment inspection, and first-article verification in environments governed by ISO 9001:2015 and IATF 16949 quality management systems. Device firmware does not support audit trail logging or electronic signature per FDA 21 CFR Part 11, and therefore is intended for non-GxP applications.

Software & Data Management

The DR120 operates as a standalone instrument with no Bluetooth, USB, or wireless connectivity. All measurements are displayed in real time and retained only in volatile memory until next power cycle. No proprietary software, drivers, or PC interface cables are supplied or supported. Users requiring data export must employ manual transcription or integrate the gauge into third-party visual inspection workflows using external digital loggers or tablet-based QC checklists. Calibration certificates (traceable to NIM, China) are available upon request and include uncertainty statements compliant with JJF 1059.1–2012.

Applications

• Verification of EDP film thickness consistency in automotive body-in-white (BIW) painting lines.
• Quality gate screening of enamel-coated cookware and sanitary ware prior to thermal curing validation.
• In-process monitoring of epoxy phenolic linings on carbon steel storage tanks and chemical reactors.
• Final inspection of polyester and epoxy-polyester powder coatings on HVAC ductwork and electrical enclosures.
• Field assessment of shop-applied primers and topcoats on structural steel bridges and offshore platforms.

FAQ

What substrates can the DR120 measure on?
It measures non-magnetic coatings on ferrous metals (e.g., steel) via magnetic induction, and non-conductive coatings on non-ferrous metals (e.g., Al, Cu) via eddy current — but not on plastics, wood, or concrete.
Does it support statistical process control (SPC) functions?
No. It lacks min/max/avg calculation, data storage, or histogram generation. SPC requires external recording and analysis tools.
Is calibration required before each use?
A single zero calibration on an uncoated reference area of the same substrate material is recommended before initiating a measurement series.
Can it measure multi-layer coating systems?
No. The DR120 reports total DFT only; it cannot resolve individual layer thicknesses in duplex or triplex systems.
What is the temperature operating range?
The specified operational range is 0 °C to 50 °C (32 °F to 122 °F); accuracy degrades outside this interval due to sensor thermal drift.
