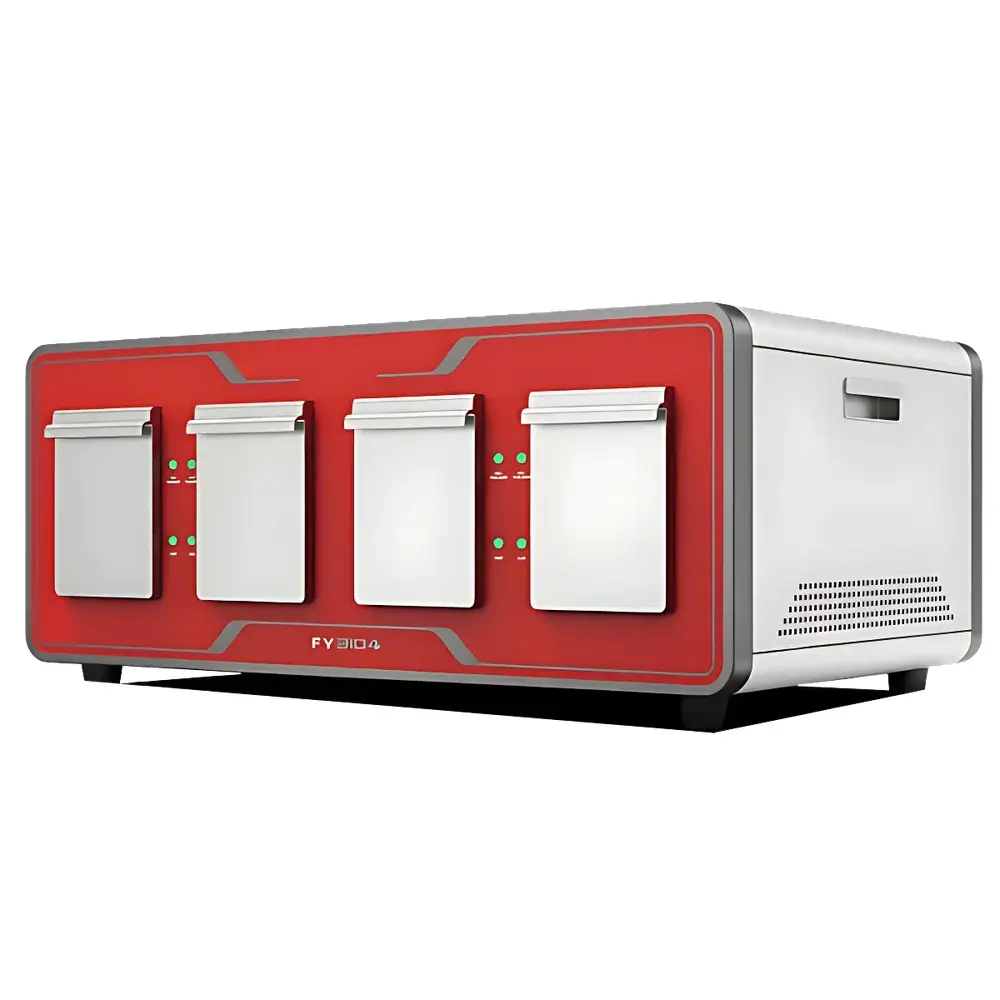

Fangyuan Scientific Instruments FY3104-00 Low-Background Alpha Spectrometer

Overview

The Fangyuan Scientific Instruments FY3104-00 Low-Background Alpha Spectrometer is a laboratory-grade alpha-particle energy spectrometer engineered for high-resolution quantitative analysis of alpha-emitting radionuclides in solid matrices. It operates on the principle of semiconductor-based pulse-height spectroscopy: incident alpha particles generate charge carriers in a passivated implanted planar silicon (PIPS) detector; the resulting charge pulse amplitude is proportional to particle energy, enabling precise identification and quantification of isotopes such as ²³⁸U, ²³⁴U, ²³⁰Th, ²³⁹Pu, ²⁴⁰Pu, and ²⁴¹Am. The system achieves ultra-low background performance (<1 count/hour in the 3–10 MeV window) through optimized shielding geometry, recoil-suppressed sample chamber design, and vacuum-compatible measurement environment—critical for environmental monitoring, nuclear safeguards verification, and radiochemical assay where detection limits must approach femtogram-level actinide mass sensitivity.

Key Features

• Digital multichannel analyzer with software-selectable channel depths (512–4096), supporting flexible trade-offs between energy resolution and statistical precision.
• Fully programmable bias voltage supply (0–180 V, 0.2 V step resolution) ensures optimal detector depletion across varying PIPS geometries and operating conditions.
• Integrated leakage current monitor (–3 to +150 nA, <1 nA accuracy) enables real-time assessment of detector health and vacuum integrity—essential for long-duration low-count-rate measurements.
• Vacuum control module with three operational modes (pump-down, hold, vent) and continuous pressure readout (0–26 kPa) facilitates reproducible alpha energy response by eliminating air scattering and energy straggling.
• Recoil-suppressed sample chamber minimizes surface contamination from backscattered daughter nuclei, preserving spectral fidelity during extended counting cycles.
• Manually adjustable sample stage with 4 mm positional resolution allows precise optimization of source-to-detector geometry to balance solid angle efficiency and energy resolution per ISO 8523 and ASTM D3648 standards.
• Multi-interface connectivity (USB, RS-232, Ethernet, Wi-Fi) supports integration into centralized lab networks and remote operation under controlled access protocols.
• Onboard electronic pulse generator and virtual oscilloscope functionality support hardware diagnostics, gain stabilization, and pulse shape validation without external test equipment.

Sample Compatibility & Compliance

The FY3104-00 is designed exclusively for solid-sample analysis—including filter papers, electroplated sources, resin beads, soil digests precipitated onto planchets, and swipe samples. Its modular detector interface accommodates commercially available PIPS detectors ranging from 300 mm² to 1200 mm² active area, ensuring compatibility with major international suppliers (e.g., ORTEC, Canberra, EG&G). All mechanical and electrical subsystems conform to IEC 61000-6-3 (EMC emission limits) and IEC 61010-1 (safety requirements for electrical equipment). Data acquisition and processing workflows align with GLP and GMP documentation expectations, including timestamped audit trails, user-access controls, and exportable raw spectra in standard formats (e.g., .spc, .cnf) compliant with ISO/IEC 17025-accredited laboratories.

Software & Data Management

AlphaSense software provides a unified platform for instrument control, spectral acquisition, and quantitative analysis. It implements energy calibration via two-point or multi-point reference sources (e.g., ²⁴¹Am, ²³⁹Pu), efficiency calibration using certified reference materials traceable to NIST SRMs or IAEA standards, and automated peak search with Gaussian-Lorentzian deconvolution for overlapping alpha lines. The built-in nuclide library includes over 80 alpha-emitting isotopes with decay energies, intensities, and half-lives; users may extend it with custom entries. All spectral files retain full metadata (HV setting, live time, real time, vacuum pressure, temperature, operator ID), and raw data exports support FDA 21 CFR Part 11 compliance when deployed with validated IT infrastructure and electronic signature modules.

Applications

The FY3104-00 serves core analytical needs in regulatory environmental monitoring (e.g., uranium/thorium series in drinking water sediments per EPA Method 900), nuclear facility decommissioning surveys (surface contamination mapping), spent fuel characterization (isotopic Pu vector analysis), geological age-dating (U-Th disequilibrium in carbonates), and radiological emergency response (rapid alpha screening of swipe samples). Its low-background performance and digital stability make it suitable for routine QA/QC in accredited radiochemistry labs performing ISO/IEC 17025 method validations, particularly where detection limits below 0.1 mBq per sample are required.

FAQ

What PIPS detectors are compatible with the FY3104-00?
The system features a standardized HV and signal interface compliant with industry-standard PIPS detectors from ORTEC, Canberra, and domestic manufacturers—no adapter required.
Does the system support automated energy calibration?
Yes—AlphaSense supports both manual and automated energy calibration routines using reference sources; polynomial or spline-based fitting models are selectable.
Can multiple FY3104-00 units be synchronized for parallel acquisition?
Yes—the modular architecture and Ethernet/Wi-Fi interfaces enable time-synchronized multi-spectrometer operation via network-triggered start/stop commands.
Is vacuum level logged with each spectrum?
Yes—vacuum pressure (kPa), temperature (°C), and bias voltage (V) are embedded as metadata in every acquired spectrum file.
How is detector leakage current used in quality assurance?
Sustained leakage current drift >5 nA over 24 h triggers an alert, indicating potential vacuum degradation or detector surface contamination—prompting preventive maintenance before spectral distortion occurs.
