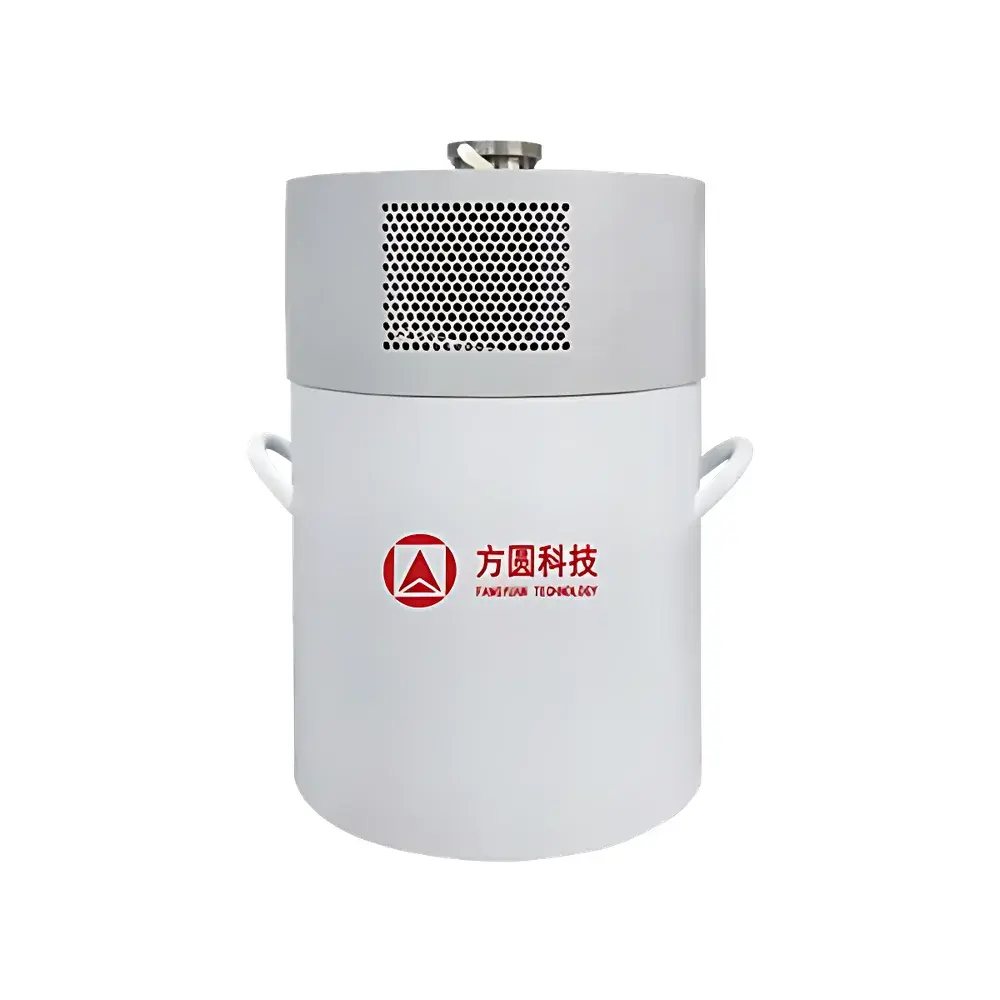

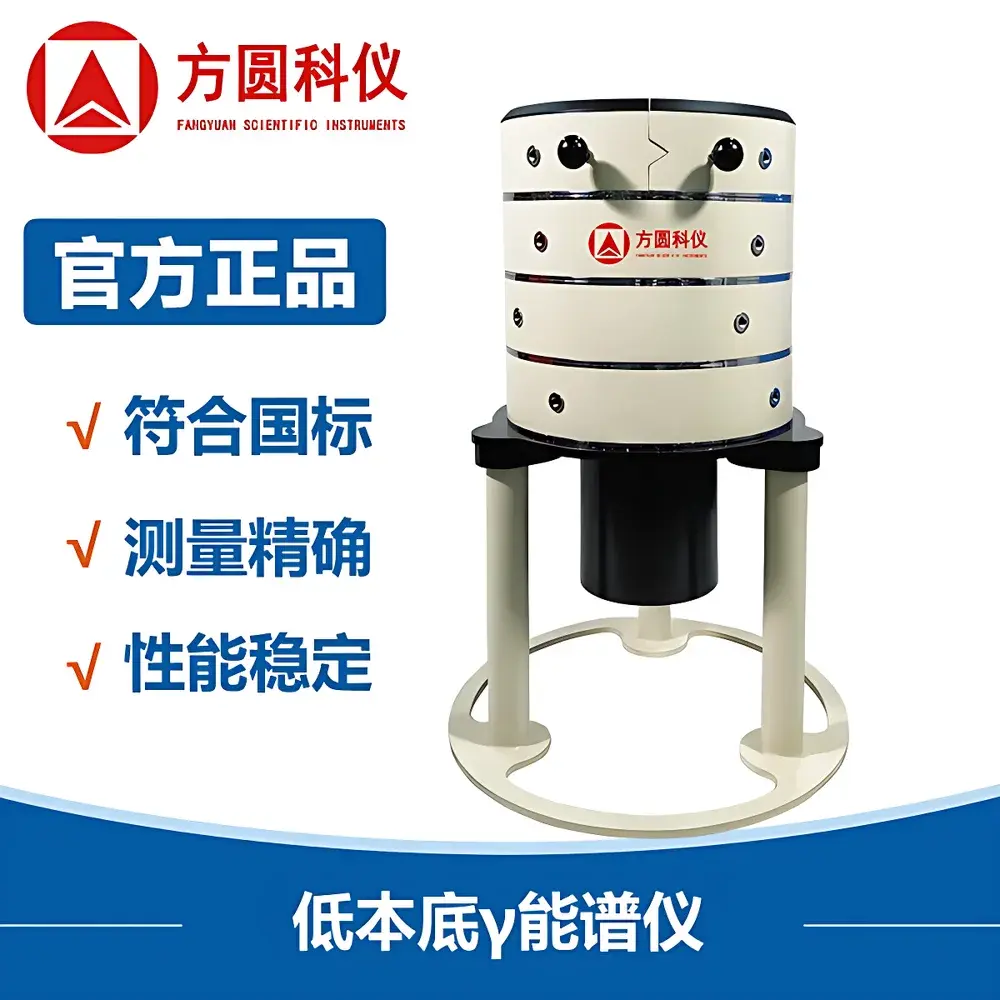

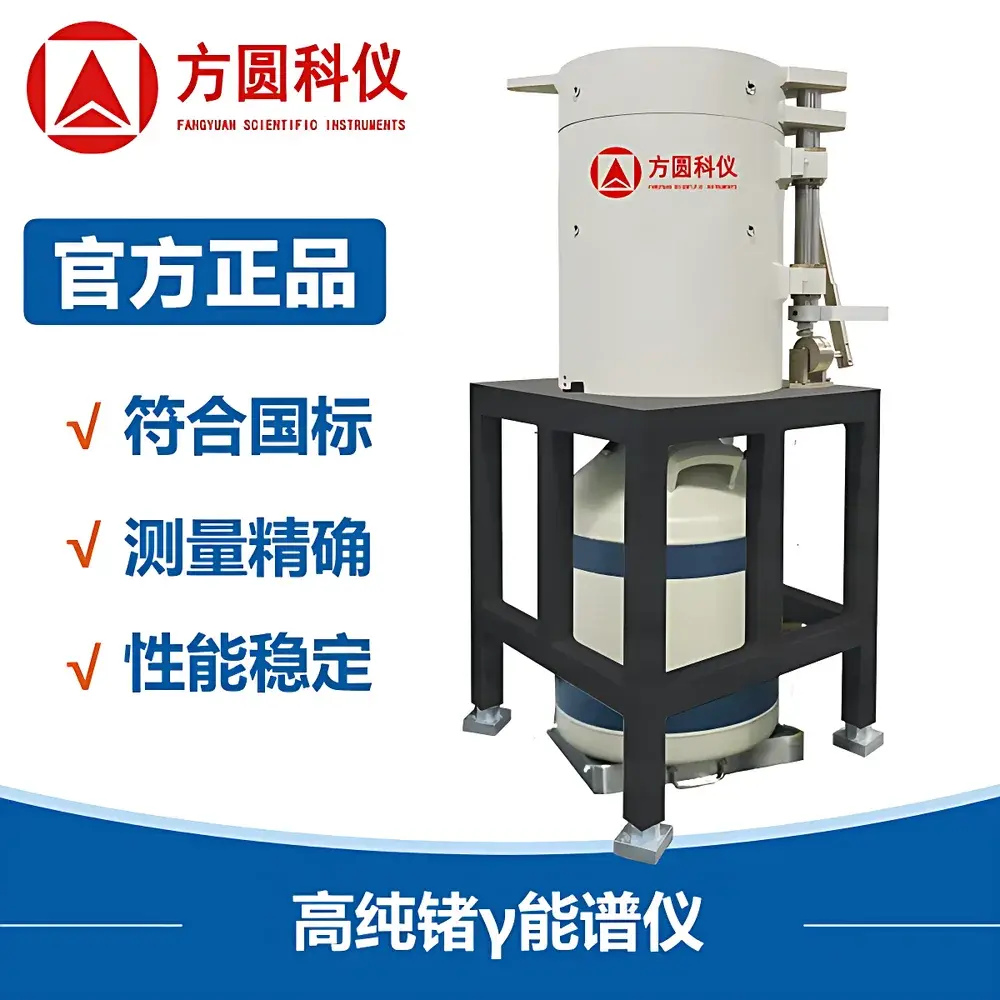

Fangyuan Scientific Instruments FYYDHN Cryogenic Recondensing Nitrogen Refrigerator for High-Purity Germanium (HPGe) Gamma Spectrometers

Overview

The Fangyuan Scientific Instruments FYYDHN Cryogenic Recondensing Nitrogen Refrigerator is an engineered solution for continuous, low-maintenance cryogenic operation of high-purity germanium (HPGe) gamma-ray spectrometers. Unlike conventional dewar-based liquid nitrogen (LN₂) systems—requiring weekly refills—or fully electric cryocoolers—prone to micro-vibrations and thermal drift—the FYYDHN integrates a high-reliability Stirling-cycle cryocooler with a closed-loop nitrogen recondensation architecture. Its core function is to capture gaseous nitrogen evaporated from the HPGe detector’s vacuum dewar, compress and thermally recondense it back into liquid phase within an integrated 30 L reservoir. This closed-cycle approach eliminates routine LN₂ replenishment while preserving the ultra-stable thermal environment essential for energy-resolving gamma spectroscopy. The system operates autonomously with embedded real-time monitoring and meets the mechanical, thermal, and metrological requirements defined in GB/T 43535-2023 for HPGe spectrometer support infrastructure.

Key Features

• Stirling-cycle cryocooler with >150,000 hours MTBF, delivering stable cold-end temperatures ≤77 K at the detector interface
• Integrated LN₂ recondensation loop enabling ≥30 months of uninterrupted detector cooling under continuous power
• 7-day hold time: Full 30 L LN₂ reservoir sustains detector cryogenic operation for >168 hours during power outage
• Low-vibration design (<60 dB(A) at 1 m) optimized for gamma spectrometry—minimizing spectral line broadening from mechanical coupling
• Customizable cold finger interface (Ø31.5–33 mm) with O-ring sealed thermal coupling, compatible with standard HPGe detector mounts
• 5-inch industrial-grade capacitive touchscreen displaying real-time LN₂ level, internal dewar pressure, cryocooler head temperature, fan RPM, and instantaneous cooling power
• Dual redundant pressure-relief valves compliant with ASME BPVC Section VIII safety protocols for pressurized cryogenic vessels
• Comprehensive alarm system: visual/audible alerts for low LN₂ level, overtemperature, overpressure, and cooling failure
• USB 2.0 interface supporting .NET-based Windows software for long-term operational logging, trend analysis, and GLP-compliant audit trails

Sample Compatibility & Compliance

The FYYDHN is purpose-built for integration with commercial and research-grade HPGe gamma spectrometers requiring sustained 77 K operation. It supports detectors with standard cold finger diameters (31.5–33 mm) and accommodates custom flange geometries upon request. All wetted materials—including stainless-steel condenser coils, aluminum reservoir housing, and FDA-compliant silicone O-rings—meet ASTM F2219 and ISO 8502-3 standards for cryogenic compatibility and outgassing control. The system complies with GB/T 43535-2023 for auxiliary cryogenic equipment used in nuclear radiation measurement applications. Electrical safety conforms to IEC 61010-1:2010 (Measurement, Control, and Laboratory Equipment). While not certified to UL or CE for direct EU/US market placement, its architecture aligns with key functional safety principles required under ISO 13849-1 for Category 3 PLd-rated laboratory support systems.

Software & Data Management

The included PC software—built on Microsoft .NET Framework 4.8—enables full remote supervision via USB connection. It records timestamped datasets including LN₂ level (%), dewar pressure (kPa), cryocooler cold-head temperature (°C), compressor current (A), fan speed (RPM), and cumulative operating hours. Data export is supported in CSV and XML formats, facilitating import into LIMS or custom QA/QC dashboards. The software implements basic 21 CFR Part 11 functionality: user-defined roles (Admin, Operator), electronic signatures for configuration changes, and immutable audit logs with tamper-evident timestamps. No cloud dependency is required; all data resides locally unless manually exported. Firmware updates are performed offline via USB drive, ensuring air-gapped security in regulated environments.

Applications

• Long-duration gamma spectroscopy in environmental radioactivity monitoring (e.g., soil, water, air filters)
• Non-destructive assay (NDA) of nuclear fuel cycle materials in safeguards laboratories
• Reference material certification and inter-laboratory comparison studies requiring multi-month spectral stability
• Low-background physics experiments where cryogenic vibration isolation is critical to energy resolution
• Portable HPGe field systems deployed in remote locations with unreliable grid power
• Secondary cooling support for other LN₂-dependent instrumentation—including superconducting quantum interference devices (SQUIDs) and certain FTIR accessories

FAQ

Does the FYYDHN require external liquid nitrogen to start operation?
No. Initial charge of LN₂ is required only once during commissioning. After startup, the system continuously recondenses evaporated nitrogen and maintains reservoir level autonomously.
Can the FYYDHN be integrated with third-party HPGe spectrometers not listed in the manual?
Yes—provided the detector’s cold finger diameter falls within the 31.5–33 mm range and thermal interface geometry permits mechanical sealing. Custom adapter flanges are available upon engineering review.
Is the USB software compatible with Linux or macOS?
No. The native software is Windows-only (.NET Framework). However, raw USB HID data packets can be parsed using cross-platform libraries (e.g., libusb) for custom integrations.
What maintenance is required beyond routine filter replacement?
None. The Stirling cryocooler is hermetically sealed and oil-free. The only scheduled maintenance is biannual replacement of the 10-piece filter pack (210 × 160 × 3 mm) to ensure dust-free airflow across heat exchangers.
How is calibration traceability established for temperature and pressure readings?
Factory calibration uses NIST-traceable reference sensors. End users may perform verification using external Class A PT100 probes and digital manometers—no field recalibration capability is provided, preserving metrological integrity.
