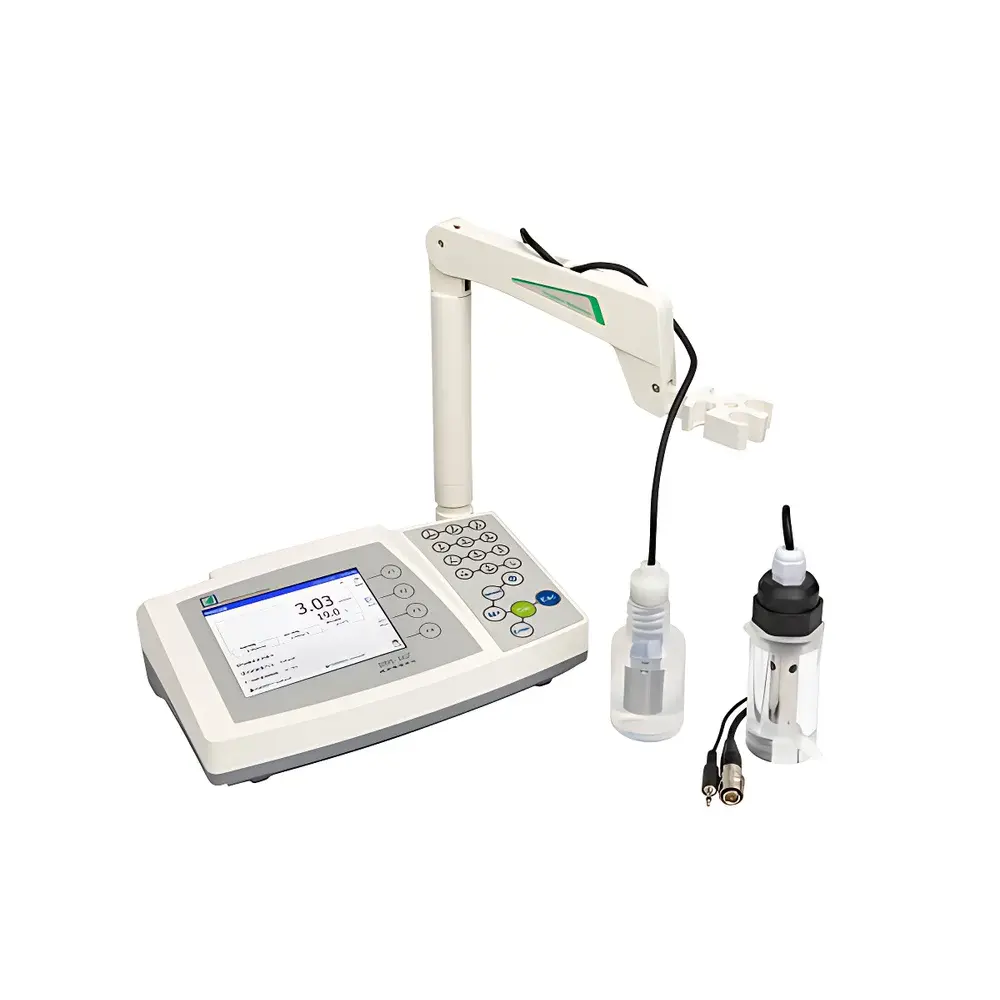

FangZhou DDS-302+ Pharmaceutical Water Conductivity Meter

Overview

The FangZhou DDS-302+ Pharmaceutical Water Conductivity Meter is a benchtop electrochemical analyzer engineered for high-precision, regulatory-compliant measurement of conductivity, resistivity, TDS, salinity, and temperature in purified water systems used across pharmaceutical manufacturing, biotechnology, semiconductor fabrication, and power generation facilities. It operates on the principle of two-electrode or four-electrode conductometric measurement—applying an alternating current across a defined electrode geometry to determine solution conductivity while minimizing polarization effects. The instrument adheres to pharmacopeial requirements for water quality verification, including USP <645>, EP 2.2.38, and ChP 0681, supporting dedicated operational modes for Purified Water (PW), Water for Injection (WFI), and Electronic Grade Water (EW-I/II/III). Its architecture integrates dual-temperature compensation algorithms—linear and non-linear—to ensure traceable accuracy across wide thermal gradients encountered in cold storage, distribution loops, and point-of-use validation.

Key Features

• 7-range auto-scaling conductivity measurement with dynamic resolution from 0.0001 µS/cm (at low-range DJS=0.01 cm⁻¹) up to 200 mS/cm, eliminating manual range selection errors
• Dual-mode temperature compensation: automatic (ATC) via integrated Pt1000 sensor or manual (MTC) input; configurable reference temperature (15.0–25.0 °C) and temperature coefficient (0.00–10.00 %/°C)
• Pharmaceutical-grade water mode library: preconfigured profiles for USP PW/WFI, EP Purified Water, ChP Injectable Water, and SEMI F75 EW-I/II/III standards—with real-time pass/fail alerts based on pharmacopeial limits
• Comprehensive electrode management system: stores electrode ID, calibration history, cell constant (DJS), and date-stamped validation records per electrode
• Role-based user access control: supports up to 1,000 unique user accounts with password protection, hierarchical permissions (admin/operator/auditor), and GLP-mandated login/logout logging
• Method-driven operation: 100 programmable measurement methods—including sample ID templates, alarm thresholds, reporting formats, and auto-sampling intervals—enabling SOP-aligned workflows
• Regulatory-ready data integrity: full audit trail (user, timestamp, parameter change, calibration event), electronic signature support, and 21 CFR Part 11–compatible data export protocols

Sample Compatibility & Compliance

The DDS-302+ is validated for use with Type I, II, and III laboratory water (per ISO 3696), USP Purified Water and WFI, and ASTM D1193 Type I–IV reagent water. Its sensor interface accommodates standard DIN/ISO 7/16 mm screw-thread electrodes (e.g., DJS-0.01, DJS-0.1, DJS-1.0) and optional four-electrode cells for ultra-low-conductivity applications (<0.1 µS/cm). All calibration solutions comply with NIST-traceable reference material specifications, with built-in libraries covering GB/T 6682 (China), ASTM D1125, and Ph. Eur. conductivity standards. The device meets ISO/IEC 17025 documentation requirements for calibration traceability and is manufactured under ISO 9001:2015 quality management systems—certified by SGS and recognized by CNAS-accredited laboratories.

Software & Data Management

Data acquisition and reporting conform to Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) frameworks. Each stored record includes sample ID, operator ID, method ID, electrode serial number, calibration status, ambient temperature, measurement timestamp (with RTC clock), and raw/conversion values. Export is supported via USB mass storage or RS-232 serial interface directly to Windows-based systems without proprietary drivers—enabling native import into Microsoft Excel (.csv), Word (.rtf), or plain-text editors. Three report formats are available: Simple (minimal metadata), Standard (full measurement context), and GLP (compliant with FDA 21 CFR Part 11 Annex 11 requirements—including electronic signatures, revision history, and tamper-evident checksums). Internal memory retains ≥100,000 full records with time/date stamping and automatic overwrite protection for critical validation batches.

Applications

• Validation and routine monitoring of pharmaceutical water purification systems (RO, EDI, distillation, ultrafiltration)
• Final rinse water qualification in sterile device manufacturing per ISO 13485 and FDA QSR
• Monitoring of ultrapure water (UPW) distribution loops in semiconductor fabs (SEMI F63/F75 compliance)
• Calibration verification of inline conductivity sensors using grab-sample correlation studies
• Environmental monitoring of cleanroom humidification systems and HVAC condensate
• Supporting ISO 14644-1 particle-free environment certification through water purity verification

FAQ

Does the DDS-302+ meet USP <645> requirements for purified water testing?
Yes—the instrument implements non-linear temperature compensation and supports USP-defined reference temperatures (25 °C), resistivity conversion algorithms, and alarm thresholds aligned with USP <645> Stage 1–3 acceptance criteria.
Can it store calibration certificates for multiple electrodes?
Yes—each electrode is assigned a unique ID; its calibration constants, dates, standard solutions used, and technician signatures are retained independently within the electrode management module.
Is data export compatible with LIMS integration?
Yes—CSV-formatted output via USB or RS-232 includes all required metadata fields (e.g., sample_id, operator_id, method_id, timestamp, uncertainty flags) for direct ingestion into most LIMS platforms without middleware.
What is the maximum allowable temperature drift during WFI measurement?
The instrument’s Pt1000 sensor provides ±0.2 °C accuracy over −25.0–135.0 °C; combined with ATC compensation, this ensures ≤±0.5% FS total system error at 90 °C—within USP <645> tolerance for hot WFI sampling.
How does the system prevent unauthorized method modifications?
Method editing requires administrator-level credentials; all changes generate an immutable audit log entry showing user ID, timestamp, original vs. revised parameters, and justification field (if enabled in security policy).
