FERRITE-CHECK 240 Ferrite Meter by Shanda Instruments

Overview

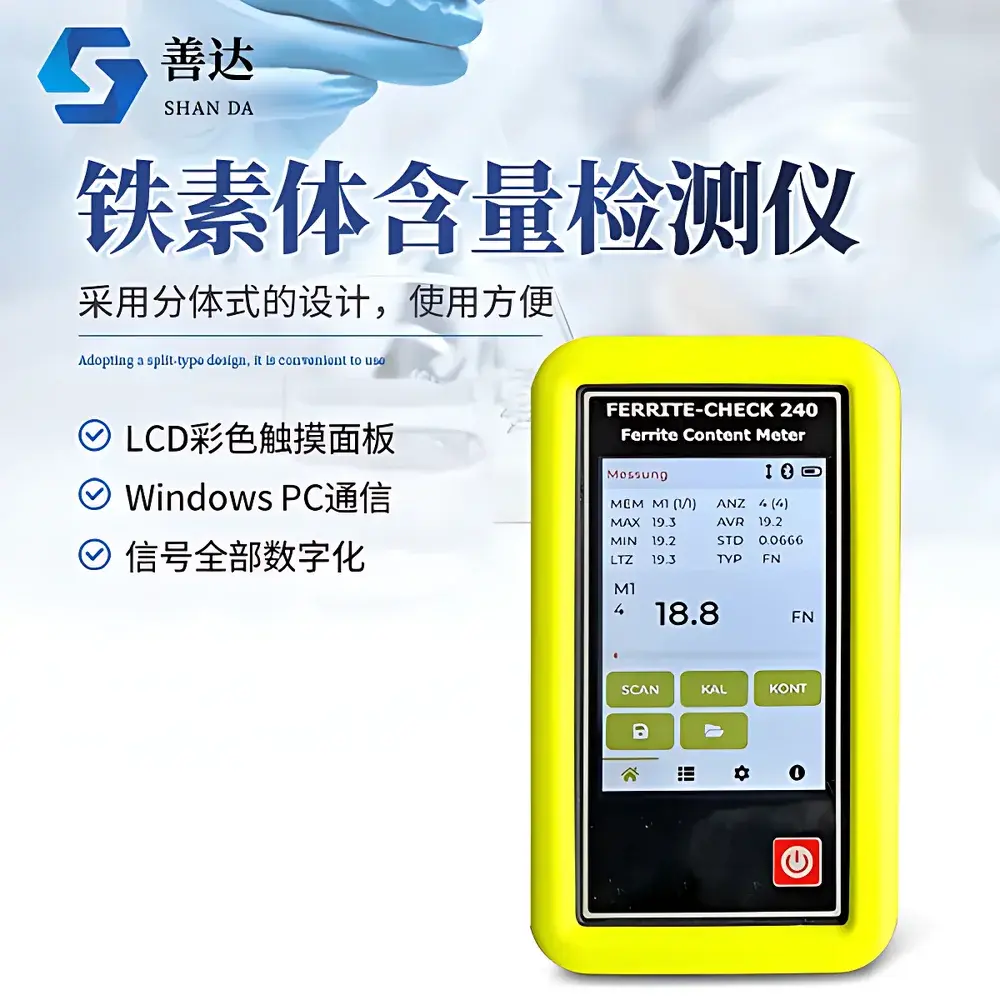

The FERRITE-CHECK 240 Ferrite Meter is a portable, high-precision magnetic induction instrument engineered for the quantitative determination of ferrite content in austenitic stainless steels and duplex/super-duplex weldments. Based on the principle of magnetic permeability measurement—where the ferrite phase exhibits significantly higher magnetic susceptibility than the non-magnetic austenite matrix—the device delivers rapid, non-destructive Fe% (ferrite percentage) and FN (ferrite number) readings in accordance with the internationally recognized standard DIN EN ISO 8249. Its compact, ergonomic design integrates a dedicated Ferrite-2000 probe optimized for consistent lift-off control and field homogeneity, enabling reliable measurements on curved surfaces, narrow weld beads, and heat-affected zones where microstructural heterogeneity is critical to corrosion resistance and mechanical integrity.

Key Features

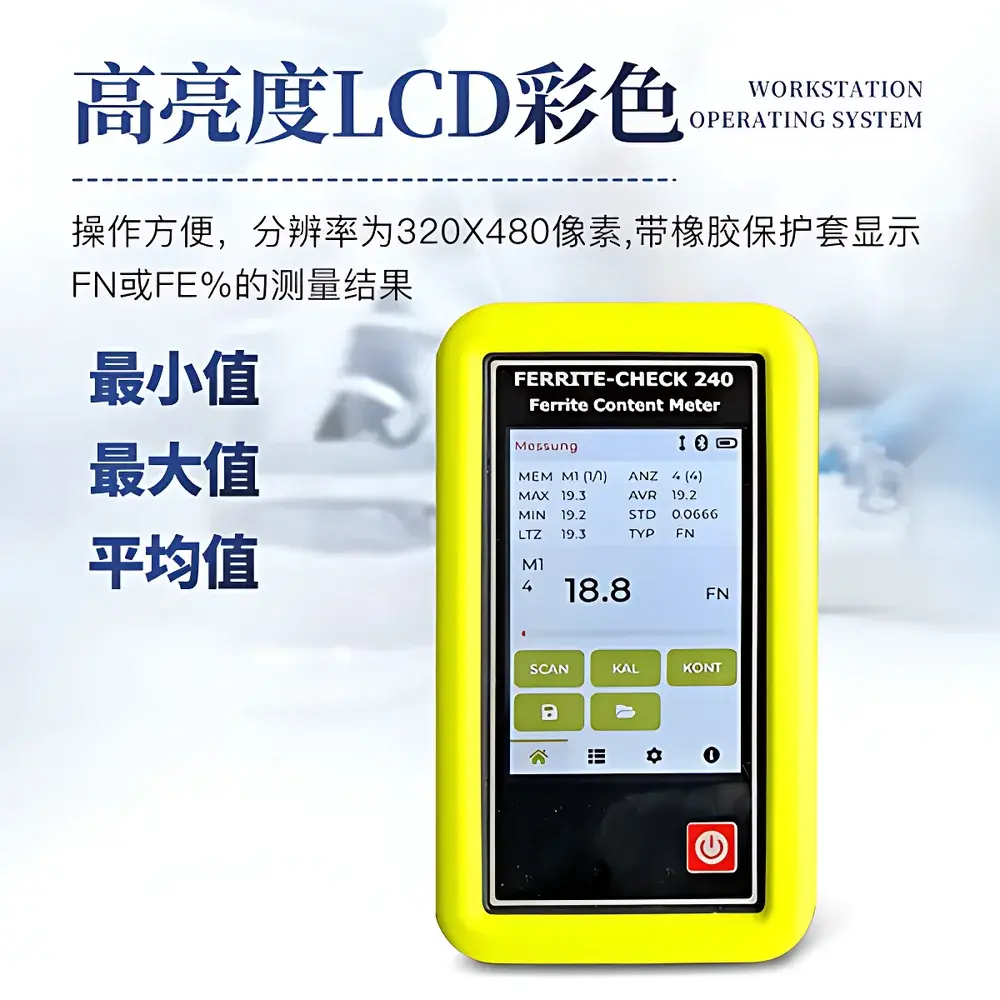

• High-resolution color LCD touchscreen (320 × 480 px) with intuitive multi-language interface (English, German, French, Italian, Spanish)
• Dual-unit display: simultaneous readout in Fe% and FN, traceable to DIN EN ISO 8249 calibration protocols
• Robust architecture with IP54-rated housing and integrated rubber protective sleeve for industrial workshop environments
• Flexible measurement modes: single-point acquisition or continuous scanning for spatial profiling across weld seams
• On-device statistical engine supporting real-time calculation of mean, standard deviation, minimum, maximum, and count per data group
• USB-C powered operation with optional external supply—eliminating downtime during extended QA/QC campaigns

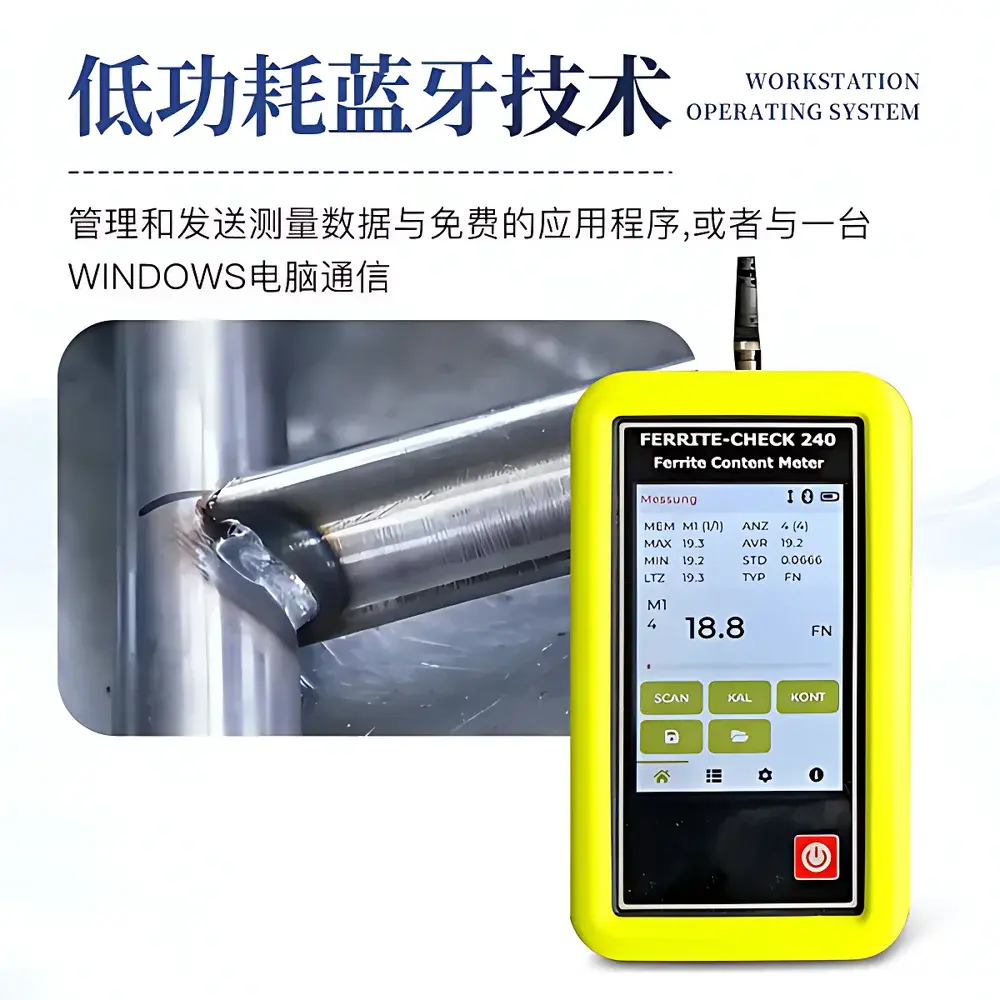

• Bluetooth 5.0 module compliant with BLE 4.2 specifications, ensuring secure pairing and low-latency data streaming

Sample Compatibility & Compliance

The FERRITE-CHECK 240 is validated for use on flat, convex, or concave surfaces of austenitic and duplex stainless steels—including ER308L, ER309L, ER2209, and UNS S32750—with surface roughness ≤ Ra 3.2 µm and minimum thickness ≥ 2 mm. It accommodates weld widths down to 2 mm and tolerates moderate surface oxidation or light mill scale when calibrated using the included set of three NIST-traceable ferrite reference blocks (certified at 5 Fe%, 30 Fe%, and 70 Fe%). All measurements adhere strictly to DIN EN ISO 8249:2018, which defines the correlation between magnetic response and ferrite volume fraction, and supports audit readiness under ISO 17025-accredited laboratory practices. The instrument’s firmware and Lima Connect software maintain full traceability logs required for GLP/GMP documentation workflows.

Software & Data Management

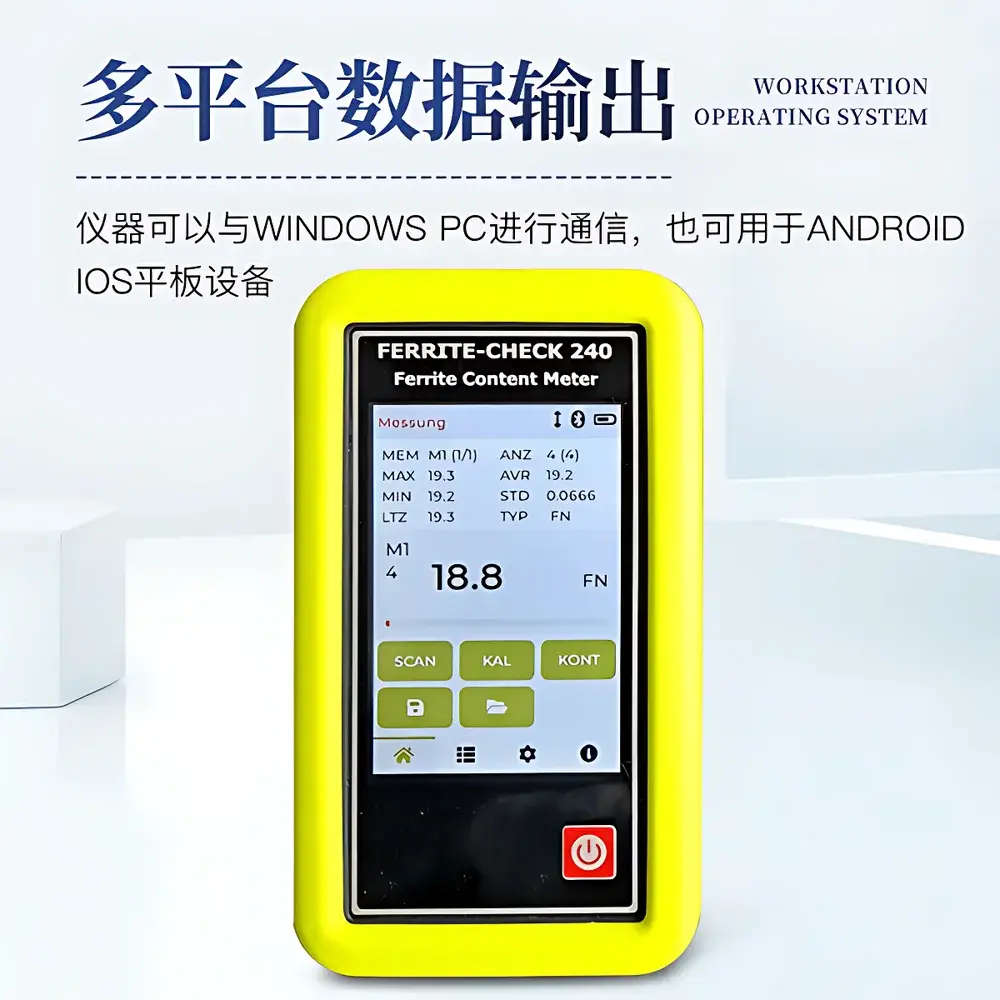

Lima Connect—a free, cross-platform desktop and mobile application—enables comprehensive post-processing, report generation, and database synchronization. Users can export CSV or PDF reports with embedded metadata (timestamp, operator ID, location tag, calibration status), apply custom pass/fail thresholds per project, and generate histograms or trend charts for longitudinal weld quality monitoring. The software enforces electronic signature capture and maintains immutable audit trails compliant with FDA 21 CFR Part 11 requirements when deployed in regulated manufacturing settings. All stored measurements (up to 10,000 entries) are timestamped, grouped by batch or job ID, and support hierarchical folder-based organization for seamless integration into enterprise QMS platforms.

Applications

• Weld procedure qualification (WPQ) and production weld verification in pressure vessel, piping, and offshore fabrication
• In-process monitoring of GTAW, SMAW, and SAW welds to prevent excessive ferrite-induced embrittlement or insufficient ferrite leading to stress corrosion cracking
• Quality assurance audits for ASME Section IX, EN 15614-1, and PED 2014/68/EU compliance
• R&D characterization of filler metal dilution effects and interpass temperature influence on phase balance
• Field service inspection of refinery piping, nuclear component claddings, and pharmaceutical process equipment

FAQ

How does the FERRITE-CHECK 240 ensure measurement repeatability across different operators?

It employs automatic probe lift-off compensation and built-in temperature drift correction algorithms, combined with mandatory pre-measurement zeroing against the supplied reference block—reducing inter-operator variability to <2% RSD under controlled conditions.
Can the instrument be recalibrated in-house?

Yes—users may perform routine performance verification using the three certified reference blocks; however, full metrological recalibration requires return to an authorized Shanda service center accredited to ISO/IEC 17025.
Is the Bluetooth connection encrypted?

Data transmission uses AES-128 encryption and authenticated pairing to prevent unauthorized access or data interception during wireless transfer.
Does the device meet electromagnetic compatibility (EMC) requirements for use near welding equipment?

It complies with EN 61326-1:2013 for industrial electromagnetic environments, including immunity to arc flash transients and magnetic field interference up to 30 A/m at 50 Hz.
What happens if the battery voltage drops below operational threshold during measurement?

The system triggers a progressive warning sequence (visual + audible) starting at 30% remaining capacity and auto-saves all active data before safe shutdown at 5%.
