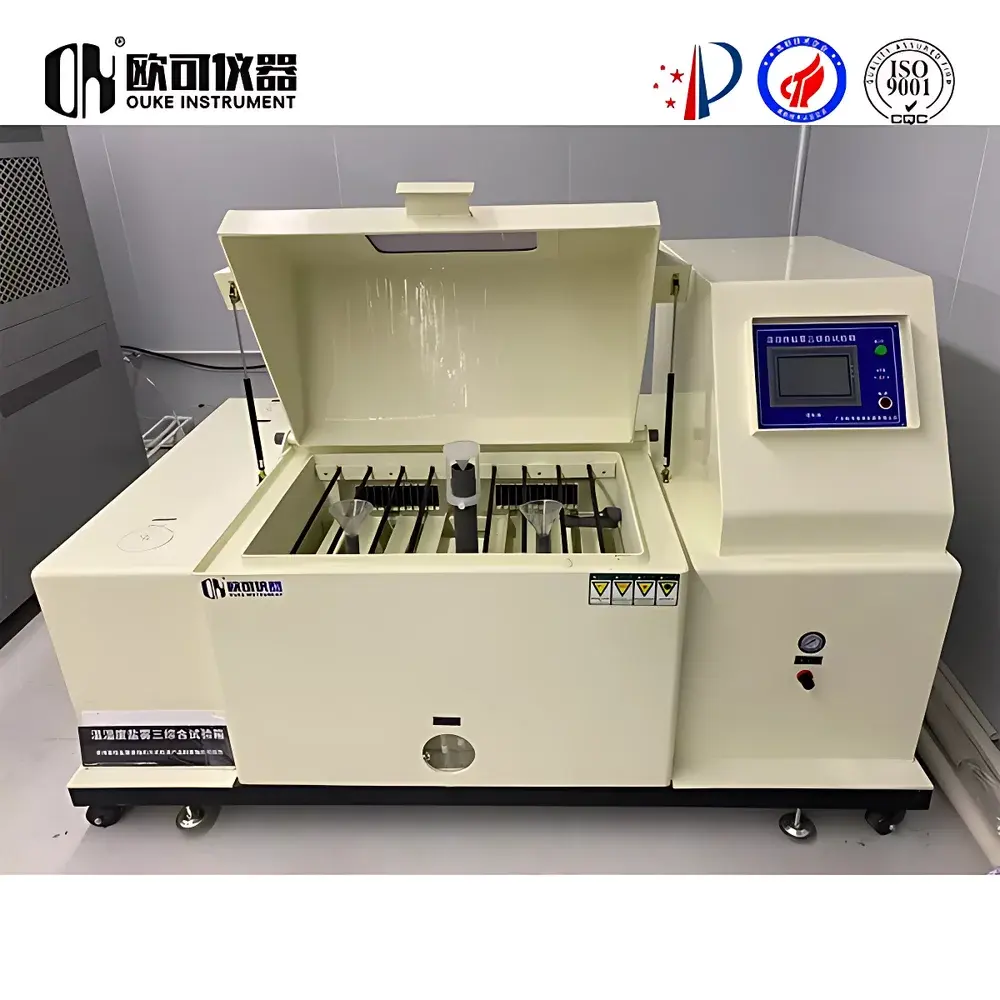

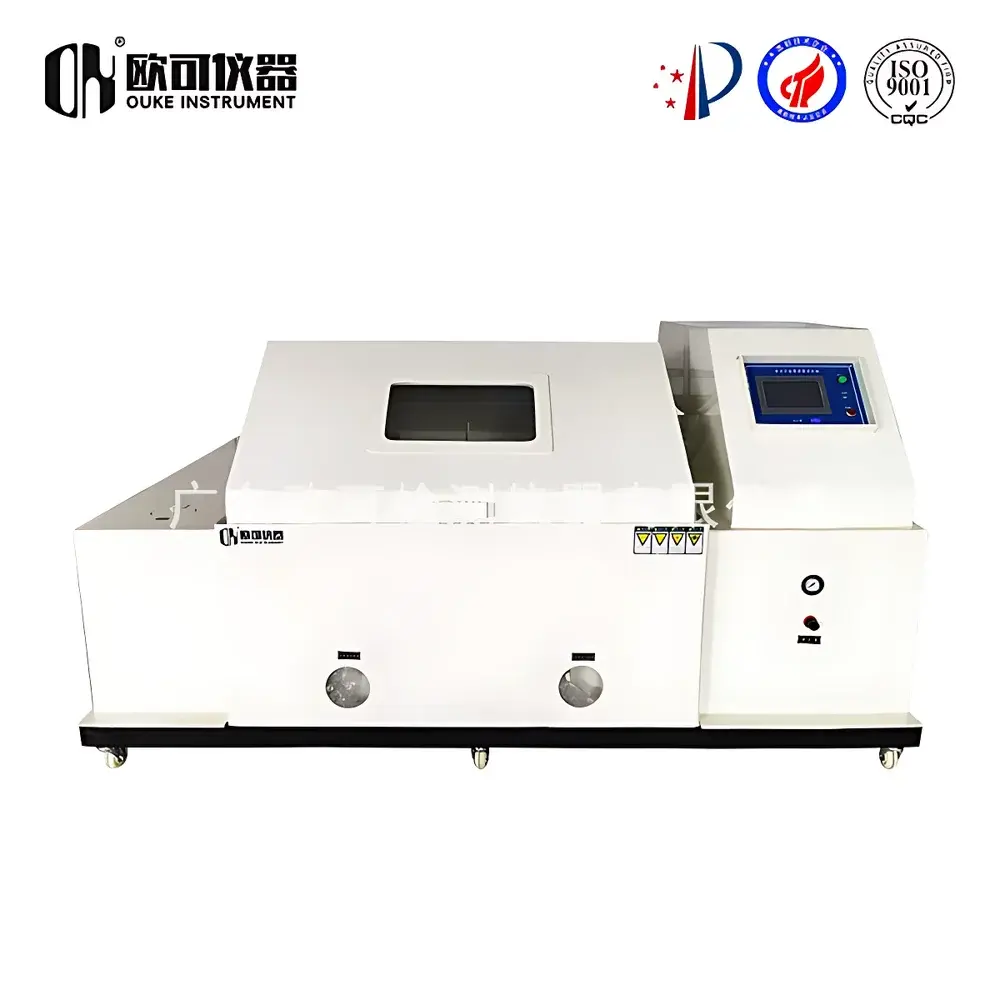

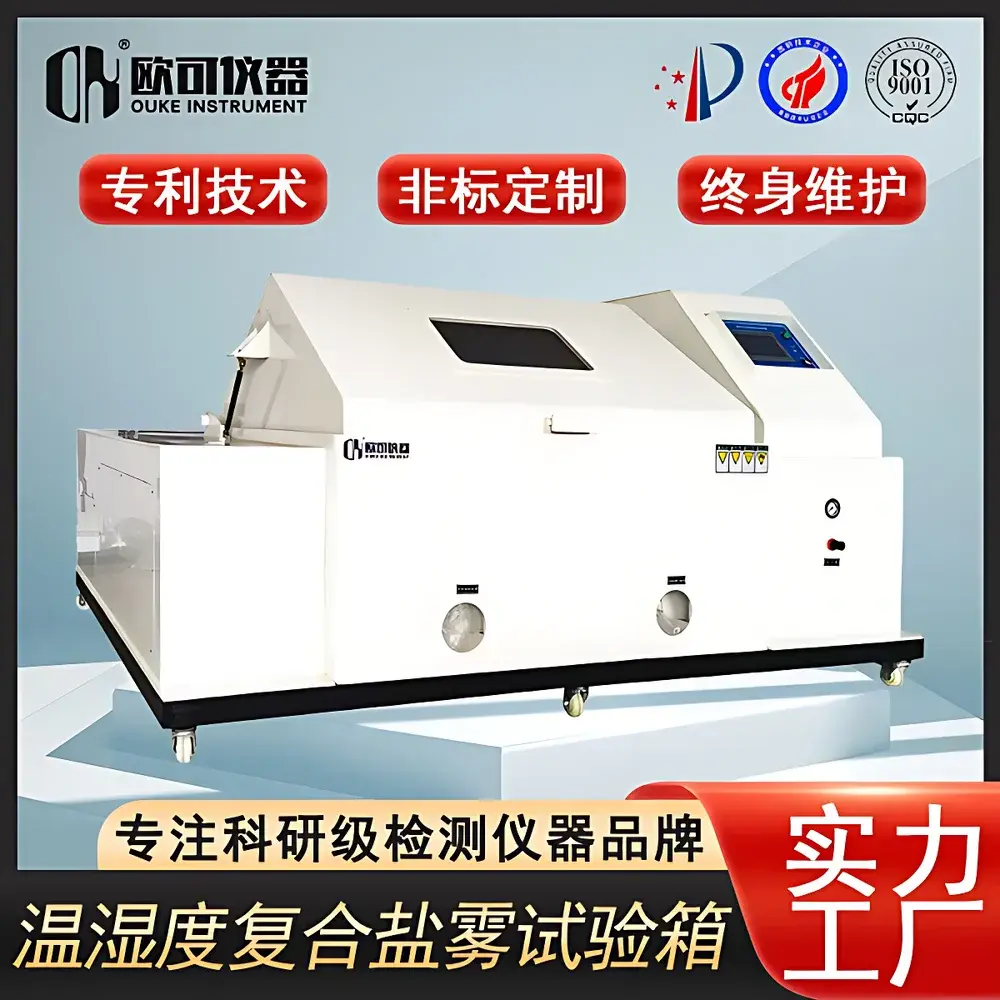

OK-FH-98 Combined Temperature-Humidity-Salt Fog-Vibration Environmental Test Chamber

Overview

The OK-FH-98 Combined Temperature-Humidity-Salt Fog-Vibration Environmental Test Chamber is an engineered solution for accelerated cyclic corrosion testing (CCT), integrating precise thermal conditioning, controlled humidity exposure, programmable salt fog generation, and synchronized electrodynamic vibration simulation within a single chamber architecture. Unlike conventional static salt spray chambers operating under ASTM B117, the OK-FH-98 implements multi-phase environmental sequencing—alternating between salt deposition, drying, and high-humidity condensation phases—to replicate the natural degradation mechanisms observed in real-world outdoor service environments. This approach enables laboratory-based prediction of long-term material performance (e.g., coating integrity, galvanic stability, substrate pitting resistance) over months or years of field exposure within days or weeks of test time. Its operational principle is grounded in Couette-flow salt雾 dispersion, PID-controlled refrigeration/heating circuits, and closed-loop humidity regulation via steam injection and desiccant-assisted dehumidification—all coordinated through a deterministic real-time control system compliant with IEC 61508 SIL2 functional safety requirements.

Key Features

• Triple-environment integration: Simultaneous or sequential control of temperature, relative humidity, and neutral/acidic salt fog concentration (pH 6.5–7.2 or pH 3.0–3.2 per ASTM G85 Annex A5)

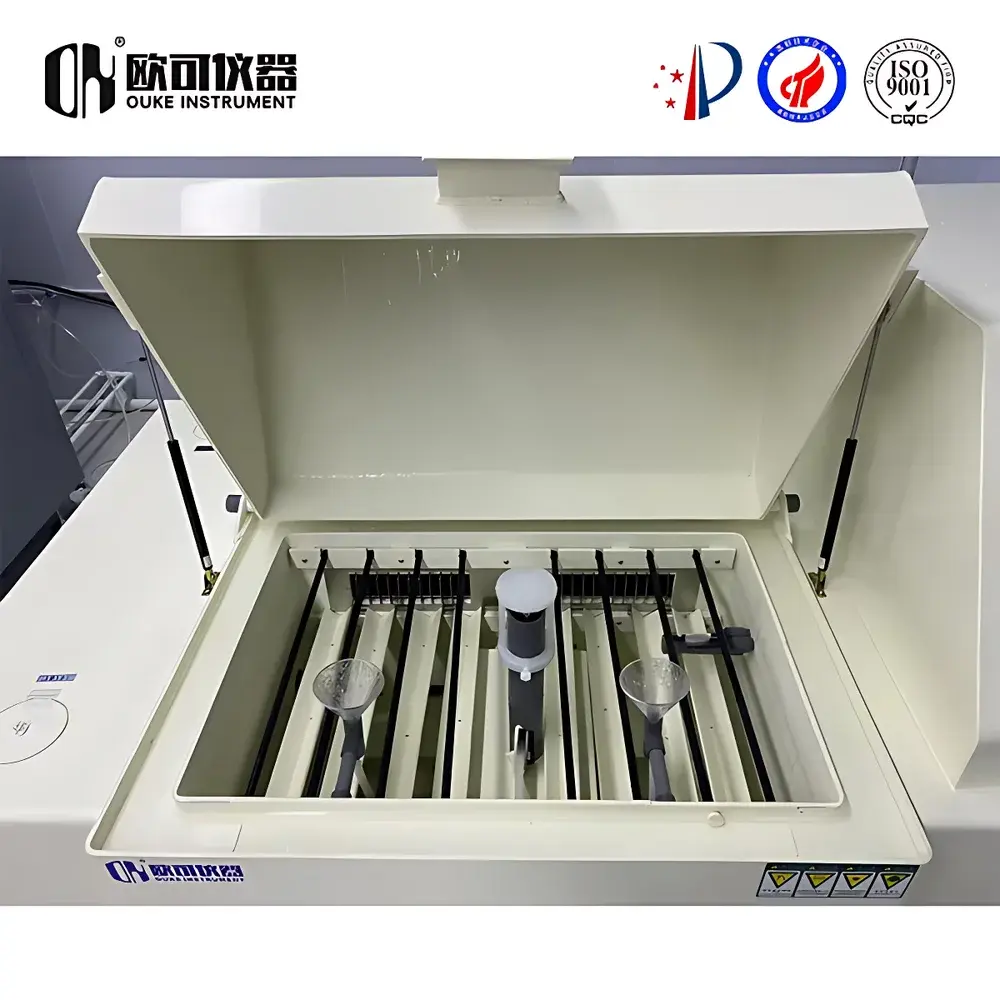

• Corrosion-resistant chamber construction: Fiberglass-reinforced polymer (FRP) inner chamber walls, titanium-sheathed heating elements, PVC-coated stainless steel sample racks, and ceramic-nozzle fog generators
• Integrated cross-contamination mitigation: Automated post-spray neutralization cycle using diluted sodium bicarbonate solution, followed by hot-air purge (up to 120 °C) and vacuum-assisted chamber evacuation
• Programmable multi-stage cycling: Supports up to 999 segments per test profile, with independent setpoint definition for temperature, RH, fog duration, vibration frequency (5–2000 Hz), and acceleration (0.5–20 g_rms)
• Real-time environmental monitoring: Dual-channel Pt100 temperature sensors, capacitive RH transducers with NIST-traceable calibration, and conductivity-based fog concentration feedback loop
• Compliance-ready data logging: Automatic timestamped recording of all process variables at user-defined intervals (1 s to 60 min), with CSV export and optional 21 CFR Part 11 audit trail module

Sample Compatibility & Compliance

The OK-FH-98 accommodates standard automotive test panels (150 mm × 70 mm × 0.8–1.2 mm), electronic control units (ECUs), brake calipers, fasteners, and coated sheet metal specimens up to 15 kg total mass. It meets structural and operational requirements for ISO 11997-1:2013 (Cyclic Corrosion Testing – Part 1: General Principles), ASTM G85-22 (Standard Practice for Modified Salt Spray (Fog) Testing), and major OEM specifications including GMW 14872 (General Motors), Ford CETP 00.00-L-467 (Ford Motor Company), Volvo VCS 1027,149, and SAE J2334. Chamber geometry and airflow design comply with ISO 9227 Annex C for uniform fog distribution (±15 % variation across test zone). All electrical components conform to GB/T 14048.1 and IEC 60529 IP54 ingress protection standards.

Software & Data Management

The embedded OK-Control Suite v4.2 provides intuitive graphical programming of multi-parameter test sequences, live parameter visualization, and remote supervision via Ethernet or optional Wi-Fi interface. Software supports import/export of test profiles in XML format compatible with LabVIEW, MATLAB, and MES platforms. Data files are stored in encrypted SQLite databases with SHA-256 hashing and support automatic backup to network-attached storage (NAS) or cloud endpoints (AWS S3, Azure Blob). Optional validation packages include IQ/OQ documentation templates aligned with GLP and ISO/IEC 17025 laboratory accreditation requirements. Electronic signatures, role-based access control, and configurable alarm escalation (email/SMS) are available under FDA 21 CFR Part 11 compliance mode.

Applications

• Automotive component qualification: Painted body panels, zinc-nickel plated fasteners, aluminum die-cast housings, and EV battery enclosures
• Electronics reliability assessment: PCB conformal coatings, connector plating, and sensor housing seals under combined thermal-humidity-fog stress
• Aerospace fastener evaluation: Titanium alloy bolts subjected to cyclic chloride exposure and mechanical loading
• Renewable energy hardware testing: Solar mounting brackets, offshore wind turbine substructures, and marine-grade inverters
• Materials R&D: Development and benchmarking of new anti-corrosion coatings, self-healing polymers, and cathodic protection systems

FAQ

What distinguishes the OK-FH-98 from traditional salt spray chambers?

It executes standardized cyclic corrosion protocols—not just continuous fog—by integrating temperature ramping, humidity control, and mechanical vibration into one synchronized test sequence.
Does the system support ASTM G85 Annex A5 (acidified salt fog)?

Yes, with optional acid dosing module and pH-stabilized recirculation reservoir.
How is chamber cleanliness verified between cycles?

Post-cycle automated neutralization, hot-air purge, and residual chloride detection via handheld conductivity meter (included in extended service package).
Can vibration be applied simultaneously with salt fog?

Yes—electrodynamic shaker table operates concurrently with fog generation, with isolation mounts preventing mechanical coupling to chamber structure.
Is third-party calibration certification available?

Factory calibration includes NIST-traceable certificates for temperature, humidity, and fog concentration sensors; on-site verification services offered globally.
