Flexshuttle Automated R&D Platform for Paints and Coatings
| Brand | CHEMSPEED |
|---|---|
| Origin | Switzerland |
| Model | Flexshuttle |
| Configuration | Modular, Scalable Laboratory Automation System |
| Application Domain | Formulation Development, High-Throughput Screening, Process Optimization in Coatings & Paints R&D |
Overview

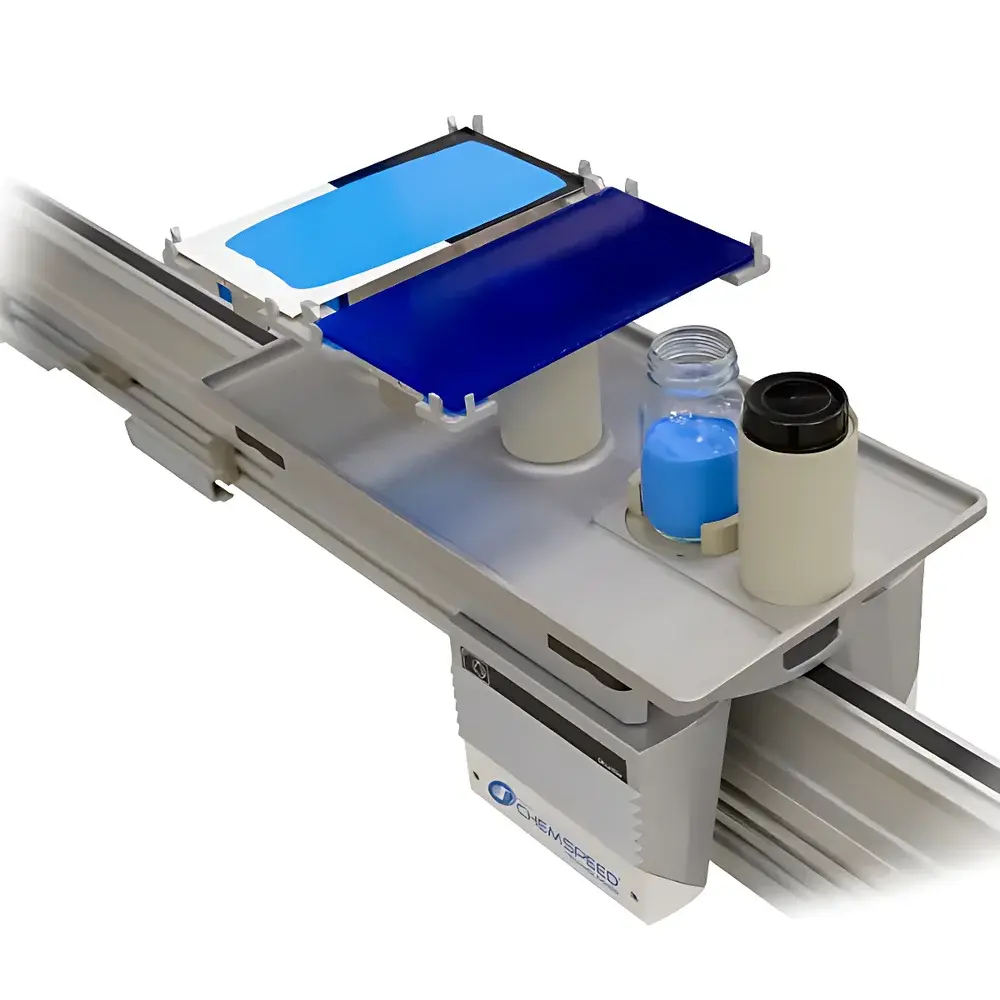

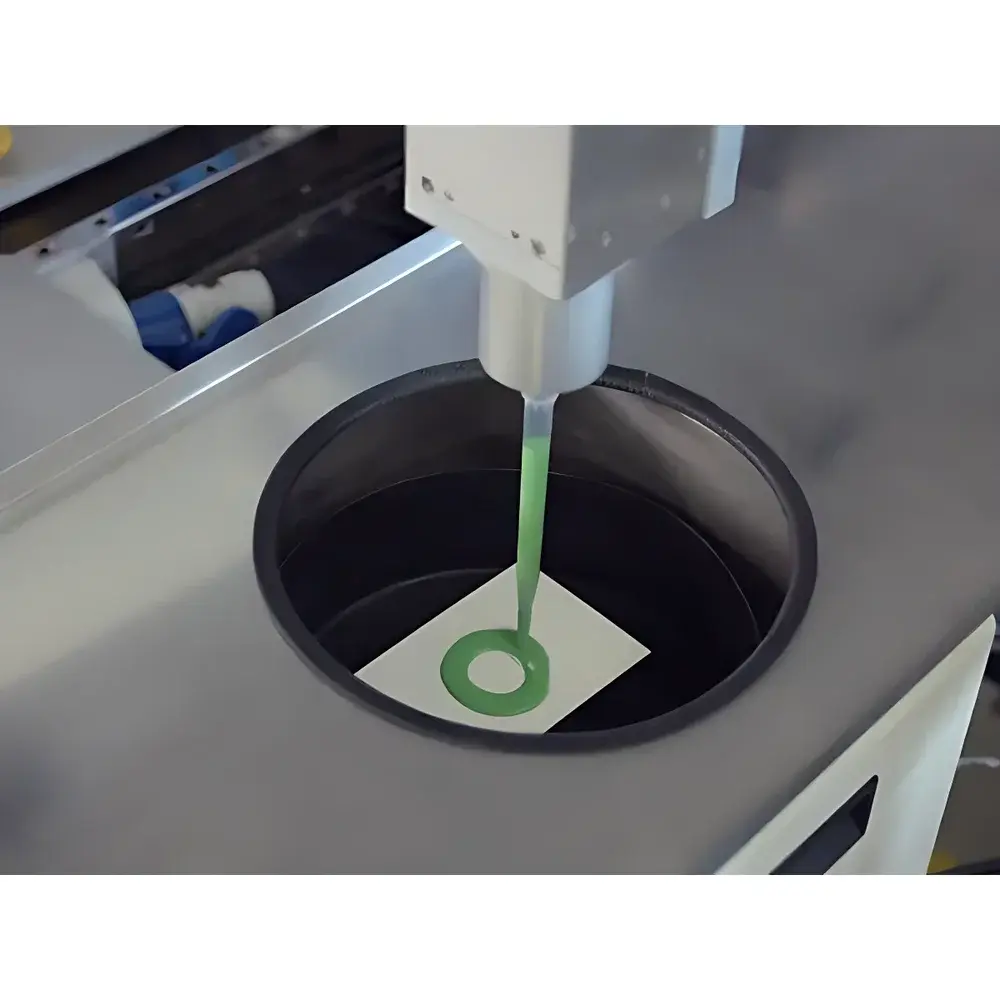

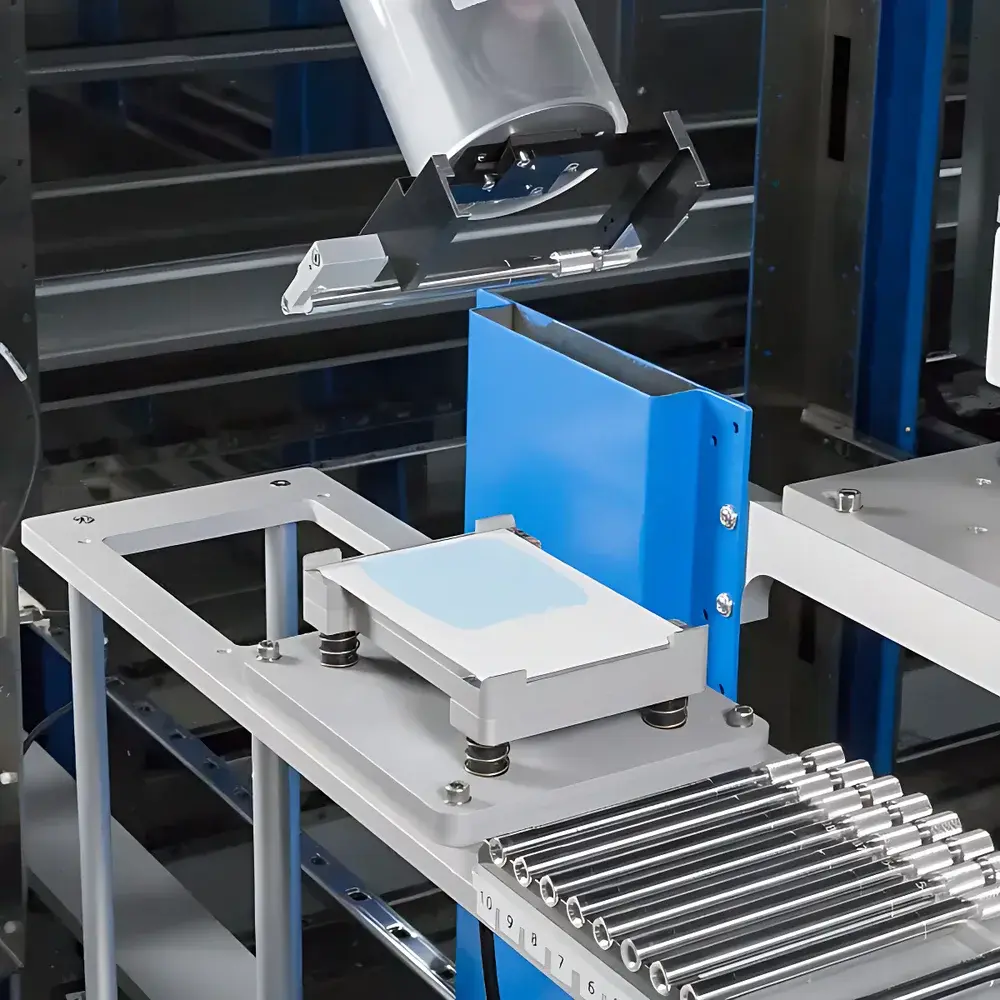

The CHEMSPEED Flexshuttle is a modular, benchtop-scale automated R&D platform engineered specifically for the systematic development of paints, coatings, inks, and related functional dispersions. Unlike conventional single-purpose instruments, the Flexshuttle operates as an integrated miniaturized pilot plant—enabling end-to-end automation of formulation synthesis, sample dispensing, film application (e.g., drawdown, spin-coating), conditioning (temperature/humidity control), and inline or offline performance testing. Its core architecture is based on precision robotic shuttle motion coupled with interchangeable tool modules, allowing seamless coordination between liquid handling, solid dosing, reaction control, and physical property assessment. Designed for laboratories requiring rigorous reproducibility and traceable process data under GLP-compliant workflows, the Flexshuttle bridges the gap between manual lab-scale experimentation and industrial-scale process validation—supporting accelerated formulation iteration without compromising analytical integrity.
Key Features
- Modular Tool Ecosystem: Over 60 standardized, pre-validated automation modules—including top-loading gravimetric dispensers (GDU), 4-channel liquid handlers (4NH), parallel synthesis reactors (ISYNTH), process-development reactors (PD Reactor), multi-well plate pressure blocks (MTP Pressure Block), and multi-functional grippers (Multi-Gripper)—all interoperable within a unified control framework.

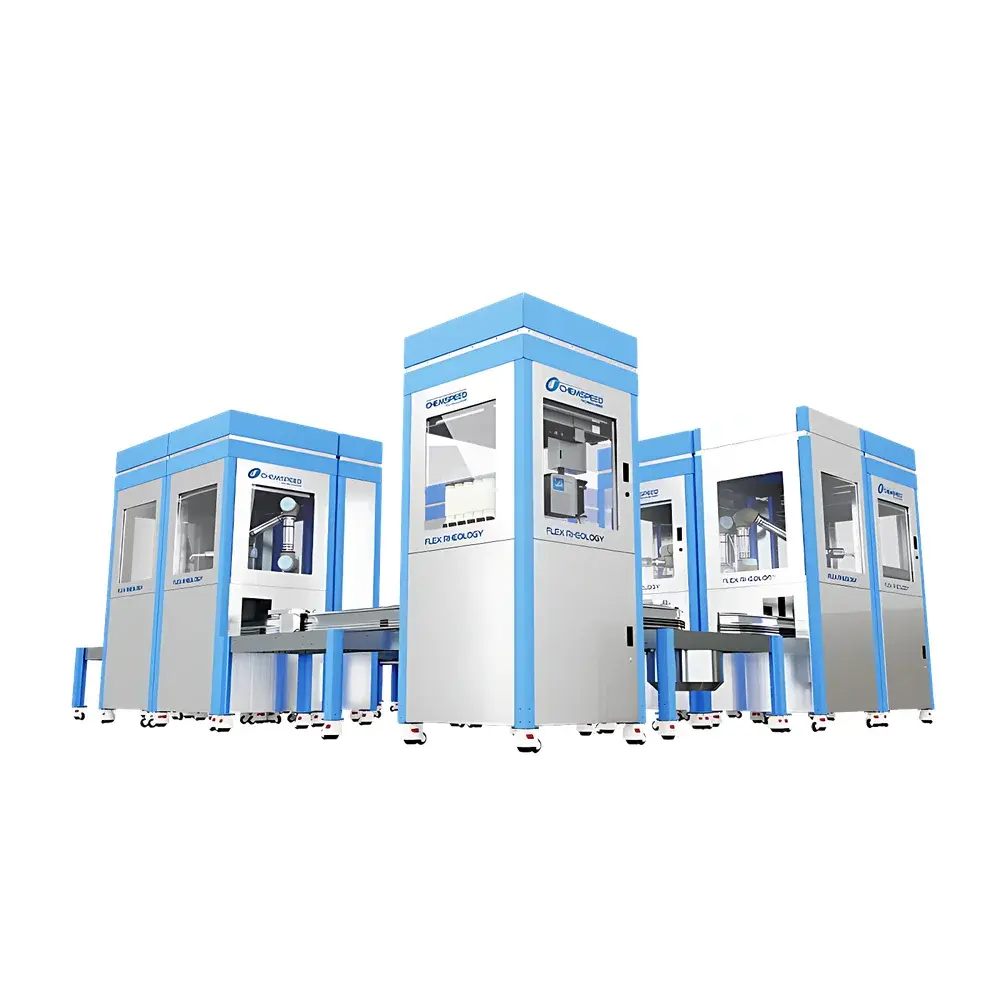

- Scalable Architecture: The Flexshuttle supports incremental expansion—from standalone formulation workstations (FLEX) to fully integrated high-throughput platforms (SWING) and continuous-flow-capable mini-factories (Flexshuttle). Each module retains full calibration traceability and software-defined operational parameters.
- Benchtop Footprint with Industrial Rigor: Compact dimensions (<1.2 m² footprint) accommodate standard fume hoods or controlled-environment labs while delivering engineering-grade repeatability in dosing (±0.1 mg gravimetric accuracy), temperature control (±0.5 °C), and environmental conditioning (programmable RH/Temp cycles).
- Process-Centric Workflow Engine: Native support for sequential, conditional, and parallel task execution—enabling complex protocols such as “formulate → disperse → degas → apply → cure → test” across 200+ samples per day, with full audit trail logging per ICH-GCP and FDA 21 CFR Part 11 requirements.
Sample Compatibility & Compliance
The Flexshuttle handles diverse material classes relevant to coating science: solvent- and water-based acrylics, polyurethanes, epoxy dispersions, pigment concentrates, rheology modifiers, and crosslinker systems. Viscosity range spans from low-shear Newtonian liquids (50,000 mPa·s), accommodated via adaptive pump selection and shear-controlled dispensing paths. All modules comply with CE, RoHS, and ISO 17025-aligned calibration practices. Instrument firmware and method files are designed for compatibility with laboratory information management systems (LIMS) and electronic lab notebooks (ELN), supporting ALCOA+ data integrity principles. Full compliance documentation—including IQ/OQ/PQ templates, risk assessments (FMEA), and change control records—is provided for GMP-regulated environments.
Software & Data Management
Control and orchestration are managed through CHEMSPEED’s SWING Software Suite—a validated, role-based platform featuring drag-and-drop protocol builder, real-time hardware monitoring, and integrated data historian. Each experimental run generates structured metadata (timestamp, operator ID, environmental logs, raw sensor outputs) stored in encrypted SQLite or SQL Server databases. Export formats include ASTM E1578-compliant .csv, .xlsx, and vendor-neutral .hdf5 for downstream statistical analysis (e.g., DoE modeling in JMP or Python-based chemometrics). Audit trails record all user actions, parameter modifications, and system events with immutable timestamps—meeting FDA 21 CFR Part 11 and EU Annex 11 requirements for electronic records and signatures.
Applications
- Rapid screening of resin-pigment-binder combinations for gloss, opacity, and color strength
- Accelerated evaluation of dispersant efficiency and storage stability under thermal cycling
- Design-of-experiments (DoE) for optimizing cure kinetics, film hardness, and adhesion across substrate types
- Development of low-VOC and bio-based formulations with precise solvent replacement mapping

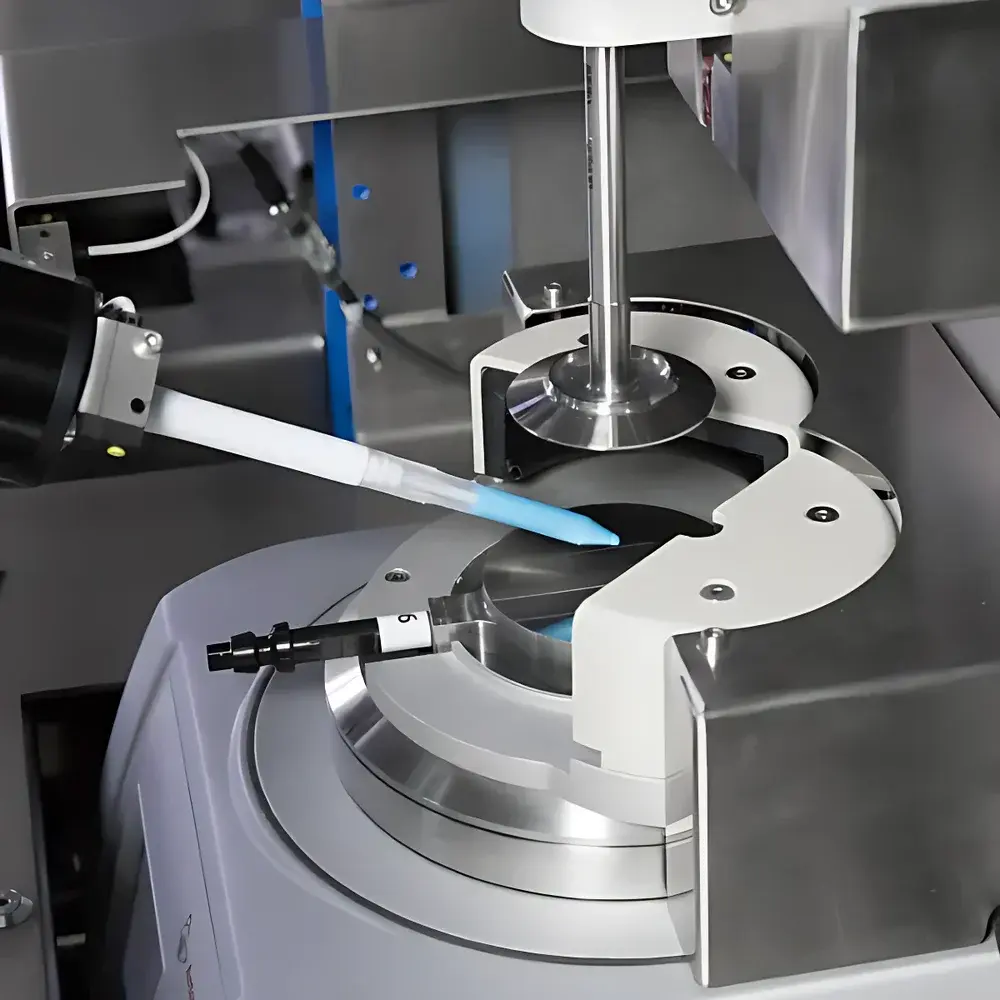

- Correlation of rheological profiles (viscoelastic moduli, yield stress) with application performance metrics
FAQ
Can the Flexshuttle integrate with third-party analytical instruments (e.g., FTIR, DSC, or particle size analyzers)?
Yes—via standardized OPC UA or TCP/IP interfaces, enabling automated sample handoff and synchronized data acquisition.
Is method transfer possible between Flexshuttle and larger CHEMSPEED platforms (e.g., SWING or ACHEMA-scale systems)?
All methods are written in platform-agnostic SWING script language; validated protocols migrate directly with minimal requalification.
What level of validation support does CHEMSPEED provide for regulated environments?
Comprehensive validation packages—including URS, FRS, FAT/SAT reports, and 21 CFR Part 11 configuration files—are available upon request.
How is maintenance and calibration managed across distributed modules?
Each module features embedded self-diagnostics and scheduled calibration reminders; remote diagnostics and predictive maintenance alerts are enabled via optional CHEMSPEED Connect subscription.
