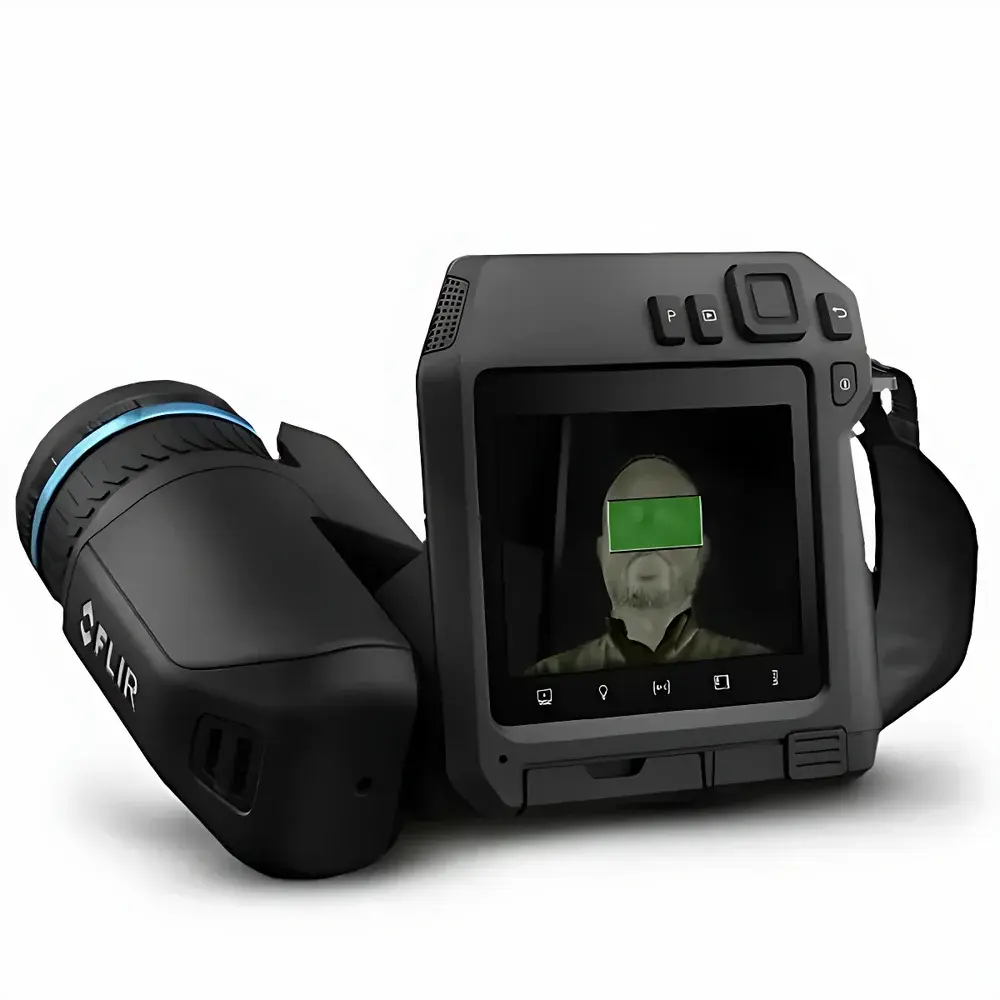

FLIR T540-EST Handheld Thermal Imaging Camera with EST™ Screening Solution

Overview

The FLIR T540-EST is a purpose-engineered handheld thermal imaging camera integrated with FLIR’s EST™ (Elevated Skin Temperature) screening solution. Designed specifically for rapid, non-invasive preliminary temperature assessment in high-traffic environments, it operates on the principle of passive infrared radiometry—detecting mid-wave to long-wave infrared emissions (7.5–13.5 µm) from human skin surface and converting them into calibrated thermal imagery. Unlike clinical thermometers, the T540-EST does not measure core body temperature; rather, it quantifies relative facial skin temperature under controlled ambient conditions, supporting triage workflows in accordance with FDA guidance and ISO/TR 13154:2017 (“Medical electrical equipment — Guidance for manufacturers and users of screening thermographs for human febrile temperature screening”). Its uncooled vanadium oxide (VOx) microbolometer detector ensures operational reliability without cryogenic cooling, enabling immediate startup and sustained field deployment.

Key Features

• Radiometric thermal imaging at 464 × 348 resolution with <30 mK NETD sensitivity, optimized for detecting subtle thermal gradients across the inner canthus region—the anatomical site recommended by ISO/TR 13154 for elevated skin temperature (EST) screening.
• Dedicated Screen-EST™ mode with real-time visual targeting cues, automatic reference temperature tracking, and dynamic ambient drift compensation—ensuring consistent measurement stability across changing environmental conditions (e.g., HVAC fluctuations, sunlight exposure).
• Integrated touchscreen interface with intuitive icon-based pass/fail feedback and optional audible alert—minimizing operator training requirements and reducing cognitive load during high-throughput screening.
• Compliance-ready architecture: No local image storage or biometric data retention in Screen-EST mode; all thermal data are processed in-memory and discarded upon session termination—supporting GDPR, HIPAA, and local privacy regulations.
• Flexible deployment options: Operates on rechargeable lithium-ion battery (≥4 hours continuous use) or external 12 V DC input; includes standard ¼”-20 tripod mount and HDMI/USB-C connectivity for integration into fixed kiosks or centralized monitoring stations.

Sample Compatibility & Compliance

The T540-EST is validated for use in ambient indoor environments where air temperature remains between 15°C and 25°C and relative humidity is maintained below 70%—conditions aligned with ISO/TR 13154 operational recommendations. It requires no physical contact, eliminating cross-contamination risk and enabling safe, socially distanced screening at entry points, transportation hubs, healthcare facilities, and educational institutions. While not a diagnostic medical device, its performance adheres to the technical parameters outlined in FDA’s Enforcement Policy for Telethermographic Systems During the COVID-19 Public Health Emergency (revised May 2020), and supports alignment with GLP-aligned documentation practices when used with FLIR Screen-EST™ Desktop Software for audit-trail generation and session logging.

Software & Data Management

FLIR Screen-EST™ Desktop Software (Windows-based) enables configuration management, firmware updates, report export (CSV/PDF), and session metadata archiving—including timestamps, operator ID, ambient sensor readings, and pass/fail summary statistics. The software enforces role-based access control and generates tamper-evident logs compliant with 21 CFR Part 11 requirements when deployed in regulated environments. All thermal video streams remain unrecorded during live screening; optional recording—only available outside Screen-EST mode—is subject to explicit user activation and local data governance policies.

Applications

• Preliminary health screening at airports, border crossings, and seaports per ICAO Annex 9 guidelines.
• Workplace access control in manufacturing, logistics, and pharmaceutical facilities operating under OSHA and EU-OSHA occupational health protocols.
• Temporary mass-screening deployments during public health emergencies, including pandemic response and outbreak containment scenarios.
• Thermal validation of HVAC zoning efficacy in large venues—leveraging the camera’s radiometric accuracy for environmental thermal mapping.
• Educational institution entry point monitoring, integrated with campus security systems via API-enabled triggers.

FAQ

Is the FLIR T540-EST classified as a medical device?
No. It is a Class I exempt general-purpose thermal imager configured for elevated skin temperature screening per FDA enforcement discretion policy—not intended for clinical diagnosis or treatment decisions.
Does the device store facial images or personal identifiers?
No. In Screen-EST mode, no thermal images, video, or personally identifiable information (PII) are stored, transmitted, or cached locally or remotely.
What is the recommended minimum distance for accurate screening?
A working distance of 1–3 meters is advised, with optimal focus achieved at 1.5 m using the built-in laser-assisted autofocus and distance calibration tools.
Can the T540-EST be integrated into existing access control or building management systems?
Yes—via HDMI video output for real-time display or USB-C data streaming with FLIR Screen-EST™ Desktop Software SDK for custom API integration.
How often does the system require recalibration?
The uncooled detector is factory-calibrated for life; periodic verification against a NIST-traceable blackbody source (e.g., FLIR Blackbody BB350) is recommended every 12 months for regulatory audit readiness.
