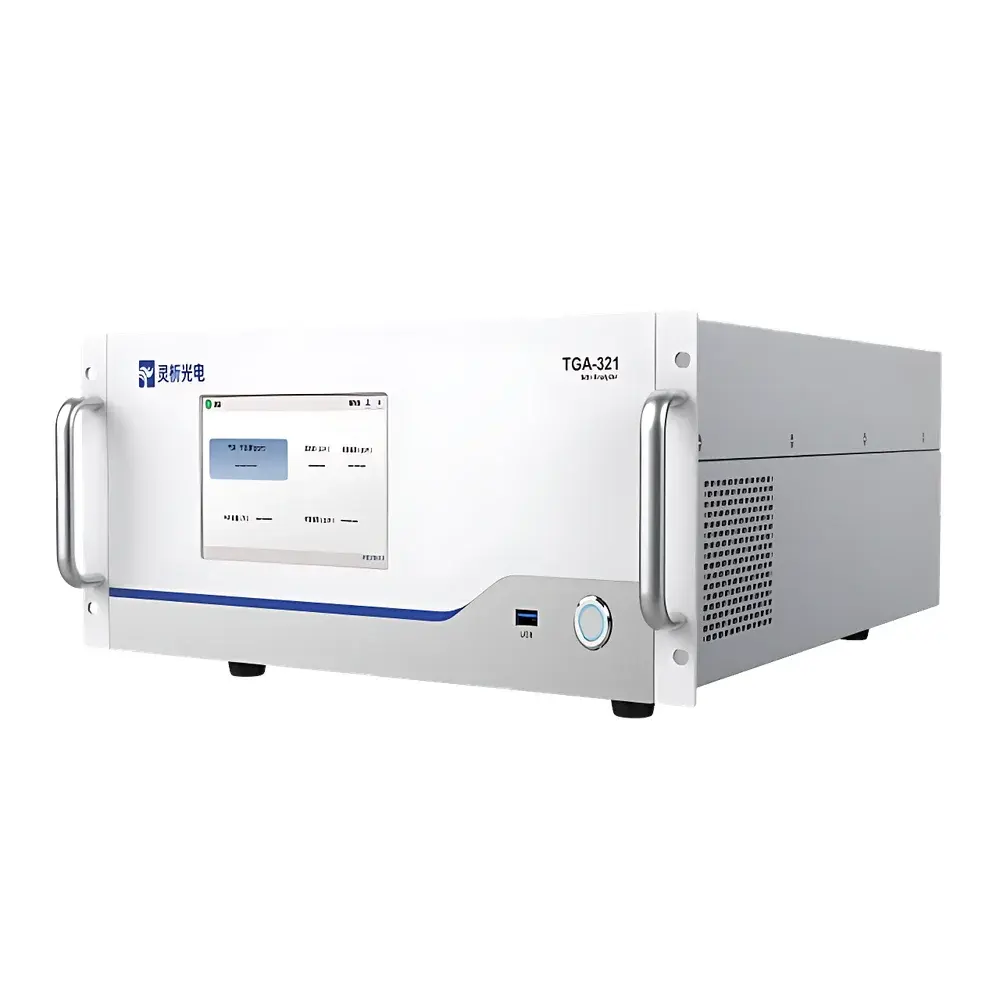

Focuslight TGA-321 High-Precision Trace Gas Analyzer

Overview

The Focuslight TGA-321 High-Precision Trace Gas Analyzer is an industrial-grade online gas analyzer engineered specifically for continuous air molecular contamination (AMC) monitoring in semiconductor manufacturing environments. It employs Cavity Ring-Down Spectroscopy (CRDS), a highly sensitive laser absorption technique that measures the decay time of light trapped within a high-finesse optical cavity. When trace ammonia (NH₃) molecules are introduced into the cavity, they attenuate the laser pulse at a characteristic near-infrared wavelength (typically ~1530 nm), enabling quantitative detection via exponential decay rate analysis. Unlike conventional methods such as ion mobility spectrometry (IMS) or ion chromatography (IC), CRDS delivers inherent calibration stability, zero consumables dependency, and immunity to flow-rate fluctuations—making it ideal for unattended, long-term deployment in Class 1–10 cleanrooms and front-end tool interfaces.

Key Features

• Sub-ppt (parts-per-quadrillion) detection limit for NH₃, validated per ASTM E2894-22 guidelines for AMC monitoring in microelectronics fabrication
• Optically coated internal flow path with inert, low-adsorption surface treatment (e.g., SilcoNert® or equivalent passivation) to minimize NH₃ wall adsorption and ensure <60-second T₉₀ response time
• Compact, low-volume measurement cavity (<100 mL) optimized for rapid gas exchange and reduced residence time—critical for real-time process feedback
• Factory-calibrated optical baseline with drift compensation algorithm; no field recalibration required for ≥12 months under ISO 14644-8 compliant operating conditions
• Integrated temperature- and pressure-stabilized laser source and photodetector module, ensuring measurement reproducibility across ambient variations (15–30 °C, 70–105 kPa)
• Rugged 19-inch rack-mount chassis (4U height) with IP54-rated enclosure, designed for integration into SEMI-compliant factory automation systems

Sample Compatibility & Compliance

The TGA-321 is configured exclusively for gaseous NH₃ quantification in ultra-dry, particle-free air streams typical of semiconductor fab ambient monitoring points—including cleanroom supply ducts, FOUP (Front Opening Unified Pod) purge lines, and lithography tool exhaust manifolds. It complies with SEMI F21-0220 (Standard Guide for AMC Monitoring in Semiconductor Manufacturing) and supports data integrity requirements aligned with FDA 21 CFR Part 11 through optional audit-trail-enabled firmware. All wetted materials—including stainless-steel 316L sample inlet, PFA-lined valves, and fused-silica optical windows—meet USP Class VI and ISO 10993 biocompatibility criteria for inert gas handling. No interference is observed from common background species (H₂O < 1 ppmv, CO₂ < 400 ppmv, O₂, N₂) within specified operating ranges.

Software & Data Management

The analyzer operates via embedded Linux-based firmware with a web-accessible GUI (HTTPS/SSL encrypted) supporting remote configuration, real-time waveform visualization, and alarm threshold management. Measurement data are timestamped with NTP-synchronized UTC accuracy and exported in CSV/JSON formats via Ethernet (TCP/IP) or Modbus TCP for integration into MES (Manufacturing Execution Systems) or SCADA platforms. Optional data logging includes full spectral decay curve capture for root-cause diagnostics. Firmware adheres to IEC 62443-3-3 security requirements, featuring role-based access control (admin/operator/user), secure boot, and firmware signature verification. Audit trails record all parameter changes, user logins, and calibration events—fully traceable for GLP/GMP audits.

Applications

• Continuous AMC monitoring of NH₃ in semiconductor cleanroom ambient air per ISO 14644-8 Annex D
• In-line monitoring of FOUP purge gas purity during wafer transport and storage
• Real-time feedback control of chemical filtration systems (e.g., activated carbon or impregnated alumina beds)
• Qualification and validation of point-of-use (POU) gas delivery systems in advanced packaging and EUV lithography facilities
• Supporting ISO/IEC 17025-accredited laboratory testing for AMC compliance reporting

FAQ

Does the TGA-321 require periodic calibration gas standards?

No—CRDS is an absolute measurement technique based on fundamental optical decay physics. The instrument maintains traceability to NIST-traceable laser wavelength references and requires only annual verification using certified zero-air and NH₃ reference standards.
Can it be integrated into existing fab-wide monitoring networks?

Yes—Modbus TCP, OPC UA, and HTTP REST API interfaces are standard. It is preconfigured for compatibility with major semiconductor MES vendors including Applied Materials MFGLink and Tokyo Electron FabCenter.
What maintenance intervals are recommended?

Filter replacement every 6 months (part number FL-TGA321-FIL-01); optical cavity inspection annually; no laser or detector replacement required within 5 years under normal operation.
Is the analyzer suitable for Class 1 cleanroom installation?

Yes—the unit meets SEMI S2-0219 safety requirements and is rated for operation inside ISO Class 1–10 environments when installed with appropriate vibration isolation and ESD grounding per SEMI E172-0720.
