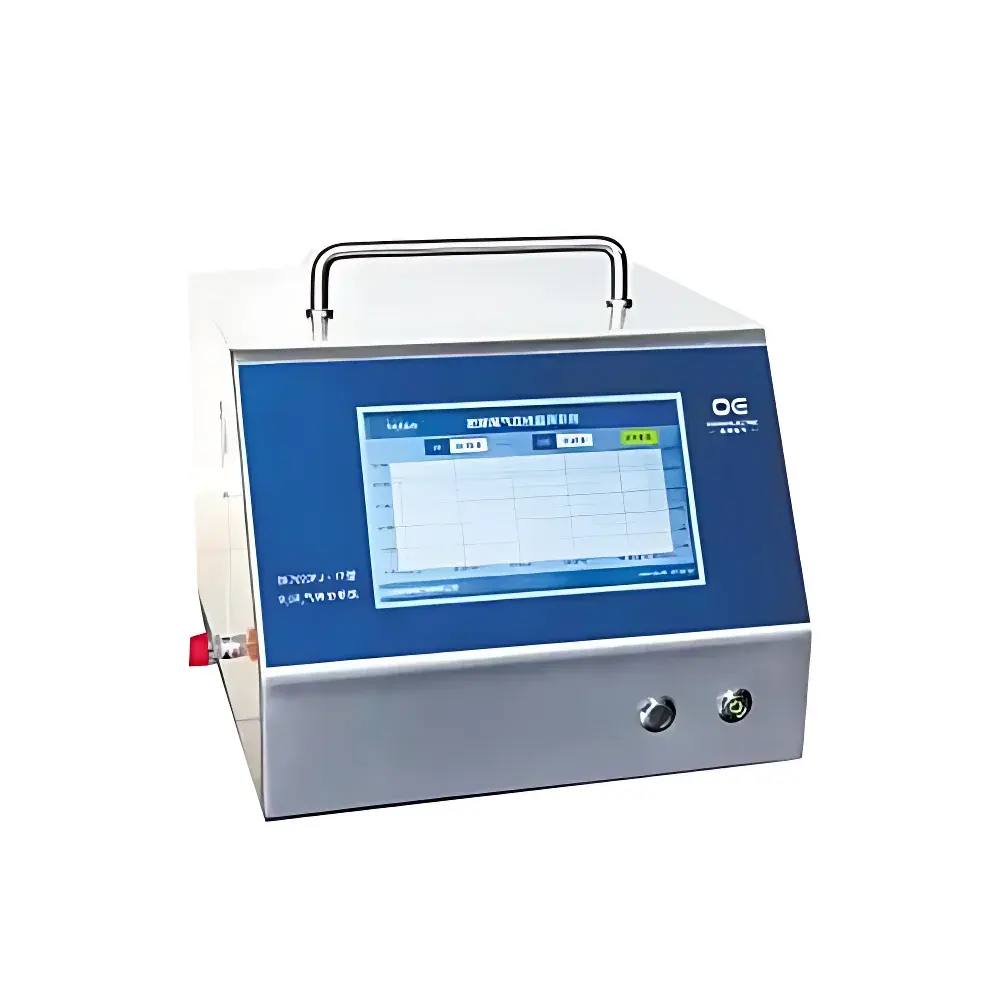

FOREVERGEN OE Series Online CO₂ & O₂ Off-Gas Analyzer for Bioreactor Fermentation Monitoring

Overview

The FOREVERGEN OE Series Online CO₂ & O₂ Off-Gas Analyzer is an engineered solution for real-time, non-invasive monitoring of respiratory gas exchange in aerobic bioprocesses. Designed specifically for integration with laboratory- and pilot-scale bioreactors, it employs visible light absorption spectroscopy—a robust, drift-resistant optical method—to quantify carbon dioxide and oxygen concentrations in fermentation off-gas streams. By continuously measuring CO₂ and O₂ partial pressures upstream and downstream of the bioreactor exhaust, the system enables calculation of critical physiological parameters: Oxygen Uptake Rate (OUR), Carbon Dioxide Evolution Rate (CER), and Respiratory Quotient (RQ). These metrics serve as dynamic, culture-specific proxies for metabolic activity, biomass accumulation, and substrate utilization efficiency—without requiring invasive sampling or offline assays. The analyzer operates under ambient pressure and temperature conditions typical of standard fermentation exhaust lines, with no consumables, zero calibration gases, and minimal maintenance requirements.

Key Features

• Fully automated, continuous operation with no manual intervention required during extended fermentation runs (up to 200+ hours)
• Dual-channel optical detection architecture ensuring simultaneous, synchronized measurement of CO₂ and O₂ at sub-second response time (T₉₀ < 1.5 s)
• Integrated flow control module maintaining stable sample draw rate (1–2 L/min) across variable bioreactor backpressure conditions
• Temperature-compensated photodetector array calibrated per ISO 17025-accredited procedures to ensure long-term signal stability
• IP54-rated enclosure suitable for controlled laboratory environments and cleanroom-adjacent utility spaces
• Modular design supports optional integration with third-party bioreactor control systems via 4–20 mA analog outputs and Modbus RTU over RS-485

Sample Compatibility & Compliance

The OE analyzer is validated for use with sterile-filtered, moisture-saturated off-gas from aerobic microbial fermentations—including Escherichia coli, Saccharomyces cerevisiae, Pichia pastoris, and filamentous fungi—operating at working volumes from 1 L to 100 L. It accommodates typical exhaust gas compositions containing up to 15% CO₂ and 0–21% O₂, with water vapor content up to 95% RH. No chemical scrubbing or drying is required prior to analysis, as the optical path is designed to tolerate condensate-free humid gas streams. While not certified for hazardous area installation (e.g., ATEX/IECEx), the unit complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-3 (EMC emissions) standards. Data integrity aligns with GLP and GMP principles: all raw sensor readings, timestamped at 1 Hz resolution, are retained locally with audit-trail-capable firmware (supporting FDA 21 CFR Part 11-compliant configurations when paired with validated host software).

Software & Data Management

The OE analyzer connects natively to FOREVERGEN’s FermentSoft™ v3.2 platform (Windows-based), which provides real-time visualization of CO₂/O₂ trends, automated calculation of OUR, CER, and RQ using standardized mass balance equations, and export of time-series data in CSV, Excel, and HDF5 formats. All calculations follow the methodology defined in Biotechnology and Bioengineering (Vol. 114, Issue 7, 2017) for off-gas analysis in stirred-tank reactors. The software includes configurable alarm thresholds (e.g., RQ deviation > ±0.15 indicating metabolic shift), batch comparison tools, and PDF report generation with embedded metadata (operator ID, bioreactor ID, inoculum OD₆₀₀). Raw spectral data and processed parameters are stored with SHA-256 hash verification to prevent tampering; system logs record all user actions, configuration changes, and firmware updates for full traceability.

Applications

• Monitoring growth phase transitions (lag → exponential → stationary) in recombinant protein expression processes
• Detecting onset of overflow metabolism (e.g., acetate formation in E. coli) via RQ inflection points
• Optimizing feed strategies in fed-batch cultivations by correlating CER peaks with nutrient depletion events
• Validating scale-up consistency between lab- and pilot-scale bioreactors using dimensionless OUR/CER ratios
• Supporting quality-by-design (QbD) frameworks for biopharmaceutical manufacturing by establishing multivariate process signatures
• Teaching core bioprocess engineering concepts—including stoichiometric modeling and respiratory control analysis—in university bioreactor laboratories

FAQ

Does the OE analyzer require zero/span calibration with certified gas standards?
No. The visible light absorption method uses fixed-wavelength LED sources and reference photodiodes, eliminating drift-related calibration needs. Factory calibration is performed once per unit and remains valid for the instrument’s service life under normal operating conditions.
Can the OE be installed directly on a stainless-steel exhaust line without bypass sampling?
Yes. It supports direct inline mounting via 1/4″ Swagelok fittings and includes a heated sample line option (optional) for applications prone to condensation at low ambient temperatures.
Is the system compatible with single-use bioreactors (SUBs)?
Yes. The analyzer interfaces seamlessly with SUB exhaust manifolds equipped with standard 6 mm or 8 mm tubing ports; no modifications to the bag or vessel are required.
What is the minimum detectable change in O₂ concentration?
The system achieves a resolution of 0.05% O₂ (v/v) across its 0–21% measurement range, sufficient to resolve subtle shifts during late-log or early-stationary phase transitions.
How is data synchronization handled when multiple OE units monitor parallel bioreactors?
All units broadcast NTP-synchronized timestamps over Ethernet; FermentSoft™ automatically aligns time-series data from up to 16 analyzers using hardware-accelerated interpolation for cross-batch statistical analysis.
