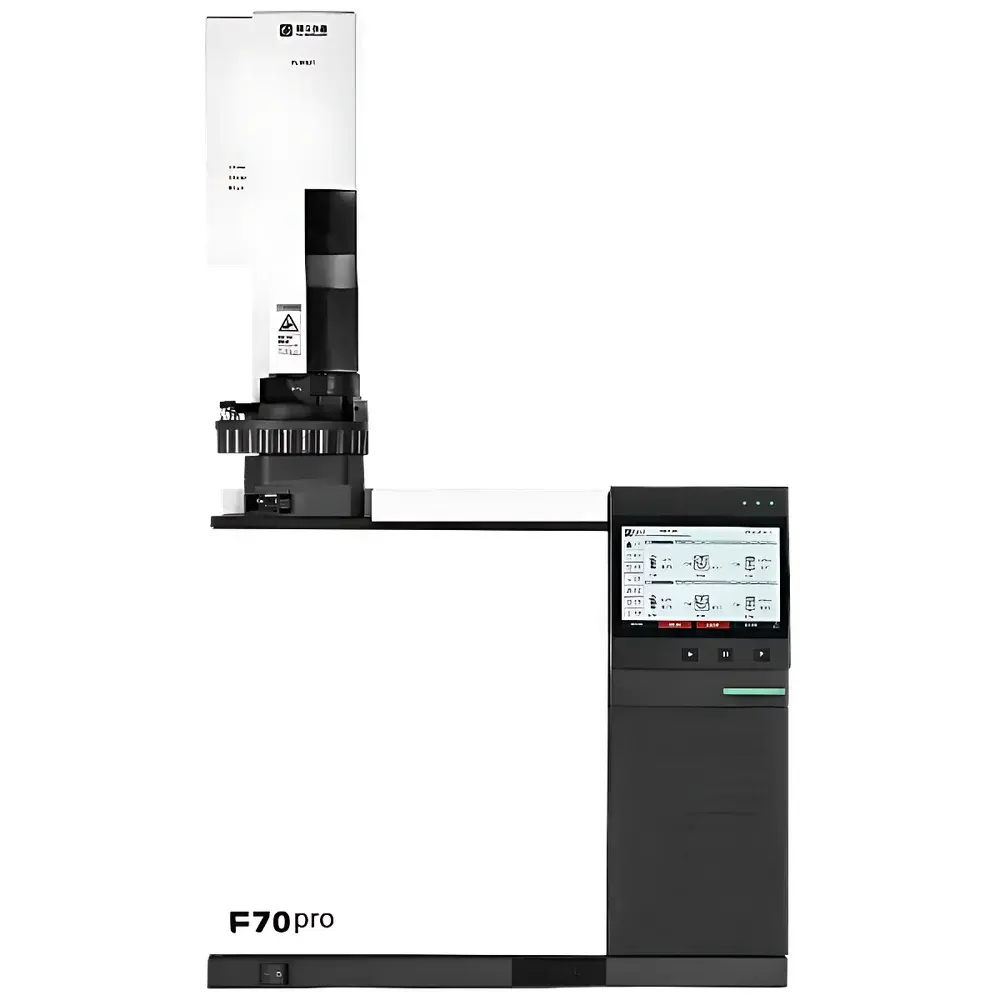

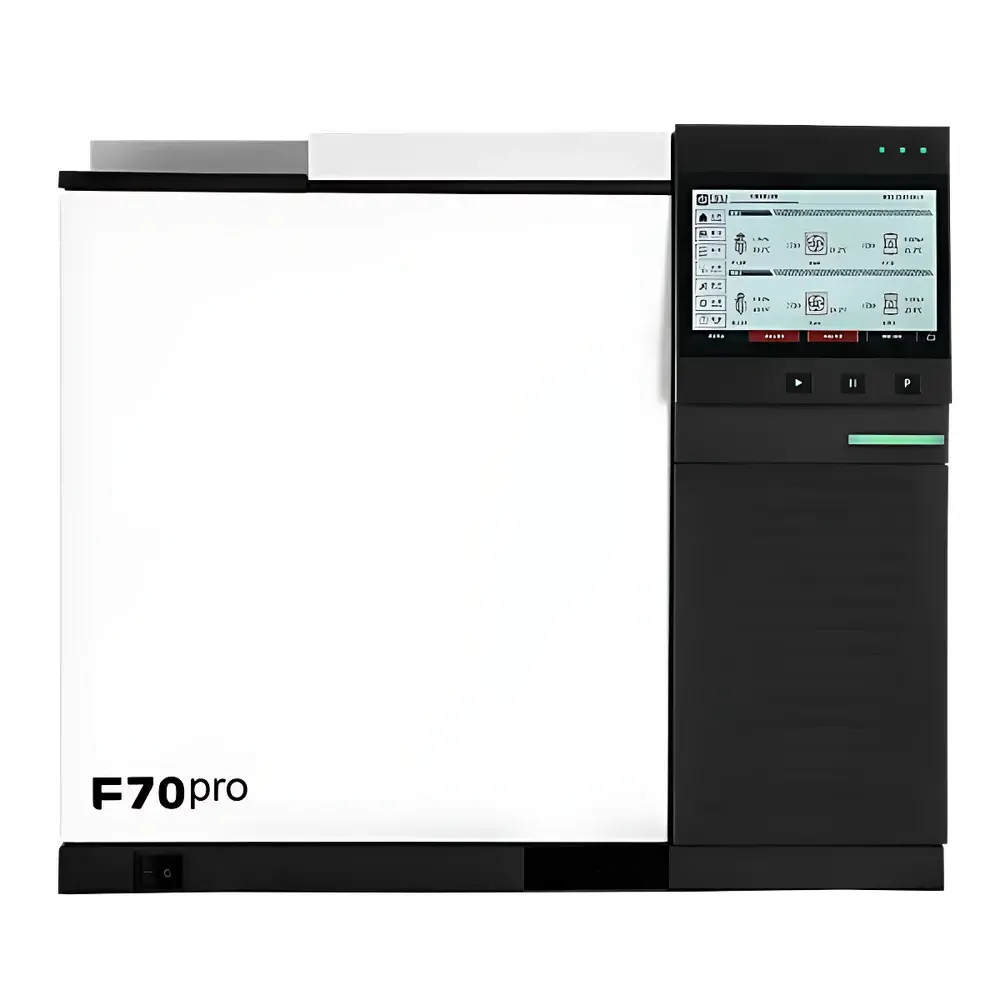

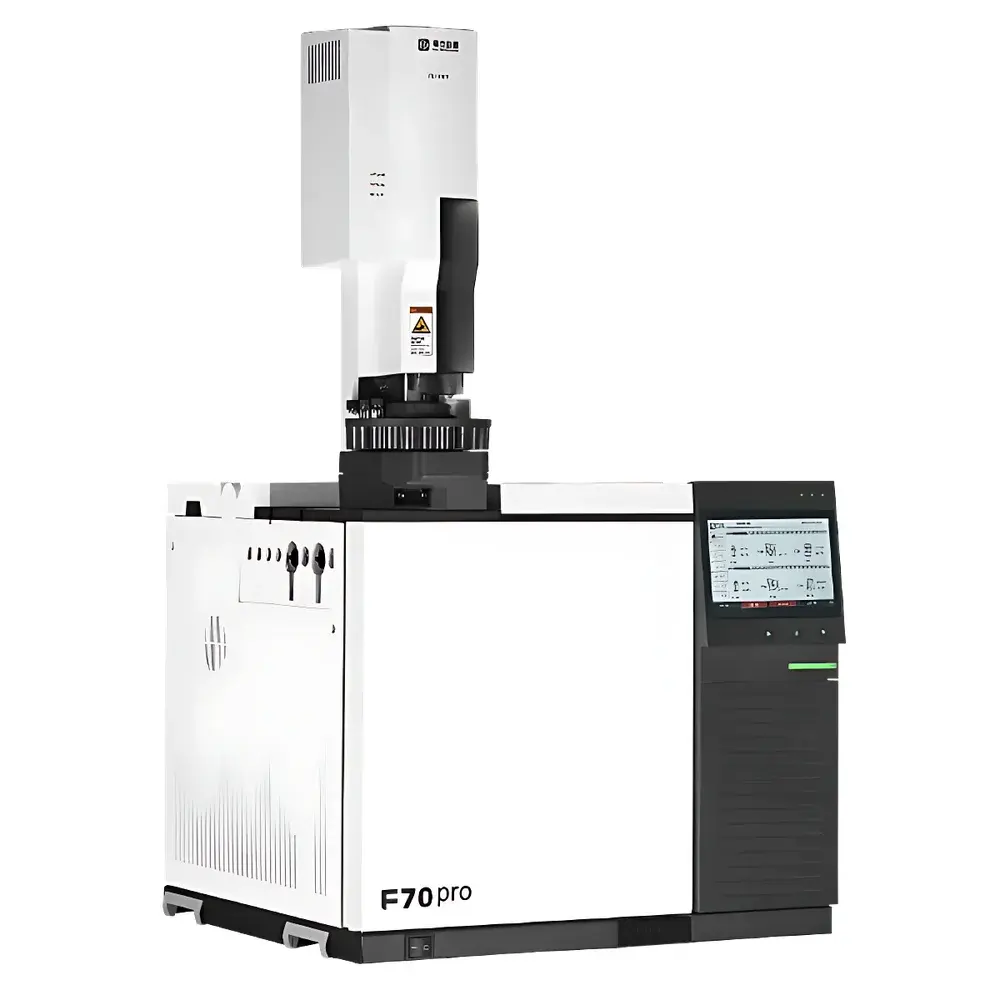

Fortel F70Pro Gas Chromatograph
| Brand | Fortel |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Laboratory Gas Chromatograph |
| Model | F70Pro |
| Application Scope | General-Purpose Analysis |
| Detector Options | FID, TCD, ECD, FPD, NPD |
Overview
The Fortel F70Pro Gas Chromatograph is a laboratory-grade, general-purpose analytical instrument engineered for precision, robustness, and operational flexibility in routine and complex volatile organic compound (VOC) separations. Built upon the proven architecture of the F70 platform, the F70Pro integrates an Advanced Flow Control (AFC) pneumatic system to deliver highly stable carrier gas pressure and flow regulation—critical for retention time reproducibility and quantitative accuracy across multi-method workflows. Its core separation principle relies on partitioning analytes between a mobile phase (inert carrier gas, e.g., He, H2, or N2) and a stationary phase coated inside a fused-silica capillary column. Temperature-programmed oven control (with ramp rates up to 60 °C/min and stability ±0.01 °C) ensures optimal resolution for co-eluting peaks and thermally labile compounds. Designed for ISO/IEC 17025-aligned laboratories, the F70Pro supports method traceability, audit-ready operation logs, and GLP/GMP-compliant data integrity when paired with validated software environments.
Key Features
- Advanced Flow Control (AFC) Pneumatic System: Digital mass flow controllers and pressure sensors enable real-time, closed-loop regulation of inlet pressure, split/splitless flow, and detector make-up gas—achieving flow accuracy within ±0.1 mL/min and pressure stability better than ±0.01 psi.
- Intuitive Touchscreen HMI: A 7-inch high-resolution capacitive touchscreen with anti-glare coating provides full method setup, real-time chromatogram display, system status monitoring, and diagnostics—all without external PC dependency during acquisition.
- Modular Detector Architecture: Interchangeable detector bays accommodate FID (with durable metal jet), TCD, ECD, FPD (short-path optical design for enhanced S/P selectivity), and NPD—each calibrated for wide linear dynamic range (e.g., FID: 107), supporting ppm to sub-ppt detection limits depending on configuration.
- Smart Consumables Management: Integrated usage counters track septum actuations, liner insert cycles, and split vent trap saturation; alerts trigger via HMI or workstation interface to minimize downtime and method drift.
- Rapid Leak Detection Protocol: Automated pressure decay test sequence (user-initiated or scheduled) quantifies system integrity in under 90 seconds—validating column installation, ferrule seating, and gas line integrity prior to analysis.
Sample Compatibility & Compliance
The F70Pro accommodates liquid, gaseous, and headspace-derived samples via standard 10–100 µL syringe injection, programmable autosampler integration (up to 162 positions), or optional purge-and-trap and thermal desorption modules. It meets essential performance criteria outlined in ASTM D3606 (gasoline aromatics), EPA Method 8260D (VOCs in water/soil), and ISO 11843-2 (detection capability estimation). When operated with FL97Plus or MyLab software under validated configurations, the system supports 21 CFR Part 11 compliance—including electronic signatures, audit trails, user access levels, and data immutability controls—making it suitable for regulated QC/QA environments in pharmaceuticals, environmental testing, and food safety labs.
Software & Data Management
Two native workstation options are provided: FL97Plus (Windows-based, designed for regulatory compliance and multi-instrument network deployment) and MyLab (lightweight, intuitive interface optimized for teaching labs and method development). Both support peak integration using iterative curve-fitting algorithms (Gaussian, exponential Gaussian), baseline correction with adaptive rolling ball smoothing, and customizable reporting templates (PDF, CSV, XML). Raw data files (.FCH) are stored with embedded metadata (instrument ID, method name, operator, timestamp, calibration history), ensuring full ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) data governance. Backups can be scheduled to NAS or cloud-synced repositories with configurable retention policies.
Applications
- Residual solvent analysis in APIs per ICH Q3C guidelines
- Hydrocarbon profiling in petrochemical feedstocks and finished fuels
- Pesticide residue screening in fruits, vegetables, and grains (multi-residue methods)
- Volatile flavor and fragrance compound identification in beverages and cosmetics
- Environmental monitoring of BTEX, chlorinated solvents, and PAHs in air, water, and soil extracts
- Quality control of industrial monomers, polymers, and specialty chemicals
FAQ
Does the F70Pro support unattended overnight operation?
Yes—the system includes hardware-level watchdog timers, automatic shutdown after method completion, and power-loss recovery protocols that restore pre-interruption conditions upon reboot.
Can third-party columns be used with the F70Pro?
Absolutely—all standard 0.1–0.53 mm ID fused-silica capillary columns with industry-standard fittings (e.g., Agilent, Restek, Thermo) are fully compatible.
Is remote monitoring available?
Via optional Ethernet/Wi-Fi connectivity and Fortel’s WebLink module, users can view real-time status, initiate runs, and receive email/SMS alerts for critical events from any web browser.
What validation documentation is supplied?
Factory-installed IQ/OQ documentation packages—including system suitability test reports, detector sensitivity verification, and temperature uniformity mapping—are provided with each unit.
How often does the AFC system require recalibration?
Under normal operating conditions, annual recalibration is recommended; however, built-in self-diagnostic routines verify flow sensor drift daily and report deviations exceeding ±0.5% of full scale.
