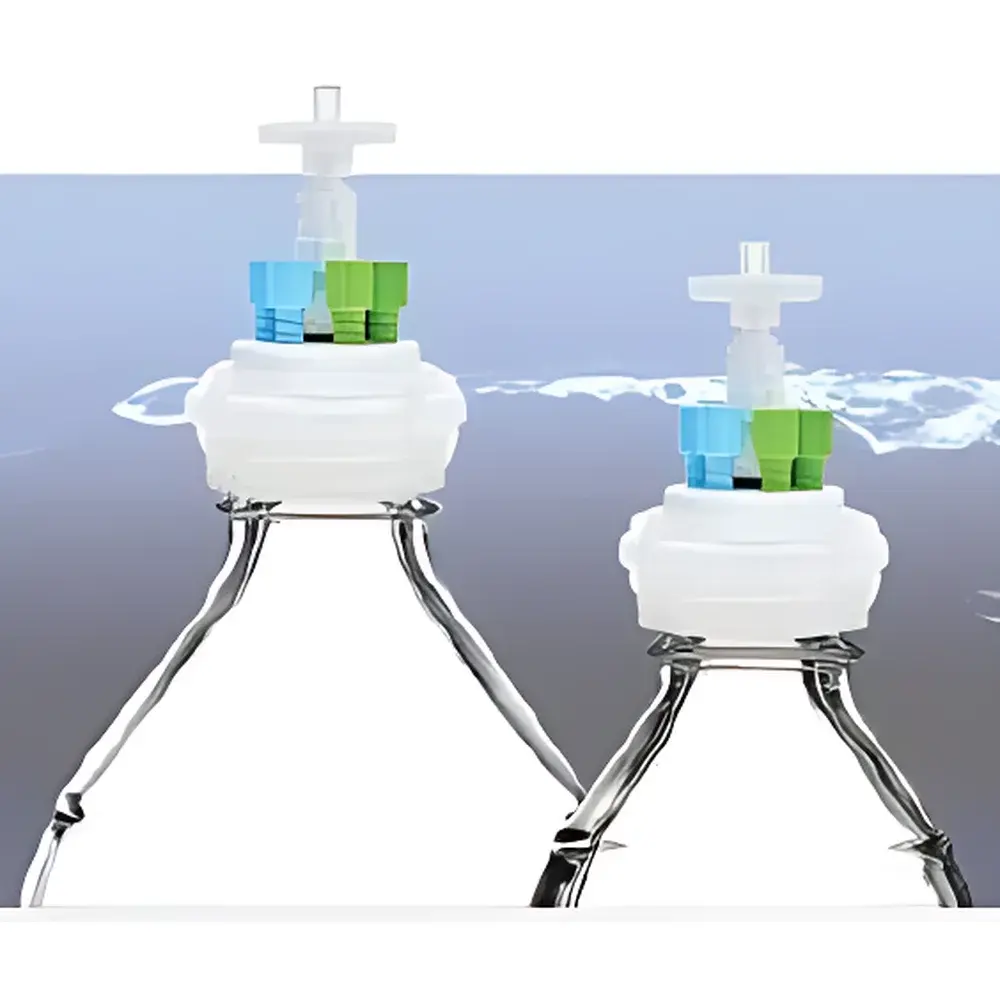

Foxx PUREGRIP® HPLC Solvent Reservoir Cap & Bottle Assembly

Overview

The Foxx PUREGRIP® HPLC Solvent Reservoir Cap & Bottle Assembly is an engineered solution for secure, leak-tight, and vapor-controlled solvent handling in high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) systems. Designed around the patented VersaCap® sealing architecture, this assembly integrates precision-machined polypropylene (PP) fittings, VI-grade PTFE fluid pathways, fluorocarbon (FKM) O-rings, and a dual-function EZFlow® vent filter to maintain system integrity under vacuum aspiration, positive pressure, and long-term static storage conditions. Unlike conventional threaded caps or generic stoppers, the PUREGRIP® system establishes a mechanically stabilized, chemically inert interface between solvent reservoirs and HPLC delivery lines—minimizing vapor loss, preventing cross-contamination, and eliminating tubing slippage during pump priming or gradient elution. Its design conforms to standard GL45 (45 mm) neck specifications and supports seamless integration with Foxx Life Sciences’ 45X-series reservoir bottles and 25 mm inlet filters.

Key Features

• Patented VersaCap® technology enables tool-free, repeatable cap installation with consistent torque-independent sealing force across all GL45 bottle sizes (500 mL, 1000 mL, 2000 mL).
• VI-grade PTFE main tubing (EZwaste® plate-compatible) and FKM O-rings provide broad chemical resistance against acetonitrile, methanol, THF, chloroform, and acidic/basic mobile phases.
• Integrated EZFlow® hydrophobic PTFE vent filter (0.2 µm pore size, gamma-stabilized polypropylene housing) ensures continuous air filtration while blocking solvent vapor diffusion—critical for lab safety and method reproducibility.
• One-way inlet valve with internal check mechanism prevents backflow and suppresses solvent evaporation; opens only at calibrated differential pressure thresholds (typically ≥3 psi above ambient) to sustain controlled airflow during aspiration.
• Leak-proof compression seal formed by inverted PTFE ferrule + A+3B+3C flangeless nut assembly—compatible with all 1/4″-28 flat-bottom ports per ASTM F2139 and ISO 8536-4 dimensional standards.
• Optimized ergonomics: open-top 45 mm VersaCap® design allows unobstructed visual monitoring of solvent level and simplifies filter replacement without disassembling the entire line.

Sample Compatibility & Compliance

The PUREGRIP® assembly is validated for use with borosilicate glass (BROSIL® 3.3) reservoirs—exhibiting thermal shock resistance up to 160 °C and mechanical strength exceeding 60 MPa tensile stress. All wetted components meet USP Class VI biocompatibility requirements and comply with FDA 21 CFR Part 11 data integrity expectations when used in conjunction with Foxx’s audit-trail-enabled software platforms. The system supports GLP/GMP workflows through traceable component lot numbering, documented extractables testing (per USP <661.1>), and compatibility with ISO/IEC 17025-accredited calibration protocols for solvent delivery accuracy verification.

Software & Data Management

While the PUREGRIP® hardware operates independently of software control, it is fully interoperable with Foxx Life Sciences’ HPLC System Manager Suite (v4.2+), which logs cap installation events, filter service intervals, and pressure transducer readings from connected vacuum aspiration modules. Audit trails include timestamps, user IDs, and digital signatures compliant with 21 CFR Part 11 Annex 11 requirements. Filter lifetime tracking utilizes predictive algorithms based on cumulative solvent volume processed and real-time differential pressure drift—automatically flagging maintenance windows prior to breakthrough risk.

Applications

• HPLC/UHPLC mobile phase reservoir management in pharmaceutical QC labs performing compendial assays (USP <621>, EP 2.2.46).
• Automated sample preparation workstations requiring stable solvent headspace control during multi-step derivatization or SPE elution.
• Environmental testing labs processing EPA Method 8081B/8270D extracts where volatile organic compound (VOC) containment is mandated.
• Academic core facilities supporting high-throughput screening with shared instrument pools—reducing downtime caused by cap-related leaks or vapor-induced baseline drift.
• Method development environments where solvent composition stability over 72+ hours is essential for retention time reproducibility (RSD <0.15%).

FAQ

What solvents are compatible with the PUREGRIP® assembly?
All common HPLC-grade solvents—including acetonitrile, methanol, ethanol, isopropanol, tetrahydrofuran, dichloromethane, and aqueous buffers (pH 2–12)—are compatible when used within the specified temperature range (4–40 °C).
Can the EZFlow® vent filter be sterilized?
No. The EZFlow® filter is not autoclavable due to its gamma-stabilized polypropylene housing and hydrophobic PTFE membrane; however, it is supplied pre-sterilized via gamma irradiation (25 kGy) and certified per ISO 11137.
Is the PUREGRIP® cap compatible with non-Foxx brand reservoir bottles?
Yes—provided the bottle features a standard GL45 (45 mm) neck with DIN 16851-compliant thread geometry and flat-bottom port configuration.
How often should the EZFlow® filter be replaced?
Under typical usage (≤2 L/day of mixed organic/aqueous solvents), replacement is recommended every 6–12 months; frequency increases with high-volatility solvents (e.g., hexane, diethyl ether) or elevated ambient temperatures (>30 °C).
Does the assembly support nitrogen sparging?
Yes. The inlet valve permits regulated inert gas purging when configured with an external pressure regulator set below the valve’s cracking pressure—enabling oxygen-sensitive applications such as catecholamine analysis or redox-stable mobile phase preparation.
